Description
Brand New - TBR Performance

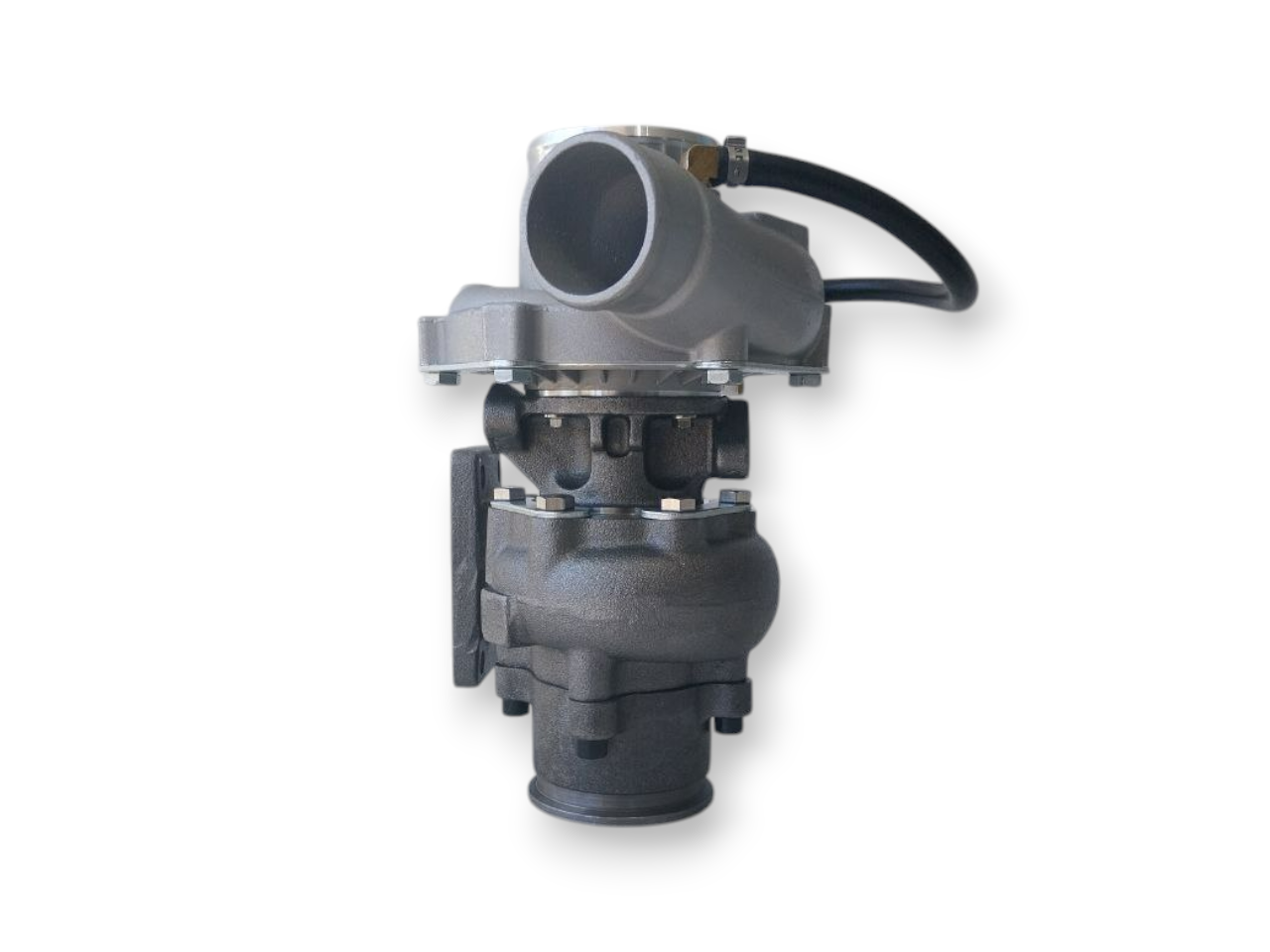

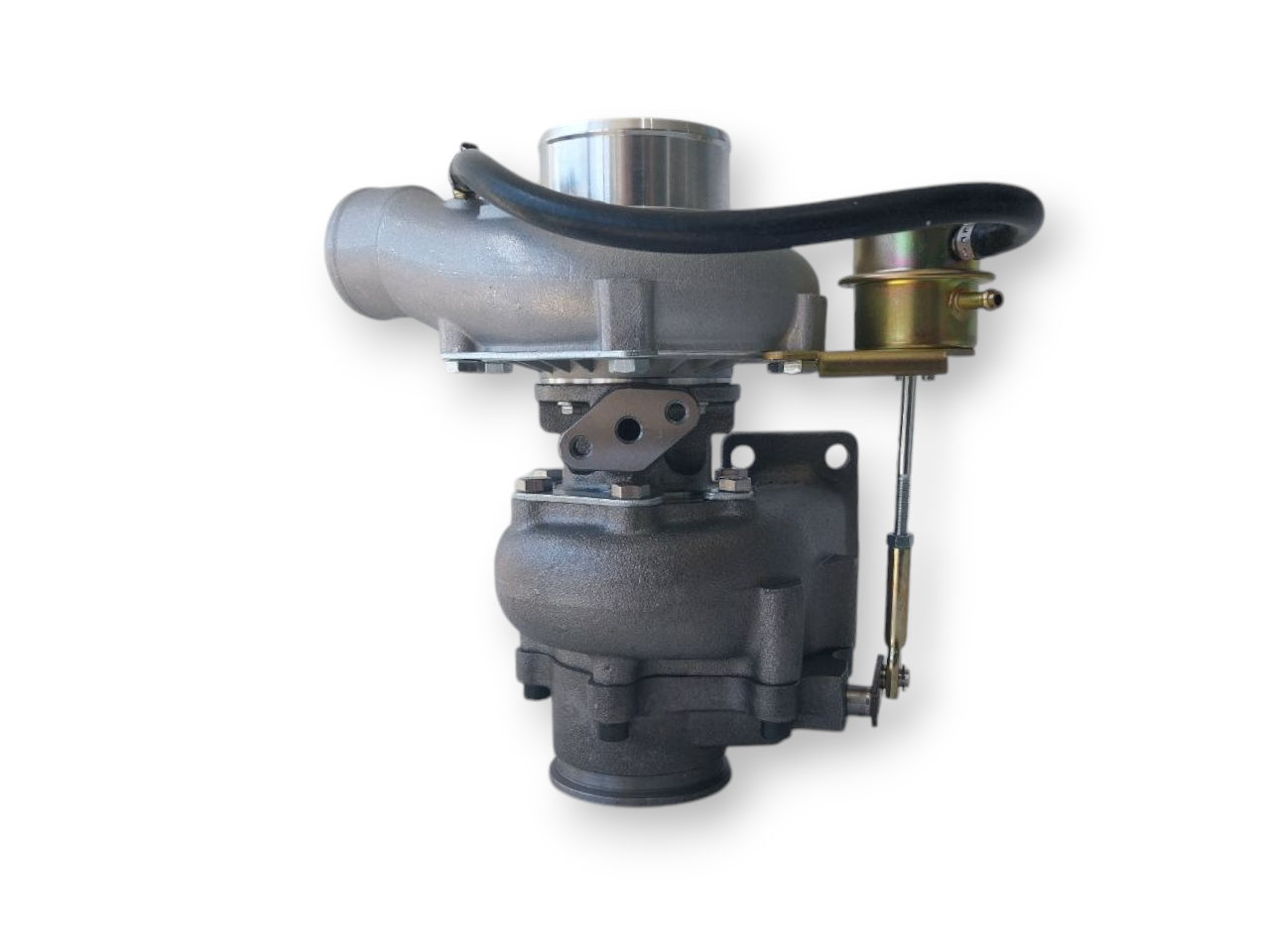

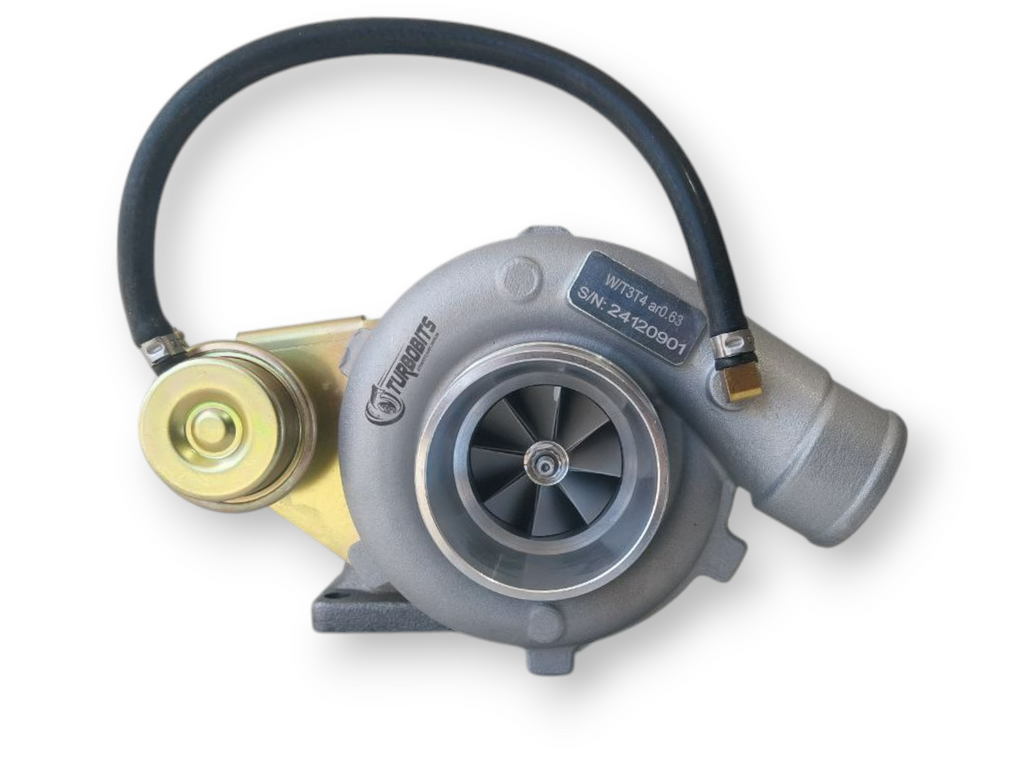

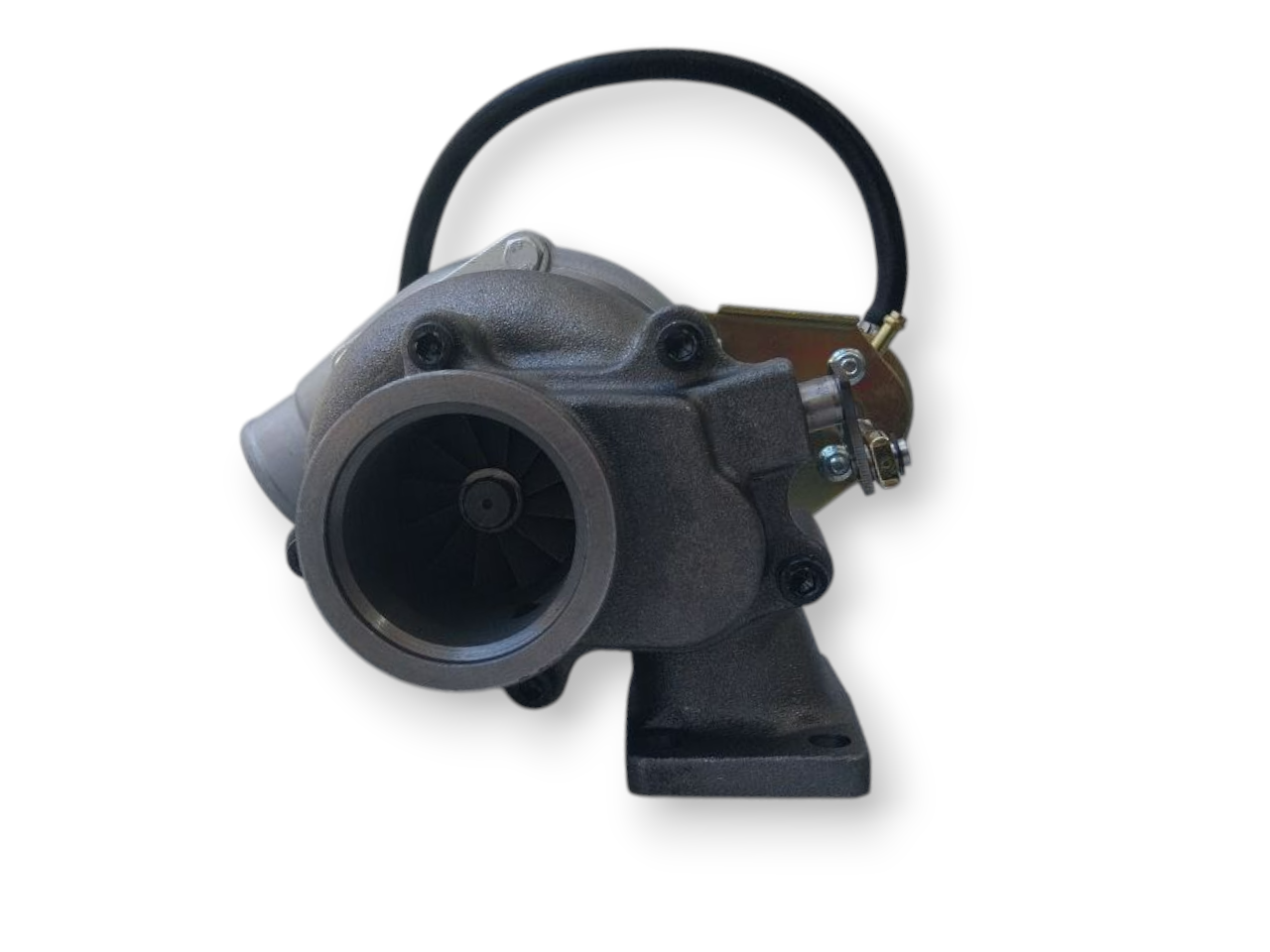

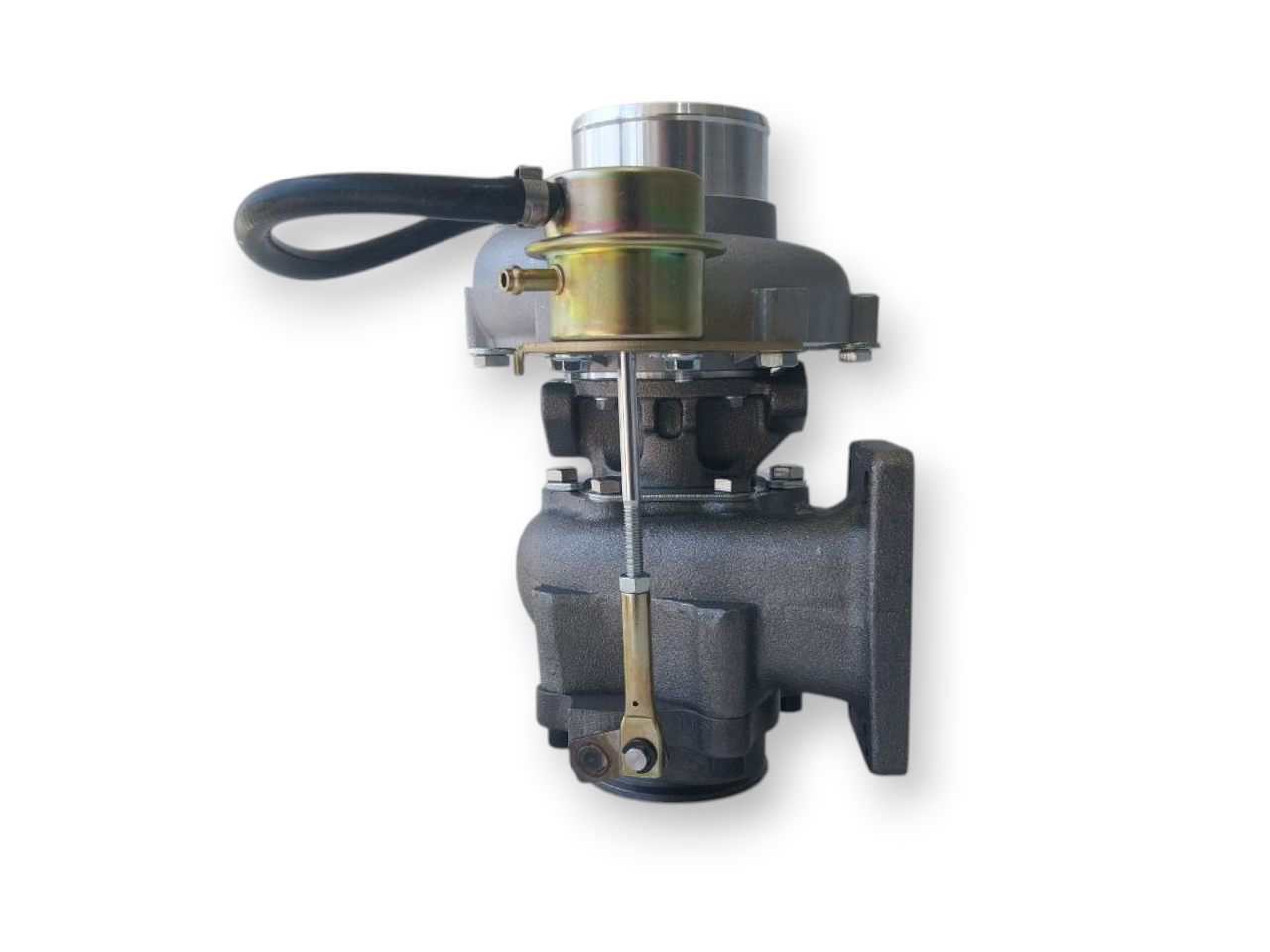

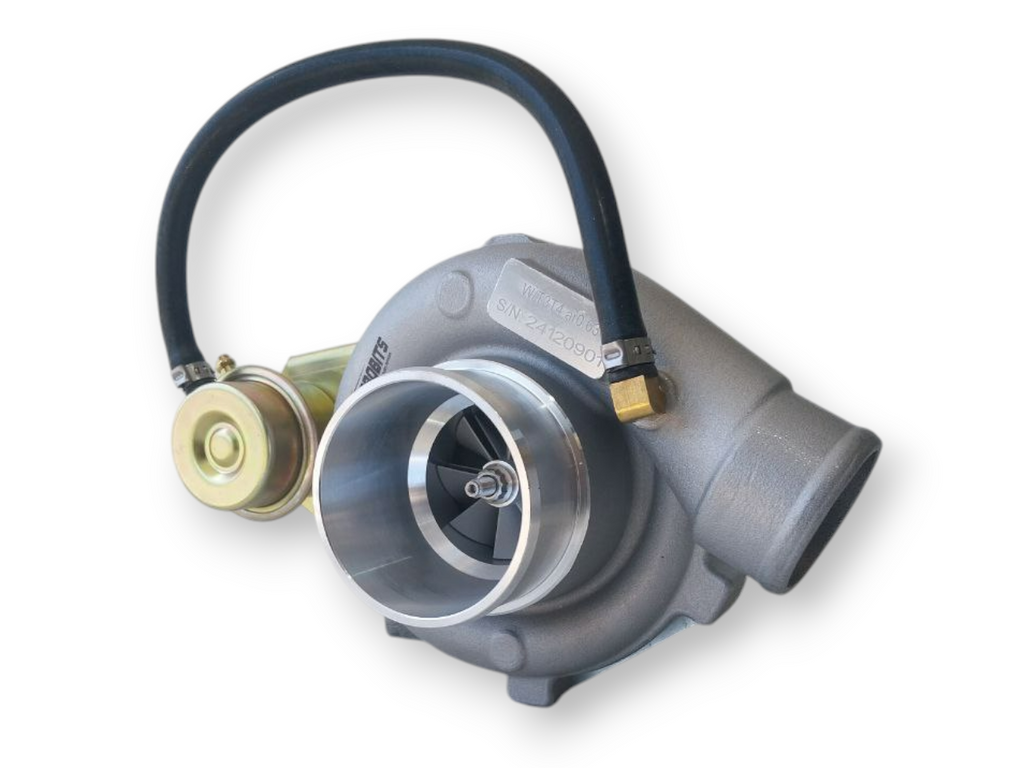

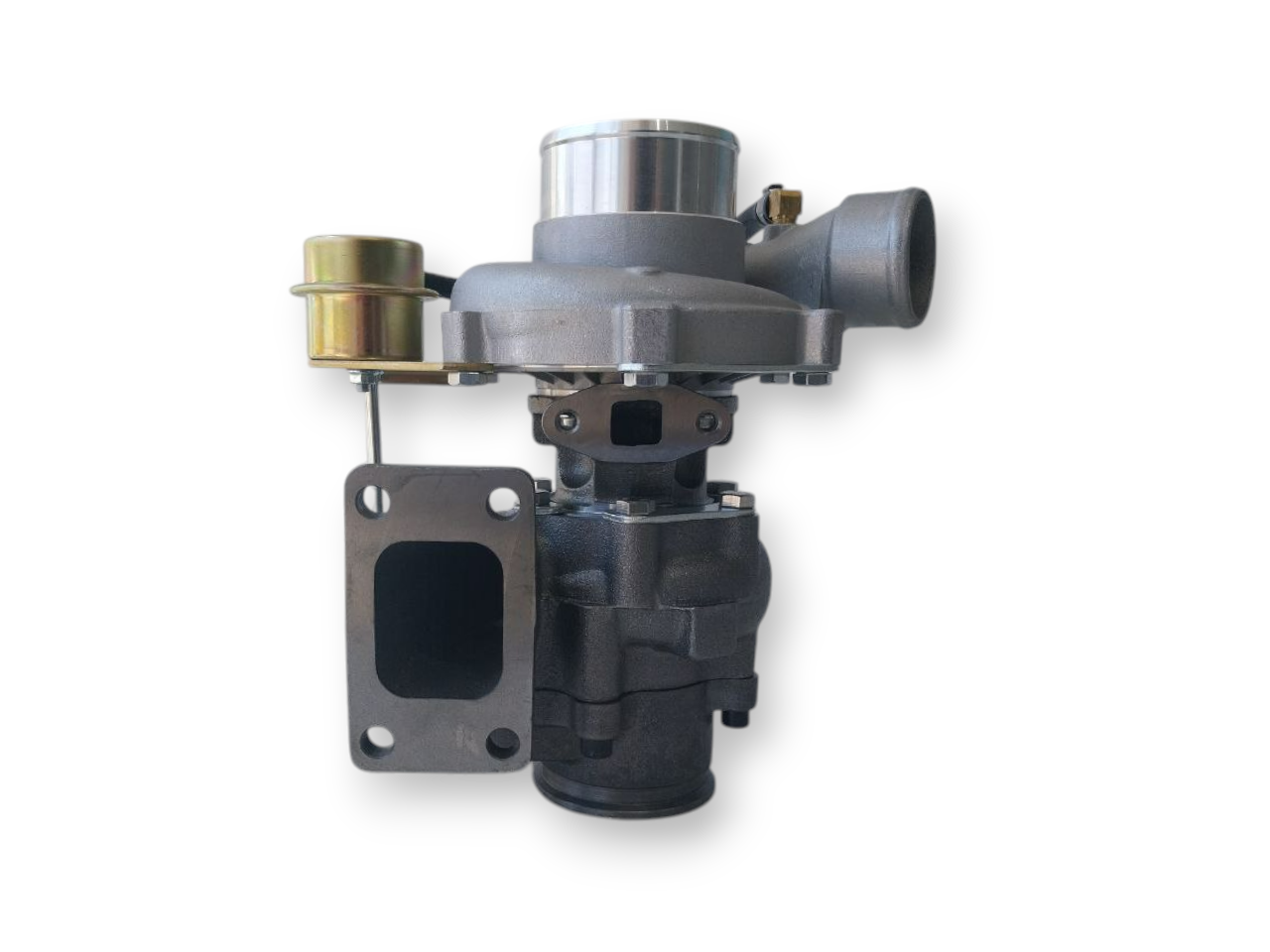

Model: T3T4 T04E
Bearing System: Journal
Flange: T3
Compressor: A/R .50
Turbine: A/R .63 - 63mm (2.50") Inner Diameter V-Band or T04E 5 bolt (if running without v-band)
HP Rating: 250-400hp
Engine size: Petrol 1600cc to 3200cc
Wastegate: Internal or External
T3/T4 Turbocharger with Gaskets and V-Band adapter comes with internal wastegate but can be removed to run externally gated!
Compressor Inlet / Outlet Diameter 3" / 2"
Compressor A/R 0.50
Compressor Inducer / Exducer (MM) 54.0mm / 70.0mm
Exhaust (Turbo Manifold) Flange: Standard T3
Exhaust (Downpipe) Flange: Standard 2.5" Inner Diameter V-Band or T04E 5 bolt (if running without v-band)
Turbine A/R 0.63
Turbine Inducer / Exducer (mm) 56.0mm / 65.2mm
Internal wastegate setting: 14.5 PSI / 1 Bar
Bearing type: Journal Bearing
Cooling: Oil cooled only
The T3/T4 turbocharger is designed to be used on engines displacing 1.6L-3.2L and is typically good for around 400HP. They are also commonly used in twin turbo applications. In this case those figures would be doubled 3.2L-6.0L engines up to 800HP. Horsepower ratings are generally meant to express the turbochargers maximum airflow capability.
Universal application. Additional parts will be needed to complete install. Please consult professional turbo installer for details.
ORDER TOGETHER AND SAVE
- Intercooler Kits
- Silicon Joiners
- Water fittings & water lines
- Oil fittings & Oil lines
- 38mm, 44mm or 60mm external V-Band wastegates
- Blow of valves
- Adjustable Fuel Pressure regulator
- V-Band flange & clamp set
- T3 Manifold adapters
- T3 Flanges
- T4 Flanges
- Flange adapters
- Fuel Pumps
- Turbo Beanies
- Heat Wrap
- Oil coolers
- Boost & vacuum line
+ Much more - Just ask
