Description
Buy quality products from the knowledgeable turbo specialists with 15+ years in the business - Turbo Bits

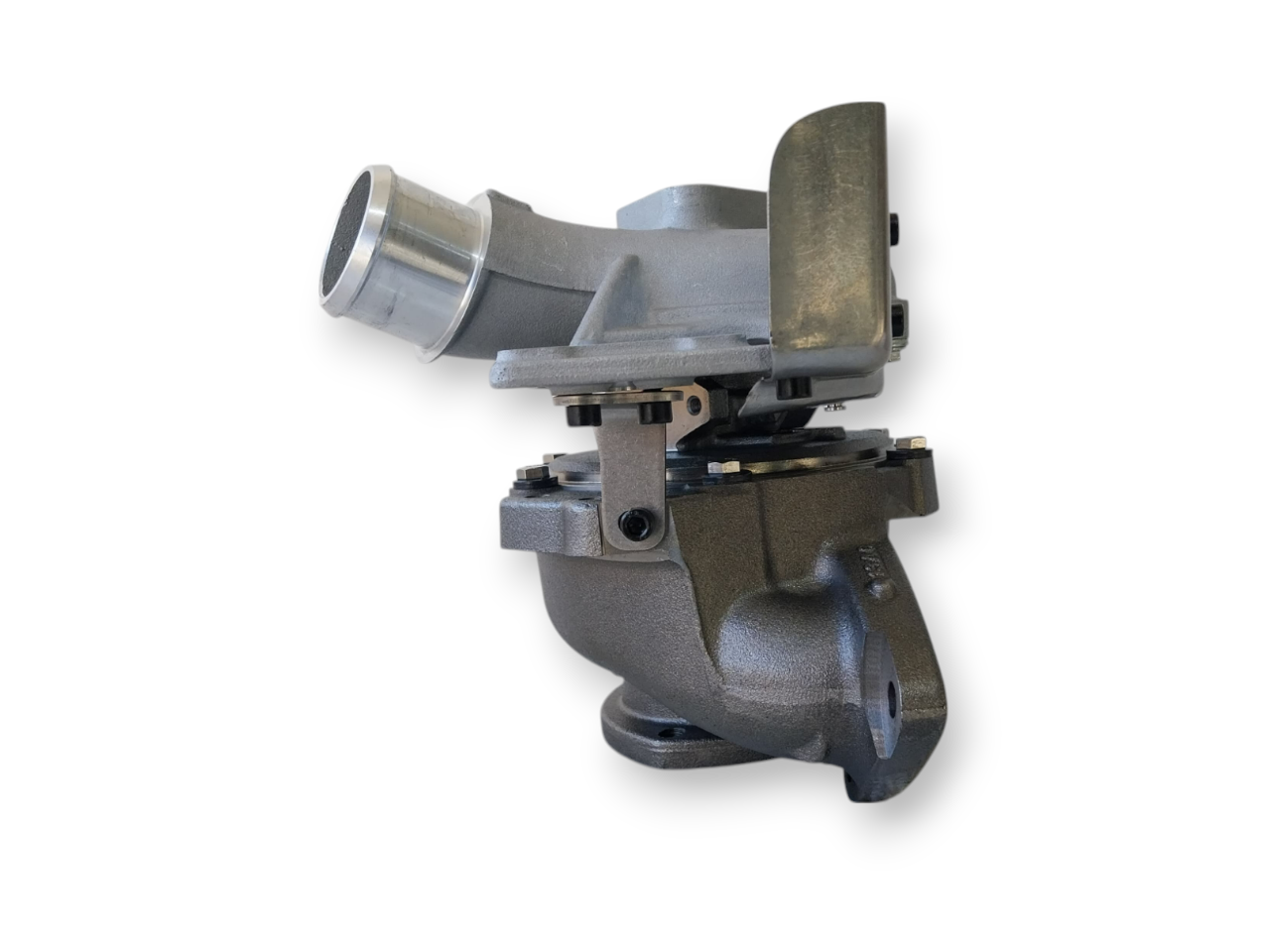

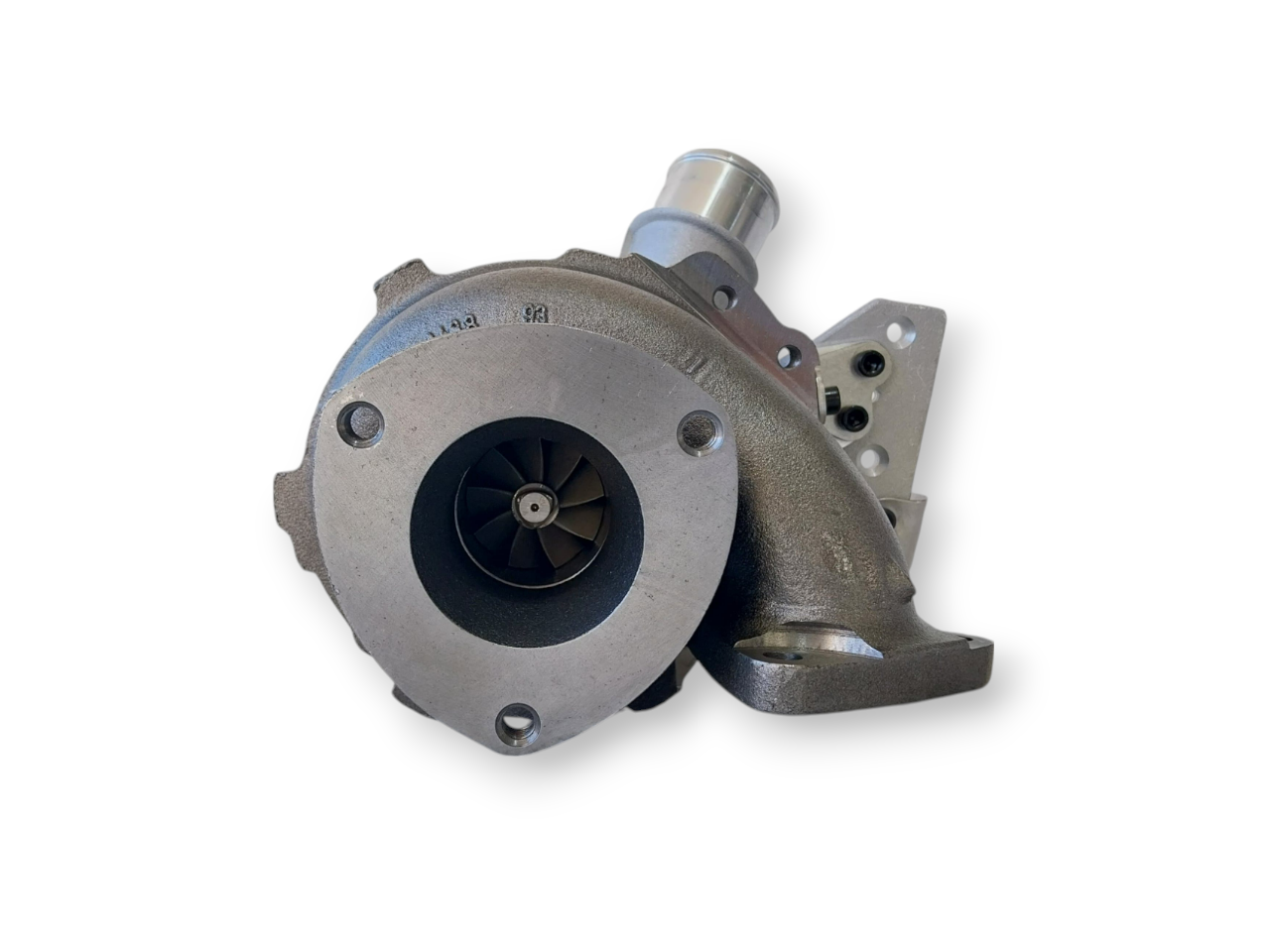

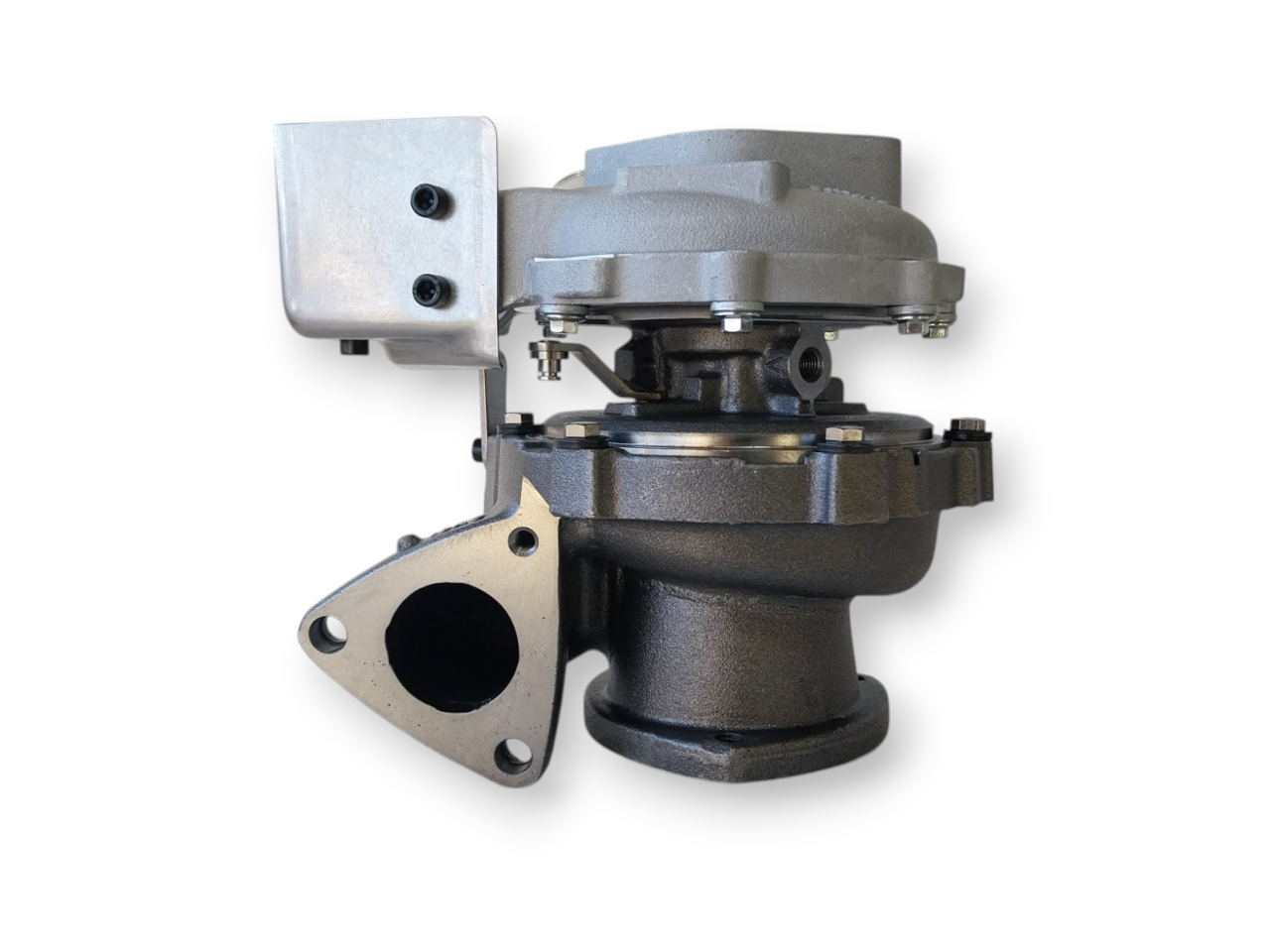

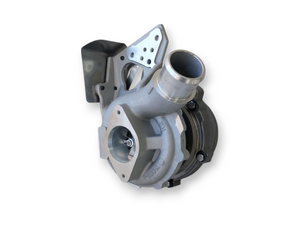

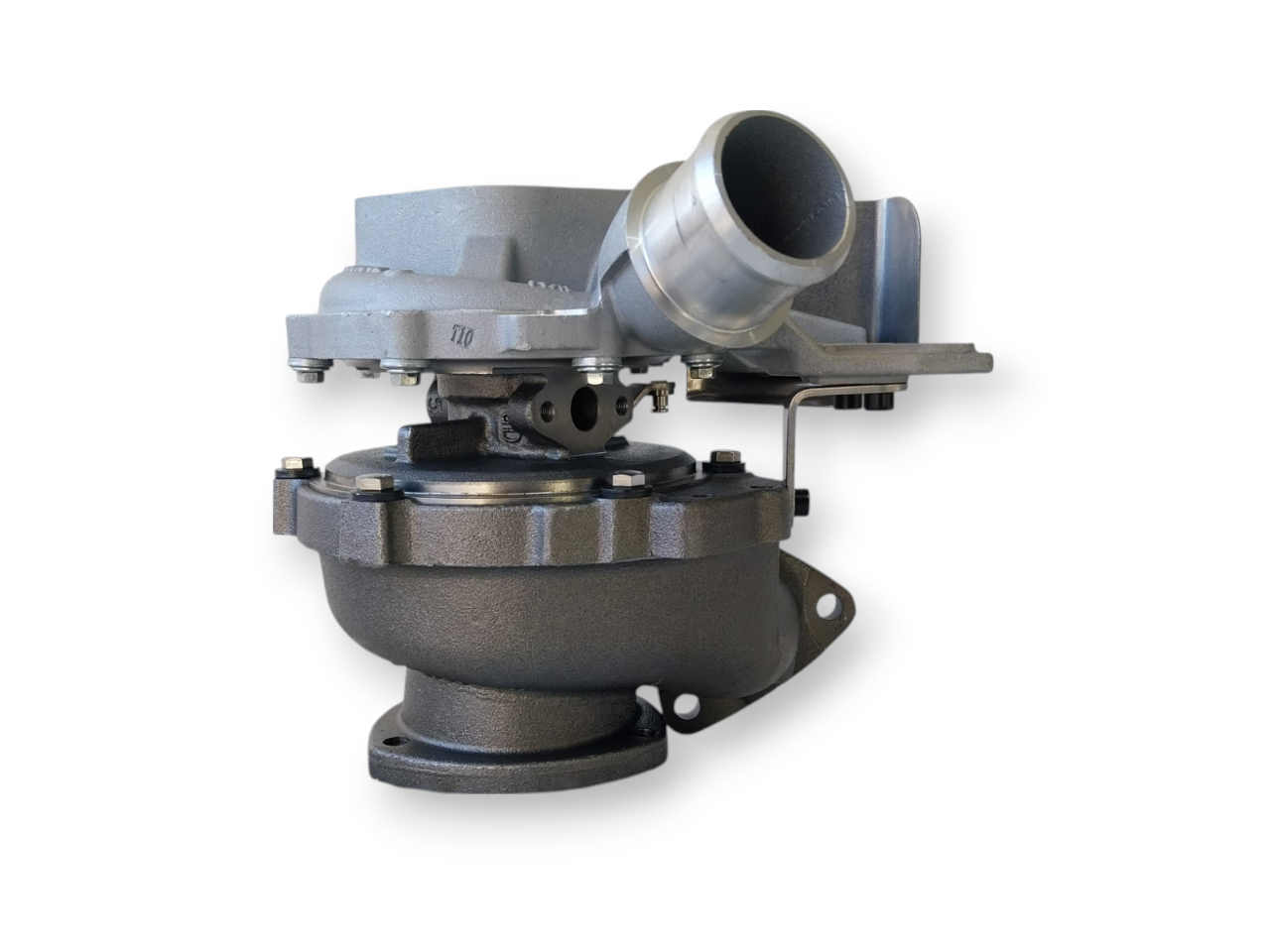

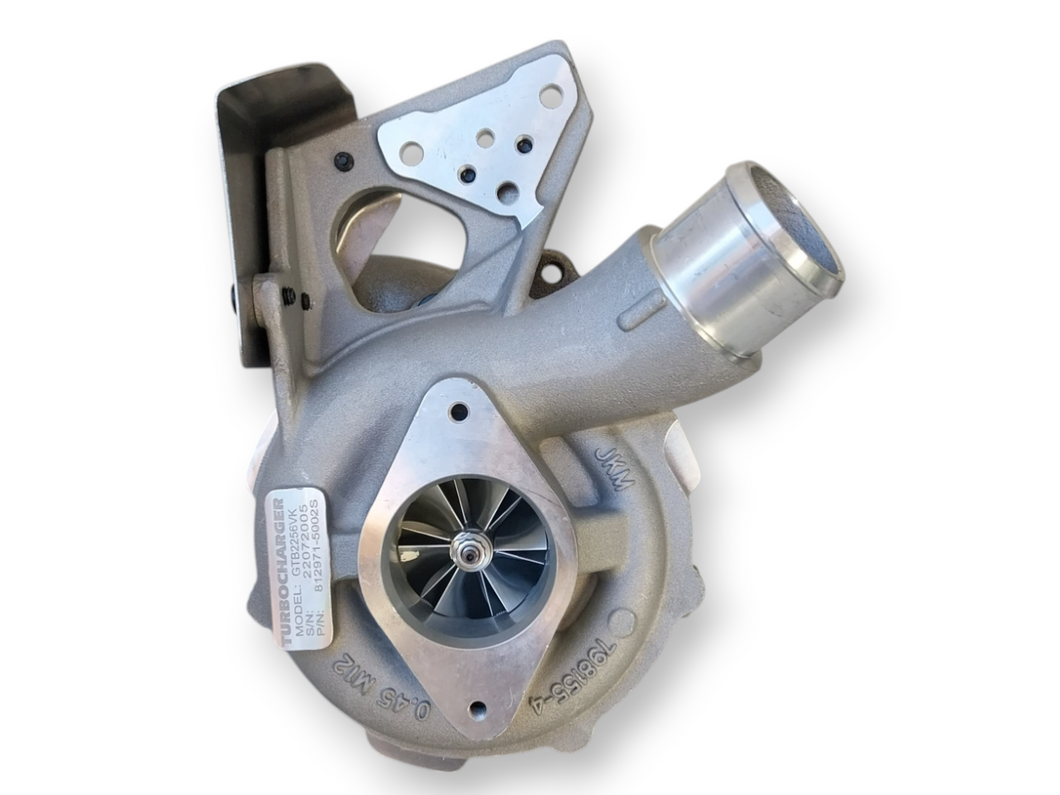

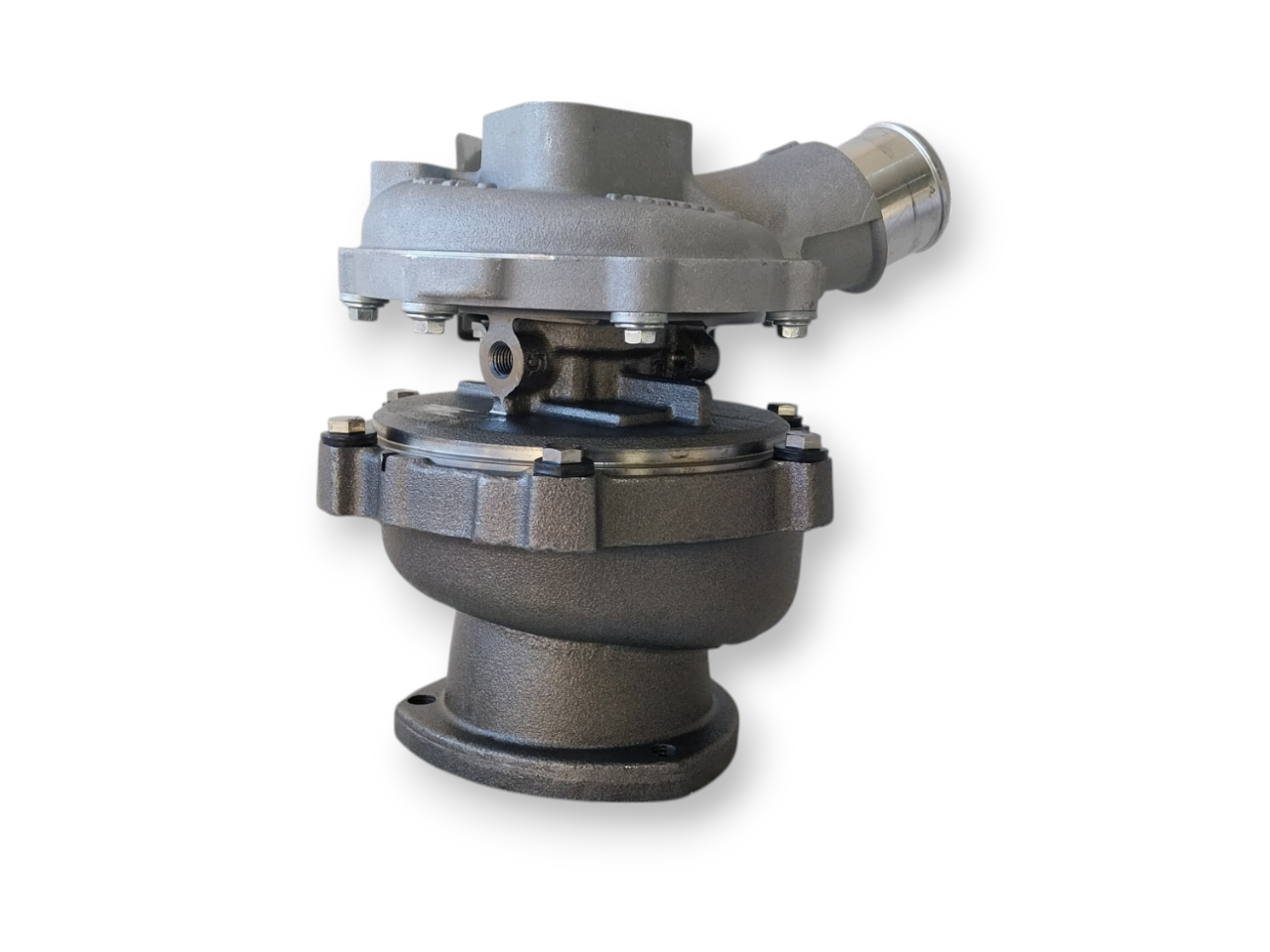

Stage 2 upgrade turbocharger, this product will be a direct bolt in replacement saving on costly customization, Please note you will have to run supporting fuelling, intake, exhaust and a ECU re-flash is highly recommended, please speak with your local tuner for more info and advice around this.
Brand new complete turbocharger, each of our turbos are balanced and tested after assembly.
Direct bolt on replacement upgrade high flow turbo
12 Month Warranty - See terms
Gaskets included
Larger billet compressor wheel
Compressor wheel specs:
inducer : 45.50mm ( stock 39.5mm )
exducer : 62.00mm ( stock 56.0mm )
Brand : Turbo Bits
Part Number : Stage 2 - 812971
Please check your turbo part number with the numbers below, if it’s not there or doesn't match it may still be compatible or chances are we have the correct model, please leave us a message and we can confirm.
Model:
GTB2260VZK
Bolt on upgrade for the following part numbers :
798166, 812971, 853333, 798158, 798166-0007, 798166-5007S, 812971-0006, 812971-5002S, 812971-5006S
BK3Q6K682AB, BK3Q6K682AC, BK3Q6K682RB, BK3Q6K682RC
Applications:
Ford Ranger PX PX1 3.2L TDCI 200HP 147Kw Duratorq 2011- 2015
Ford Transit 3.2L TDCI 200HP 147Kw Duratorq 2011- 2015
Mazda BT-50 3.2L TDCI 200HP 147Kw Duratorq 2011- 2015
Fits all models XL, XL Plus, Hi-Rider and Wildtrak
Please note actuator is not included, you will need to use your existing actuator. Simply unbolt actuator and arm and re-attach to the new turbocharger.
