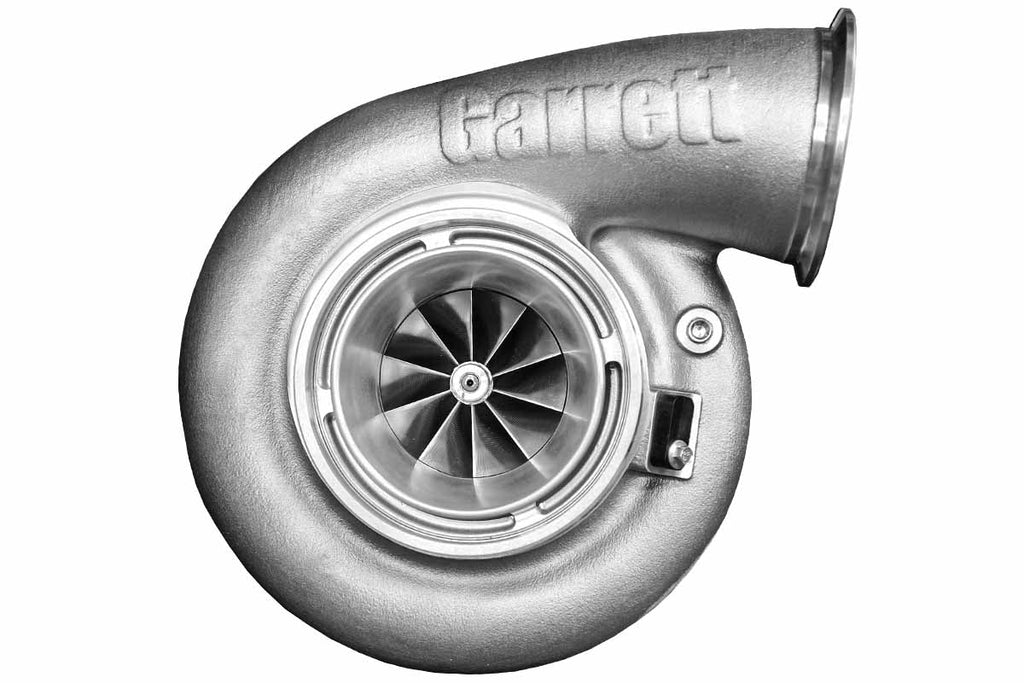

Garrett G42-1450 SuperCore / Core and Cover Only

Turbo Family: G42-1450
Compressor Inducer: 79mm
Compressor Exducer: 98mm
Compressor Spec: 65T
Turbine Inducer: 82mm
Turbine Exducer: 75mm
Turbine Spec: 84T
Compressor A/R: .85
Bearing Type: Ball Bearing
Bearing Cooling: Oil & Water

Flange Details:
Compressor Inlet Flange: 5.0" Hose
Compressor Outlet Flange: 4.0" V/Band

Turbo Characteristics:
Turbo Size: Largel frame
Intended Application: Medium to High power
Suits Engine Size: 2.0 to 8.0 Litre
Expected Power Output: 525 to 1450 HP : 390 to 1080 kw
