Buy quality products from the knowledgeable turbo specialists with 15+ years in the business - Turbo Bits
Brand : - Turbo Bits
Model: GT3582
Bearing System: Journal Bearing or Ball Bearing option

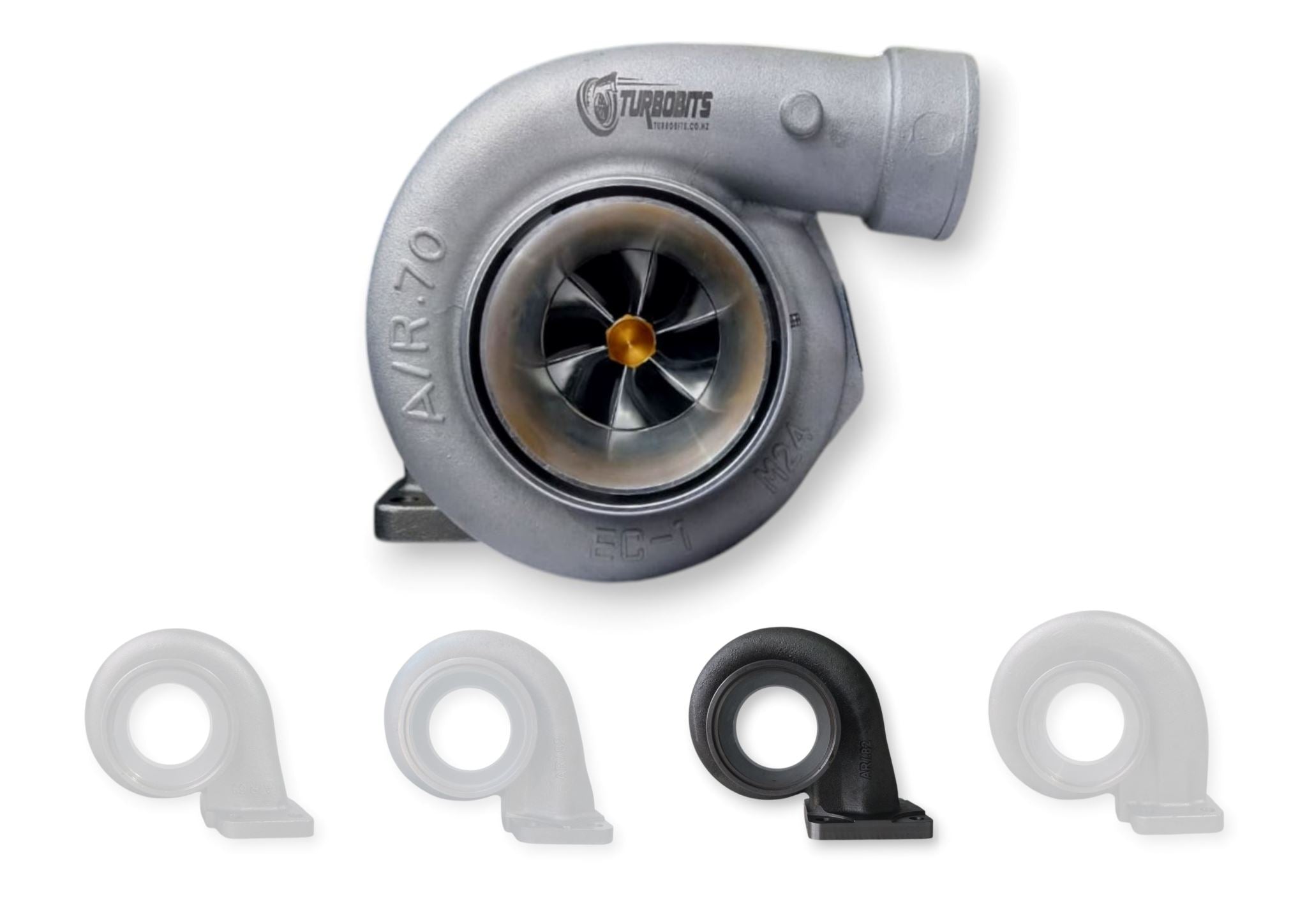

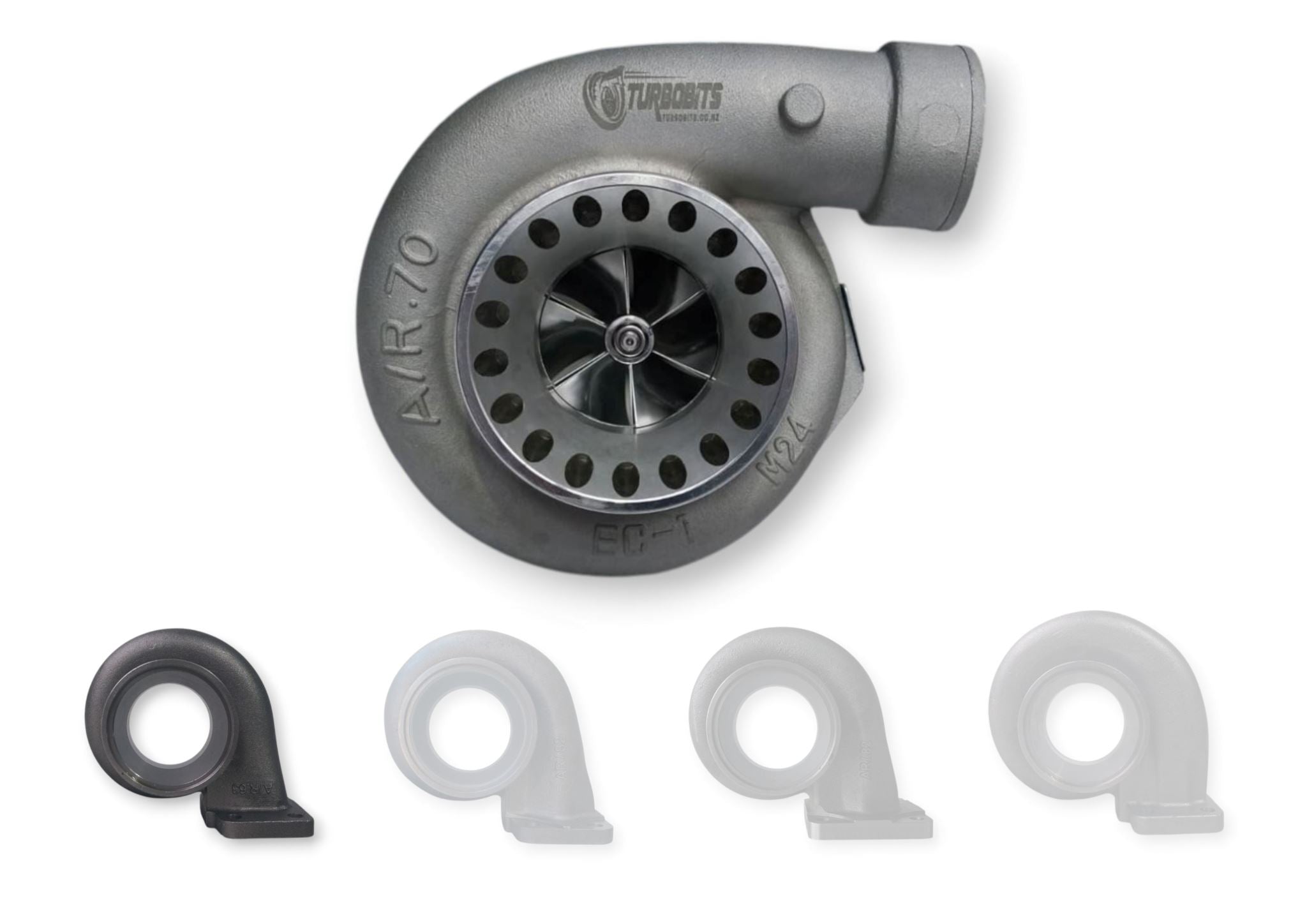

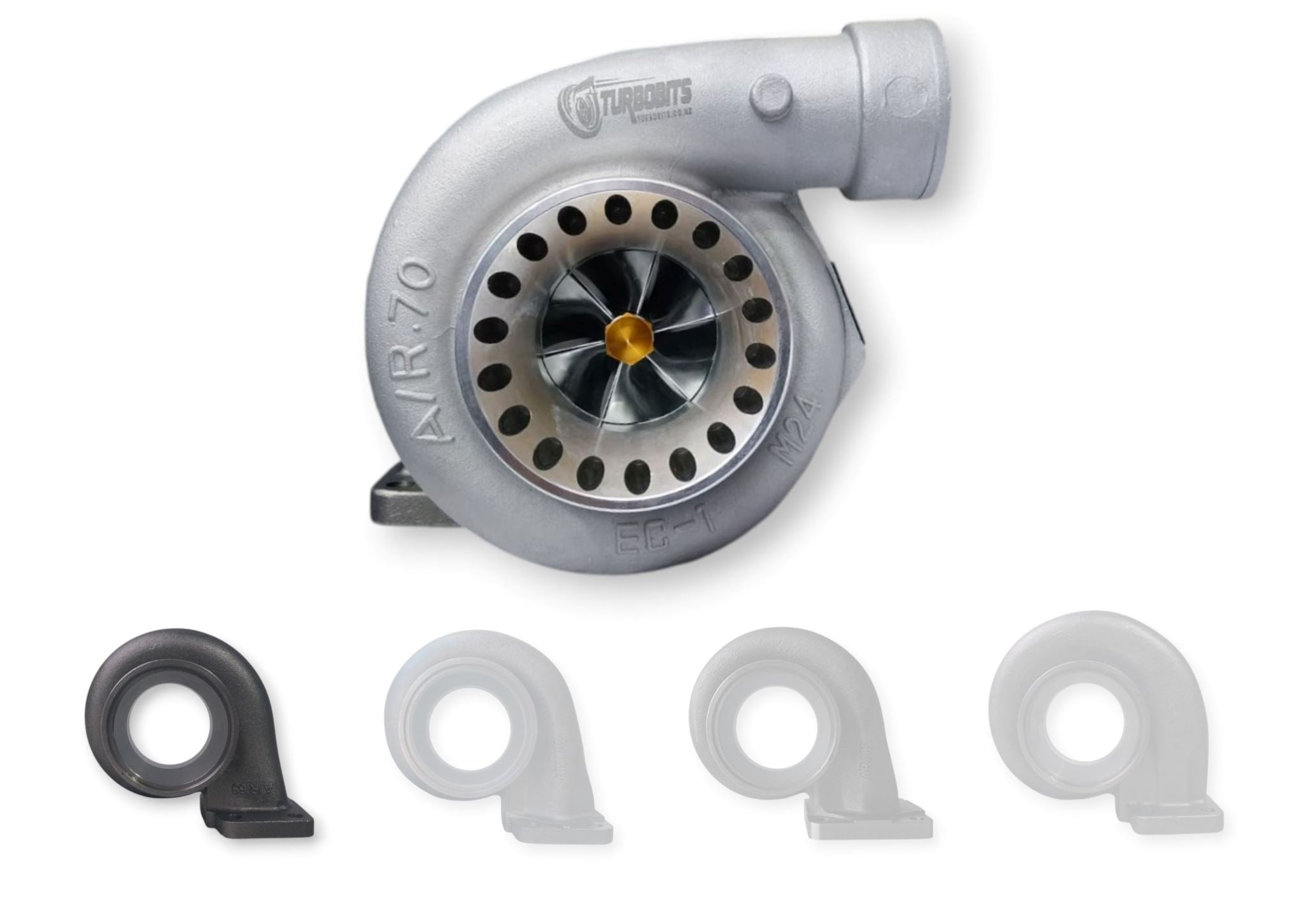

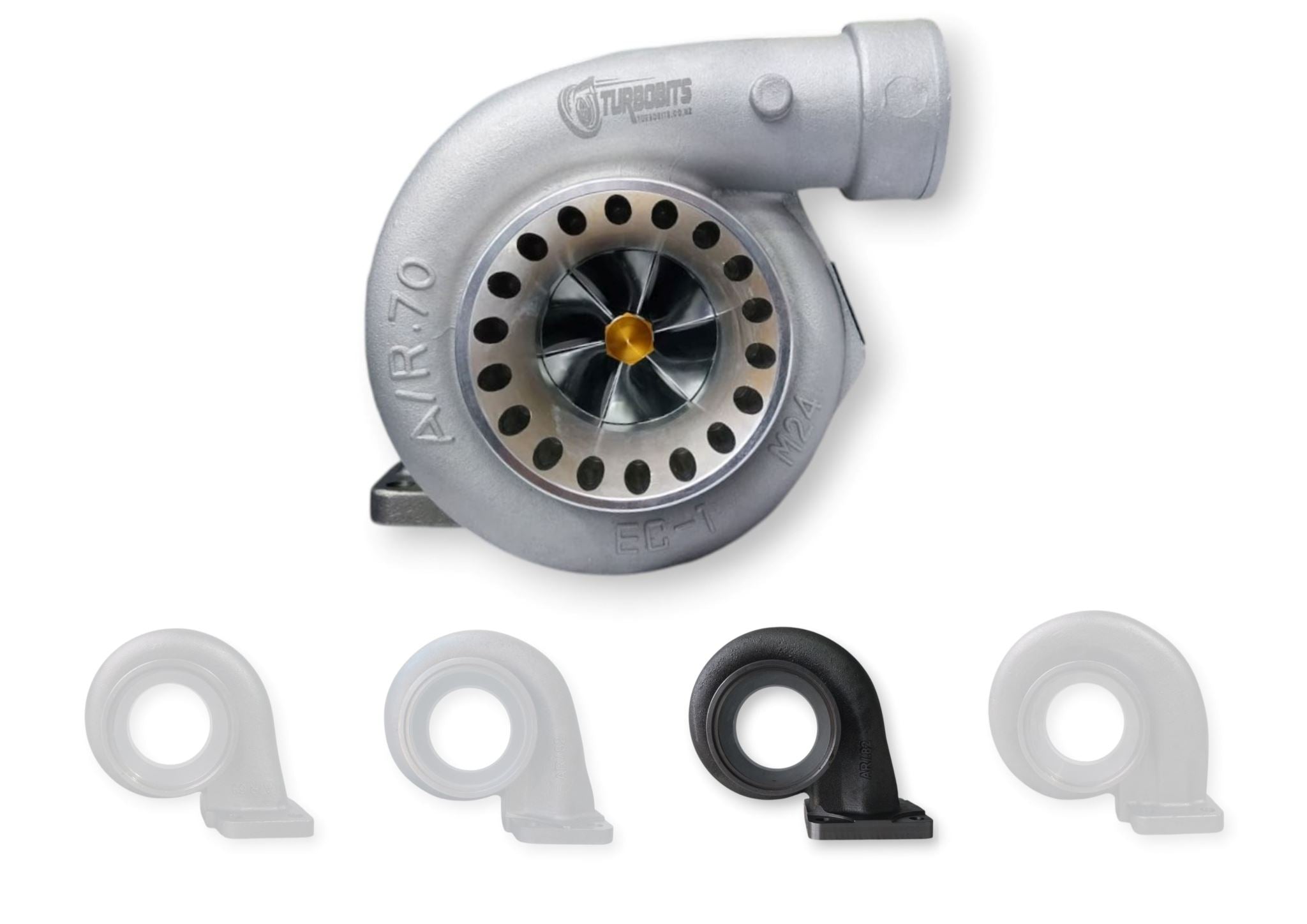

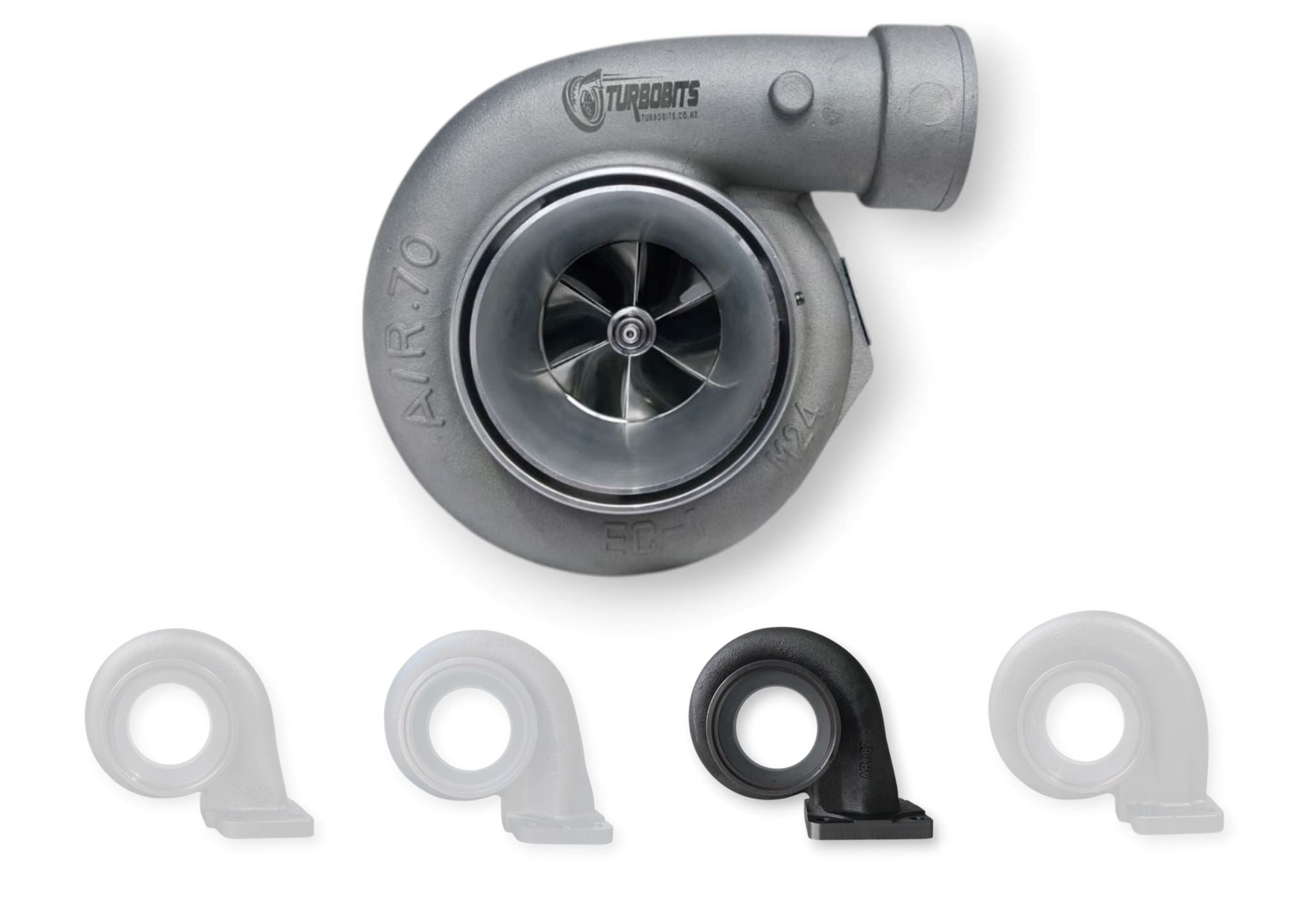

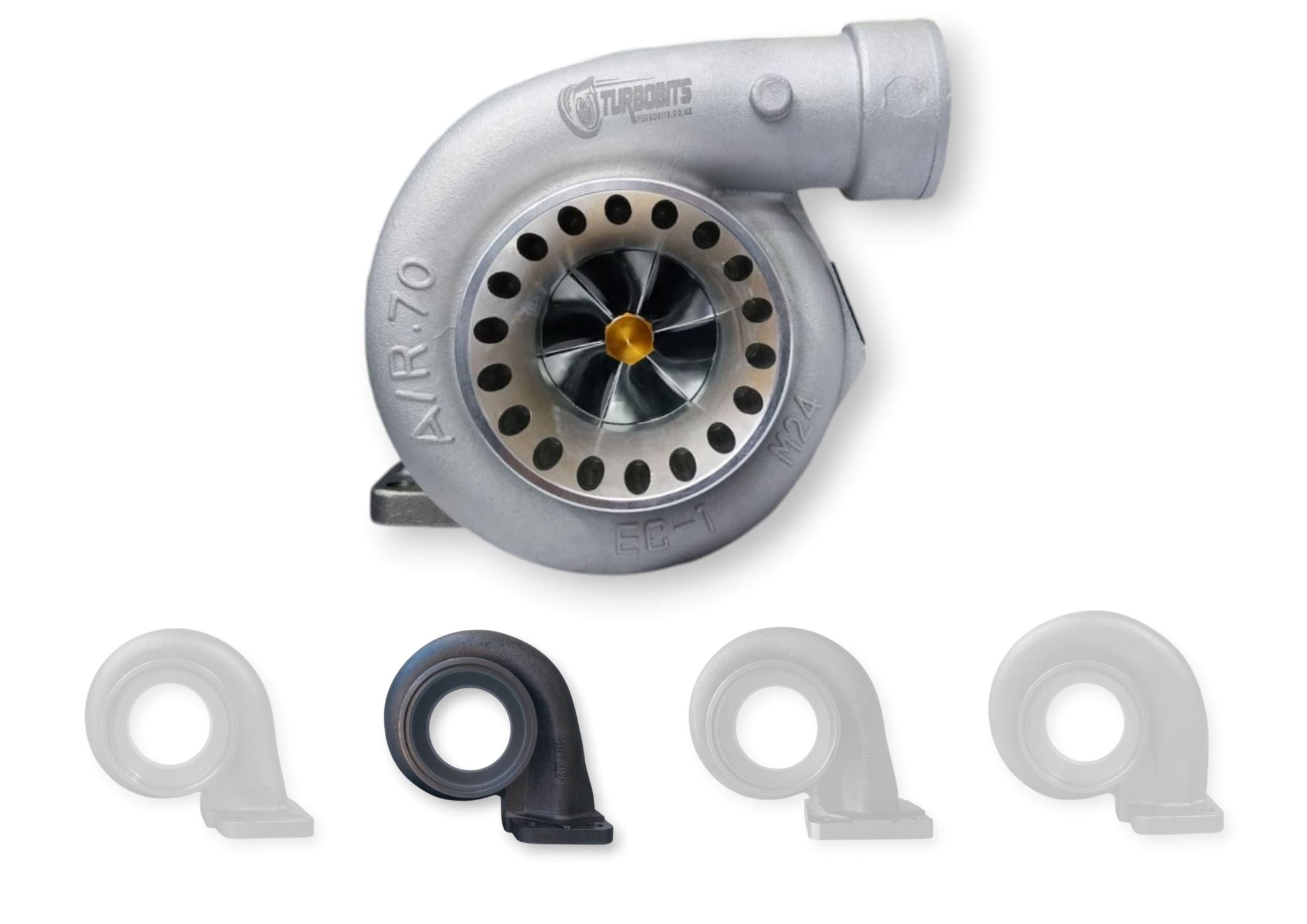

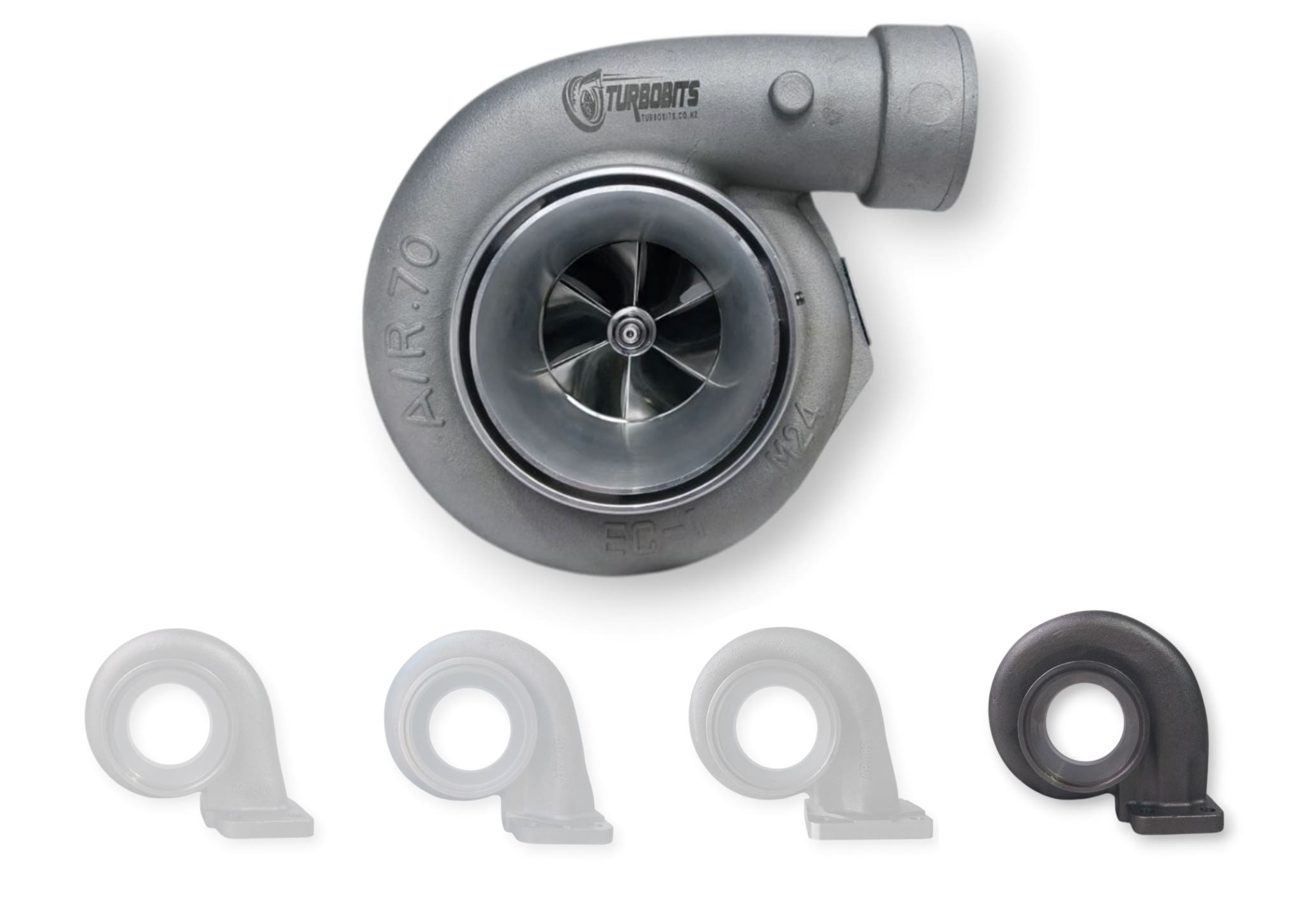

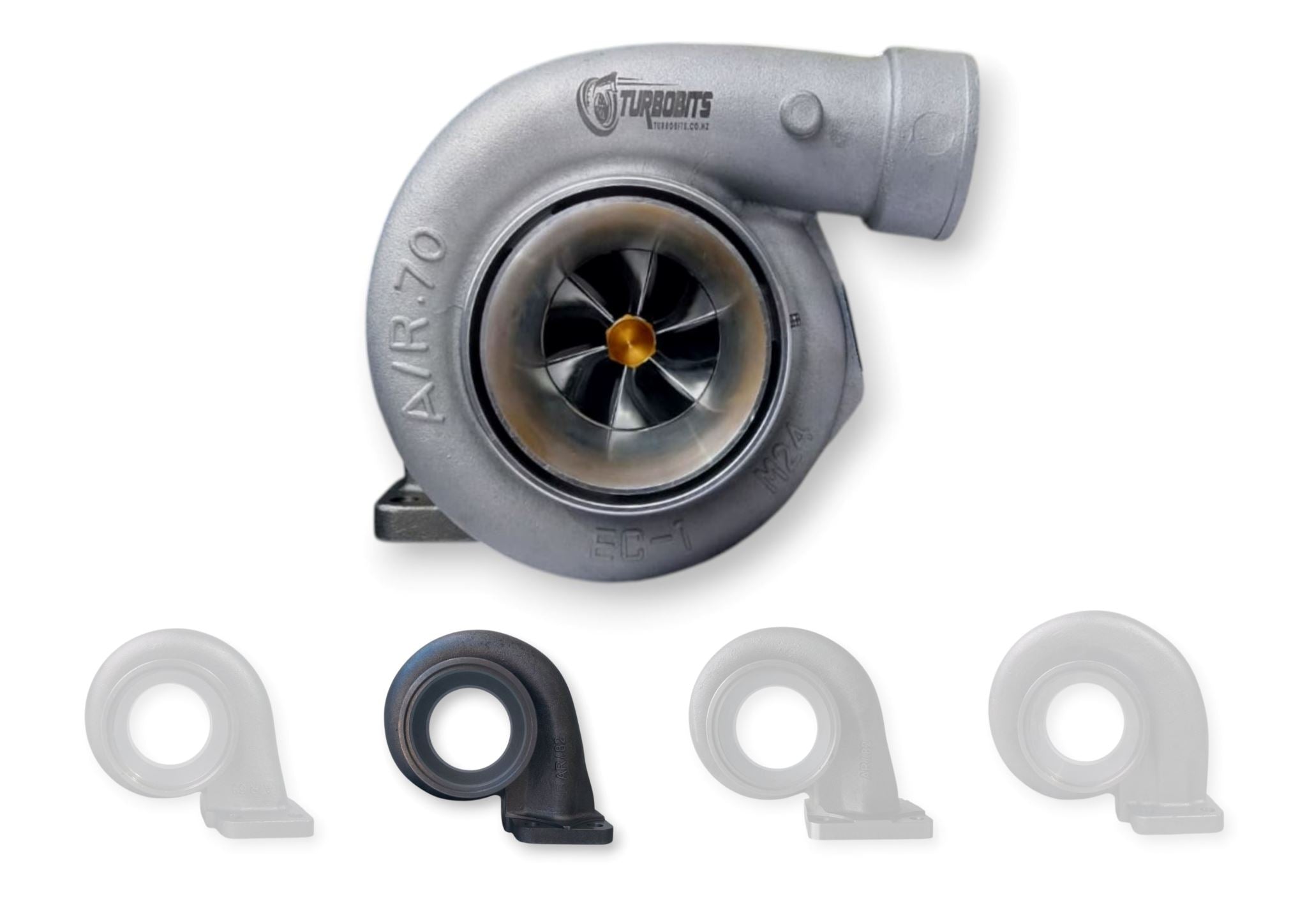

Compressor: A/R .70 - Antisurge or T51R Mod option
HP Rating: 400-600hp
Engine size: 1800cc to 4500cc
Horsepower: 400-600hp
Recommended Boost: 20psi
Max Boost: 30psi
Turbine options :

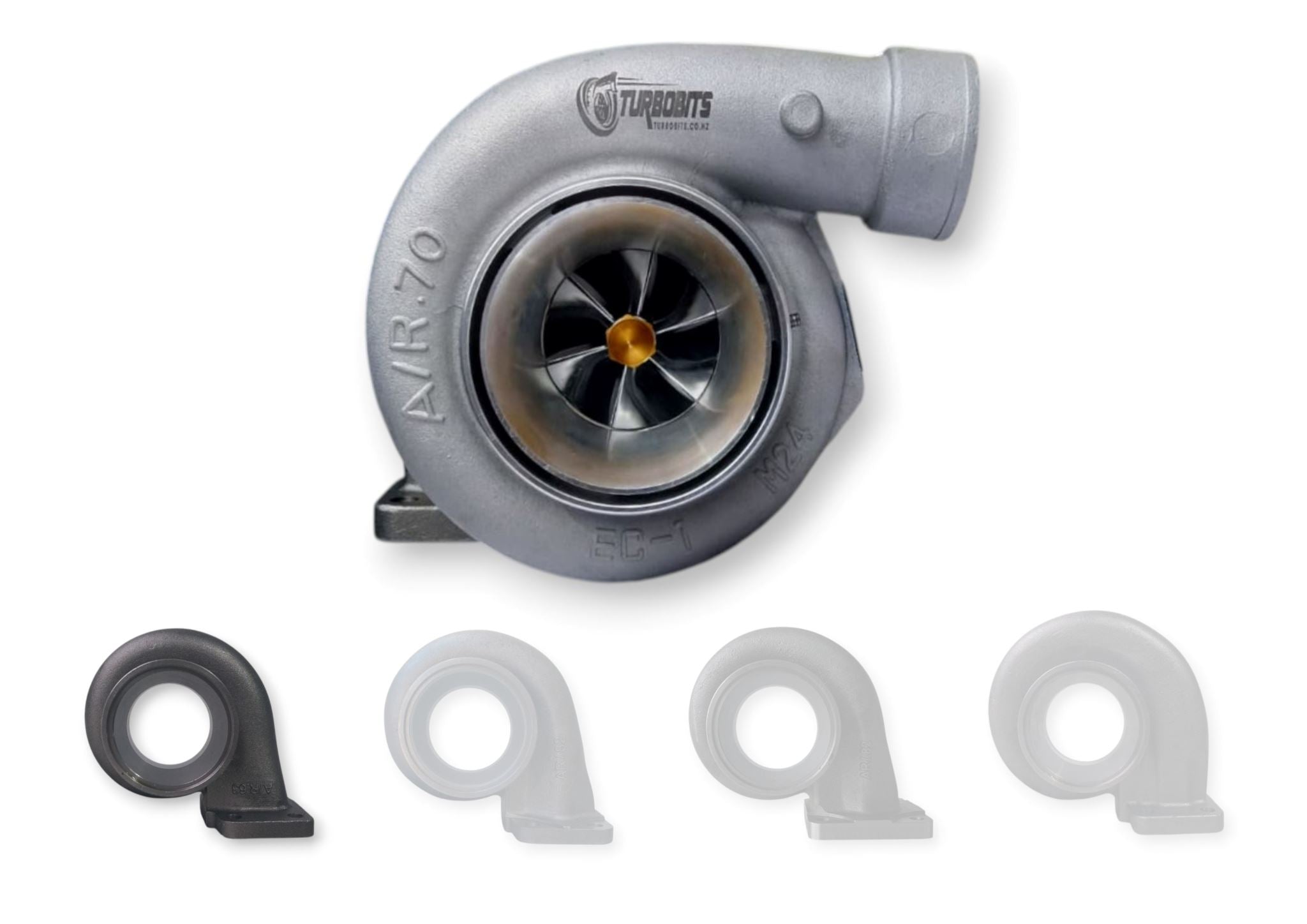

A/R 0.63 T3 Flange

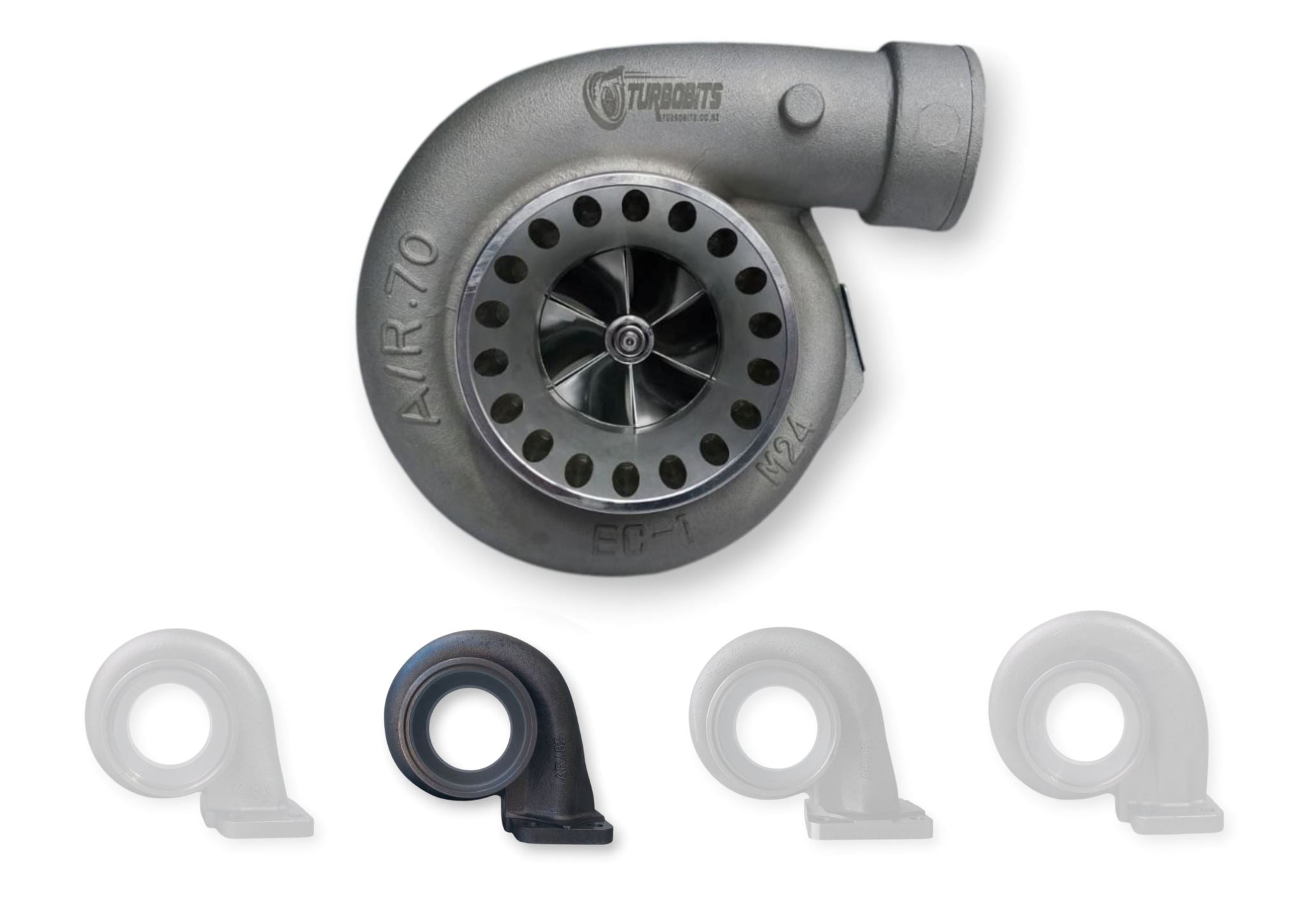

A/R 0.82 T3 Flange

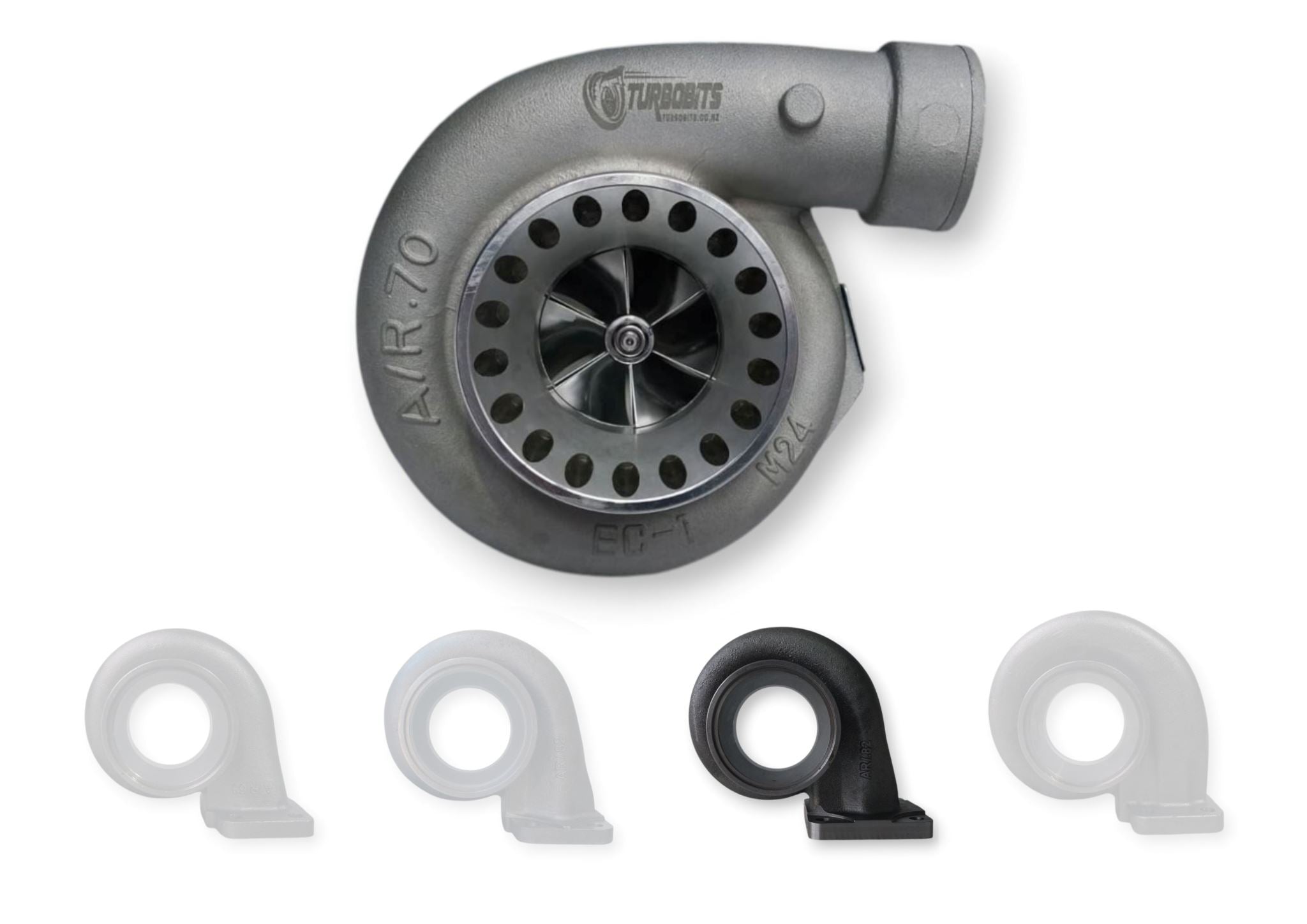

A/R 0.82 T4 Flange

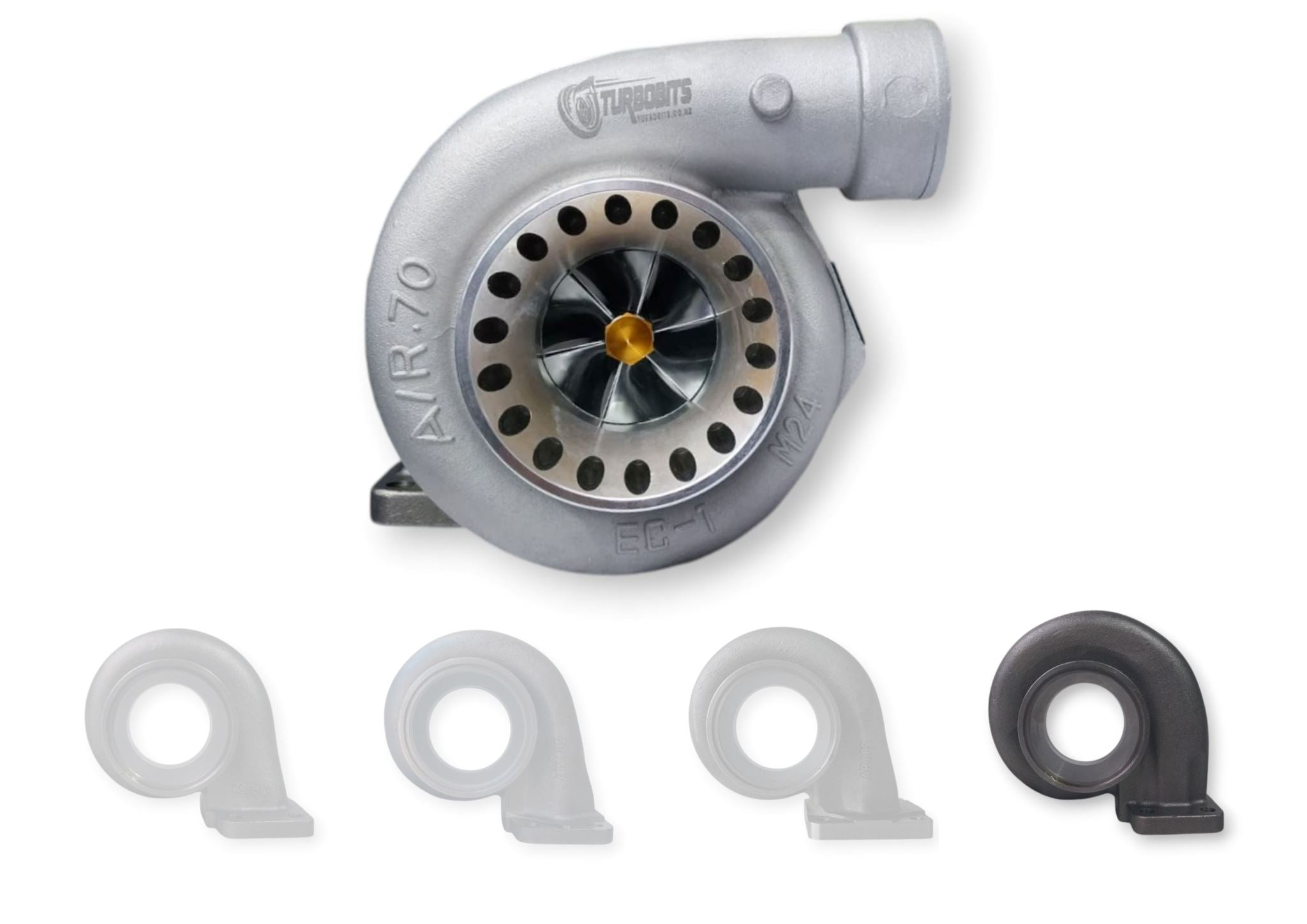

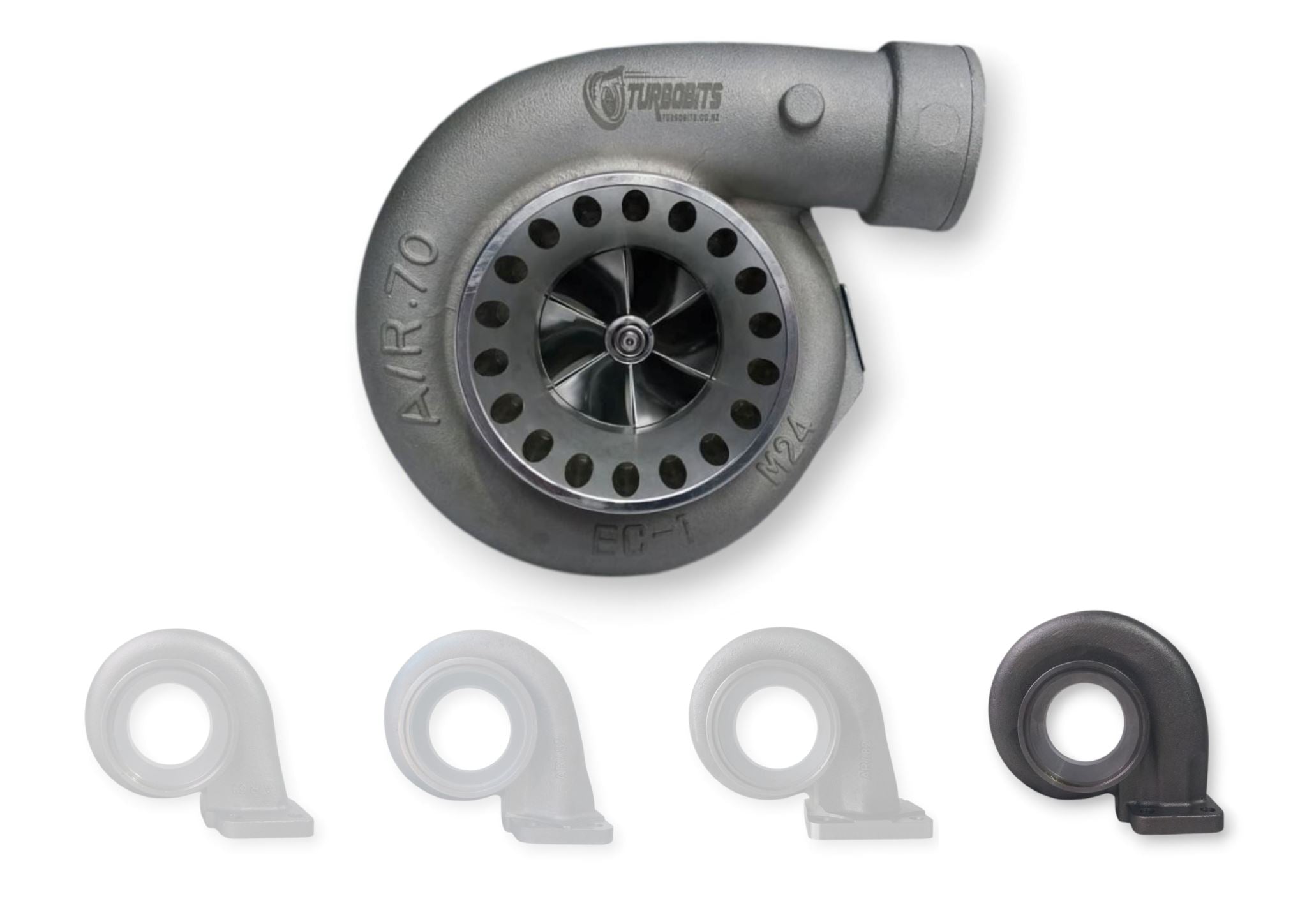

A/R 1.06 T3 Flange
With the multiple rear turbine hosing options this turbo, it can be sized from smaller displacement 4 and 6 cylinder engines up to an engine with 4500cc of displacement, as a twin turbo set up, up to 8000cc. Feel free to contact us to discuss the best set up for your application if unsure on which is the best option for your build.
COMPRESSOR:
A/R 0.70 compressor cover - Antisurge or T51R Mod option
HP Rating: 400-600hp
Air inlet 4.00"
Air outlet: 2.50"
Billet Compressor wheel
Inducer - 61.40mm
Exducer - 82.00mm
TURBINE DETAILS:
Exhaust outlet: 90mm V-Band (we have clamp sets for an additional $79)
Turbine Wheel Dimensions:
Inducer - 67.85mm
Exducer - 62.30mm
Oil feed: 7/16-24 UNF
Oil drain: 38mm PCD
Bearing type: Wet float journal bearing Or Ball Bearing Option
Water feed: M14x1.5
Cooling type: Oil and water cooled - Can run oil cooled only on journal bearing, however we recommend to run both. ball bearing must run water cooling.
XR6 Turbo & turbo core– Journal Bearing & Ball Bearing Options
Turbo Bits XR6 products are available in Journal Bearing and Ball Bearing configurations, supplied as either complete turbochargers or turbo core assemblies. Each option is designed to suit specific applications and operating conditions.
Journal Bearing XR6 Turbochargers & turbo core
Journal Bearing XR6 turbochargers and Journal Bearing turbo core units are designed for factory-style applications only. These products are intended for vehicles operating within original manufacturer specifications and without performance modifications.
Important:
• Journal Bearing XR6 turbochargers and turbo core units are for factory applications only
• Any performance modifications, including but not limited to ECU tuning, engine upgrades, increased boost, or non-standard supporting modifications, are not suitable for use with Journal Bearing products
• For any performance or modified application, Turbo Bits strongly recommends selecting a Ball Bearing turbocharger or Ball Bearing turbo core
Turbo Bits Warranty Notice:
Use of any Journal Bearing XR6 turbocharger or Journal Bearing turbo core in a performance or modified application will automatically void the Turbo Bits warranty.
