Buy quality products from the knowledgeable turbo specialists with 15+ years in the business - Turbo Bits
Brand New - Turbo Bits
Model: GTX2554R .49
Bearing System: Ball bearing
Flange: T25
Compressor: A/R .51
Turbine: A/R .49 - 76mm V-Band
HP Rating: 170-270hp
Engine size: 1400cc to 2200cc
More Details:
Featuring the updated generation 2 design,billet compressor wheel for a faster spool up. Better suited to smaller displacement 4 cylinder engines as a single turbo up to 2200cc Feel free to contact us to discuss the best set up for your application we have lots of different options and sizes in stock.
Model:
COMPRESSOR DETAILS:
A/R 0.51 compressor cover
Air inlet: 60mm (We have silicon joiners if required)
Air outlet: 2" or 51mm (We have silicon joiners if required)
Compressor Wheel Dimensions:
Inducer - 42 mm
Exducer - 54 mm
TURBINE DETAILS:
Turbine: A/R .49
Exhaust outlet: 76mm V-Band (Comes with clamp set)
Entry Flange: T25
Turbine Wheel Dimensions:
Inducer - 53 mm
Exducer - 42mm
TURBO DETAILS:
Billet Compressor wheel, for faster spool up and stronger design
Bearing type: Ball bearing
Cooling type: Water cooled
Horsepower: 170-270hp
Recommended Boost: 20psi
Max Boost: 30psi

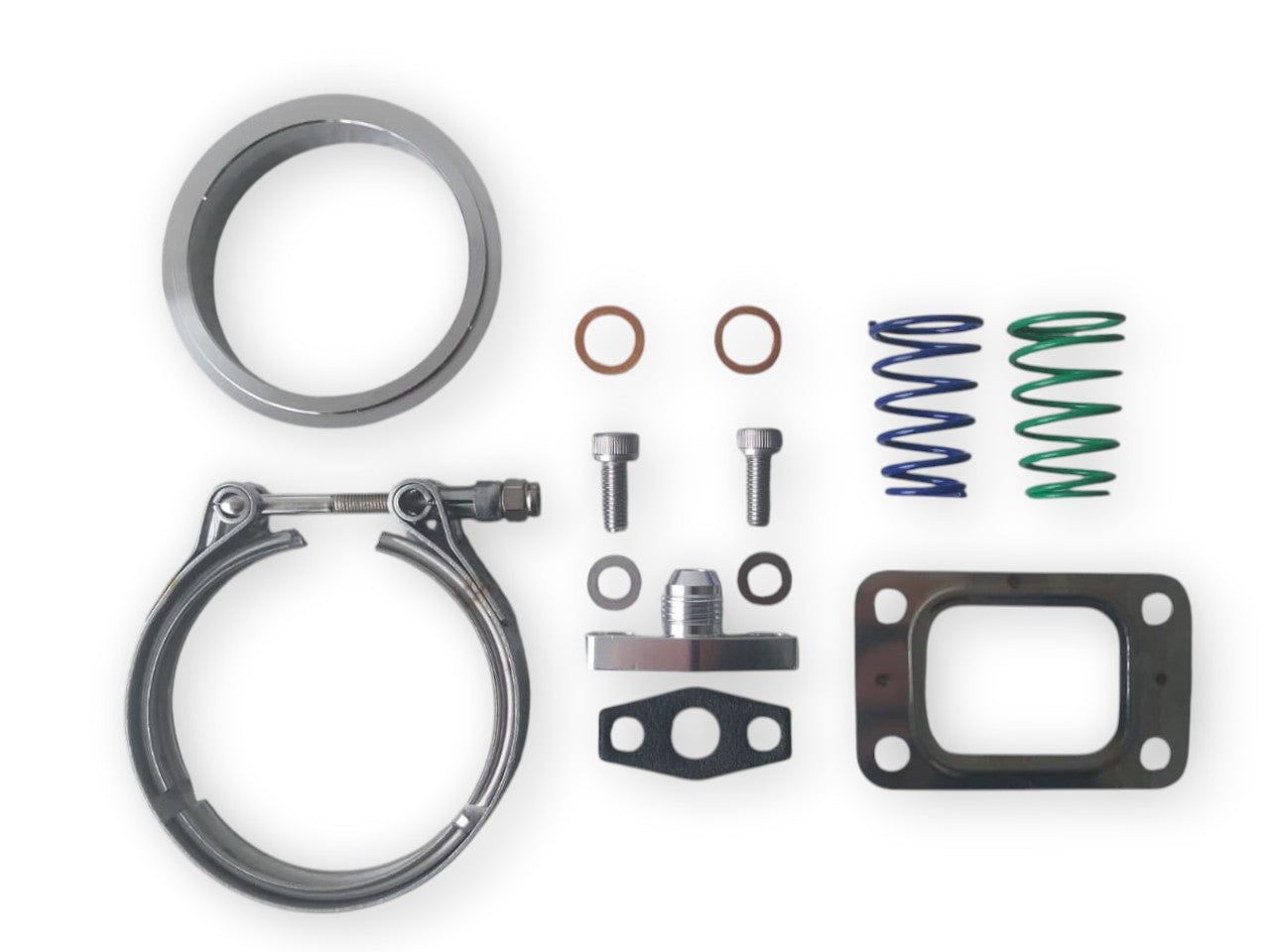

Wastegate springs
Green: 5.8-10.15psi
Yellow : 8.7-14.5psi (pre-installed)
Blue : 13-18.8psi
