Description
Buy quality products from the knowledgeable turbo specialists with 15+ years in the business - Turbo Bits
Brand New - Turbo Bits

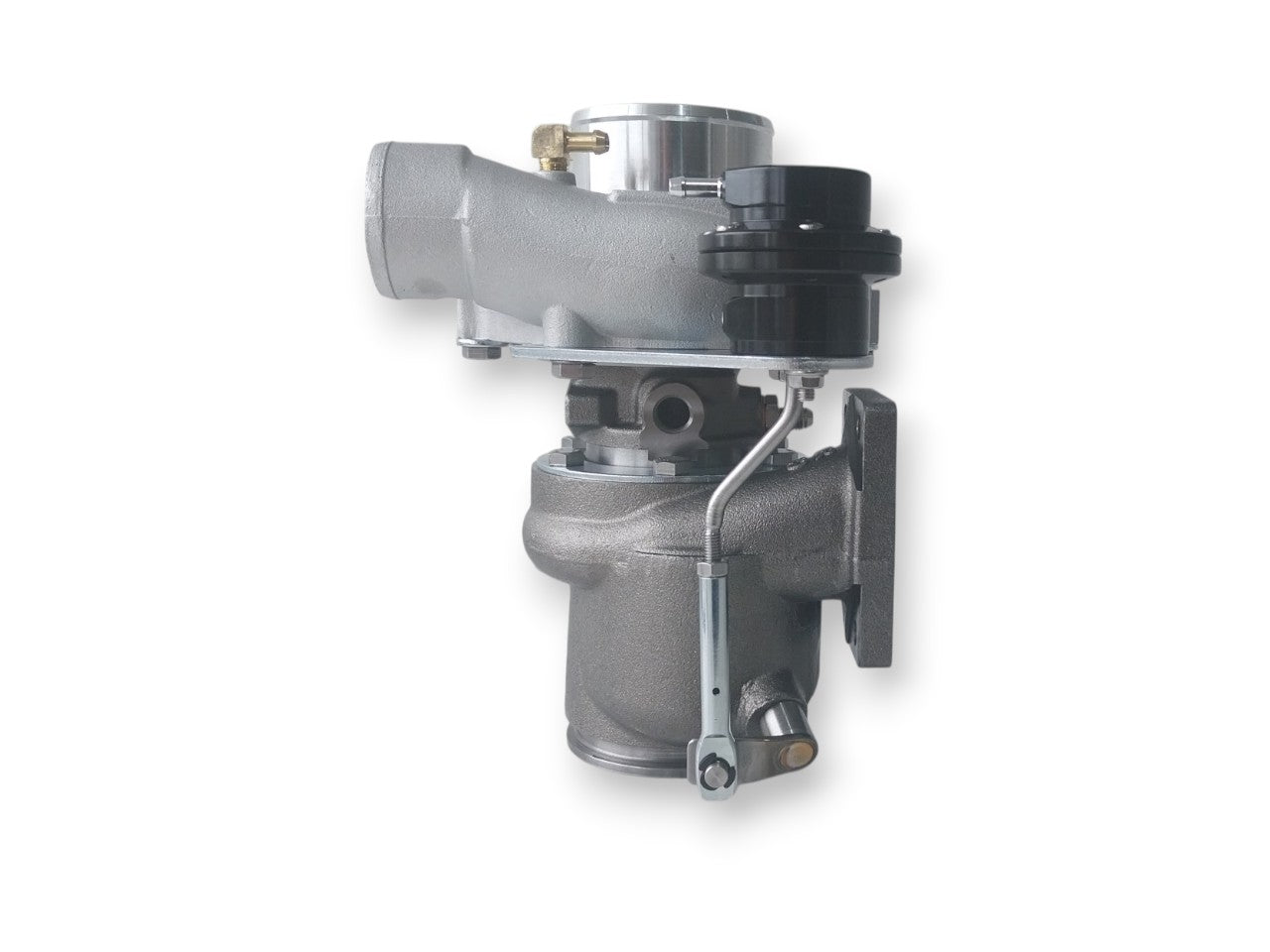

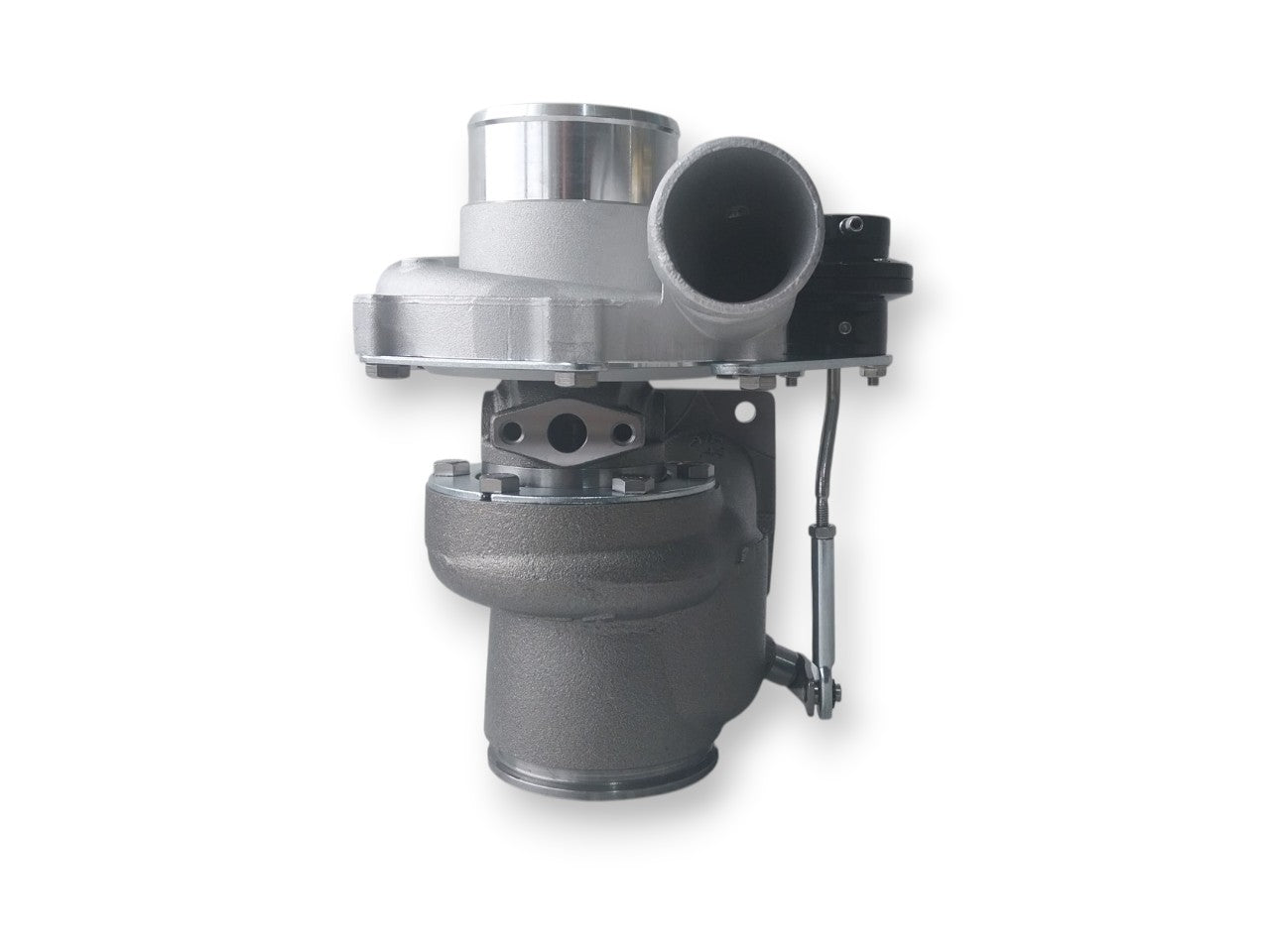

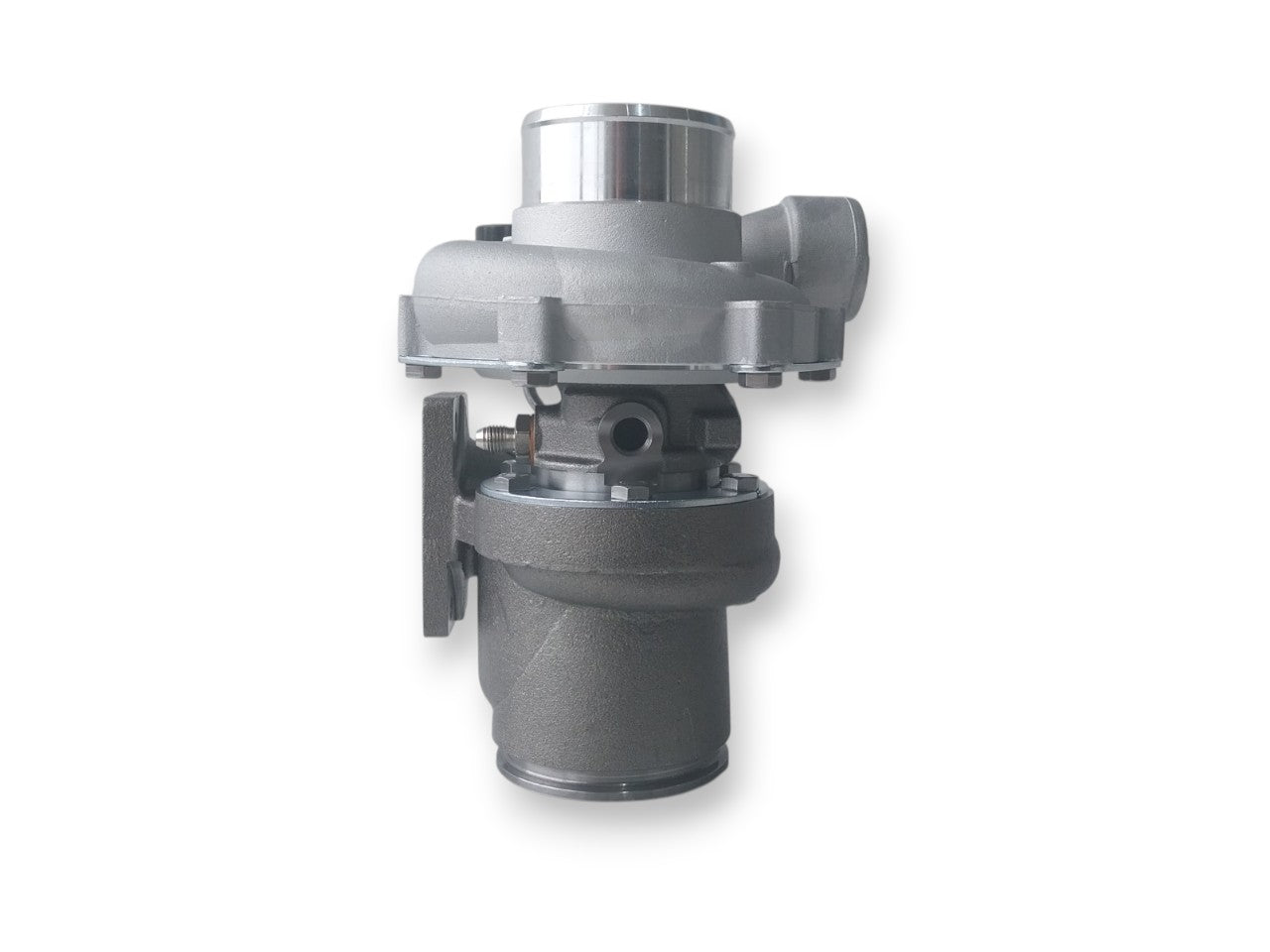

Model: GTX2560R .49
Bearing System: Ball bearing
Flange: T25
Compressor: A/R .51
Turbine: A/R .60 - 76mm V-Band
HP Rating: 200-330hp
Engine size: 1600cc to 2500cc
More Details:
Featuring the updated generation 2 design,billet compressor wheel for a faster spool up. Better suited to smaller displacement 4 cylinder engines as a single turbo up to 2200cc Feel free to contact us to discuss the best set up for your application we have lots of different options and sizes in stock.
Model:

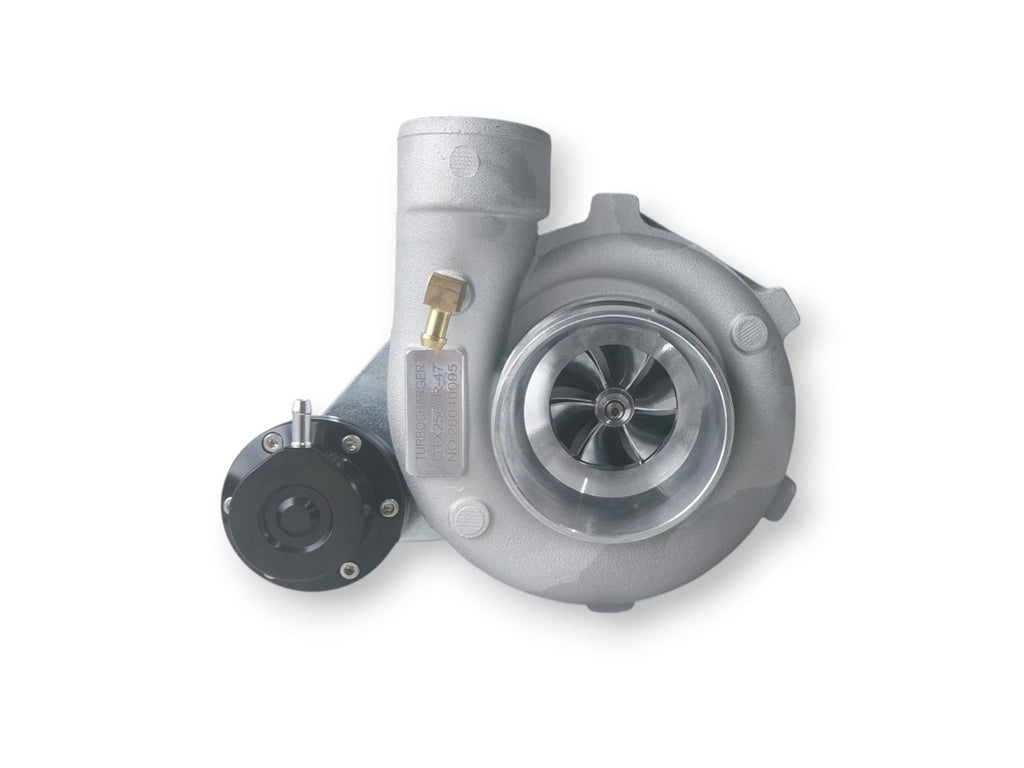

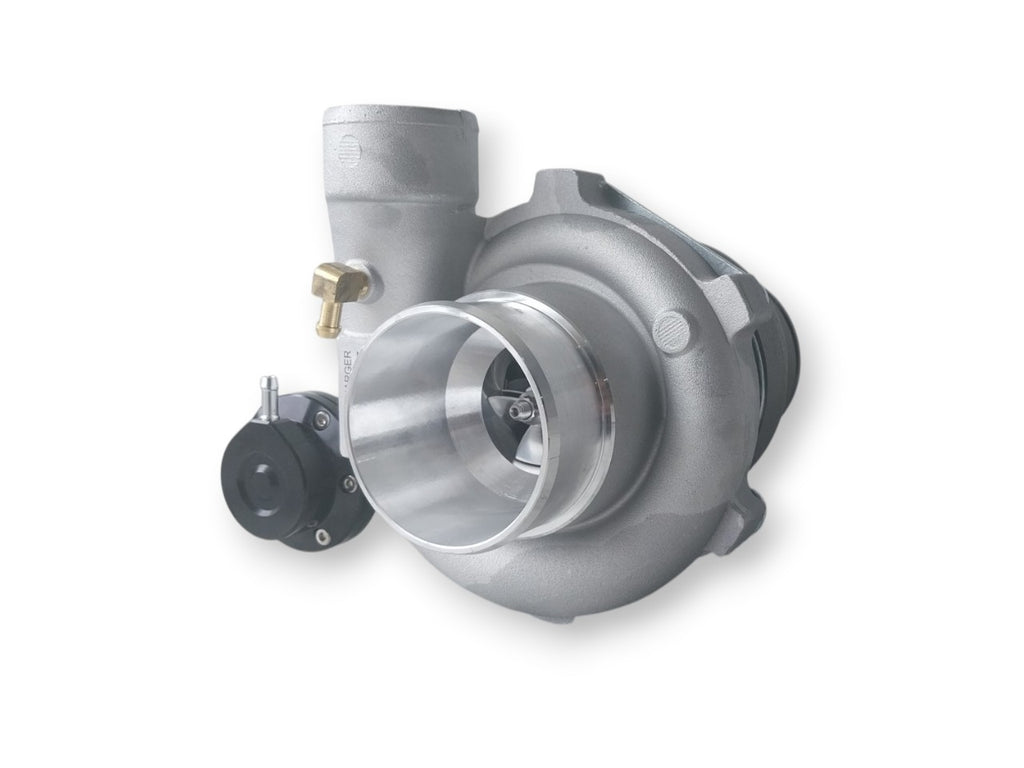

COMPRESSOR DETAILS:
A/R 0.60 compressor cover
Air inlet: 3"or 76mm (We have silicon joiners if required)
Air outlet: 2" or 51mm (We have silicon joiners if required)
Compressor Wheel Dimensions:
Inducer - 47 mm
Exducer - 56 mm

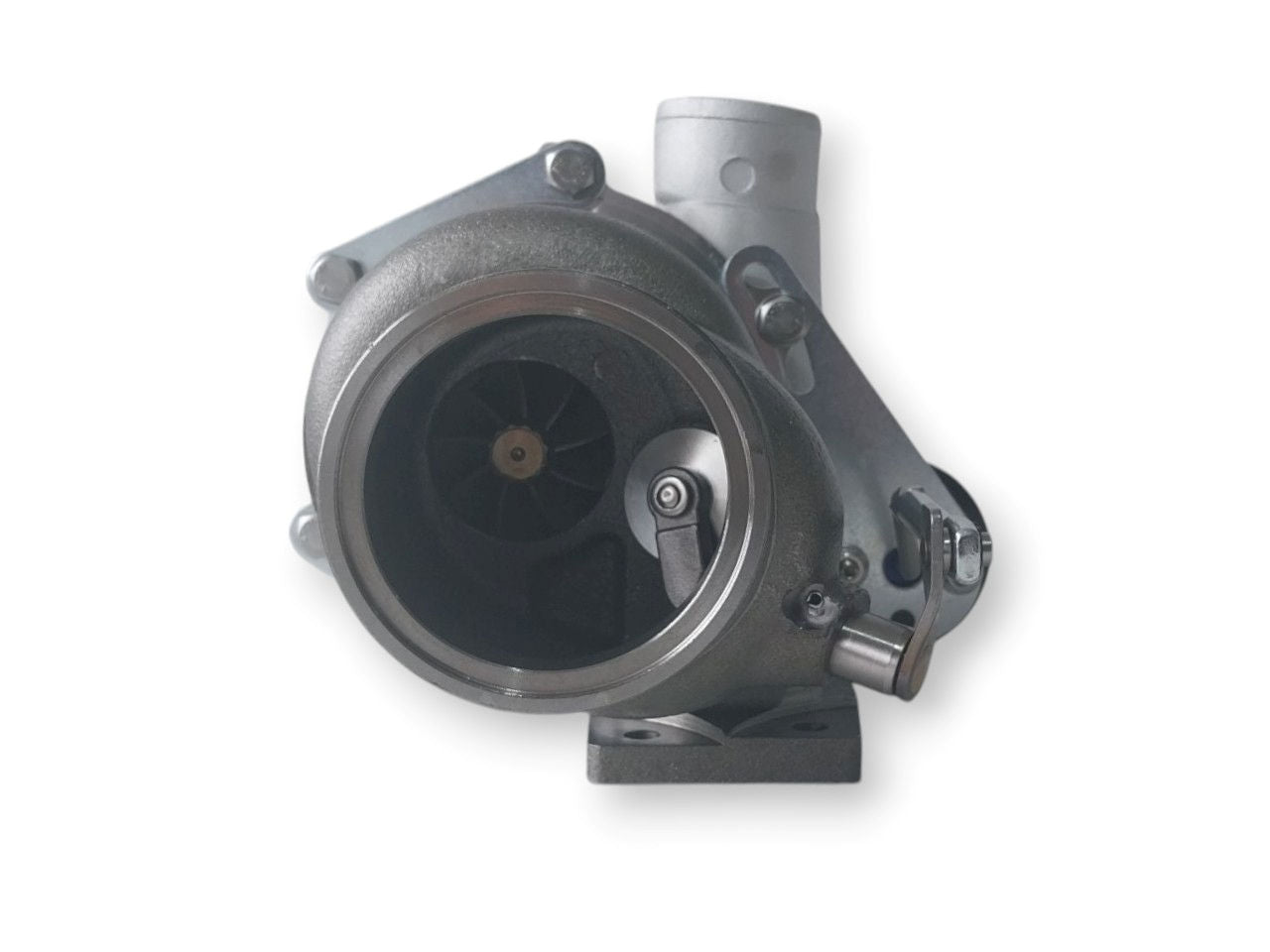

TURBINE DETAILS:
Turbine: A/R .49
Exhaust outlet: 76mm V-Band (Comes with clamp set)

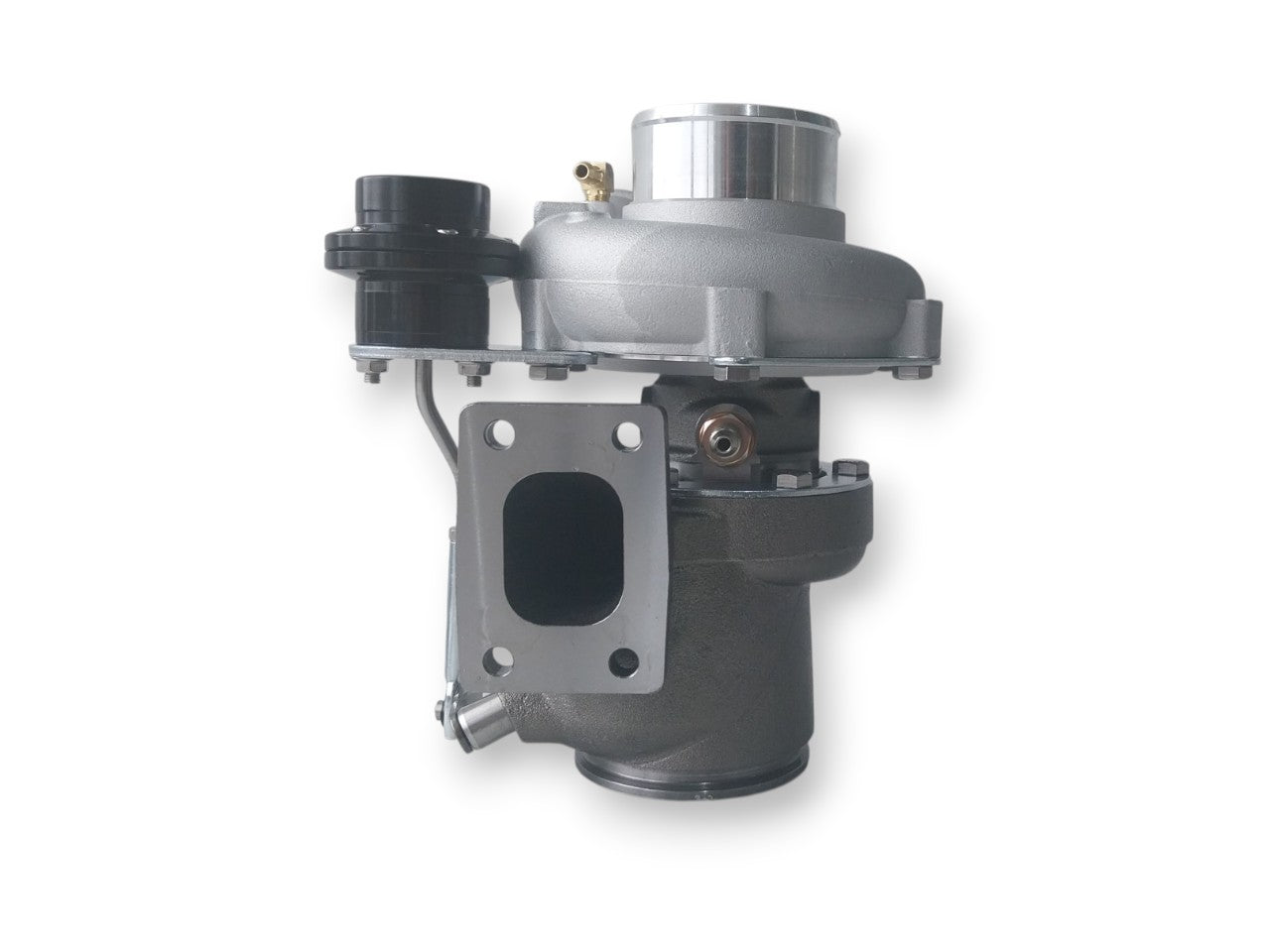

Entry Flange: T25
Turbine Wheel Dimensions:
Inducer - 53 mm
Exducer - 42mm
TURBO DETAILS:
Billet Compressor wheel, for faster spool up and stronger design
Bearing type: Ball bearing
Cooling type: Water cooled
Horsepower: 200-30hp
Recommended Boost: 20psi
Max Boost: 30psi

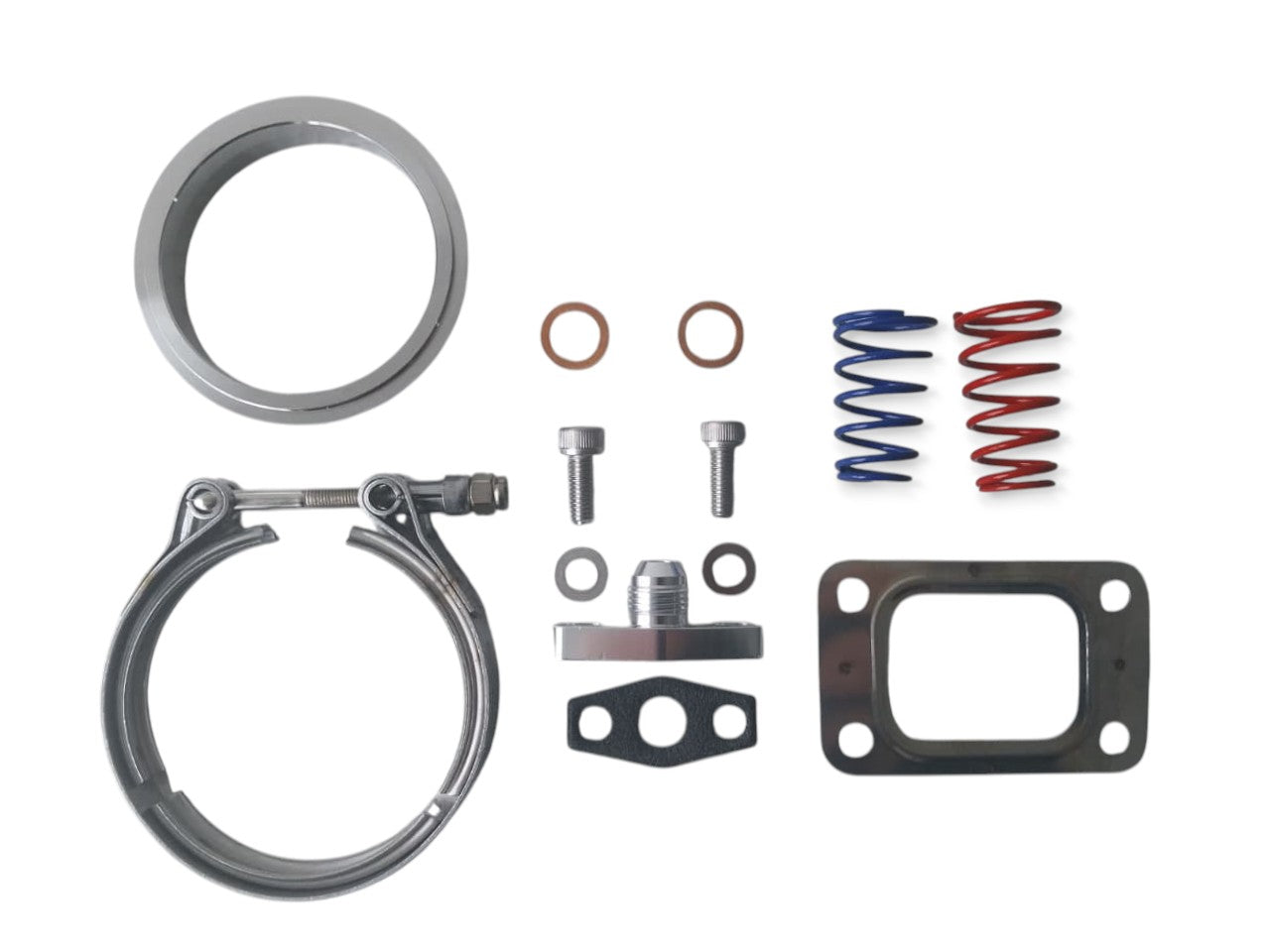

Wastegate springs
Yellow : 8.7-14.5psi (pre-installed)
Blue : 13-18.8psi
Red: 17.4-24.65psi
