Live Stock Level in Warehouse:
LOW STOCK
Only 1 left
Description
Brand New - Turbo Bits
Product details

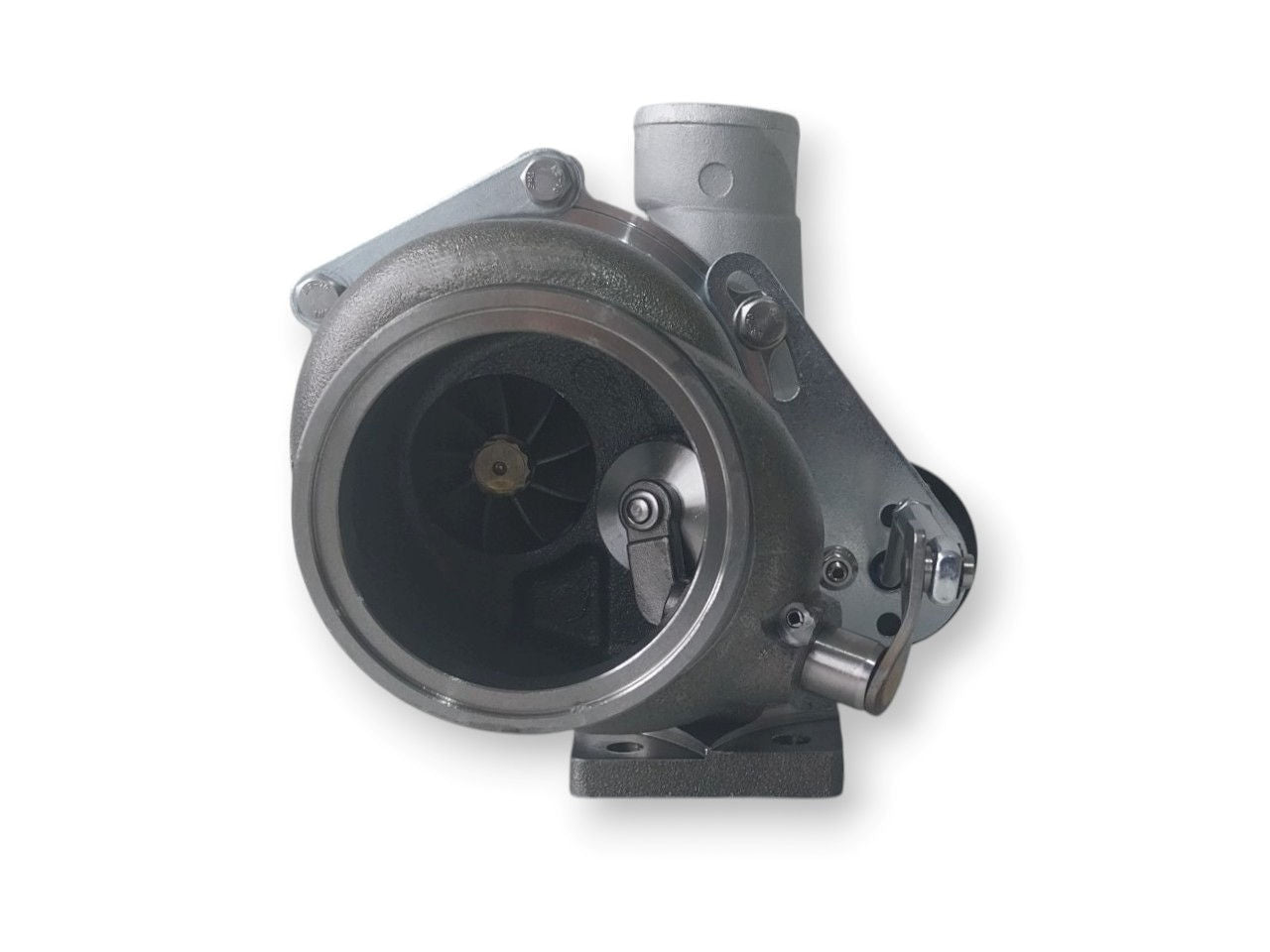

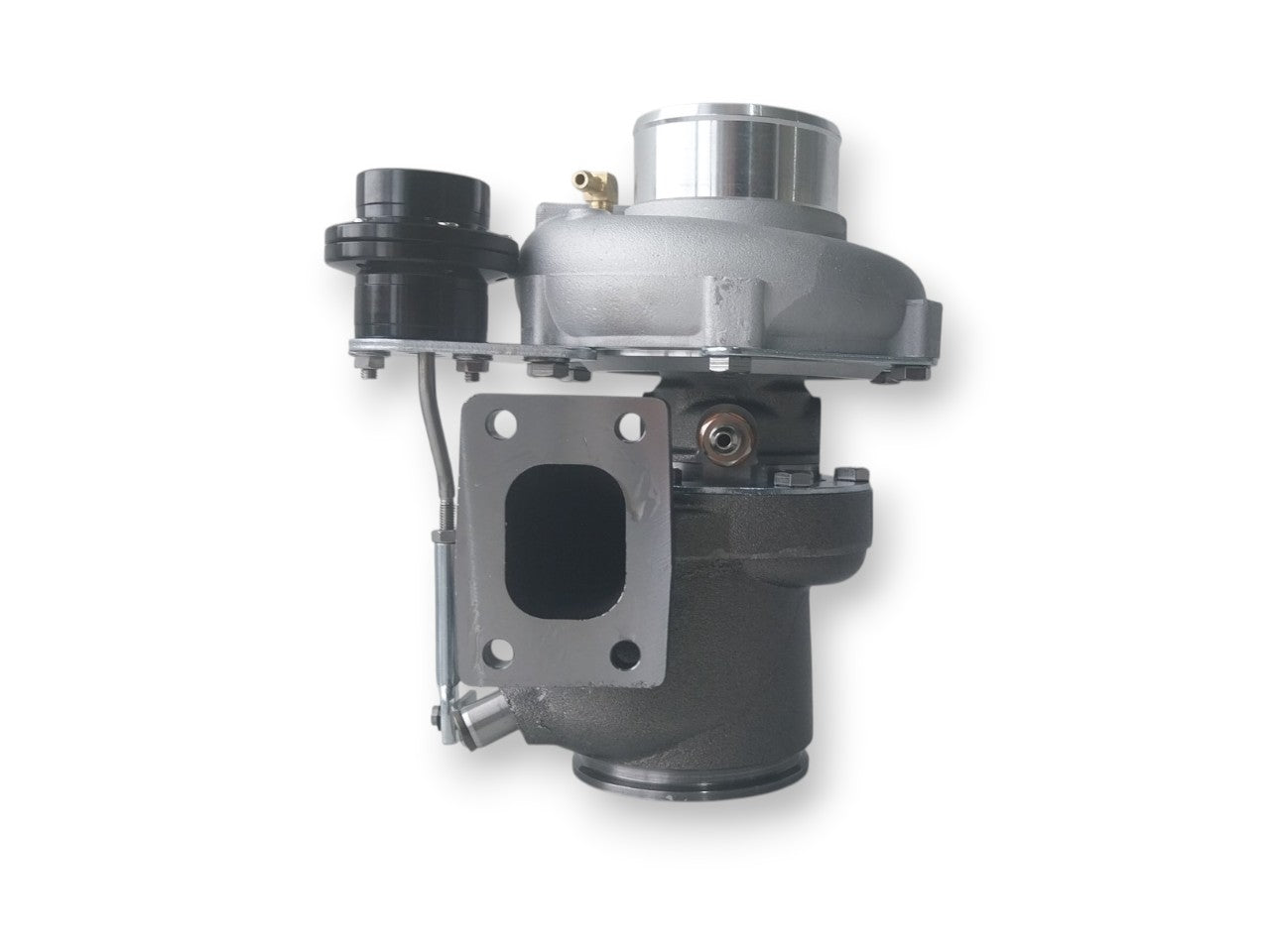

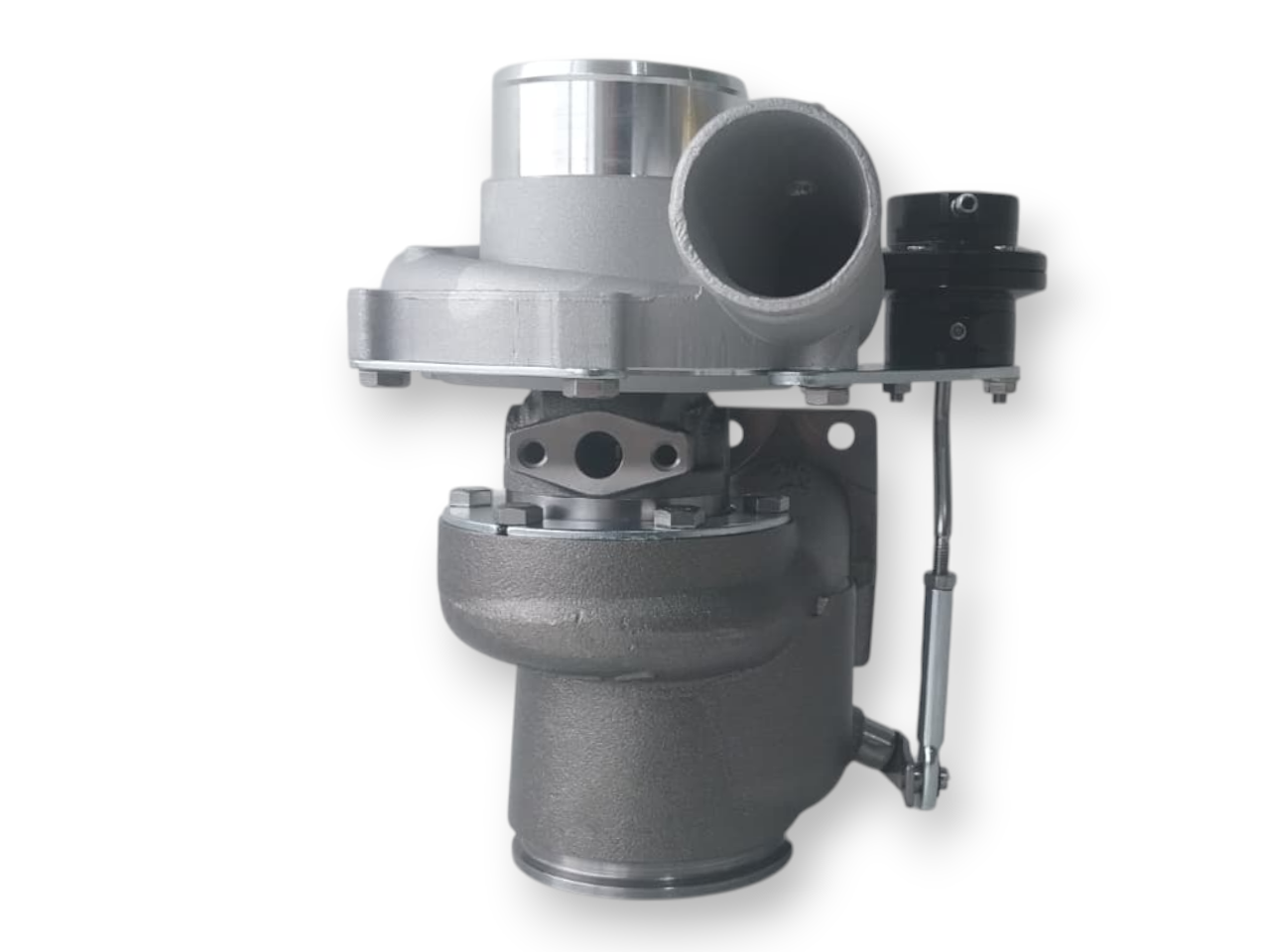

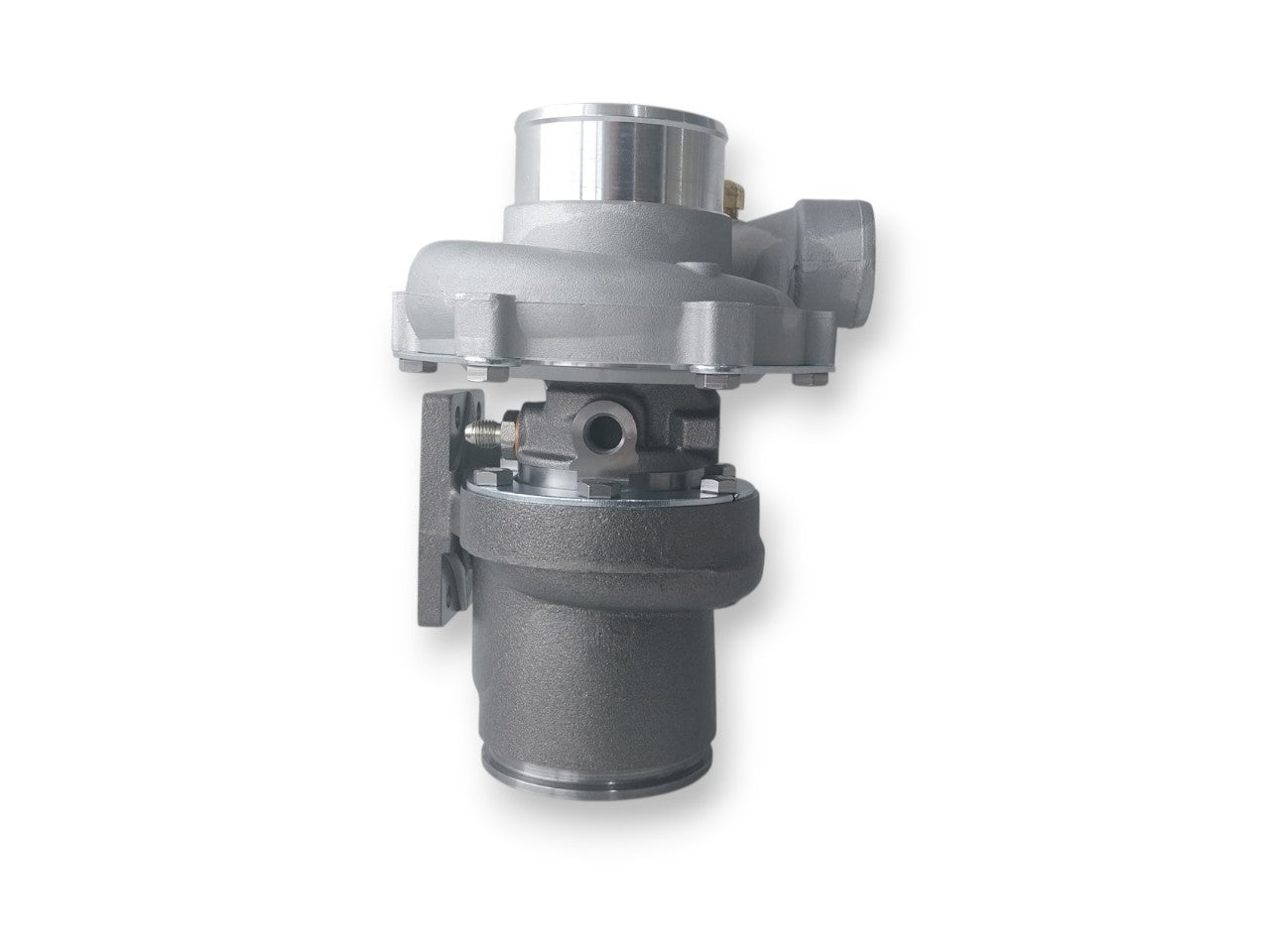

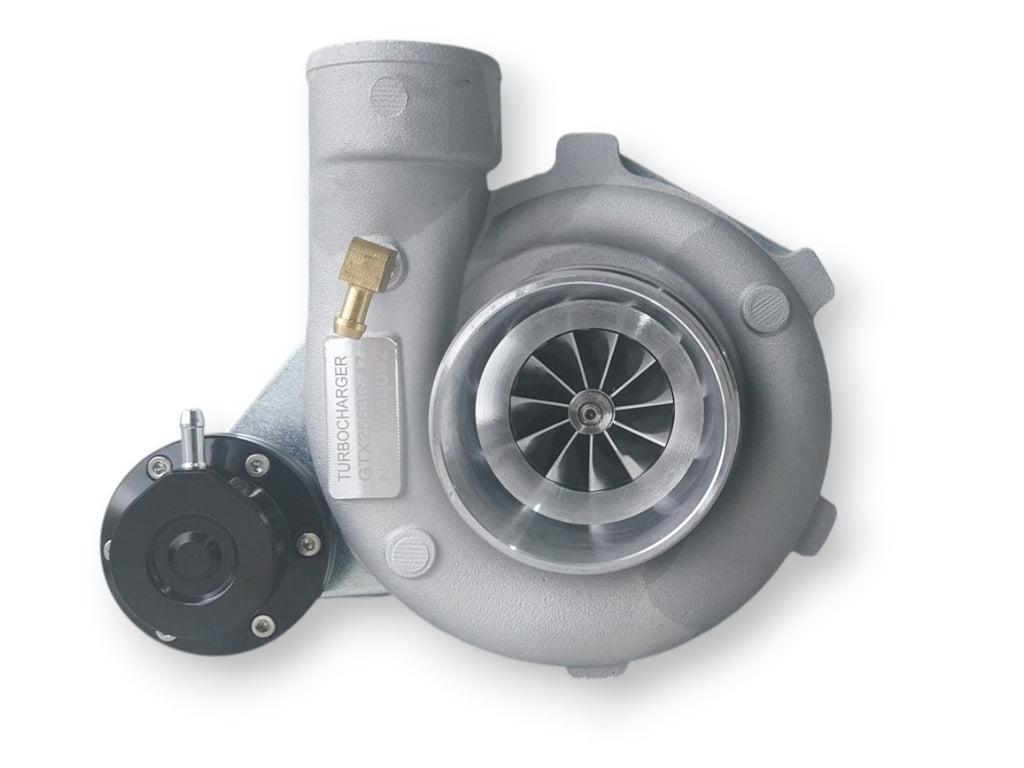

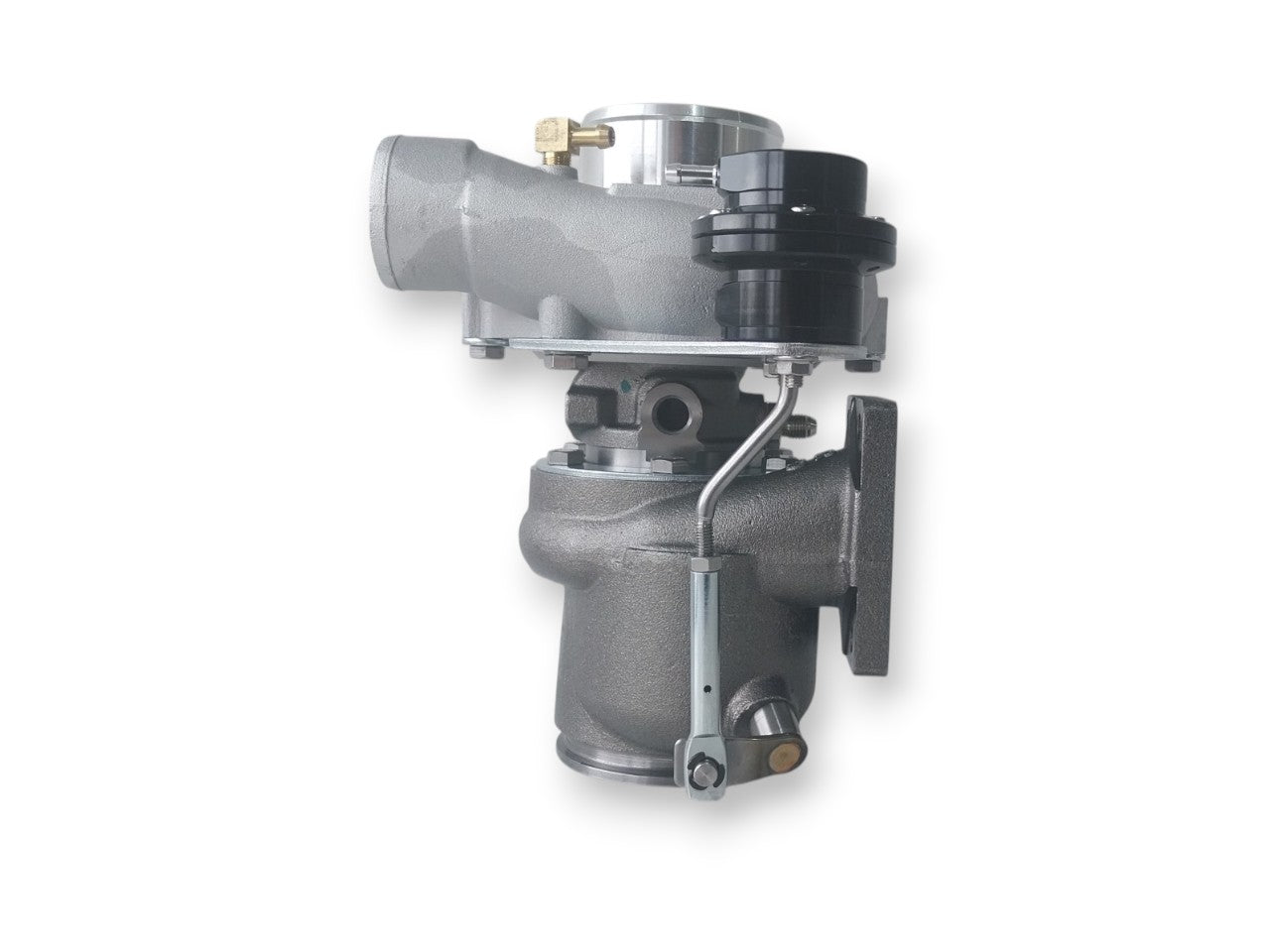

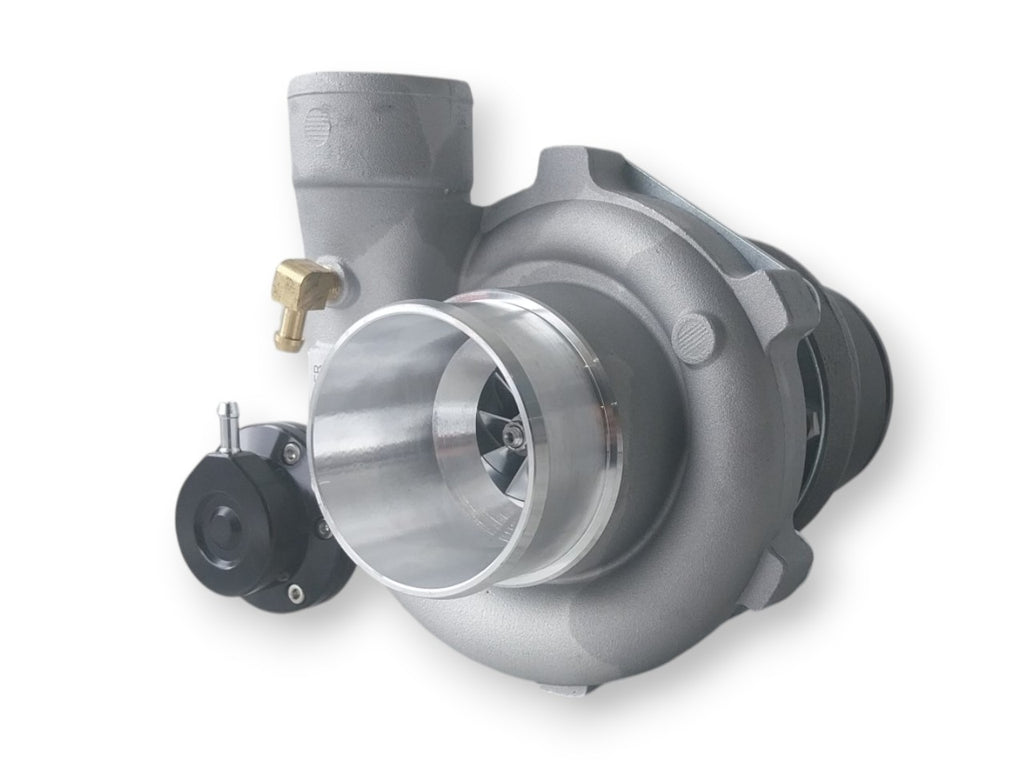

- Model: GTX2563R .49
- Bearing System: Ball bearing
- Flange: T25
- Compressor: A/R .60
- Turbine: A/R .49 - 76mm V-Band
- HP Rating: 200-350hp
- Engine size: 1500cc to 2500cc
- More Details:
Featuring the updated generation 2 design, dual ceramic ball bearing system and billet compressor wheel for a faster spool up. Better suited to smaller displacement 4 cylinder engines as a single turbo up to 2500cc Feel free to contact us to discuss the best set up for your application we have lots of different options and sizes in stock.
Model
- COMPRESSOR DETAILS:
- A/R 0.60 compressor cover
- Air inlet 3" or 76mm (We have silicon joiners if required)
- Air outlet: 2" or 51mm (We have silicon joiners if required)
- Compressor Wheel Dimensions:
- Inducer - 47 mm
- Exducer - 63 mm
- TURBINE DETAILS:
- Turbine: A/R .49
- Exhaust outlet: 76mm V-Band (Comes with clamp set)
- Entry Flange: T25
- Turbine Wheel Dimensions:
- Inducer -53 mm
- Exducer -43mm
- TURBO DETAILS:
- Brand New
- Billet Compressor wheel, for faster spool up and stronger design
- Bearing type: Ceramic ball bearing
- Cooling type: Oil and water cooled - Can run oil cooled only but we recommend to run both
- Horsepower: 200-350hp
- Recommended Boost: 20psi
- Max Boost: 30psi
- Wastegate springs:
- Green: 5.8-10.15psi
- Yellow : 8.7-14.5psi (pre-installed)
- Blue : 13-18.8psi
