Live Stock Level in Warehouse:
Description

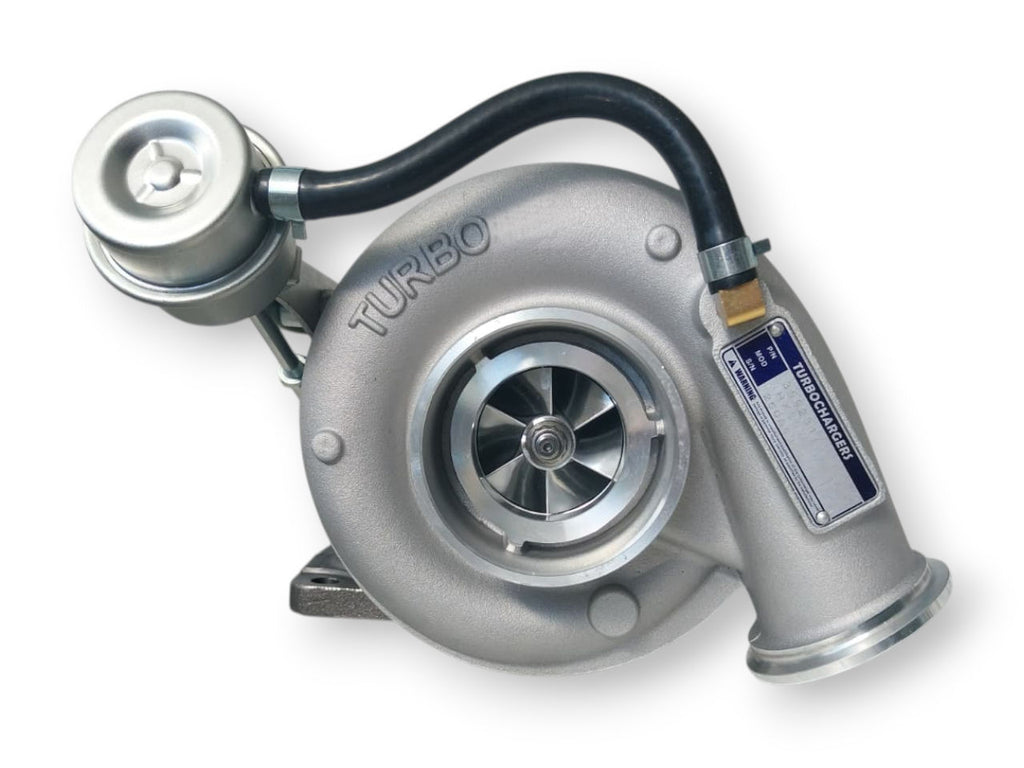

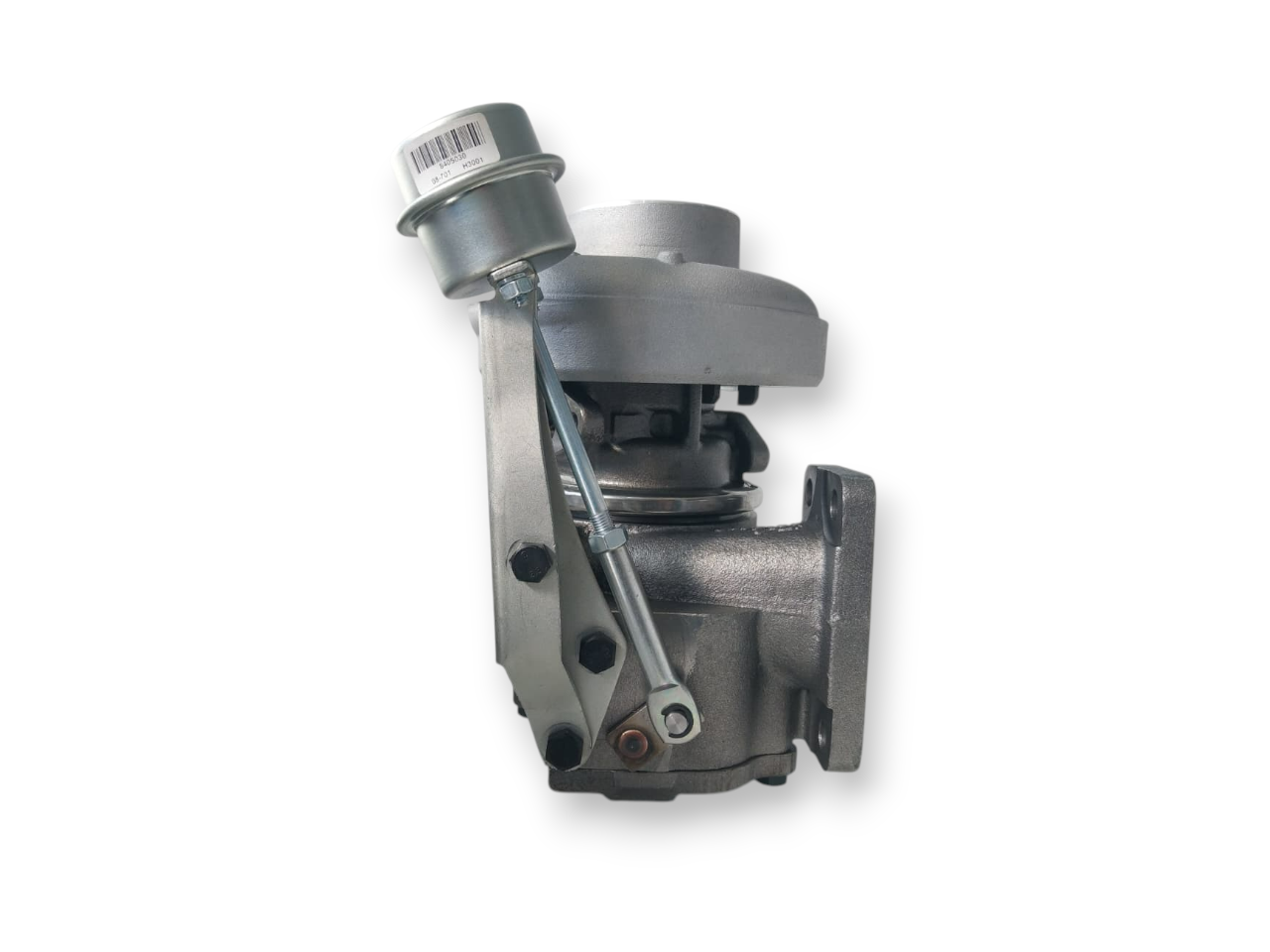

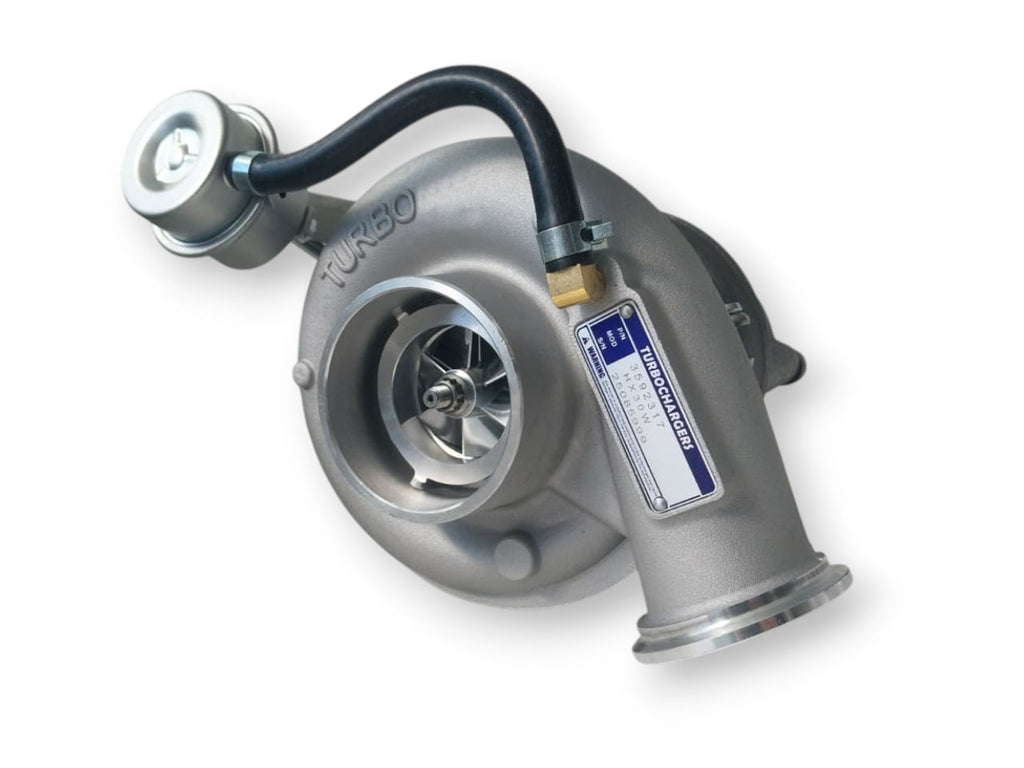

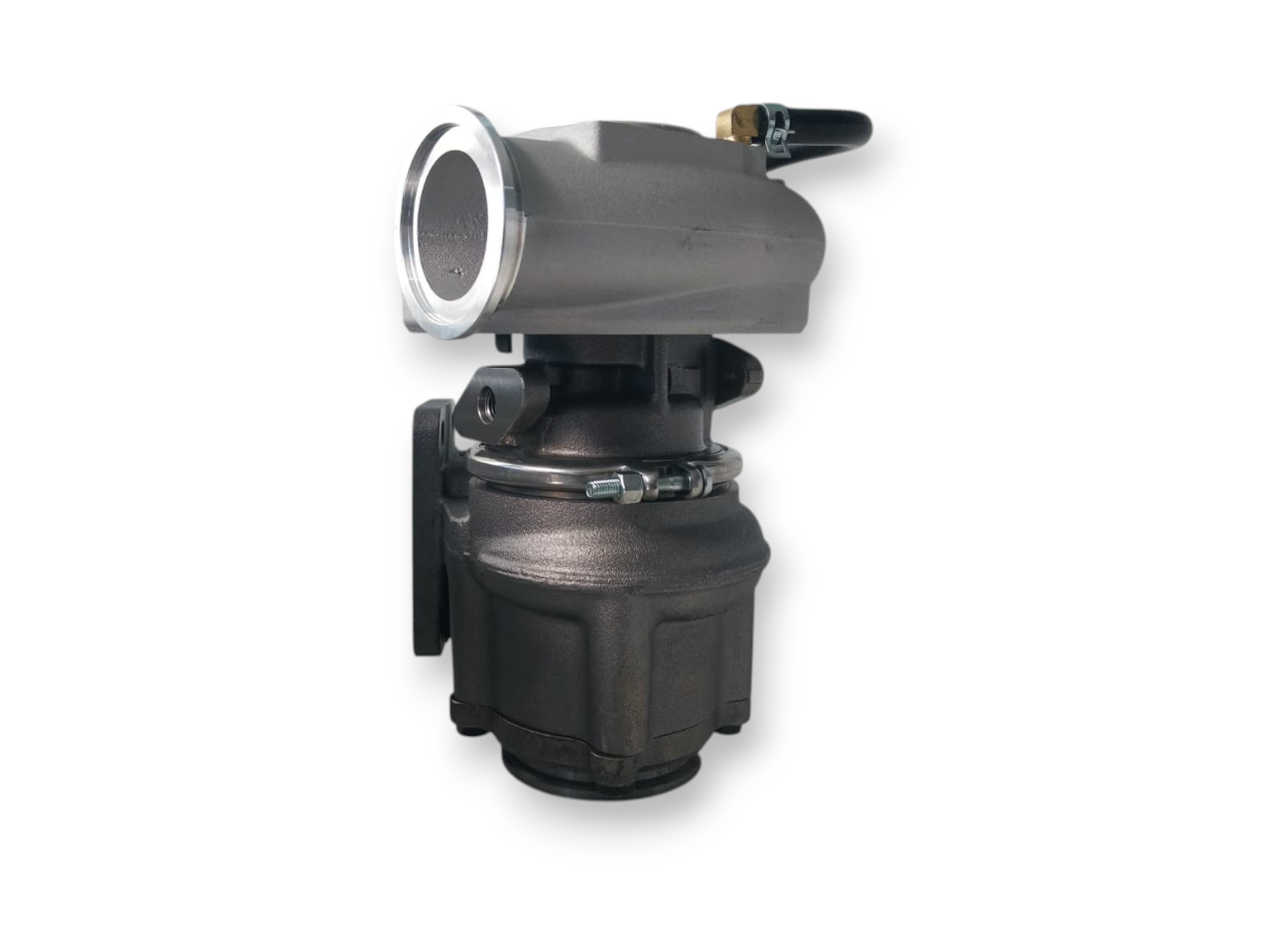

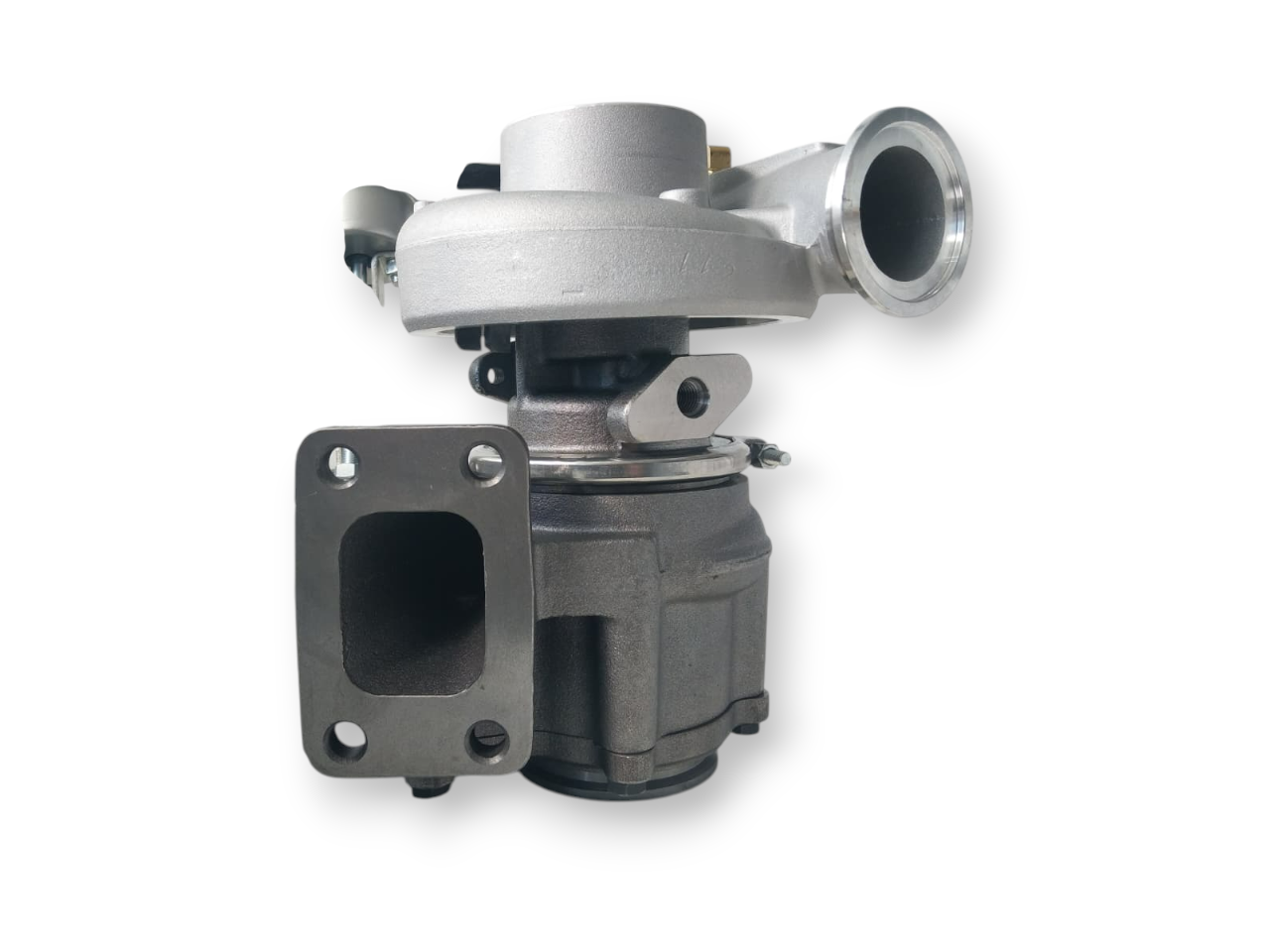

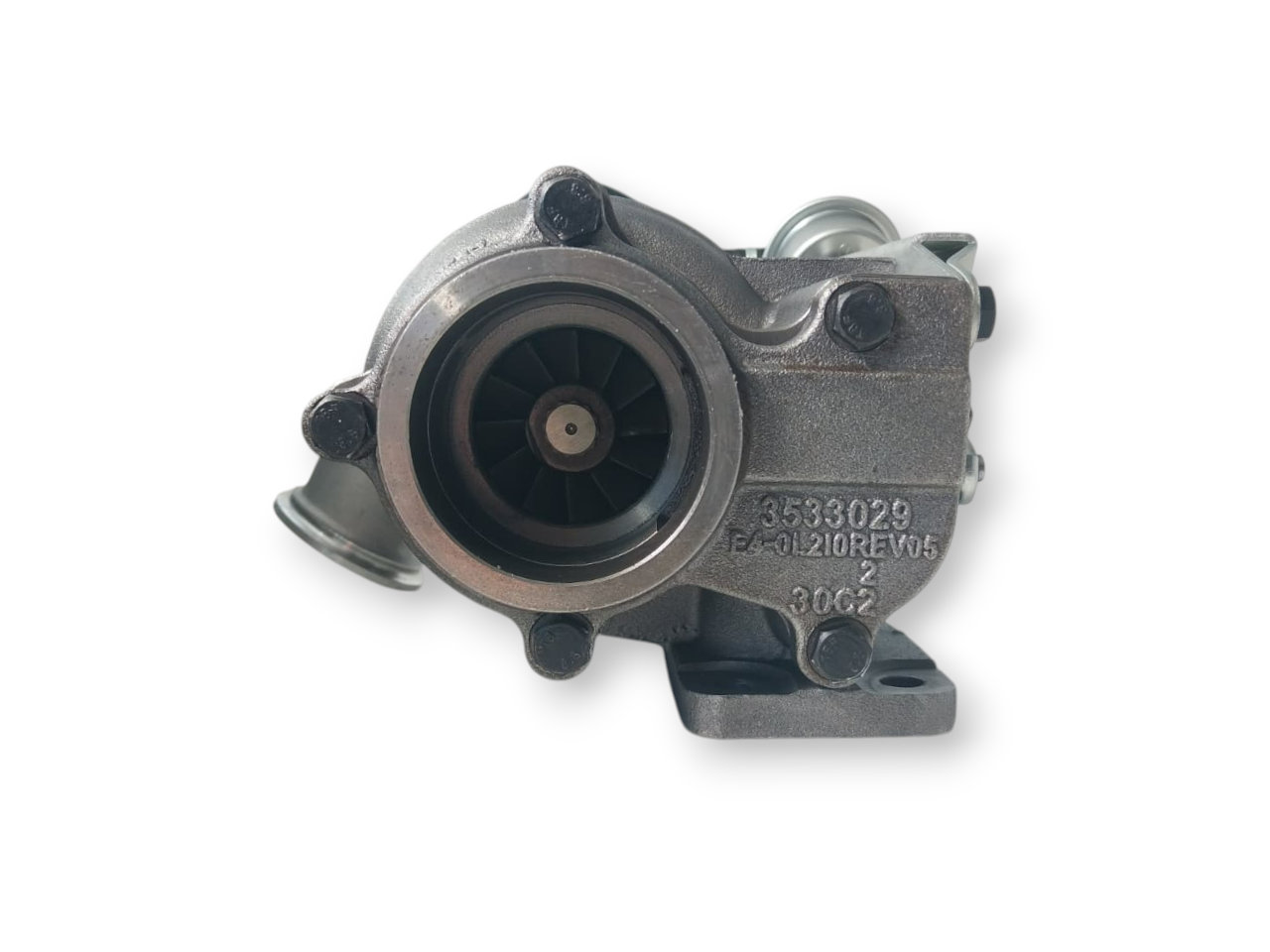

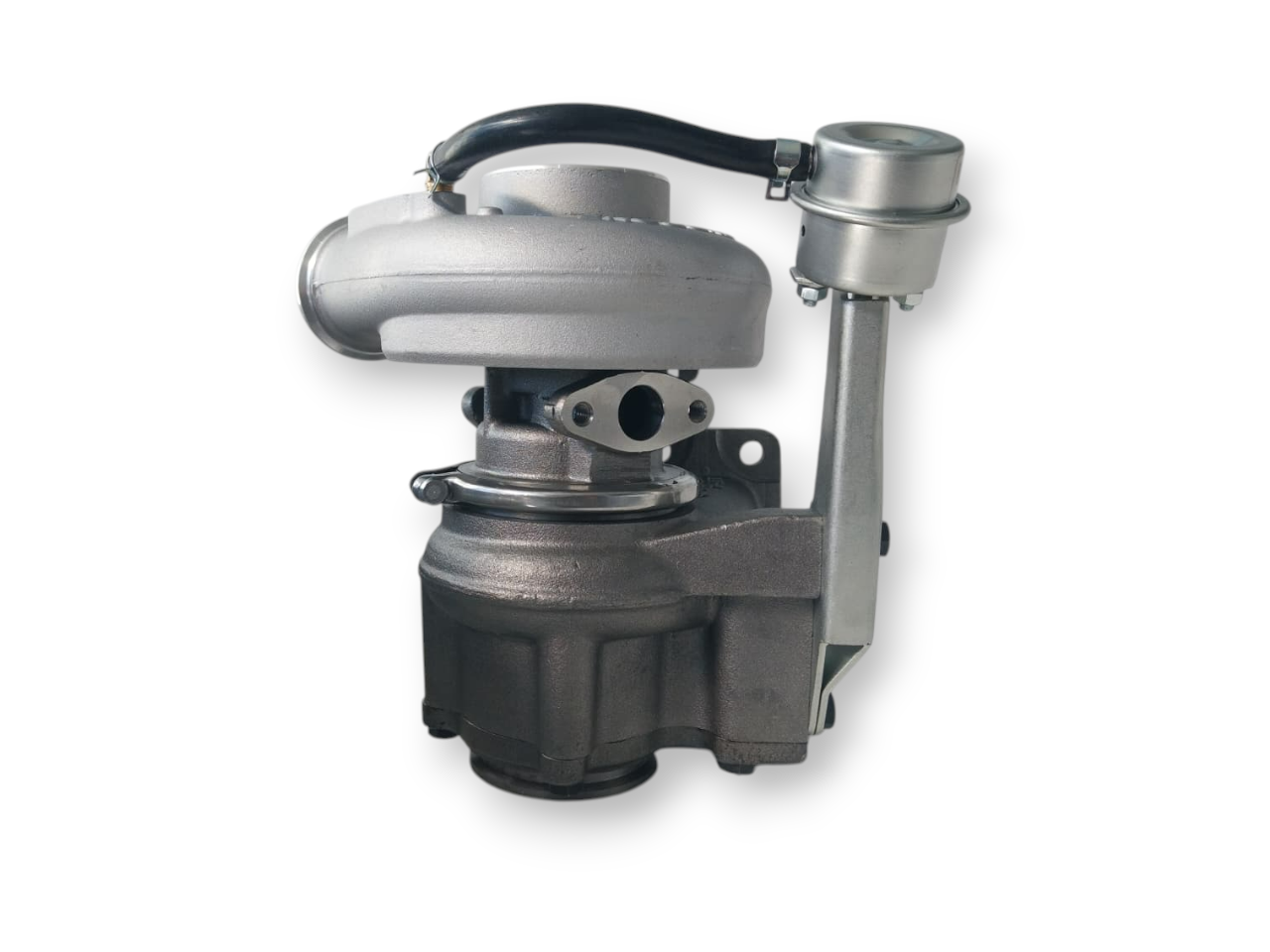

Brand new complete turbocharger, each of our turbos are balanced and tested after assembly.
Product details
- Direct bolt on replacement
- 12 Month Warranty - See terms
- Gaskets included
Please check your turbo part number with the numbers below, if it’s not there or doesn't match it may still be compatible or chances are we have the correct model, please leave us a message and we can confirm.
This turbo is a great options as a universal style turbo with clock-able covers , oil cooled and v-band exhaust outlet. Good size turbo for engines like SR20, RB20, TD42, BP 1.8L DOHC, etc
- Weld on elbows are available to help make your own custom setup ( 2.0 or 2.5insh to suit intercooler piping size ).
- Thrust Bearing:
- 270 degree
- Cooling:
- Oil Cooled
- Original Turbo Application:
- Cummins KAMAZ SO44042 Truck 4BTA Engine 1998-
- Cummins DONG FENG MOTORS with 4BTA Engine 2002-
- 3592317,3592318, 3800998,3598814,, HX30W turbocharger, for Cummins 4BTA
Engine
- 4BTA
- 4BTAA
- Displacement:
- 3.9L
- 127KW/170 HP
Model
- HX30W Billett
Part numbers and references
- 3592317
- 3592318
- 3800998
- 3598814
Please check your turbo part number with the numbers below, if it’s not there or doesn't match it may still be compatible or chances are we have the correct model, please leave us a message and we can confirm.
This turbo is a great options as a universal style turbo with clock-able covers , oil cooled and v-band exhaust outlet. Good size turbo for engines like SR20, RB20, TD42, BP 1.8L DOHC, etc
- Weld on elbows are available to help make your own custom setup ( 2.0 or 2.5insh to suit intercooler piping size ).
- Thrust Bearing:
- 270 degree
- Cooling:
- Oil Cooled
- Original Turbo Application:
- Cummins KAMAZ SO44042 Truck 4BTA Engine 1998-
- Cummins DONG FENG MOTORS with 4BTA Engine 2002-
- 3592317,3592318, 3800998,3598814,, HX30W turbocharger, for Cummins 4BTA
Engine
- 4BTA
- 4BTAA
- Displacement:
- 3.9L
- 127KW/170 HP
Model
- HX30W Billett
Part numbers and references
- 3592317
- 3592318
- 3800998
- 3598814
- T3
- Oil Feed thread pitch : M12x1.5
- Oil Drain : PCD 50mm
- Rear/turbine housing size : 6 cm²
