Description
Buy quality products from the knowledgeable turbo specialists with 15+ years in the business - Turbo Bits

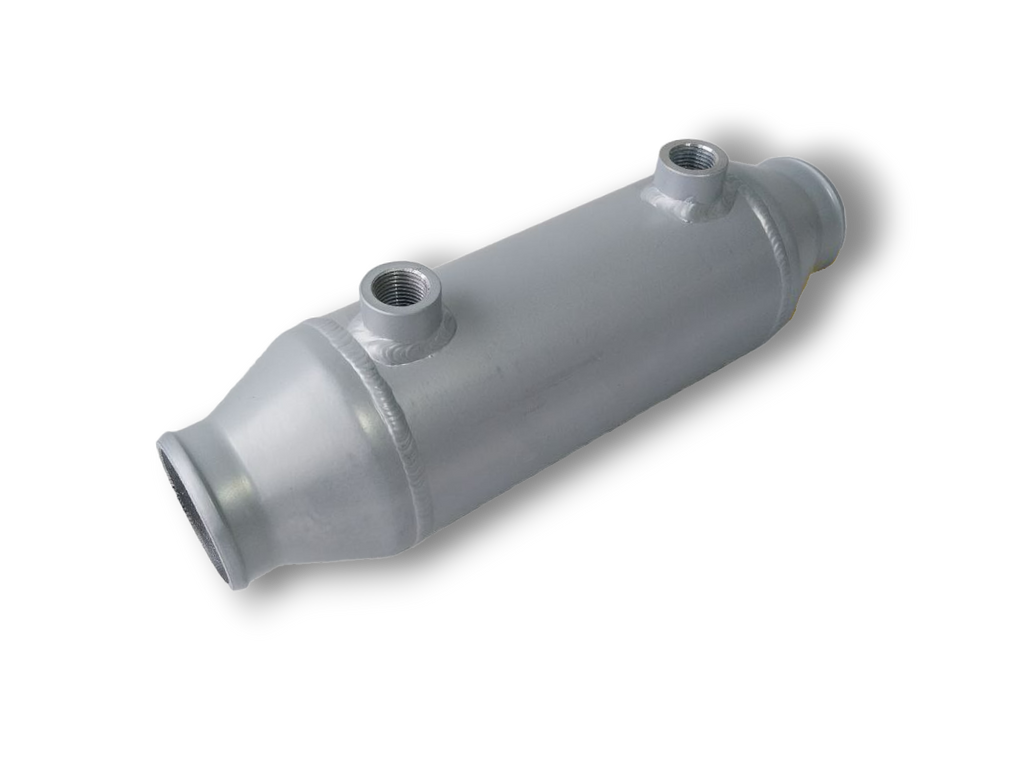

Aluminum welded core, No Epoxy Used.
Recommended for up to 390 CFM and 290 HP.
The core length of this product is 200mm, and the total length from inlet to outlet is 340mm
The air inlet and outlet on this intercooler go directly through the intercooler; preventing the air from changing direction can result in better airflow.
Note: Most of the barrel style intercoolers available have barbed fittings instead of 1/2" NPT Female fittings like ours for the water inlet/outlet. Our fittings allow you to use one of our adaptors or installation kits (sold separately) to run traditional hose, or braided stainless steel hose and fittings, or anything else you can think of without any installation headaches.
Water-to-Air Intercooler
Core Size:
200mm long x 100mm (End Tanks add to length)
Pressure Drop:
1.1 PSI ( Approximate )

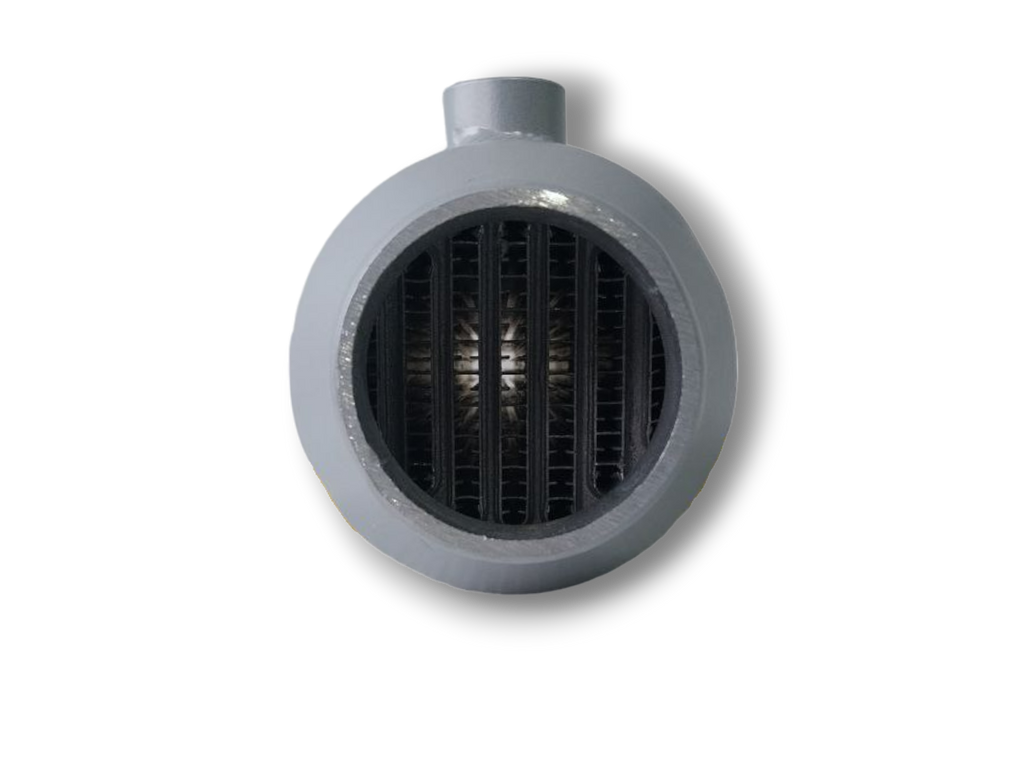

Core type:
Tube and Fin
Air Inlet/outlet:
63mm (2.5")
Water Inlet/Outlet
1/2" NPT Female
Maximum water/air pressure
70 PSI
