Description

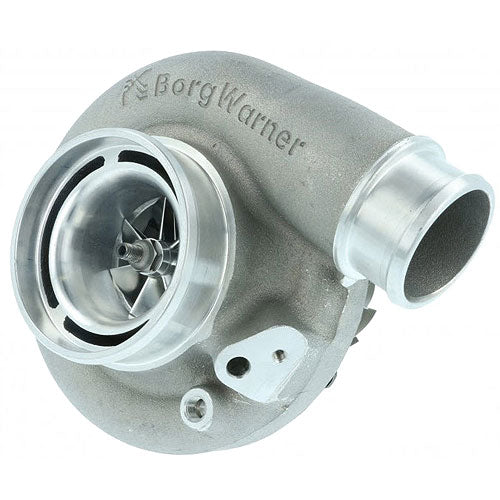

Turbo Family: S300SX-E Super-Core "S361SX-E"
Product details
- Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
- Compressor Inducer: 61.44mm
- Compressor Exducer: 83.47mm
- Turbine Inducer: 76.20mm
- Turbine Exducer: 67.56mm
- Bearing Type: Journal Bearing
- Bearing Cooling: Oil
- Flange Details:
- Compressor Inlet Flange: 4.00" Hose
- Compressor Outlet Flange: 2.5" Hose with integrated V/band option
- Turbo Characteristics:
- Turbo Size: Medium frame
- Intended Application: Medium - High power
- Expected Power Output: 320 to 1000 HP : 235 to 745 kw
- Additional Comments:
- 360 degree thrust bearing
- Integrated speed sensor port
- Forged milled compressor wheel
- Flexible compressor cover outlet options
- Pre-machined boost port
- Optimized compressor stage aerodynamics
