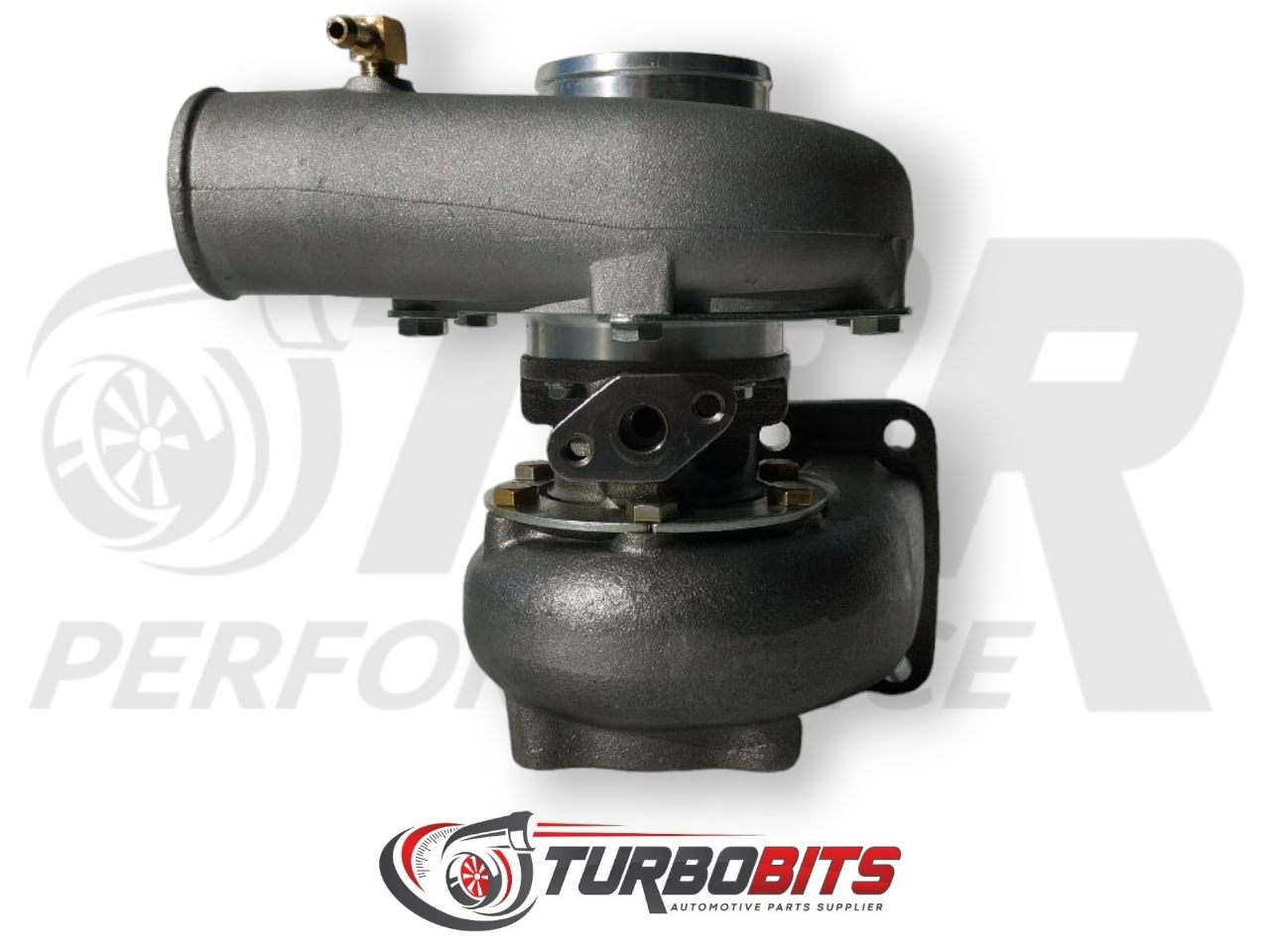

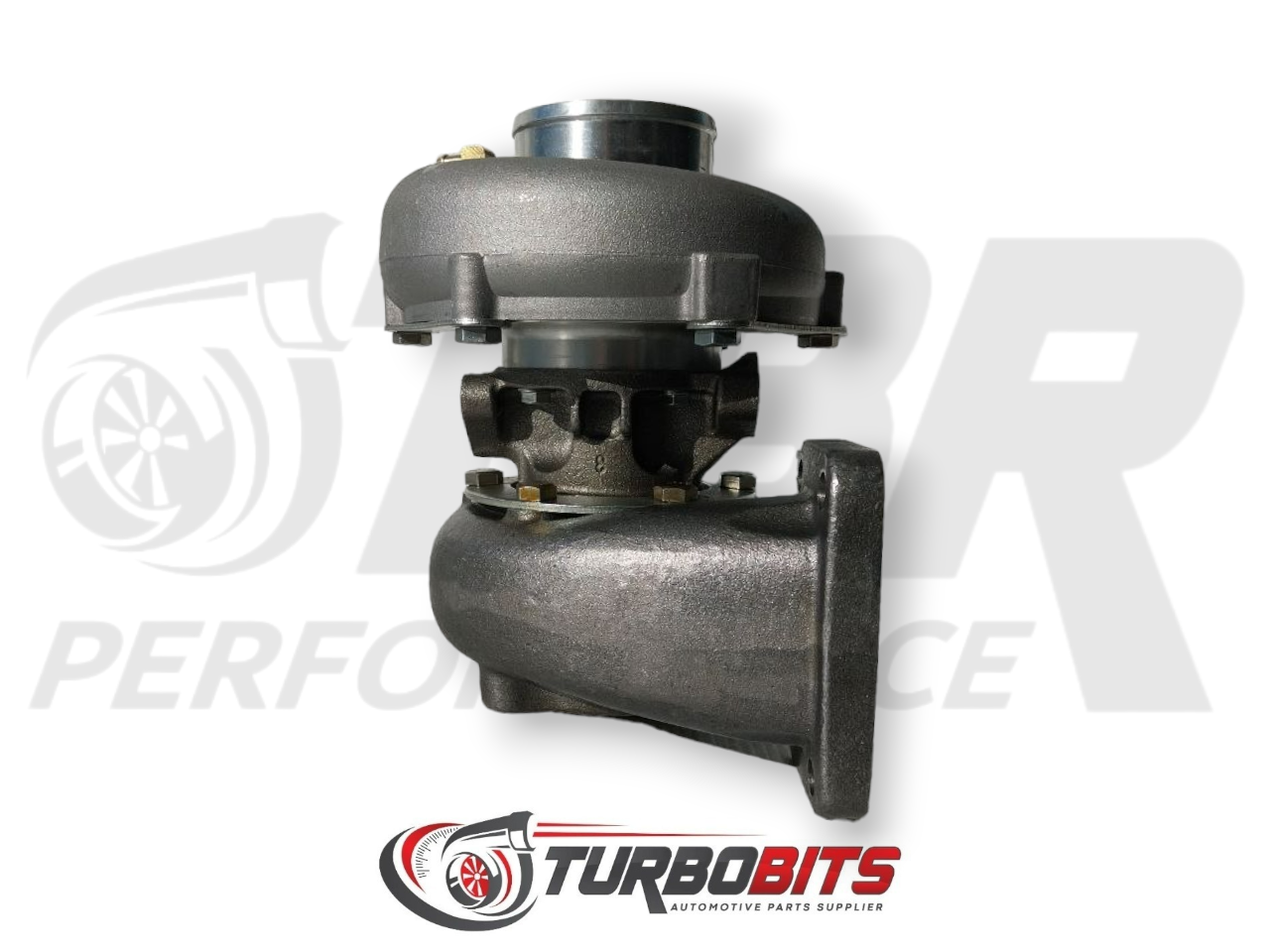

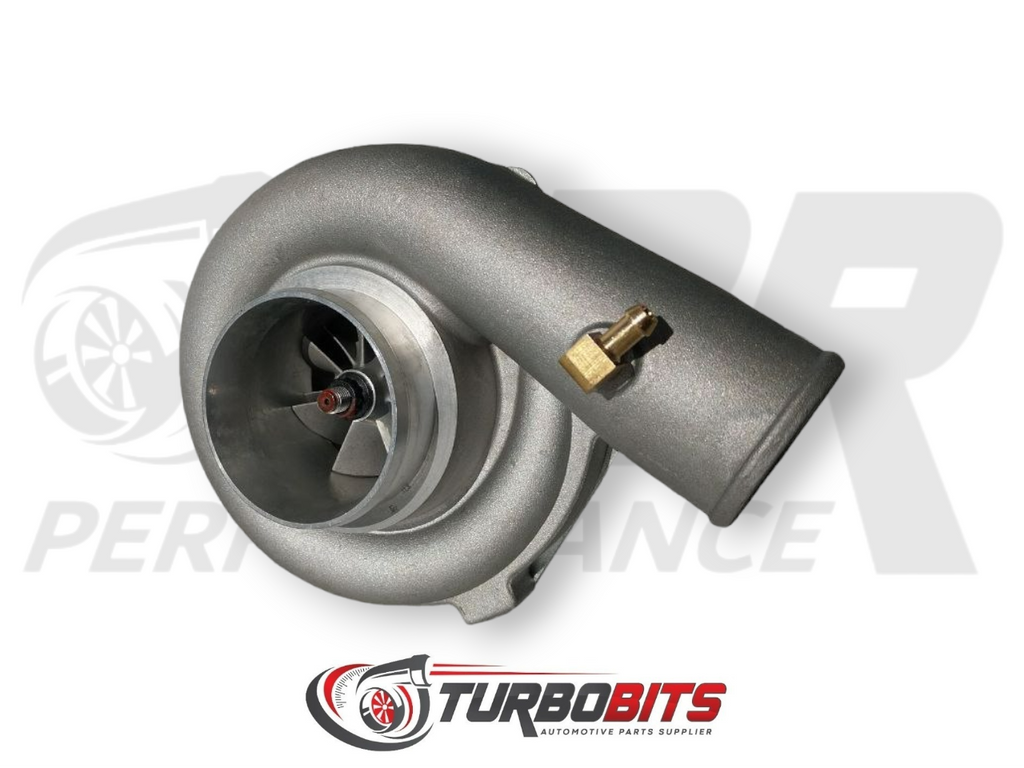

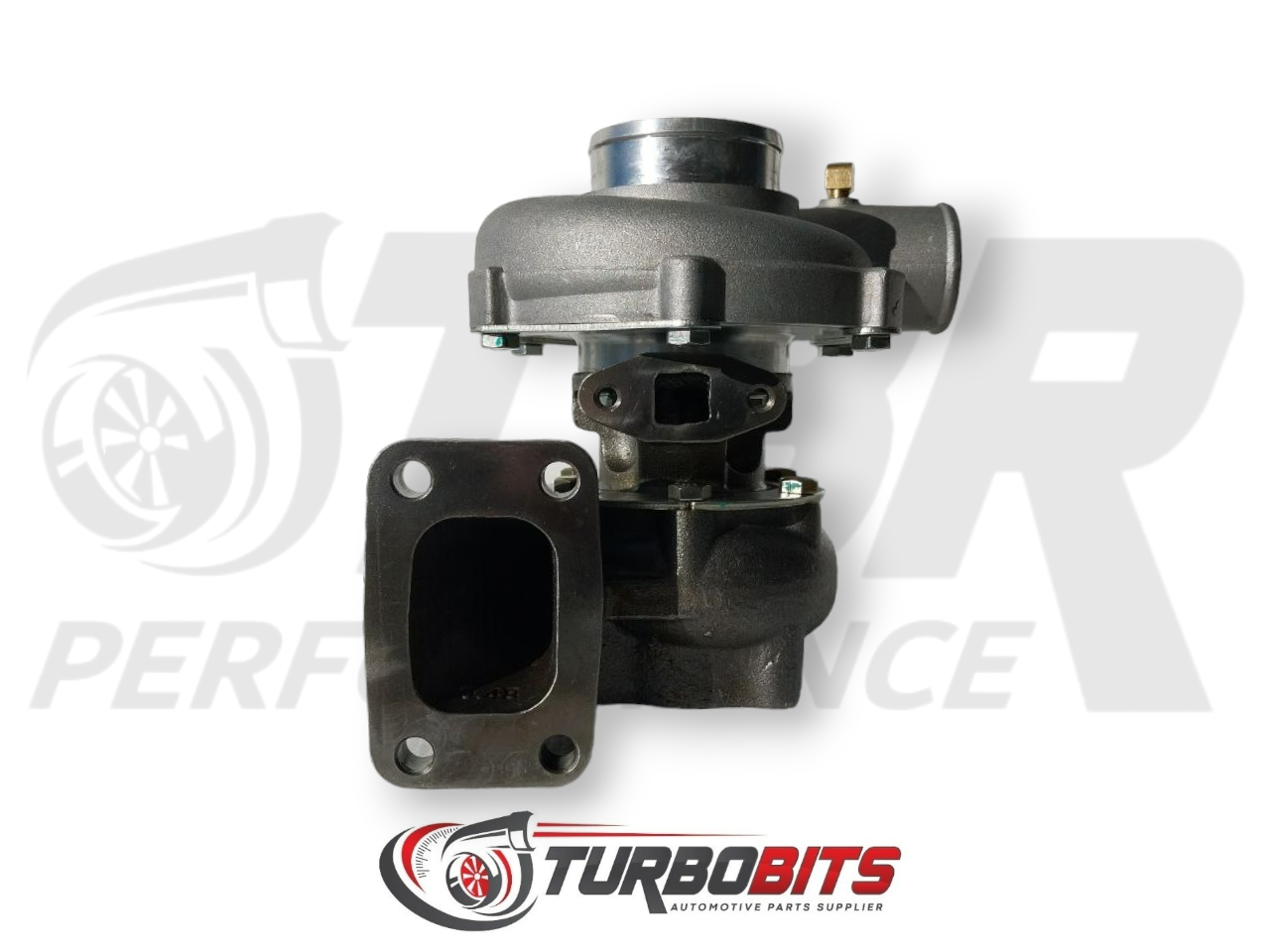

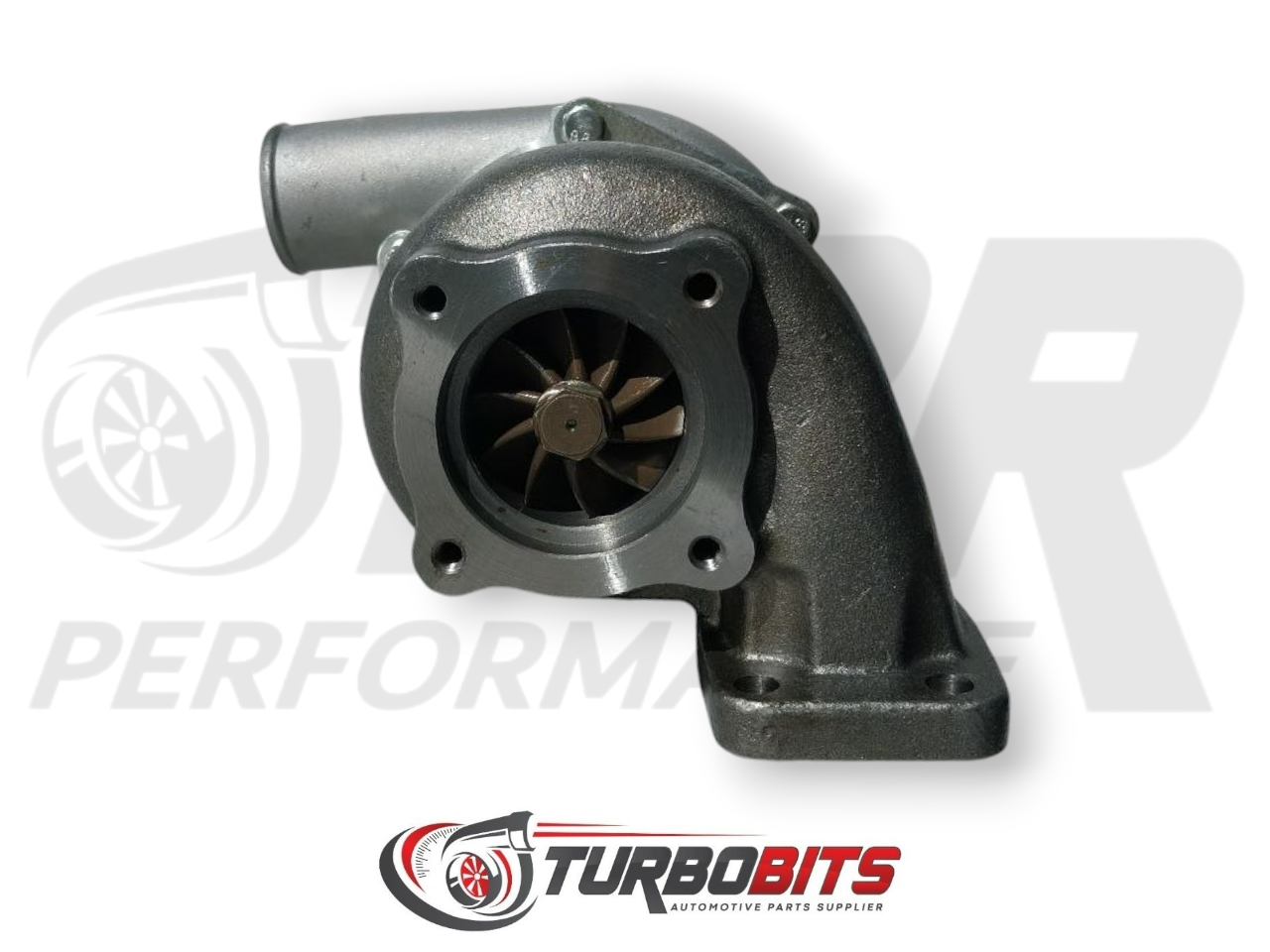

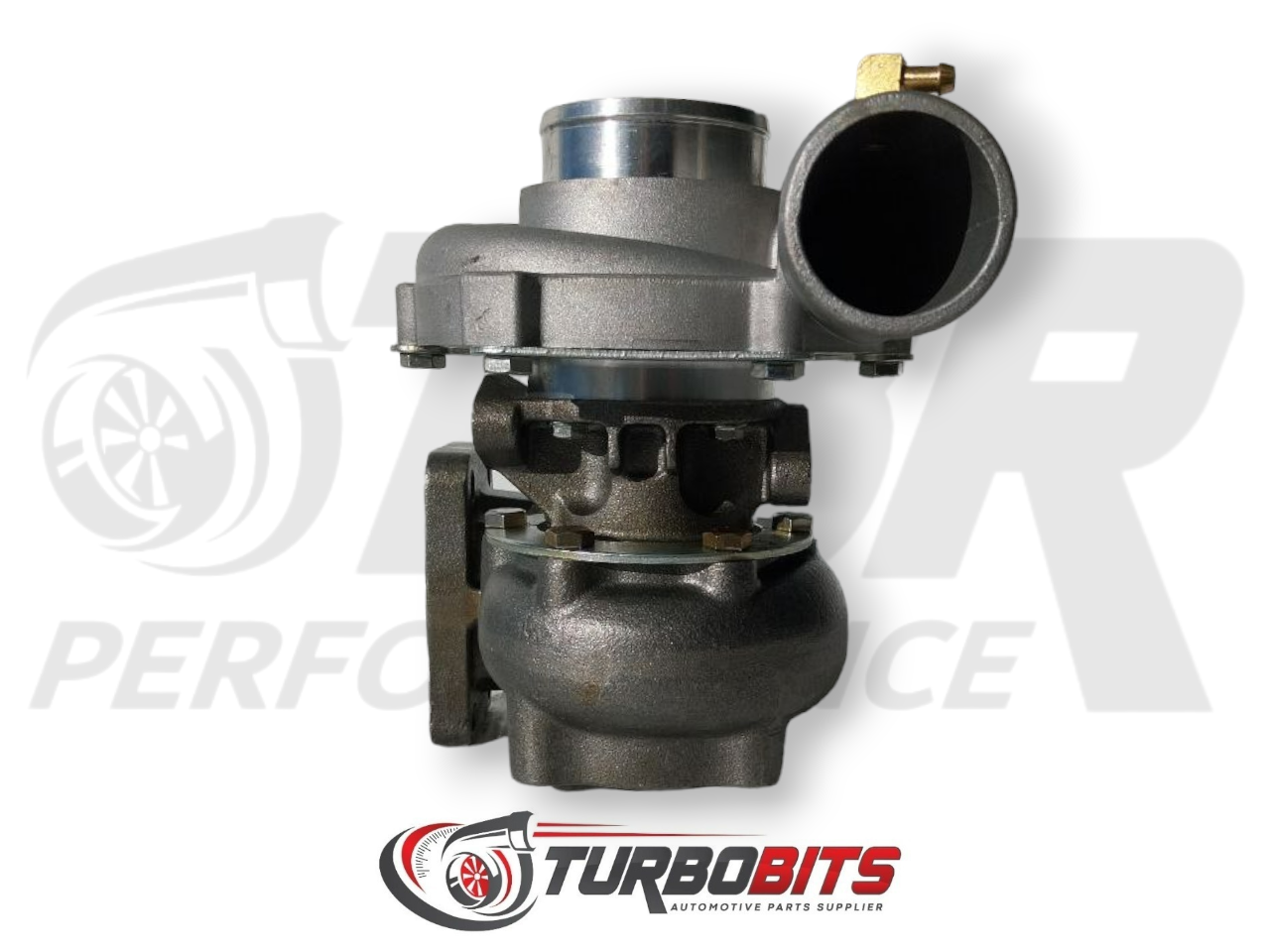

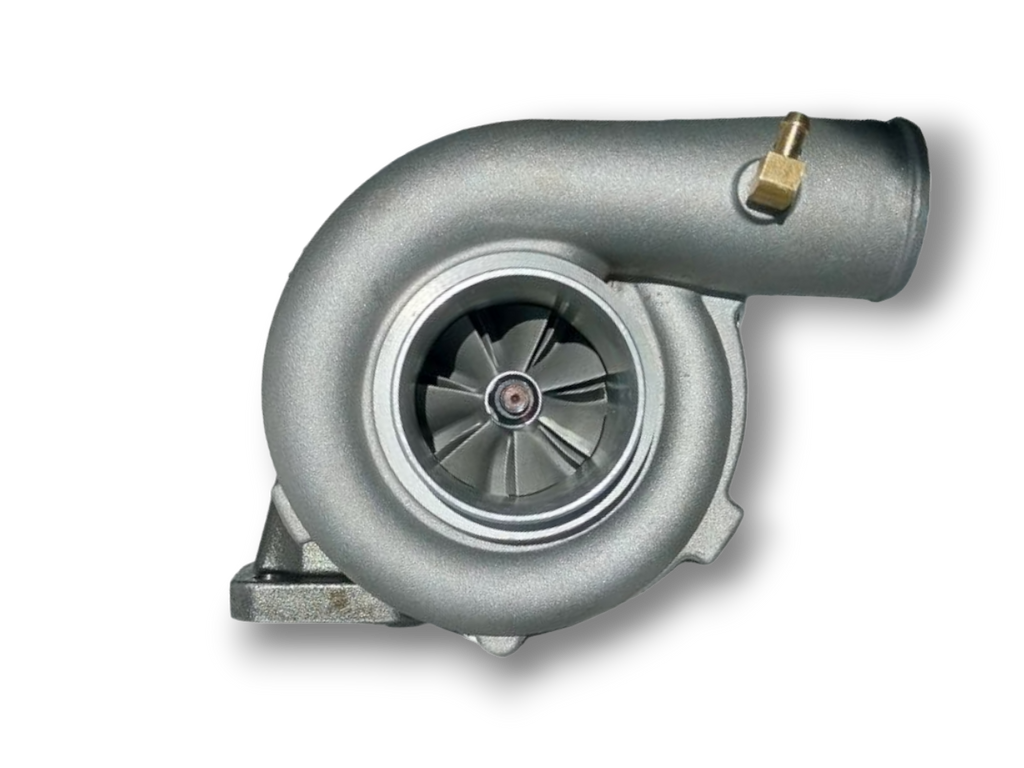

Brand New - Turbo Bits
Model: GT30
Bearing System: Journal
Flange: T3
Compressor: A/R .60
Turbine: A/R .48 - 63mm 4 bolt
HP Rating: 250-450hp
Engine size: 1500cc to 2500cc
Wastegate: Internal or External
The A/R .48 exhaust housing it better suited to smaller displacement 4 and 6 cylinder engines as a single turbo up to 2500cc, as a twin turbo, up to 5000cc. It also features a removable rear housing to convert from internal to external gated. Feel free to contact us to discuss the best set up for your application we have lots of different options and sizes in stock.
COMPRESSOR DETAILS:
A/R 0.60
Air inlet 3.00" (We stock silicon joiners)
Air outlet: 2.50" (We stock silicon joiners)
Compressor Wheel Dimensions:
Inducer - 61.40mm
Exducer - 82.00mm
TURBINE DETAILS:
Turbine: A/R 0.48 - For faster spool up time
Exhaust outlet: 63mm outlet 4 bolt
Entry Flange: T3
Turbine Wheel Dimensions:
Inducer - 65.00mm
Exducer - 49.00mm
TURBO DETAILS
Bearing type: Journal bearing
Cooling type: Oil cooled
Horsepower: 250-450hp
Recommended Boost: 10-20psi
Max Boost: 30psi
Wastegate: External
NOTE: Have 63mm 4 bolt to V-Band adapters available, please see our other listings.
ORDER TOGETHER AND SAVE
- Intercooler Kits
- Silicon Joiners
- Water fittings & water lines
- Oil fittings & Oil lines
- 38mm, 44mm or 60mm external V-Band wastegates
- Blow of valves
- Adjustable Fuel Pressure regulator
- V-Band flange & clamp set
- T3 Manifold adapters
- T3 Flanges
- Fuel Pumps
- Turbo Beanies
- Heat Wrap
- Oil coolers
- Boost & vacuum line
+ Much more - Just ask
