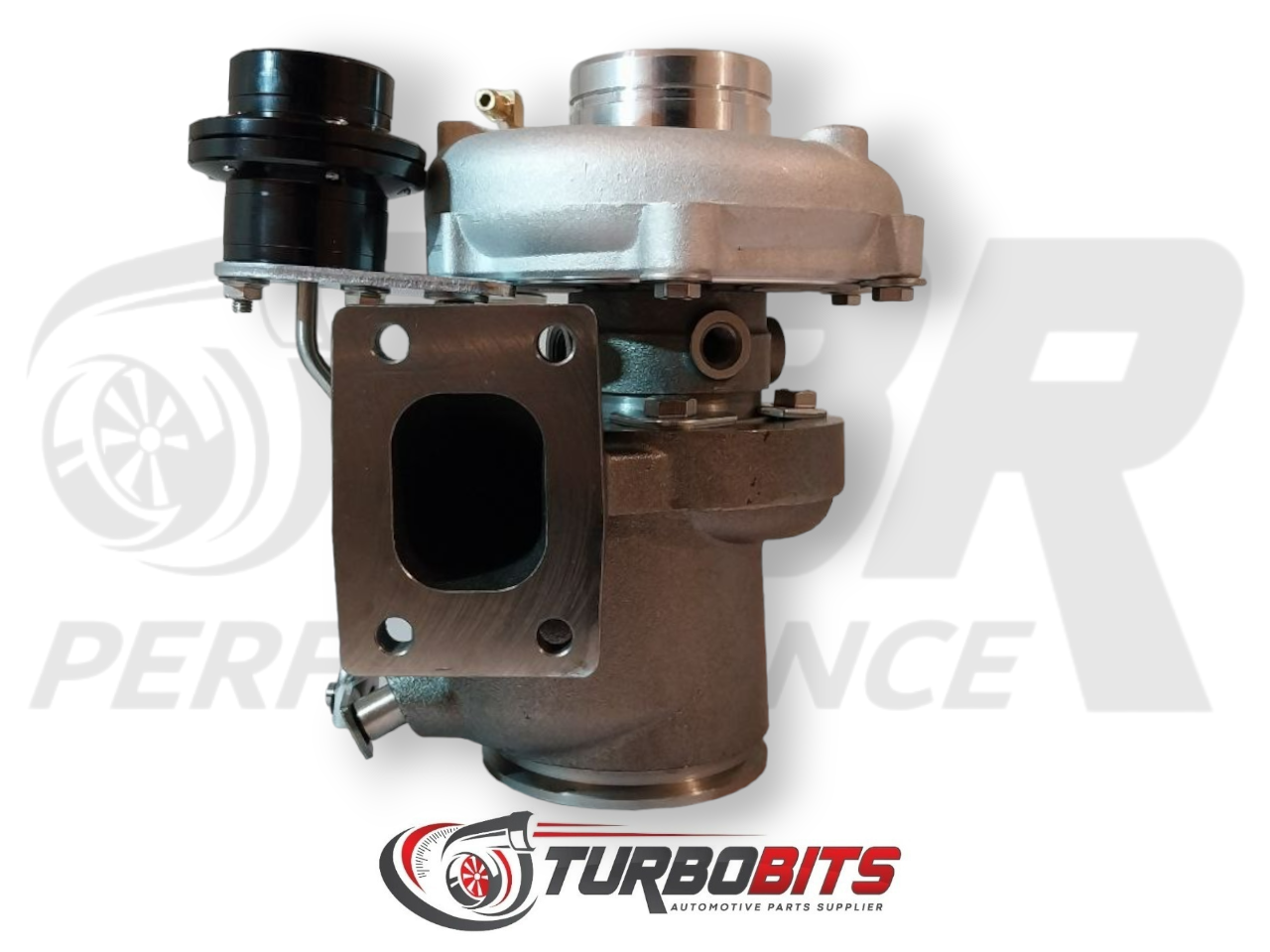

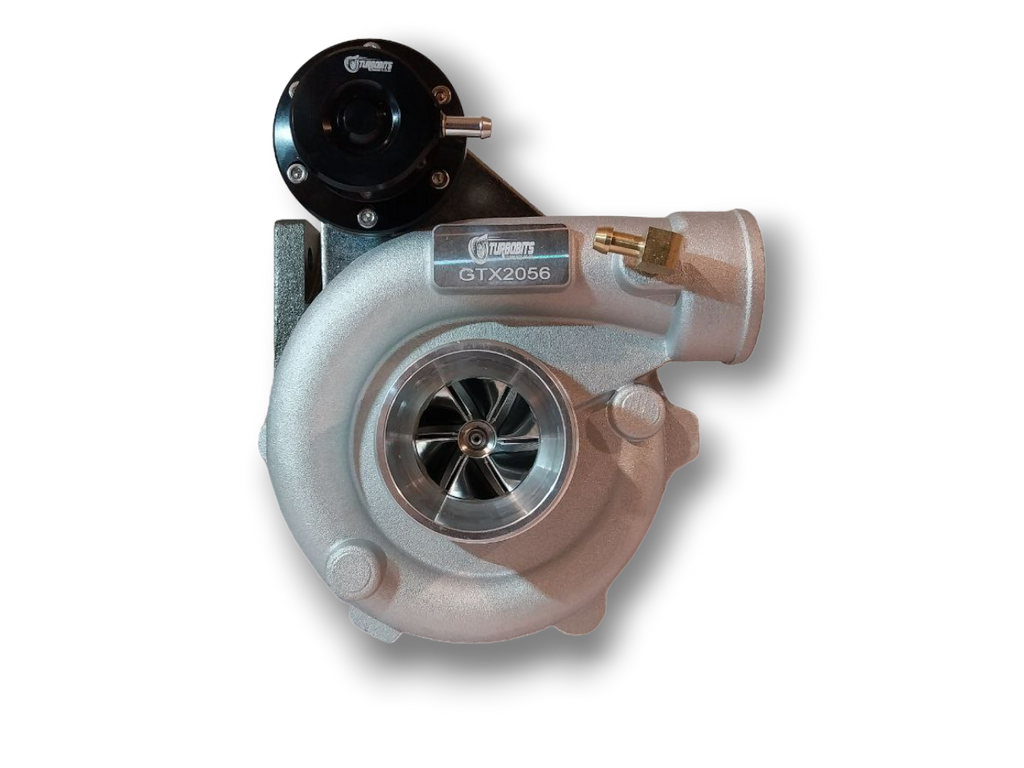

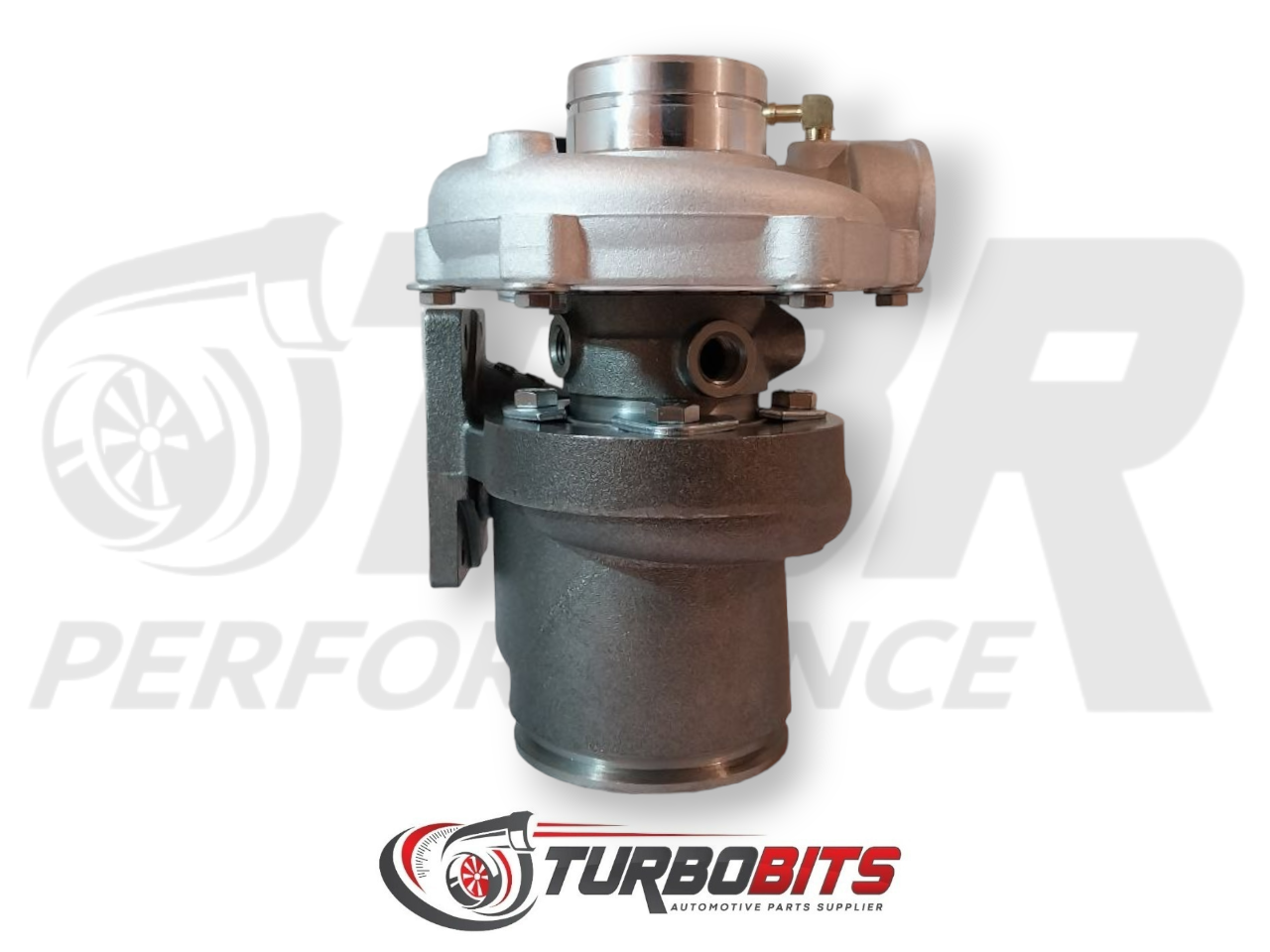

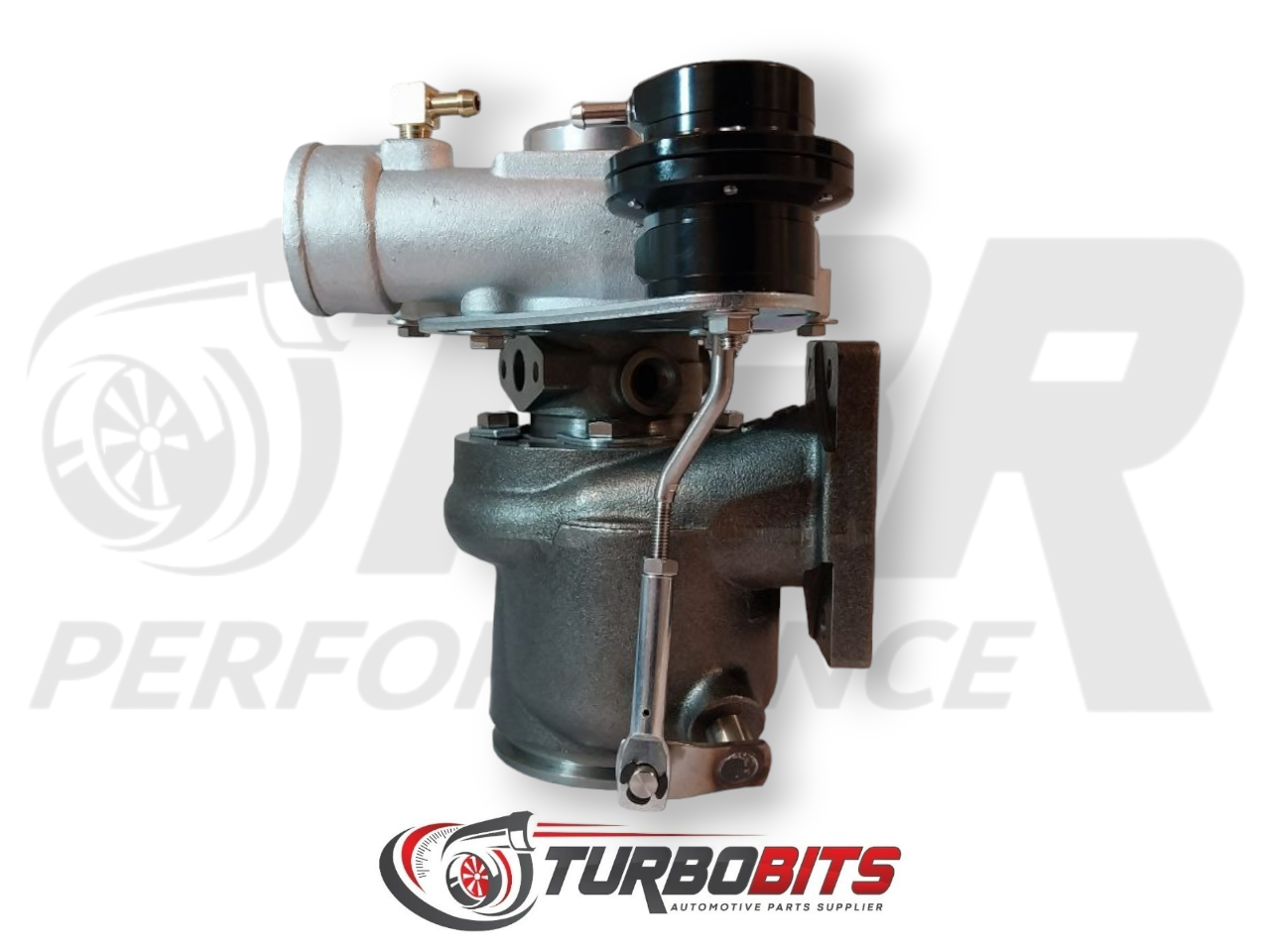

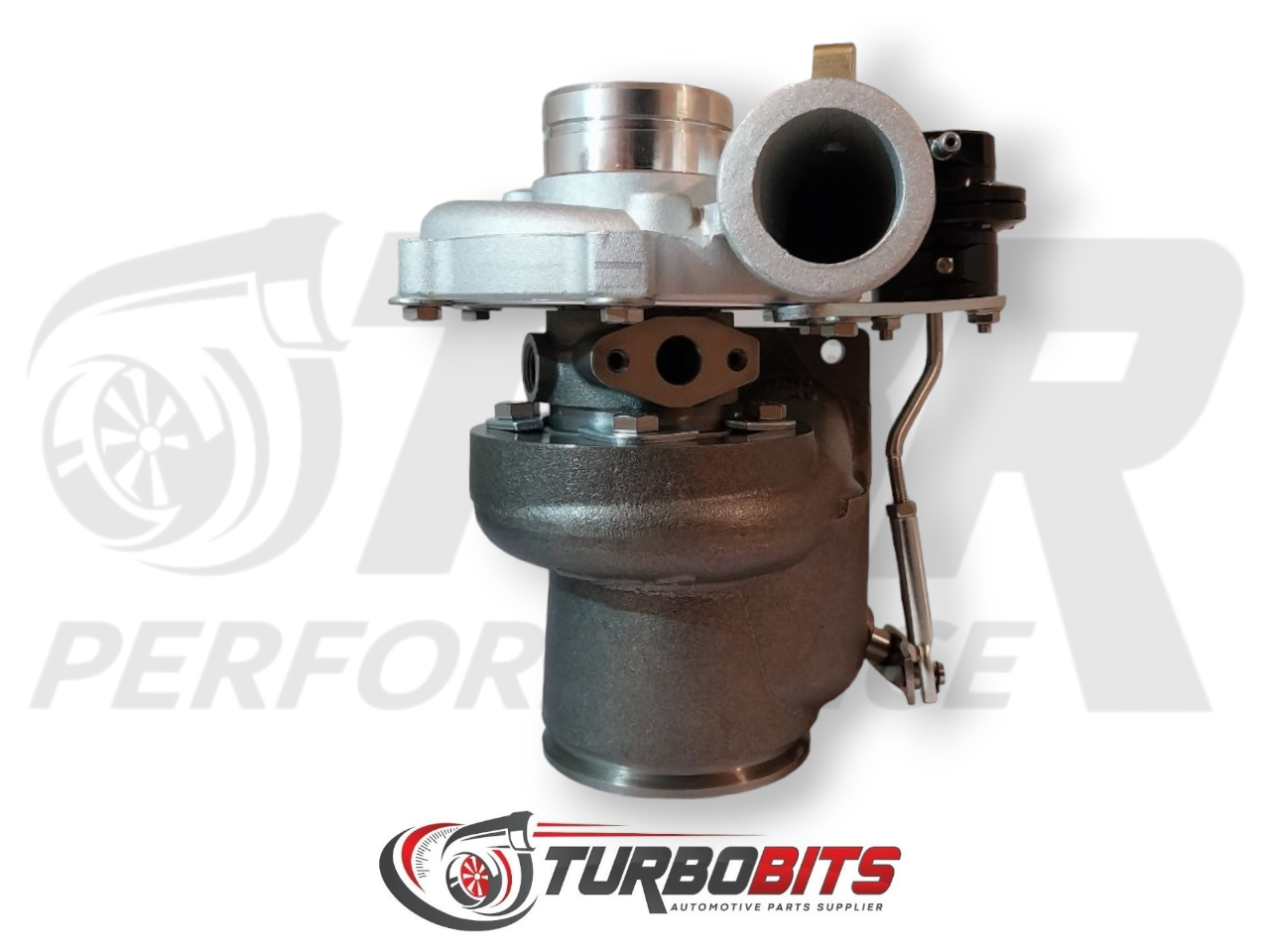

Brand New - Turbo Bits
Model: GTX2056 .49
Bearing System: Journal bearing
Flange: T25
Compressor: A/R .42
Turbine: A/R .49 - 76mm V-Band
HP Rating: 200-350hp
Engine size: 1100cc to 2000cc
More Details:
Featuring the updated generation 2 design,billet compressor wheel for a faster spool up. Better suited to smaller displacement 4 cylinder engines as a single turbo up to 2000cc Feel free to contact us to discuss the best set up for your application we have lots of different options and sizes in stock.
Model:
COMPRESSOR DETAILS:
A/R 0.42 compressor cover
Air inlet: 60mm (We have silicon joiners if required)
Air outlet: 2" or 51mm (We have silicon joiners if required)
Compressor Wheel Dimensions:
Inducer - 41.5 mm
Exducer - 56 mm

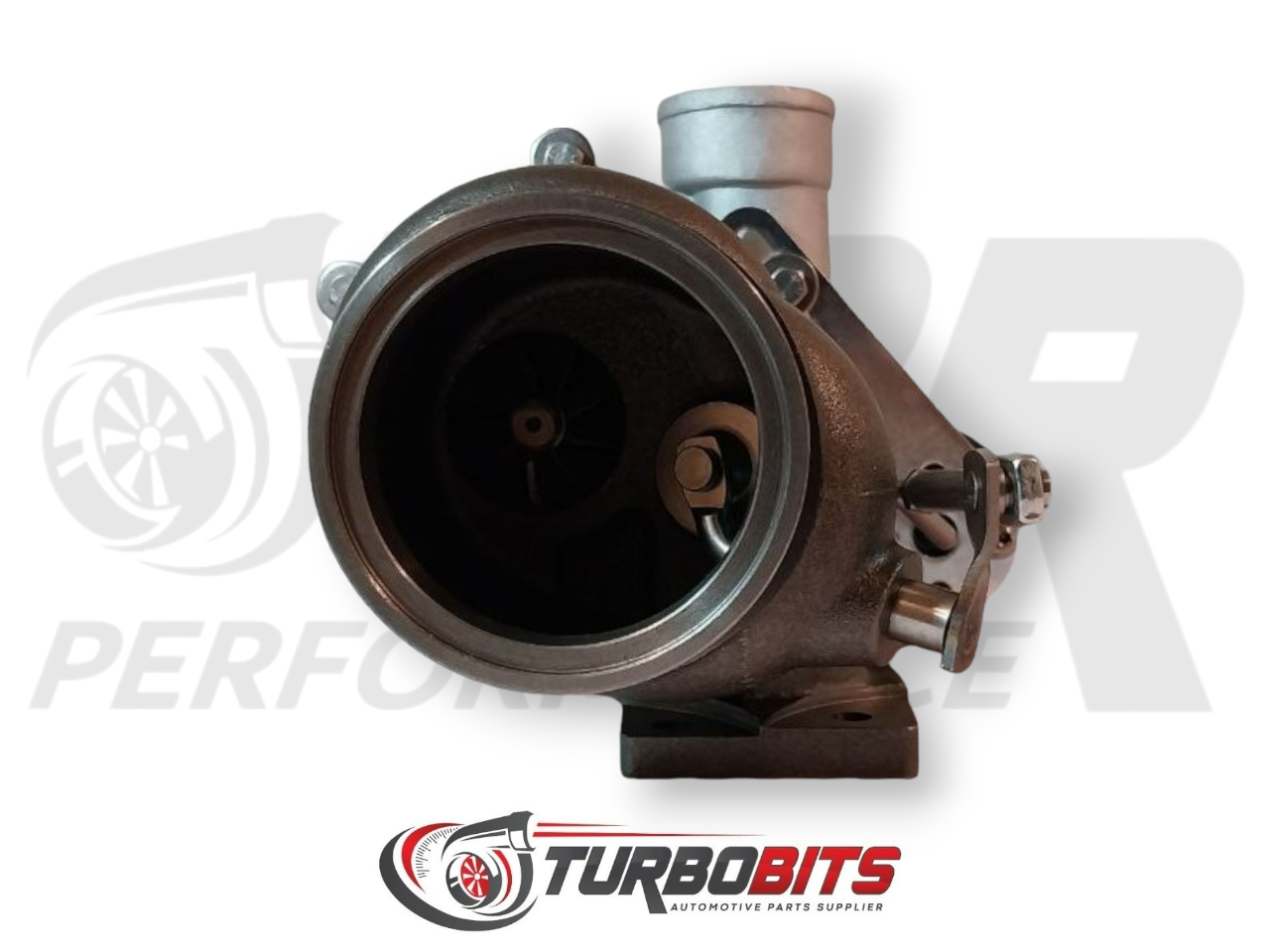

TURBINE DETAILS:
Turbine: A/R .49
Exhaust outlet: 76mm V-Band (Comes with clamp set)
Entry Flange: T25
Turbine Wheel Dimensions:
Inducer -47 mm
Exducer -40mm
TURBO DETAILS:
Brand New
Billet Compressor wheel, for faster spool up and stronger design
Bearing type: Journal bearing
Cooling type: Oil and water cooled - Can run oil cooled only but we recommend to run both
Horsepower: 140-260hp
Recommended Boost: 20psi
Max Boost: 30psi

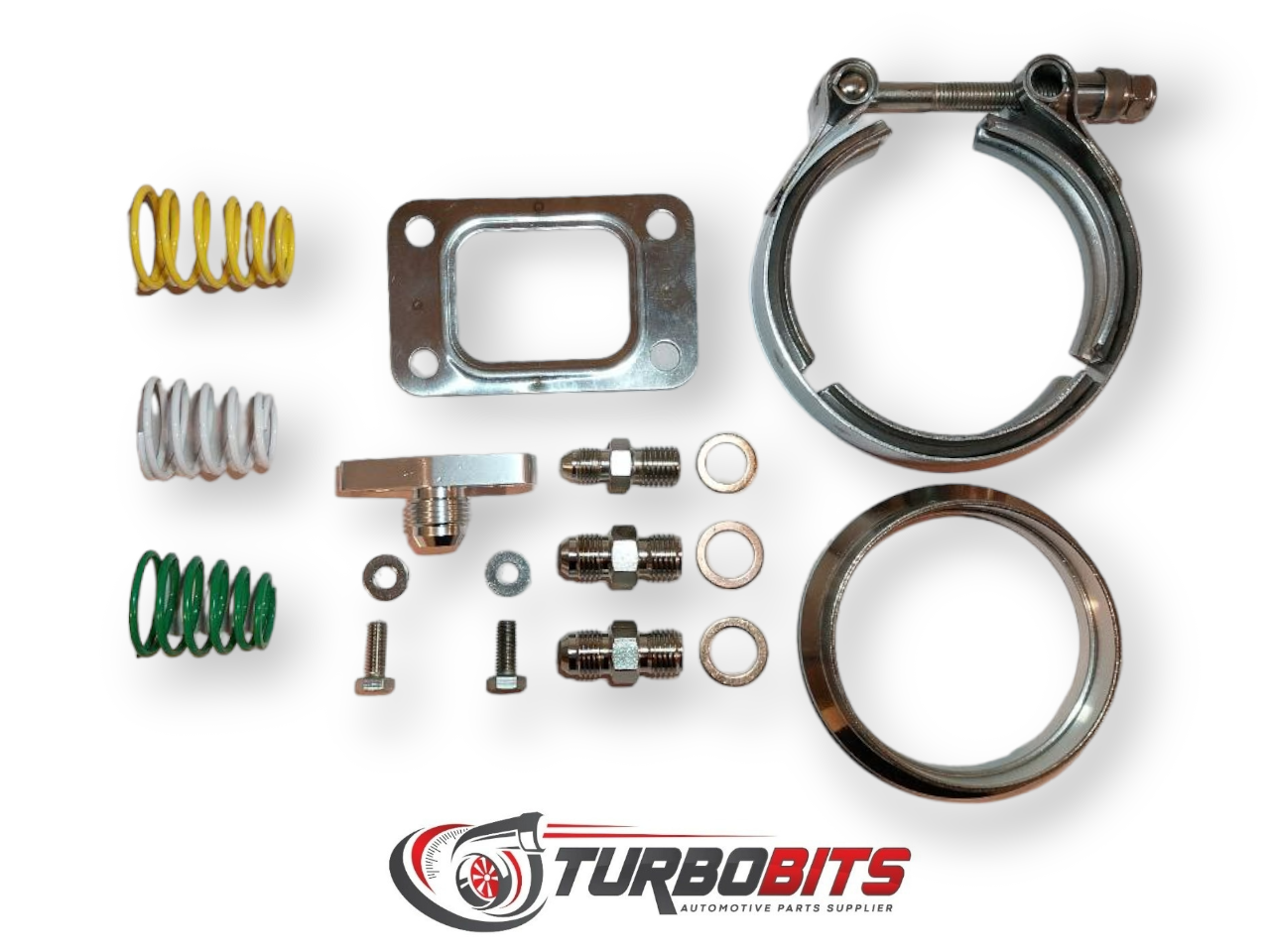

Wastegate springs
White: 3.6-7.2psi
Green: 5.8-10.15psi (pre-installed)
Yellow : 8.7-14.5psi
