Turbosmart Reference Distribution Block (5 Port) 1/8NPT - TS-0704-1001

TS-0704-1001

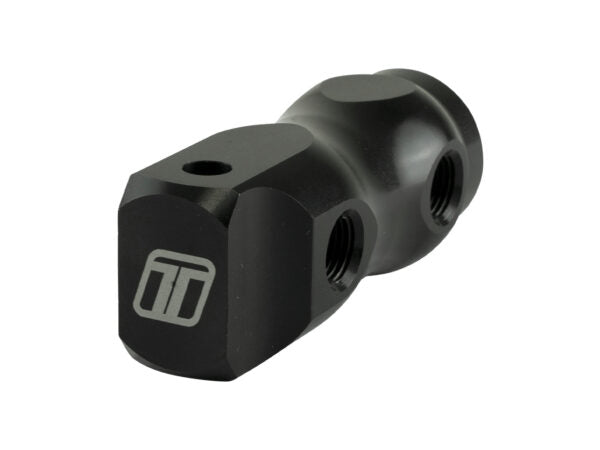

The Turbosmart Simple Reference Manifold Block is a professional solution for remote mounting and sharing of engine (MAP) reference with multiple outputs such as Fuel Pressure Regulators, Maps Sensors, Boost Gauges, Wastegates and Brake Boosters. Manufactured from Billet (6262 T6) Aluminium and Black anodized, with 4 x 1/8 NPT Ports and a simple 1/4 NPT Port, the Simple Reference Distribution Manifold allows 4 1/8 NPT outputs to be shared with the 1/4 NPT Reference and is suitable for both hose tail fittings as well as high-pressure, braided and more exotic fittings and hoses.

• Available In
• Simple Remote Sensor Manifold
• Simple Reference Distribution Manifold
• Modular Remote Sensor Manifold
• Modular Reference Distribution Manifold
• Modular Combo (Sensor & Reference) Manifold

Product details

• Billet (6262 T6) Aluminium Construction
• Mounting Bracket
• 1/8 NPT Ports
• 5 Port Shared System, (1 x 1/4 NPT + 4 x 1/8 NPT)
• Blanking Plugs and Hose Tail Fittings
