Description

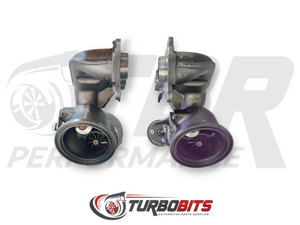

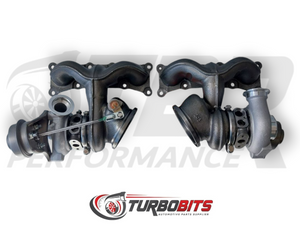

Turbo Bits TD04-19T Stage 3 upgrade turbochargers for the listed BMW N54 applications. Select RHD or LHD to suit the vehicle. Supporting intake, fuelling, exhaust and tuning requirements are detailed below.
- Select the required option above. The specifications and components depend on the chosen configuration.
Product details
True stage 3 upgrade turbocharger, this product will be a direct bolt in replacement saving on costly customization, Please note you will have to run supporting fuelling, intake, exhaust and a ECU re-flash is highly recommended, please speak with your local tuner for more info and advice around this.
- Brand new complete turbocharger, each of our turbos are balanced and tested after assembly.
- Direct bolt on replacement upgrade high flow turbo
- 12 Month Warranty - See terms
- Gaskets included
- Larger billet compressor wheel
- Larger turbine wheel
Special Note: N54 turbos will require an intake upgrade to 2inch inlet pipes due to the larger intake fitting for the larger compressor wheels. Exhaust and water oil lines can use original hardware.
- 2 Options available: Please select from RHD or LHD
- BMW 335i / 335xi (E90/E91/E92/E93) N54 3.0L Turbo, 2007 - 2010
- BMW 335is (E92/E93) N54 3.0L Turbo, 2011 - 2013
- Compressor Wheel: 6+6 Blades Billet 19T
- Inducer: 46.0mm
- Exducer: 58.0mm
- Turbine Wheel: 12 Blades TD04HL
- Inducer: 52.0 mm
- Exducer: 45.6mm
- Compressor Housing:
- 2" Compressor inlet
- Turbine Housing:
- 6cm / 0.41 AR
- Bearing:
- Journal Bearing
- This item
- LHD N54 TD04-19T
- Product reference: BMW 335i N54 650HP Upgrade Stage 3 TD04-19T High Flow turbochargers LHD N54 TD04-19T
