Description
Buy quality products from the knowledgeable turbo specialists with 15+ years in the business - Turbo Bits
Brand New - Turbo Bits

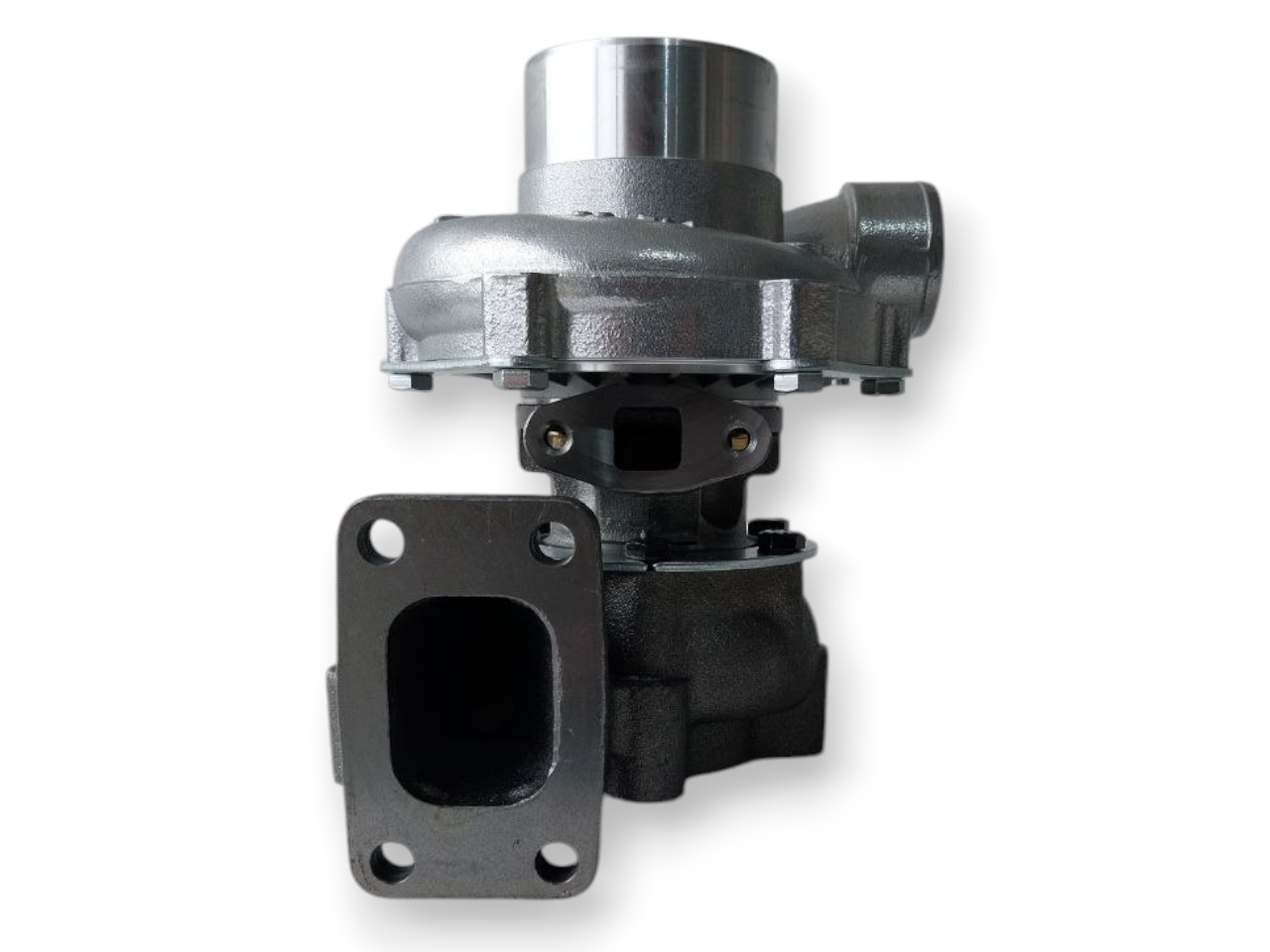

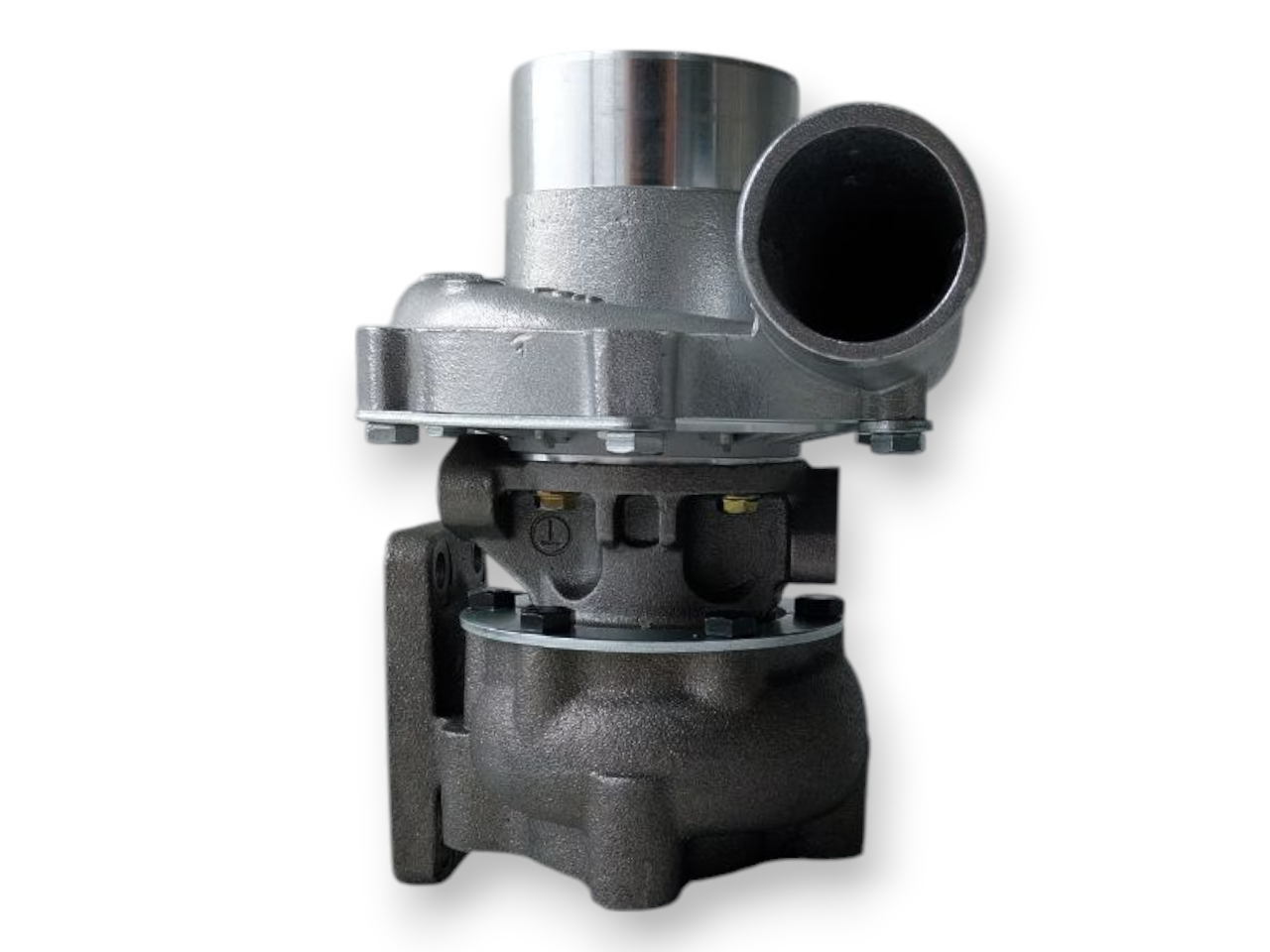

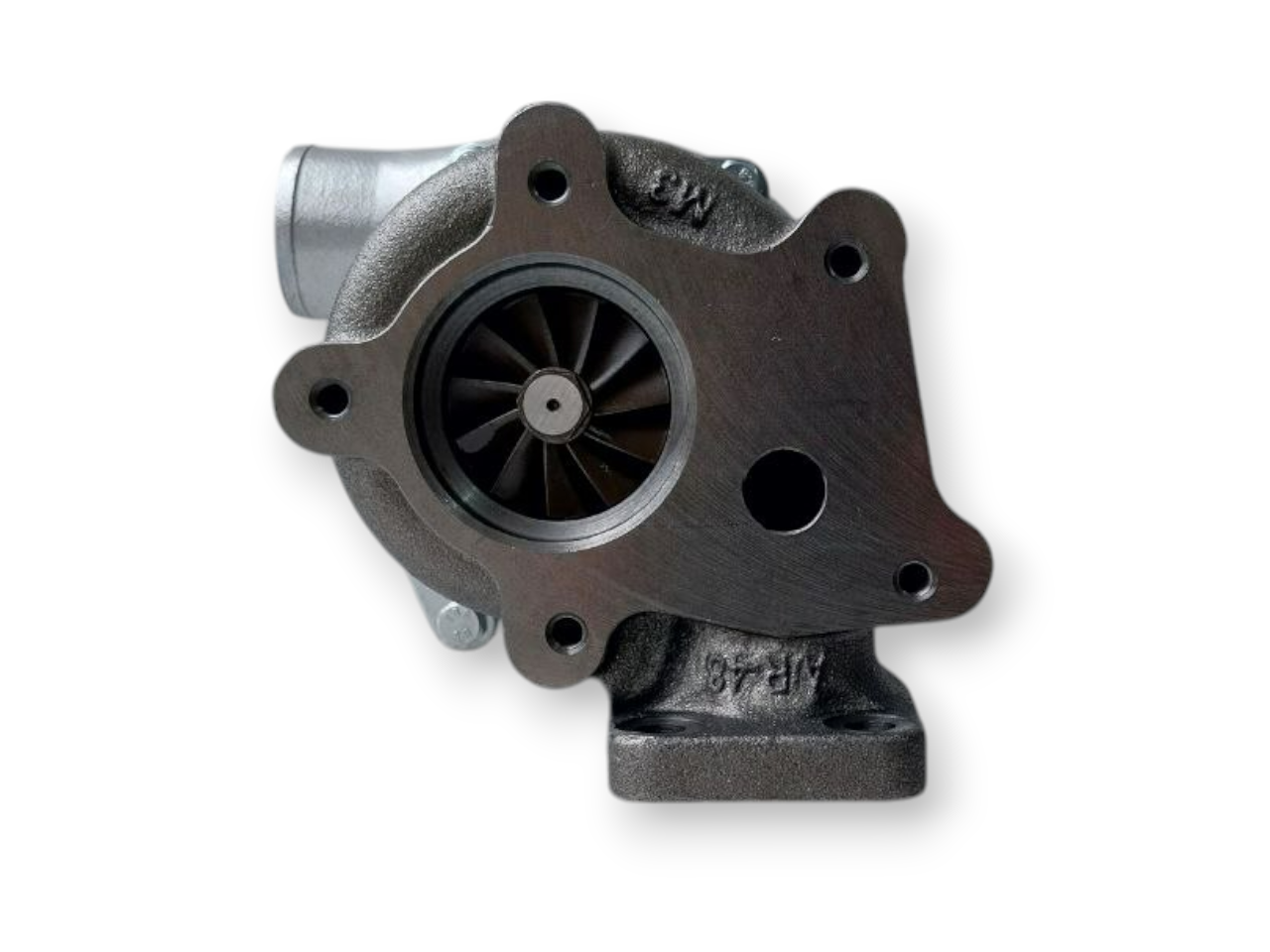

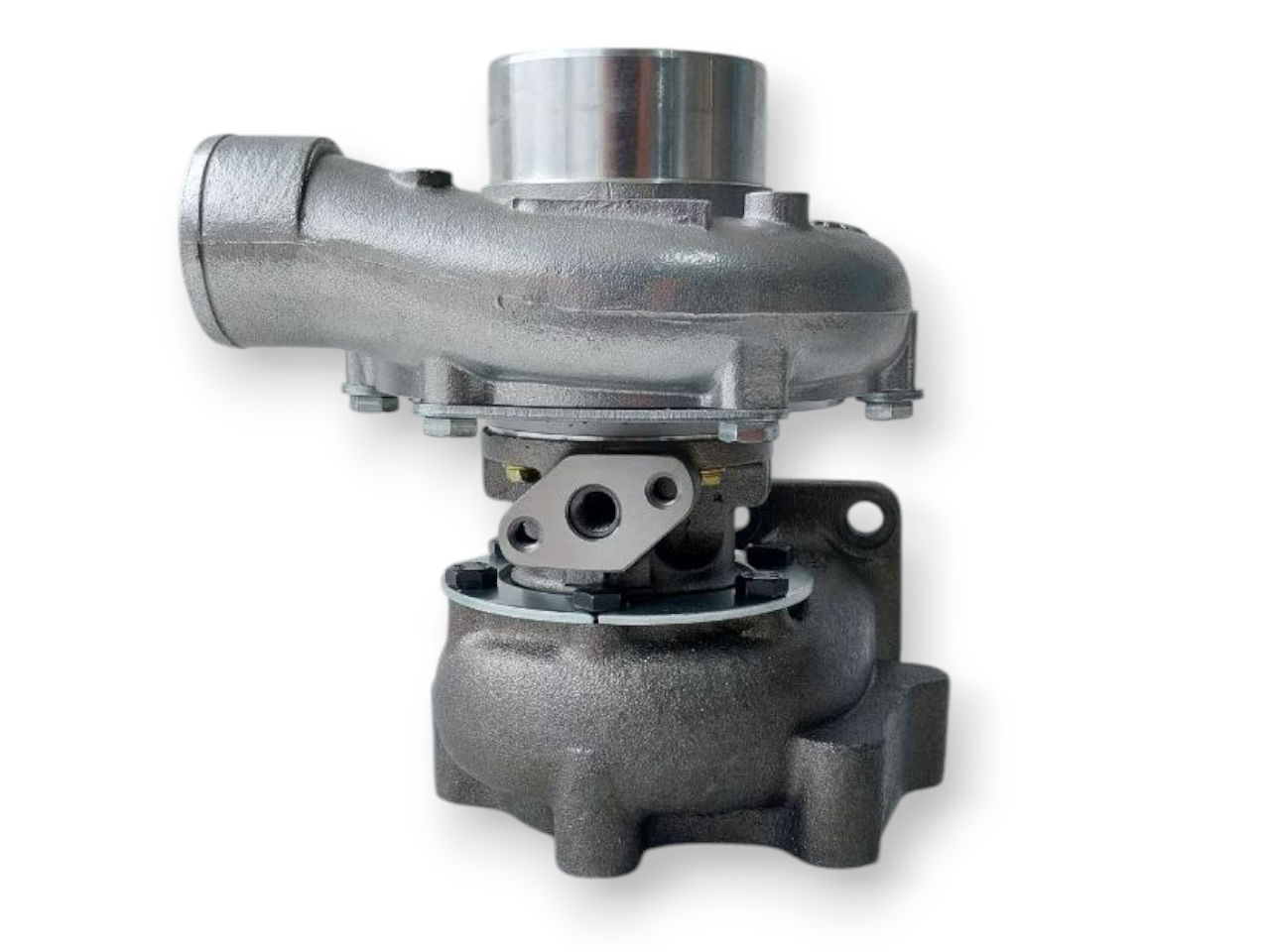

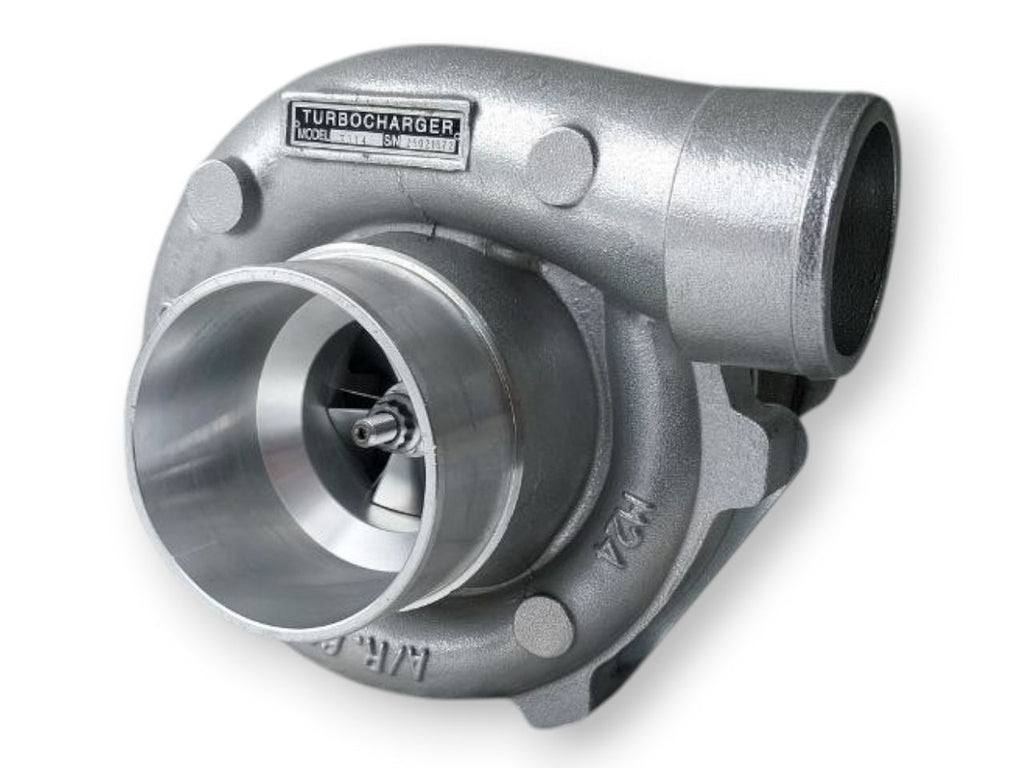

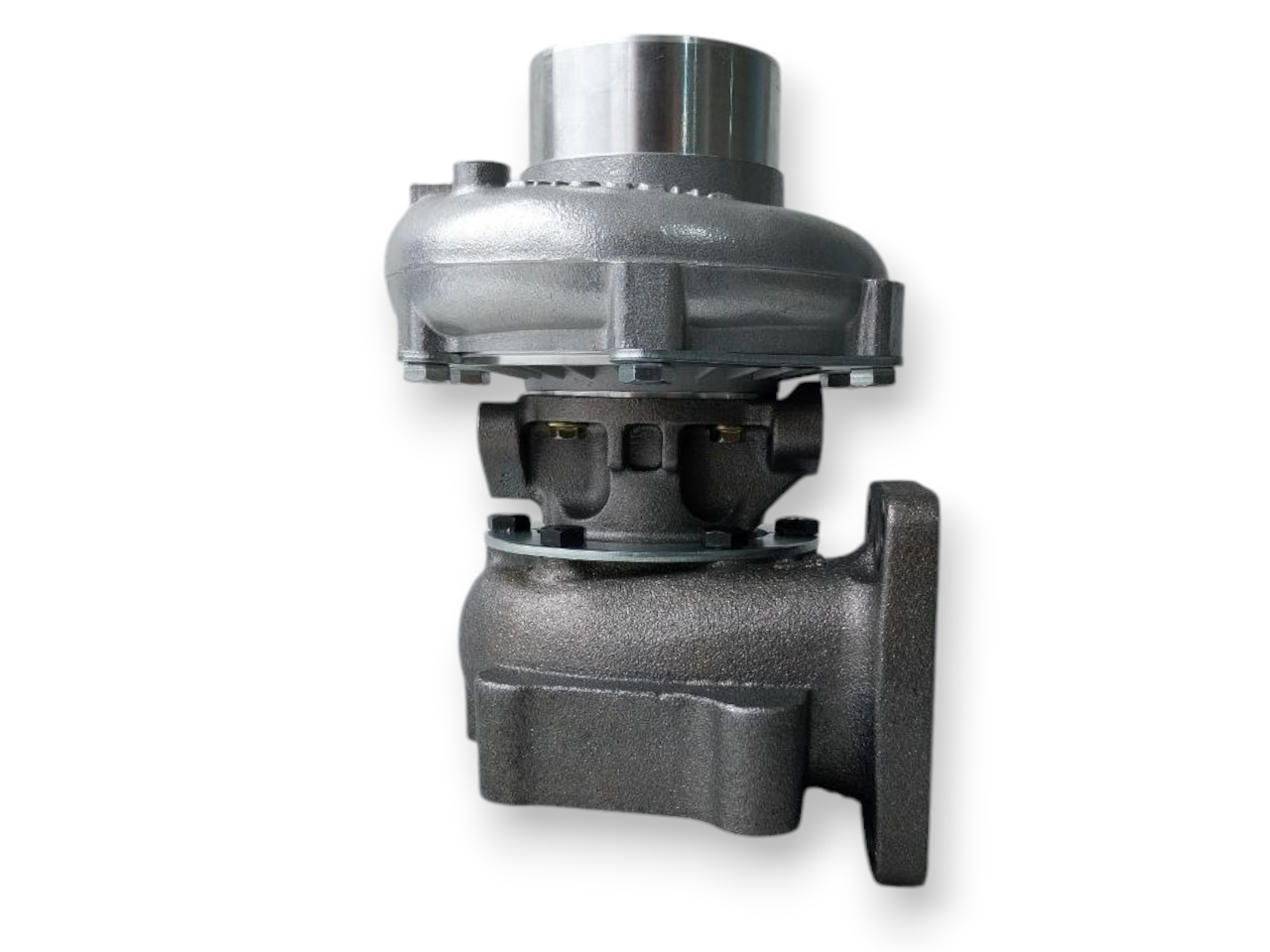

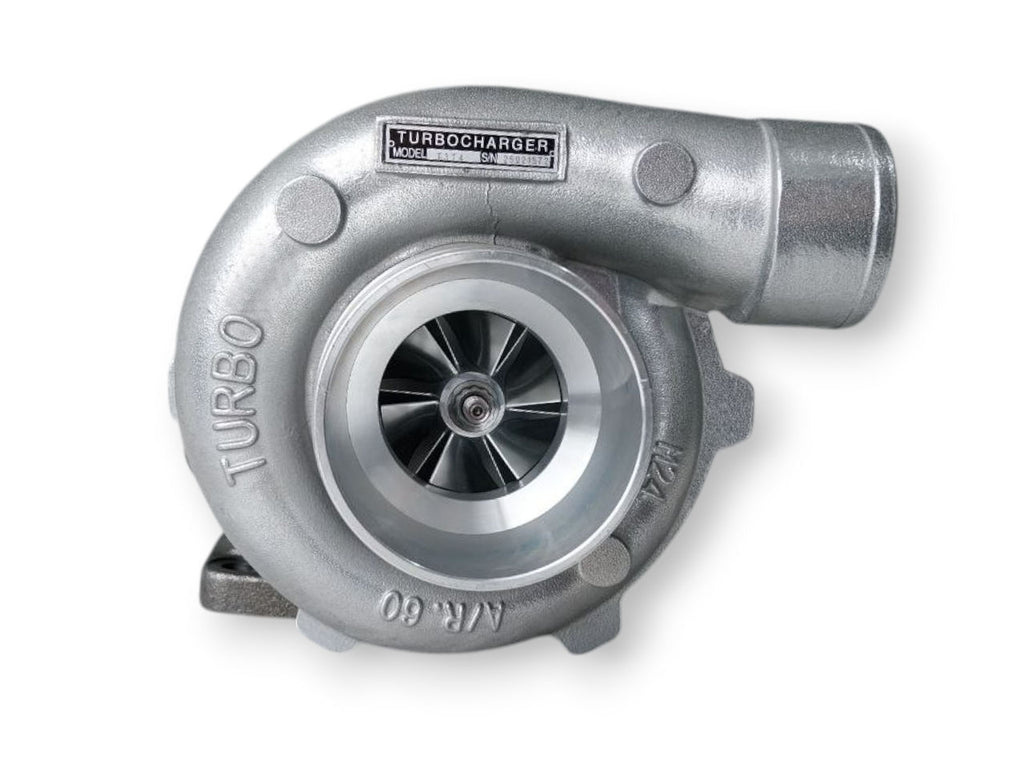

Model: T3 Fast Spool Billet wheel turbocharger
Bearing System: Journal bearing
Flange: T3
Rear Flange 5 bolt
Compressor: A/R .60
Turbine: A/R .48
HP Rating: 250-300HP
Engine size: 1600cc to 2500cc
100% Brand New.
Intake Inlet/ Outlet 3.00"/ 2.00"
Inlet / Outlet Diameter 3" / 2"
Compressor A/R 0.60
Compressor Inducer 52.9mm
Compressor Exducer 76.00mm
Exhaust (Turbo Manifold) Flange - Standard T3
Exhaust (Downpipe) Flange Standard 2.5" T04E 5 bolt flange
Turbine A/R 0.48
Turbine Inducer 64.0mm
Turbine Exducer 55.9mm
The turbocharger is designed to be used on engines displacing 1.6L-2.5L ( petrol ) and is typically good for around +300HP. Great upgrade for diesel motors from 3.2-4.5L ( TD42 for example )
They are also commonly used in twin turbo applications. In this case those figures would be doubled 3.2L-5.0L engines up to 600HP.
Horsepower ratings are generally meant to express the turbochargers maximum airflow capability.
Recommended boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar) and boost pressures should not exceed 30psi(2 Bar).
Exceeding 21psi(1.5 Bar) of boost pressure can significantly reduce a turbochargers lifespan.
Generally speaking 14psi(1 Bar) is good for a 100% increase in horsepower from a naturally aspirated engine.
Notes:
Universal application. Additional parts will be needed to complete install
