Description
Brand New - Turbo Bits

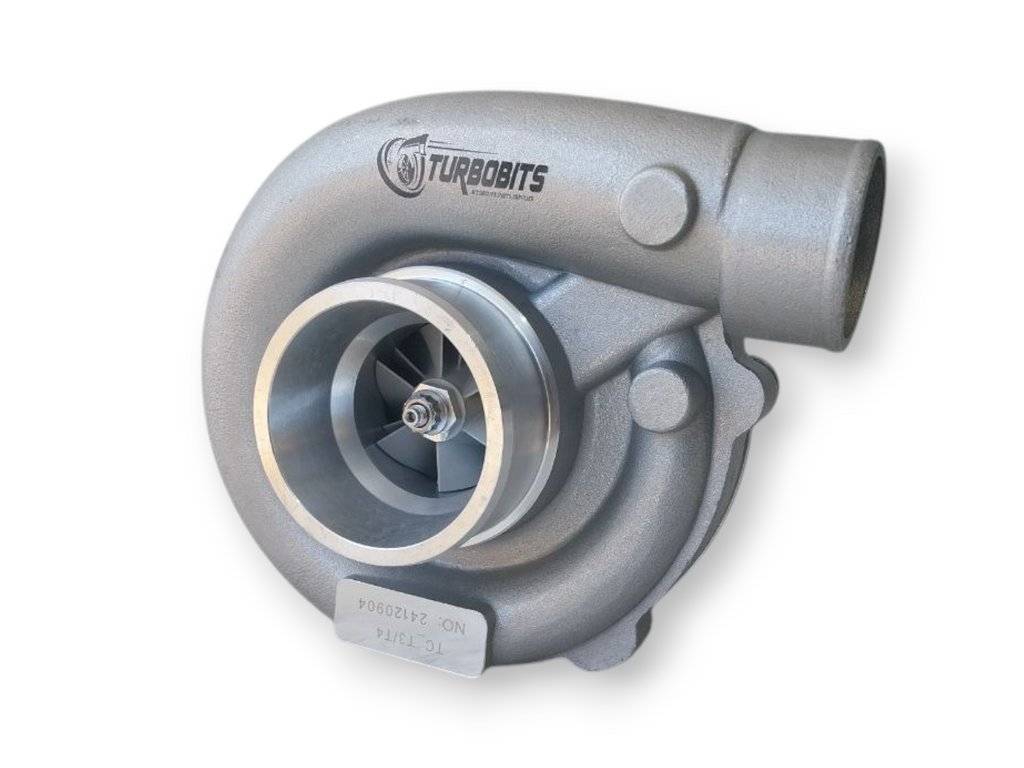

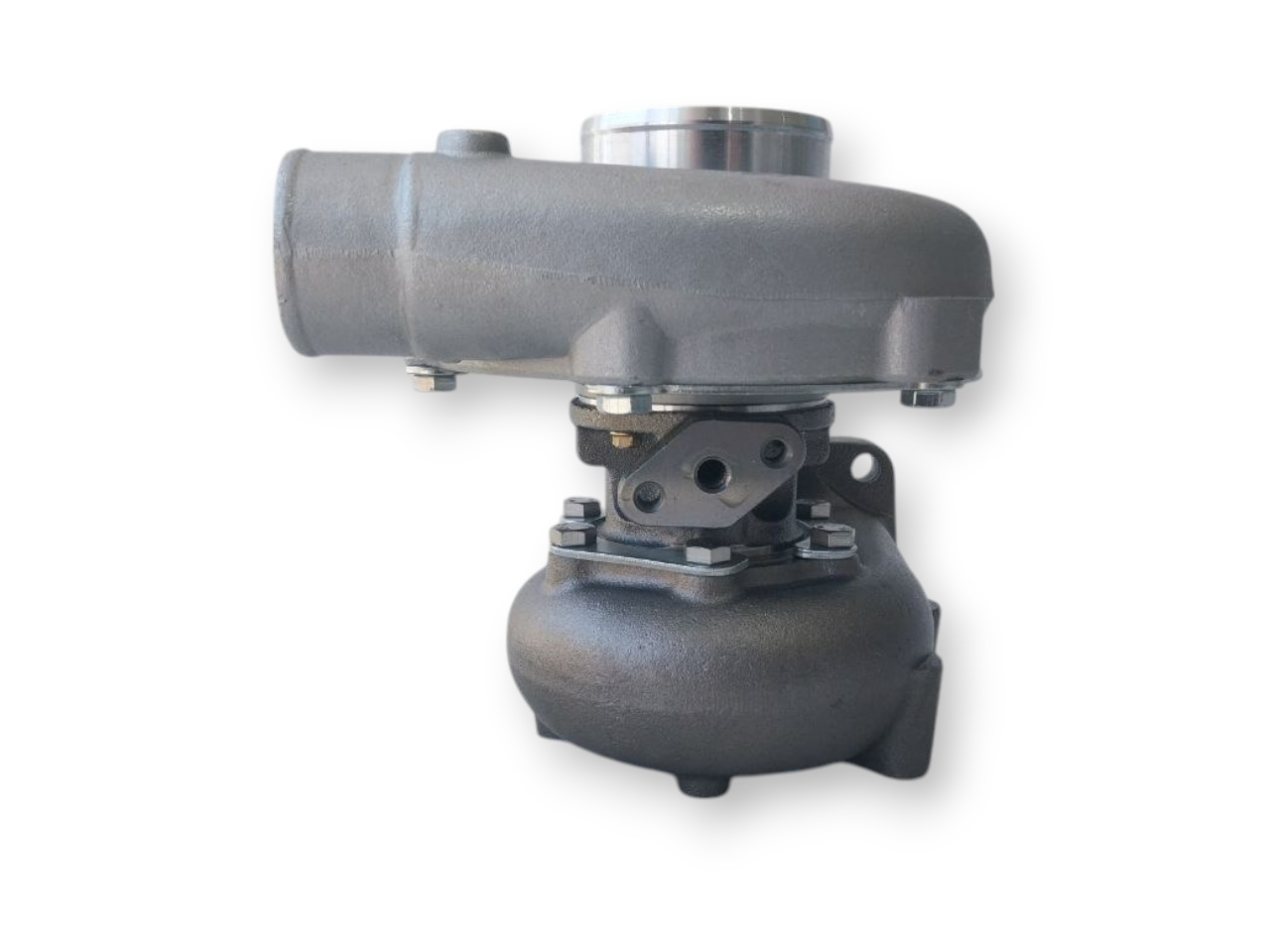

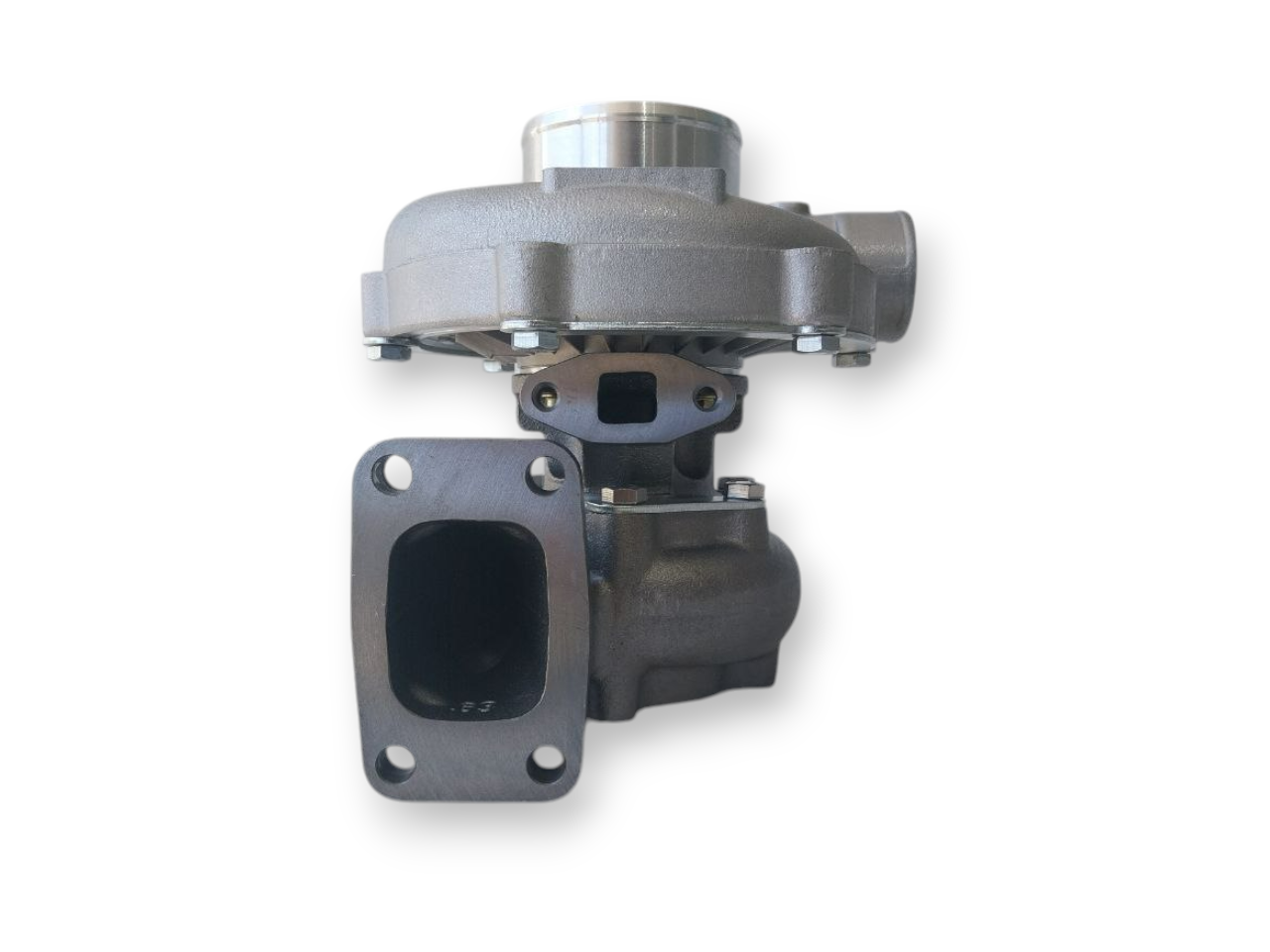

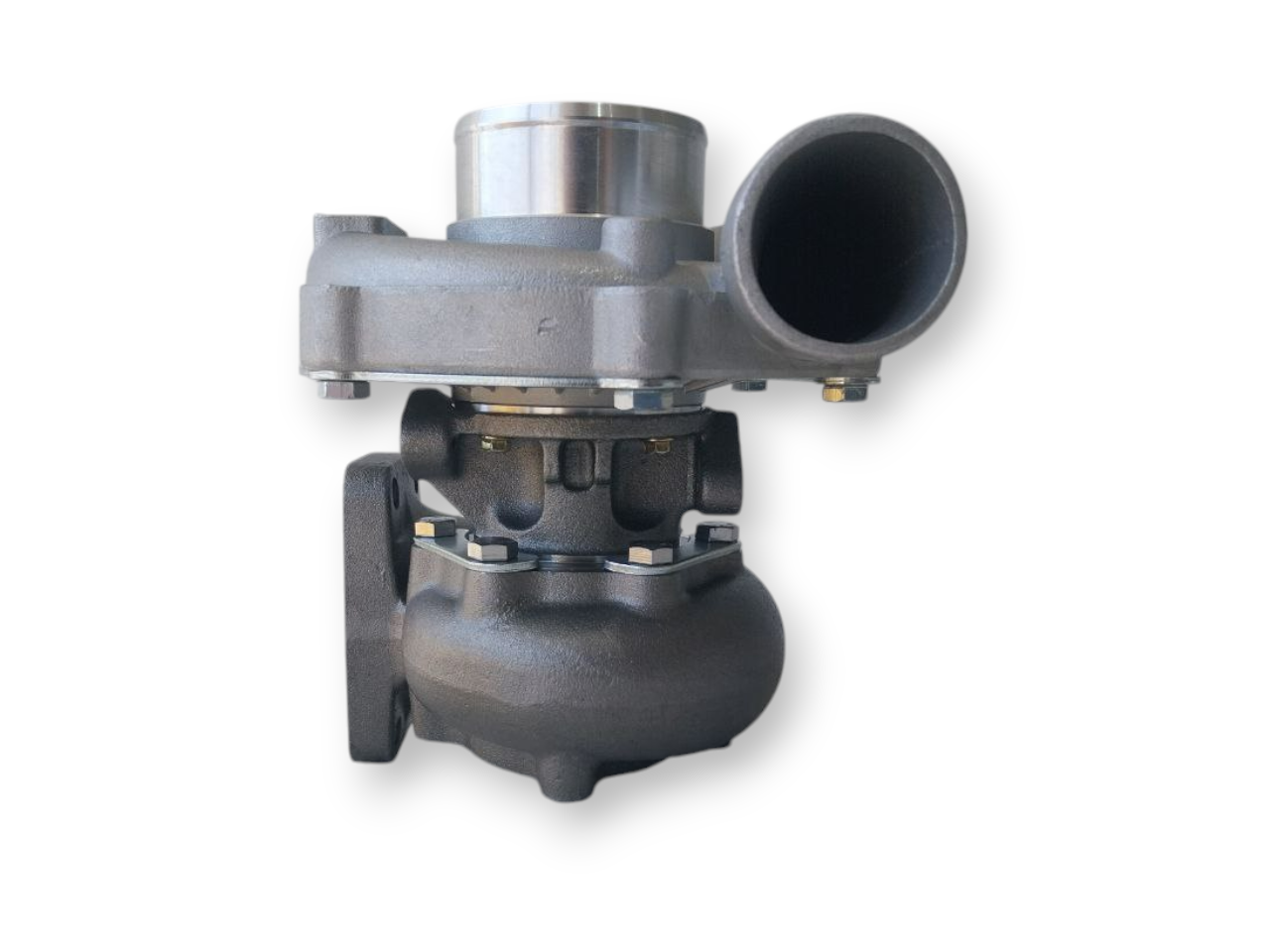

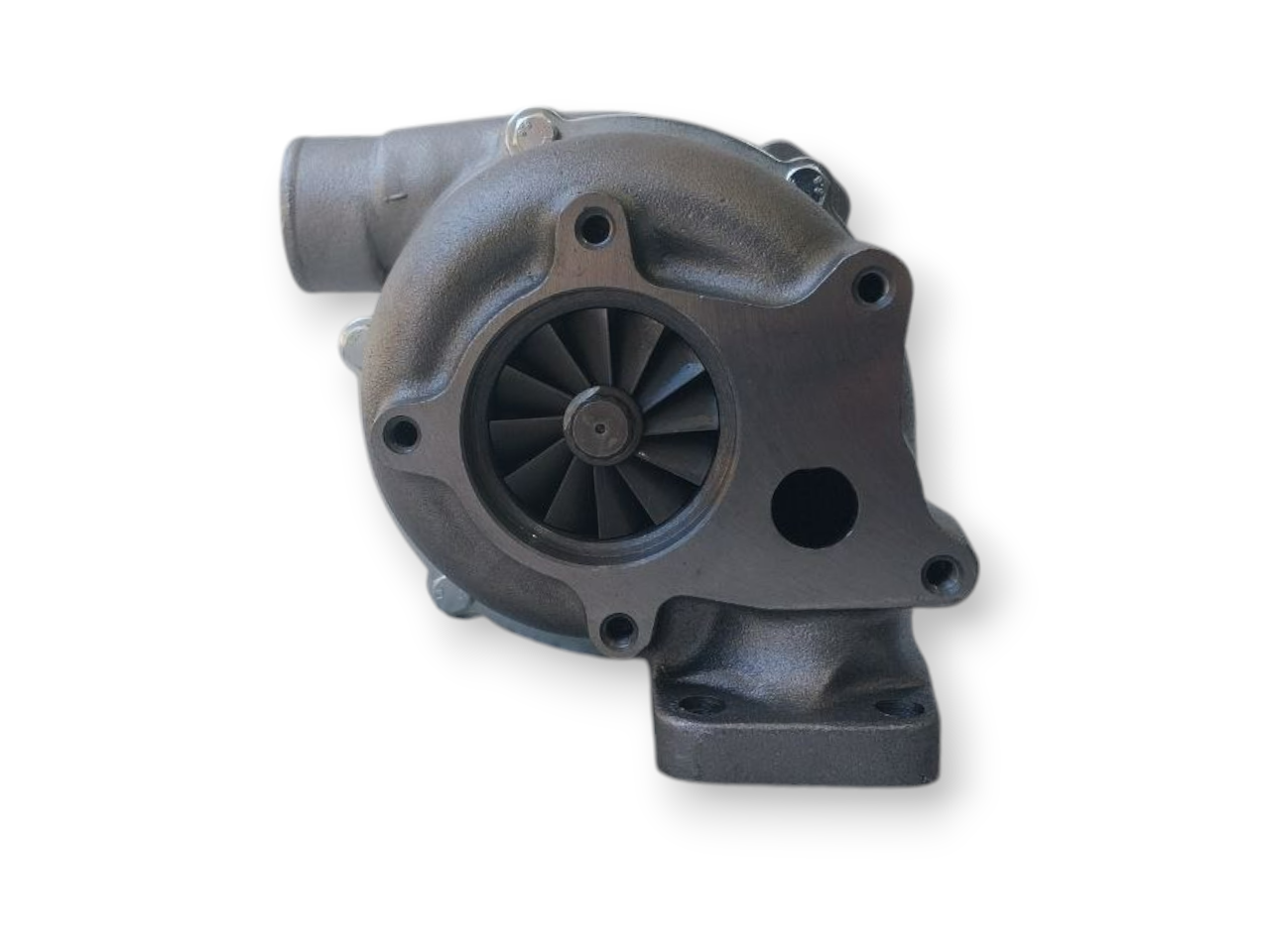

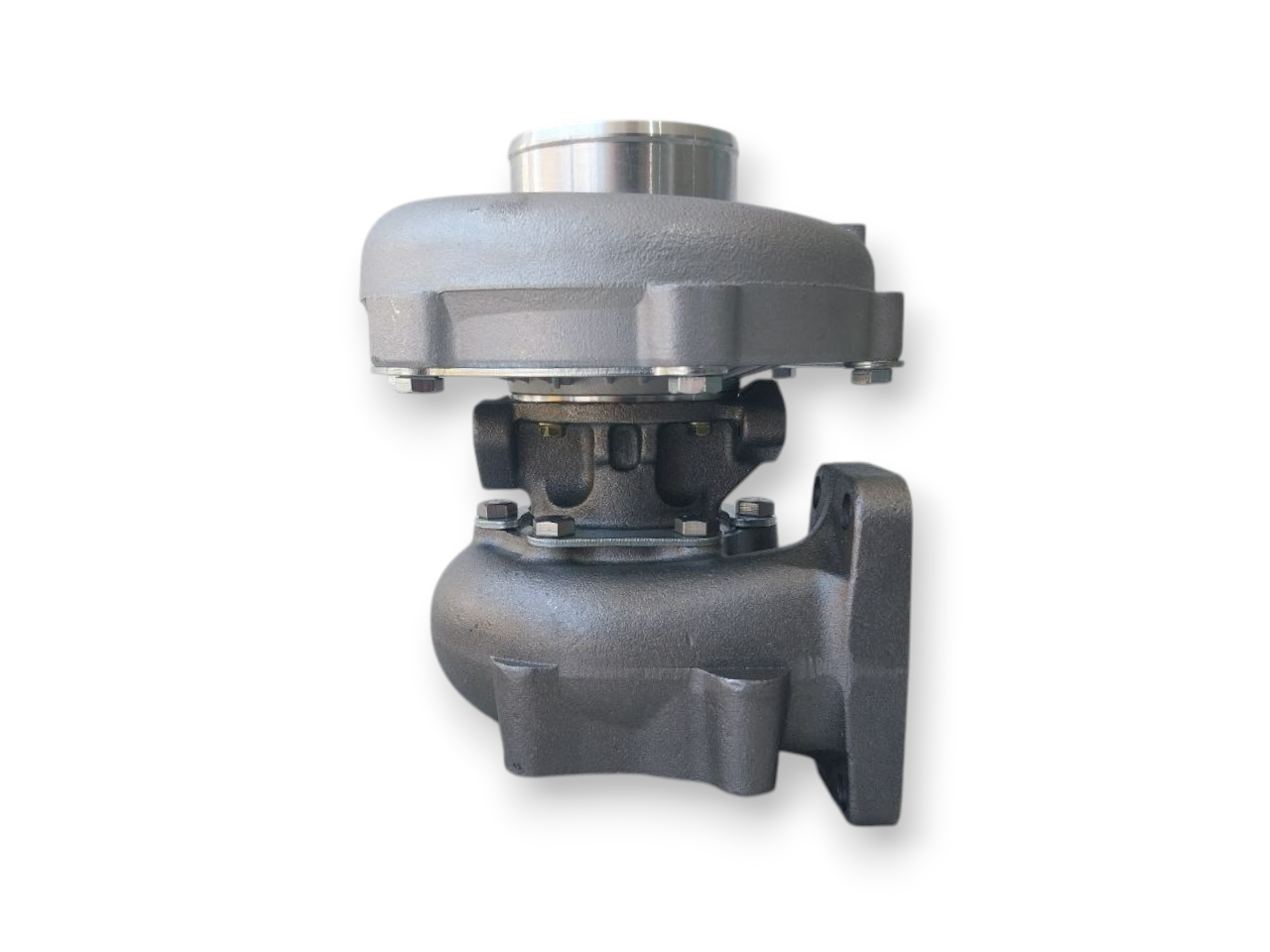

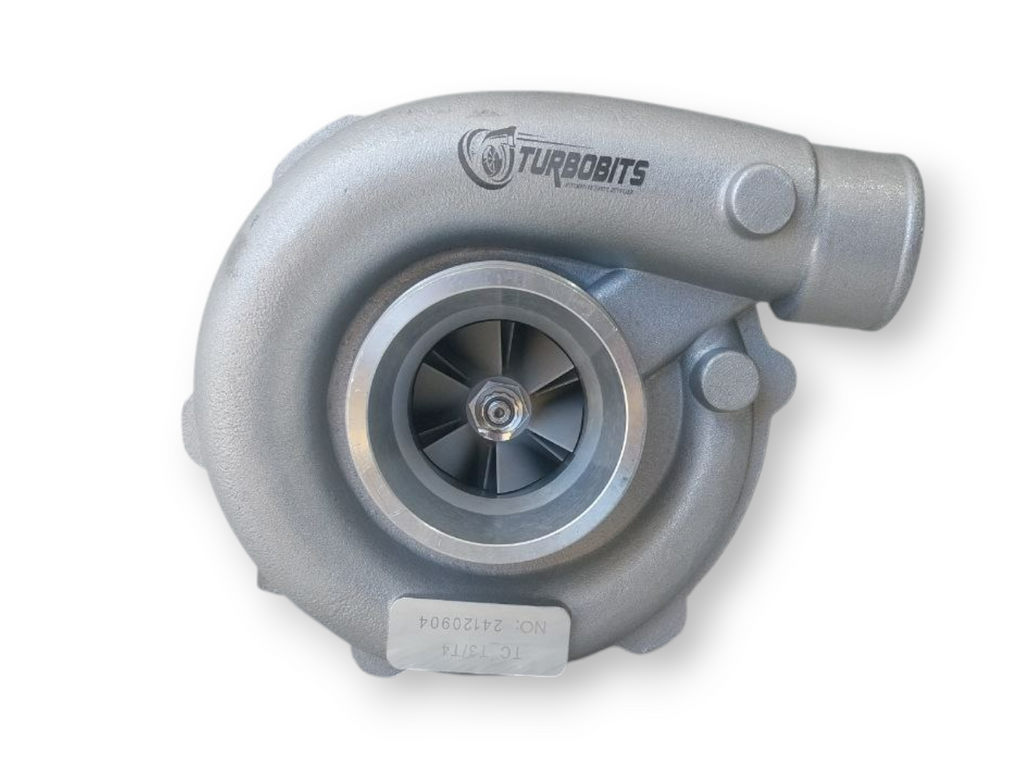

Model: T3/T4 Turbocharger
Bearing System: Journal bearing
Flange: T3
Rear Flange 5 bolt
Compressor: A/R .50
Turbine: A/R .63
HP Rating: 250-400HP
Engine size: 1600cc to 3200cc
100% Brand New.
Intake Inlet/ Outlet 3.00"/ 2.00"
Inlet / Outlet Diameter 3" / 2"
Compressor A/R 0.50
Compressor Inducer /Exducer 52.9mm / 76.00mm
Exhaust (Turbo Manifold) Flange - Standard T3
Exhaust (Downpipe) Flange Standard 2.5" T04E 5 bolt flange
Turbine A/R 0.63
Turbine Inducer / Exducer 64.0mm / 55.9mm
The T3/T4 turbocharger is designed to be used on engines displacing 1.6L-3.2L and is typically good for around 400HP.
They are also commonly used in twin turbo applications. In this case those figures would be doubled 3.2L-5.0L engines up to 800HP.
Horsepower ratings are generally meant to express the turbochargers maximum airflow capability.
Recommended boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar) and boost pressures should not exceed 30psi(2 Bar).
Exceeding 21psi(1.5 Bar) of boost pressure can significantly reduce a turbochargers lifespan.
Generally speaking 14psi(1 Bar) is good for a 100% increase in horsepower from a naturally aspirated engine.
Notes:
Universal application. Additional parts will be needed to complete install
