Description
Brand new complete turbocharger, each of our turbos are balanced and tested after assembly.
Product details
- 12 Month Warranty - See terms

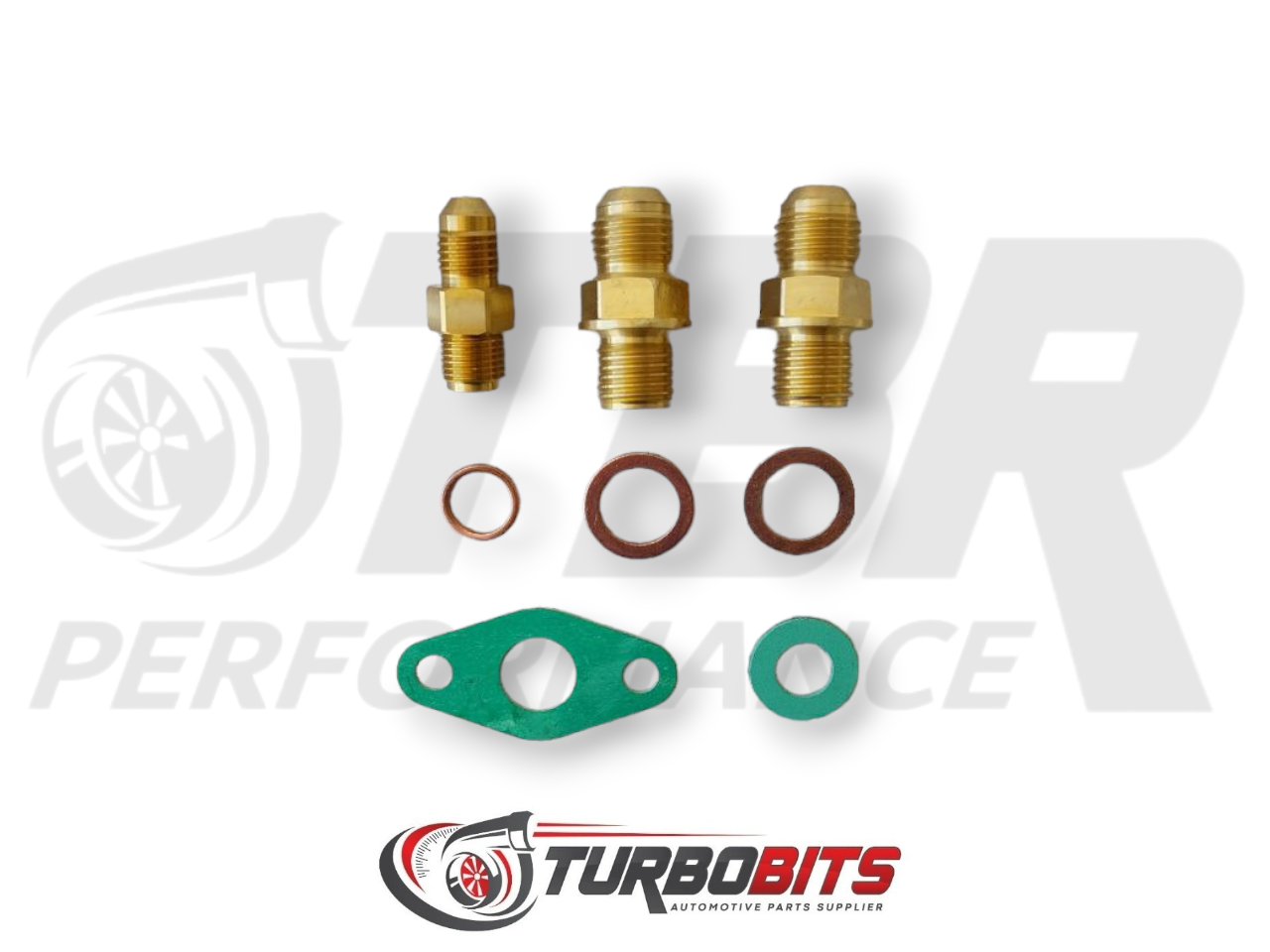

- Comes with Basic plumbing kit
- Our turbochargers have proven the test of time, featuring on the Moore Motorsport 3 Hour endurance race car!

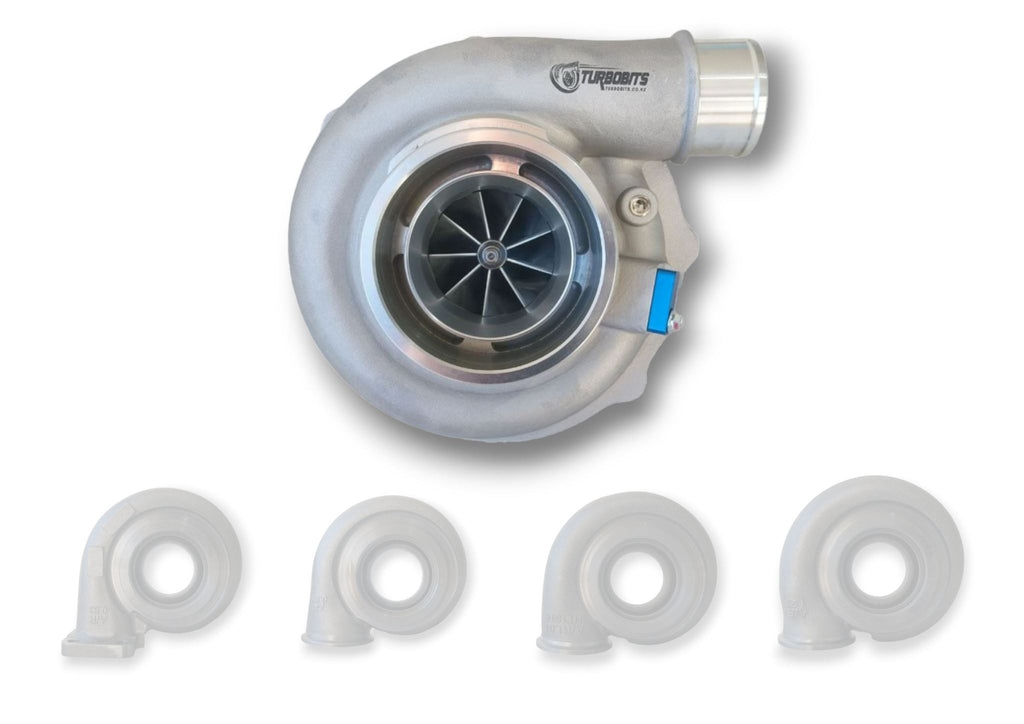

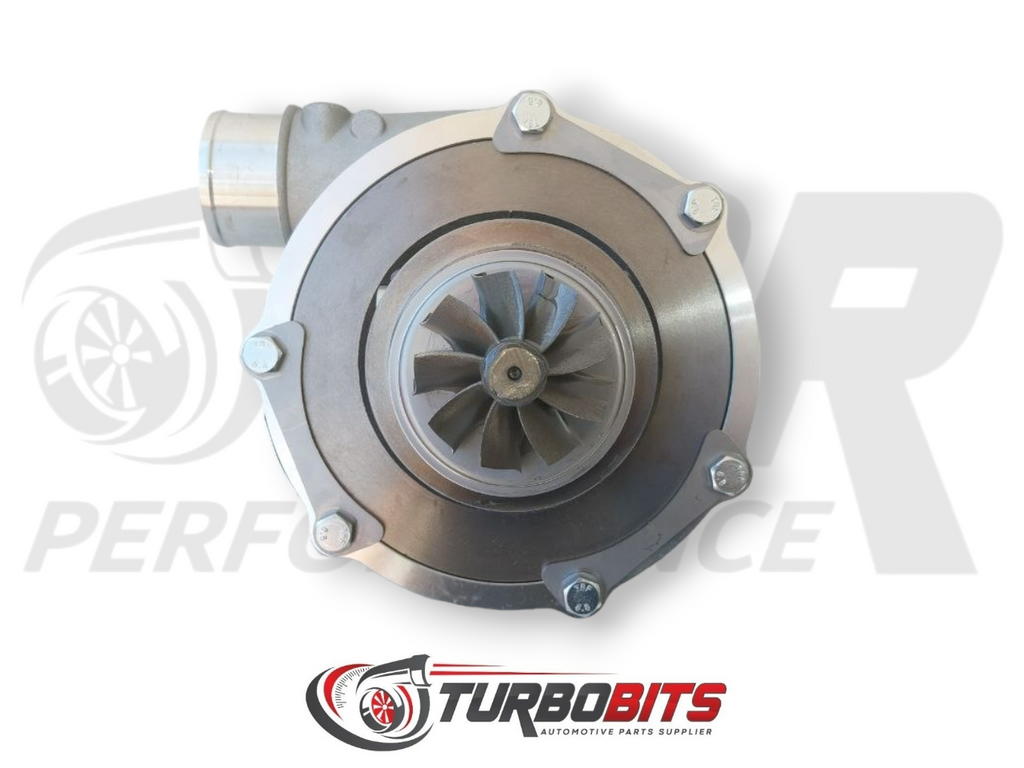

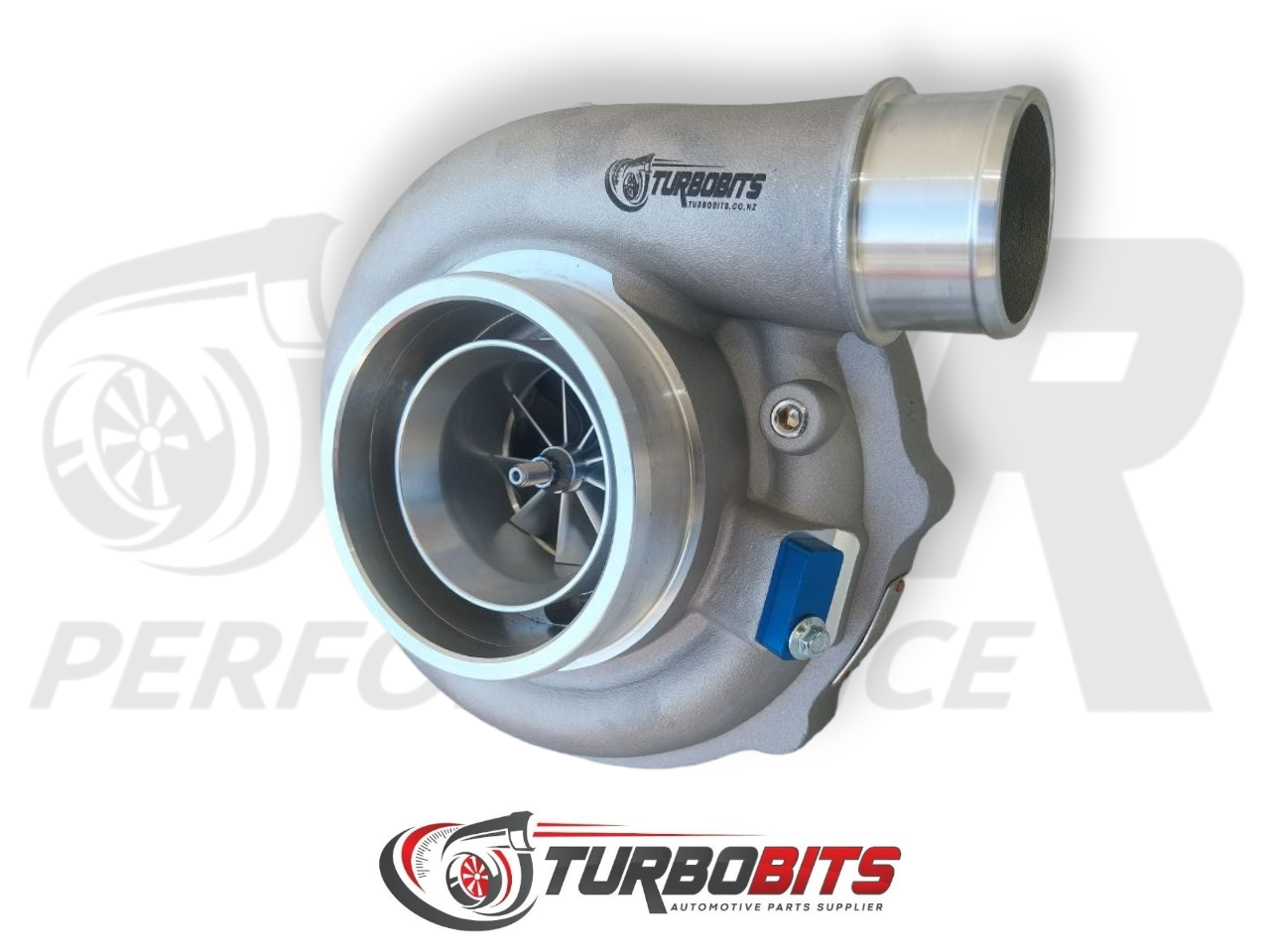

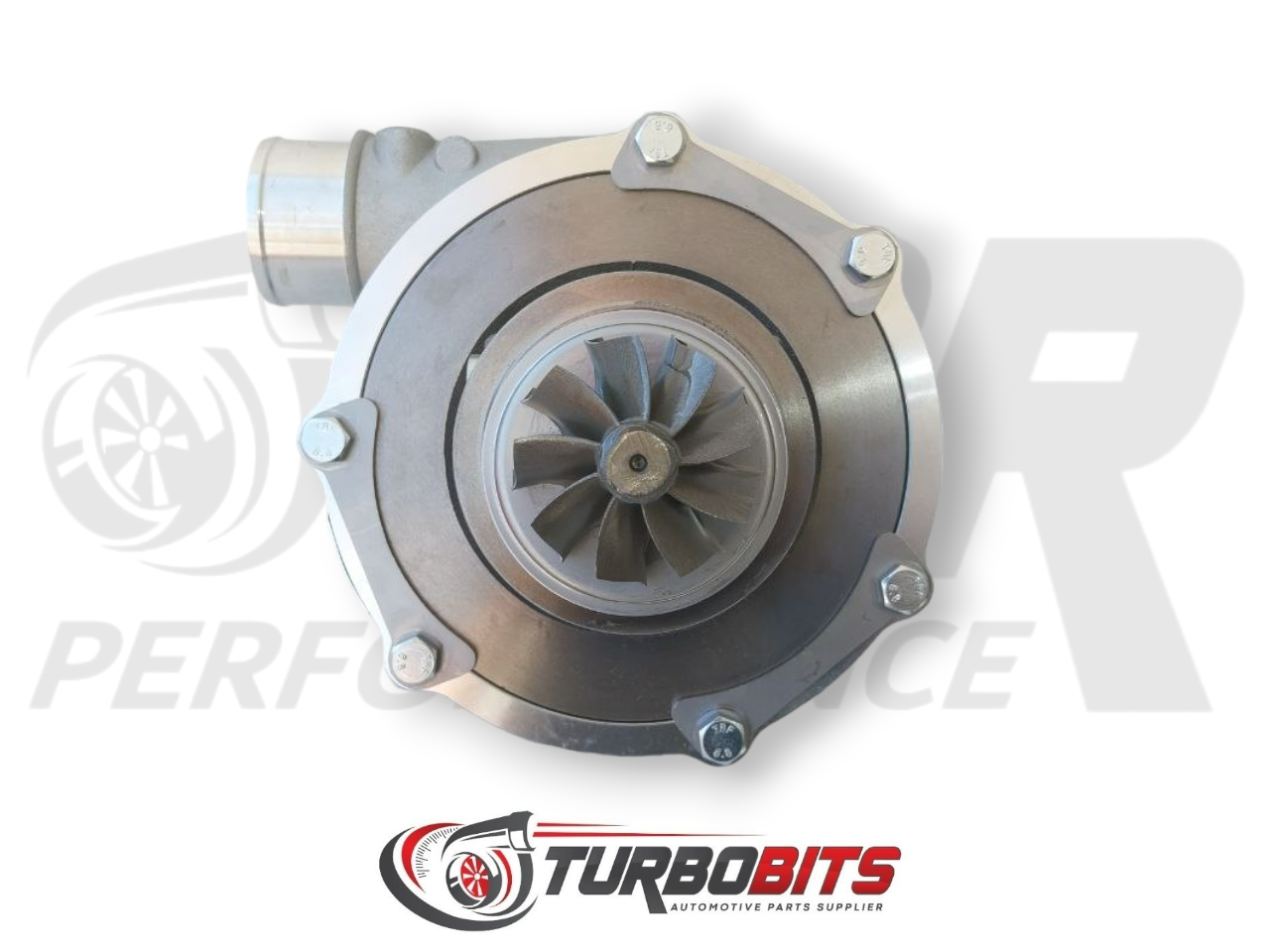

- TBR G-Series G30 G30-770 Billet Wheel Dual Ball Bearing High Performance Turbocharger
- Brand: Turbo Bits Racing (TBR)
- Model: G30-770
- Horsepower: 475 - 770
- Displacement: 2.0L - 3.5L
- Bearing : Dual Ball Bearing
- Cooling: Oil and Water
- Turbine options :

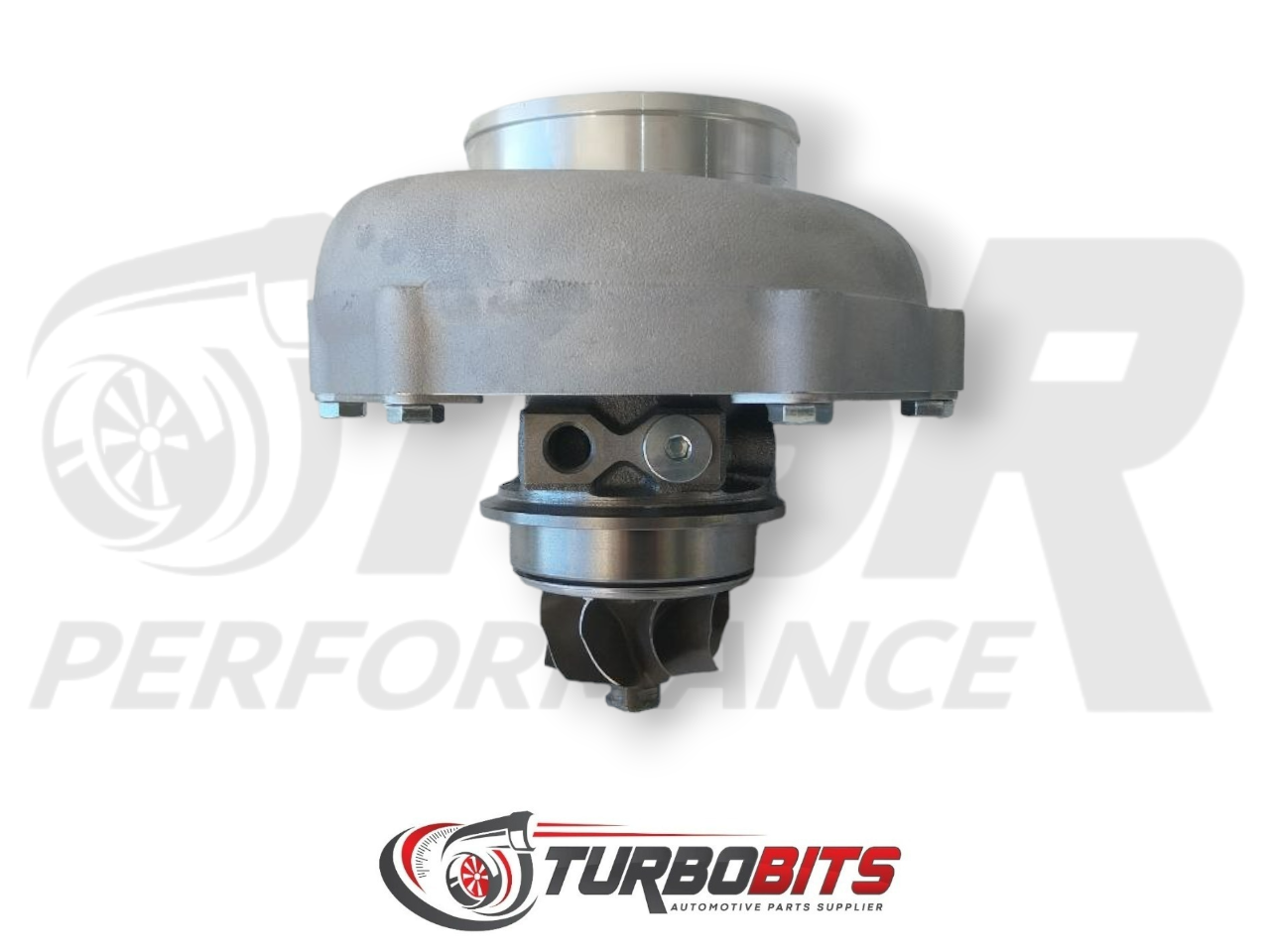

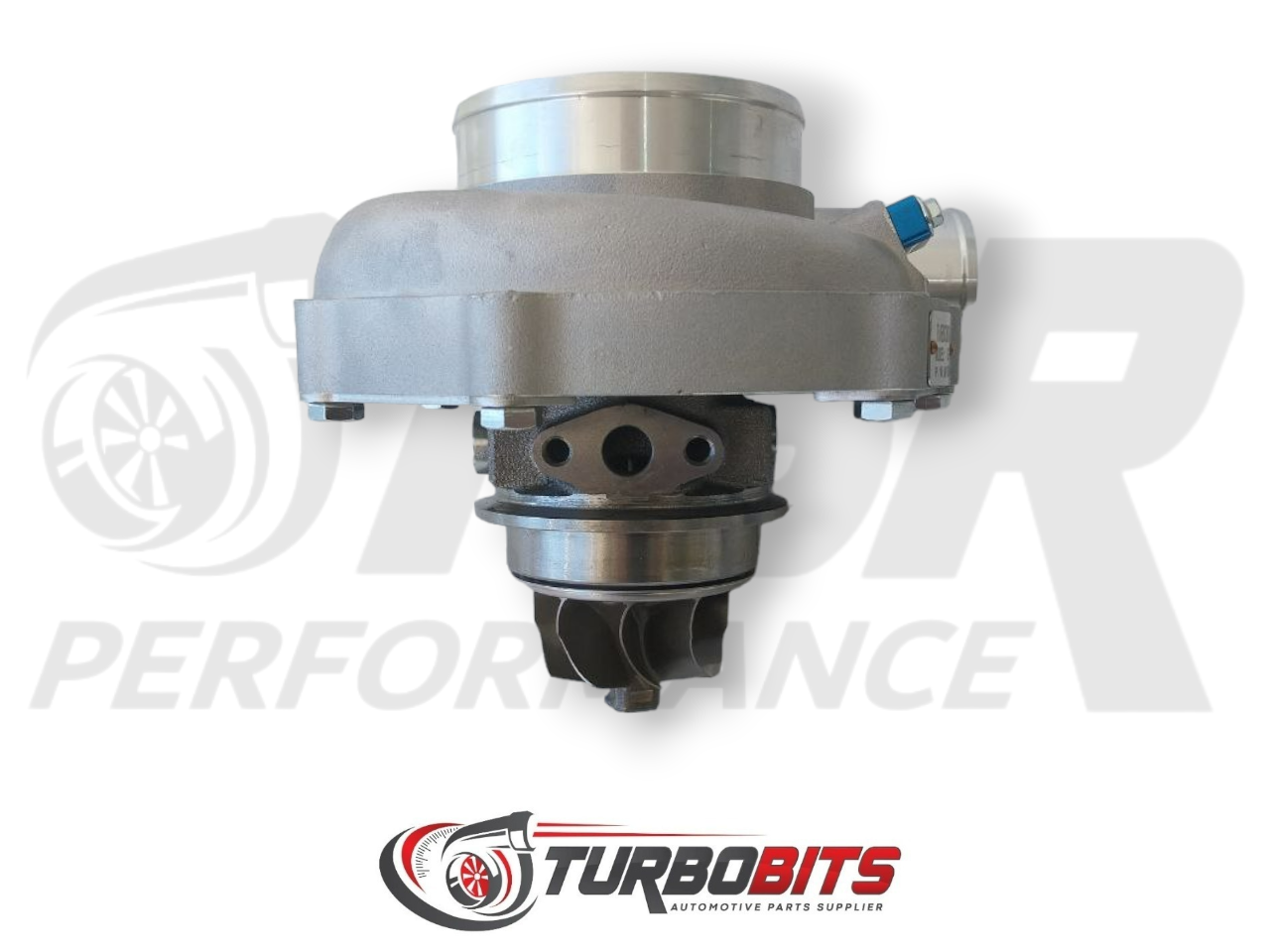

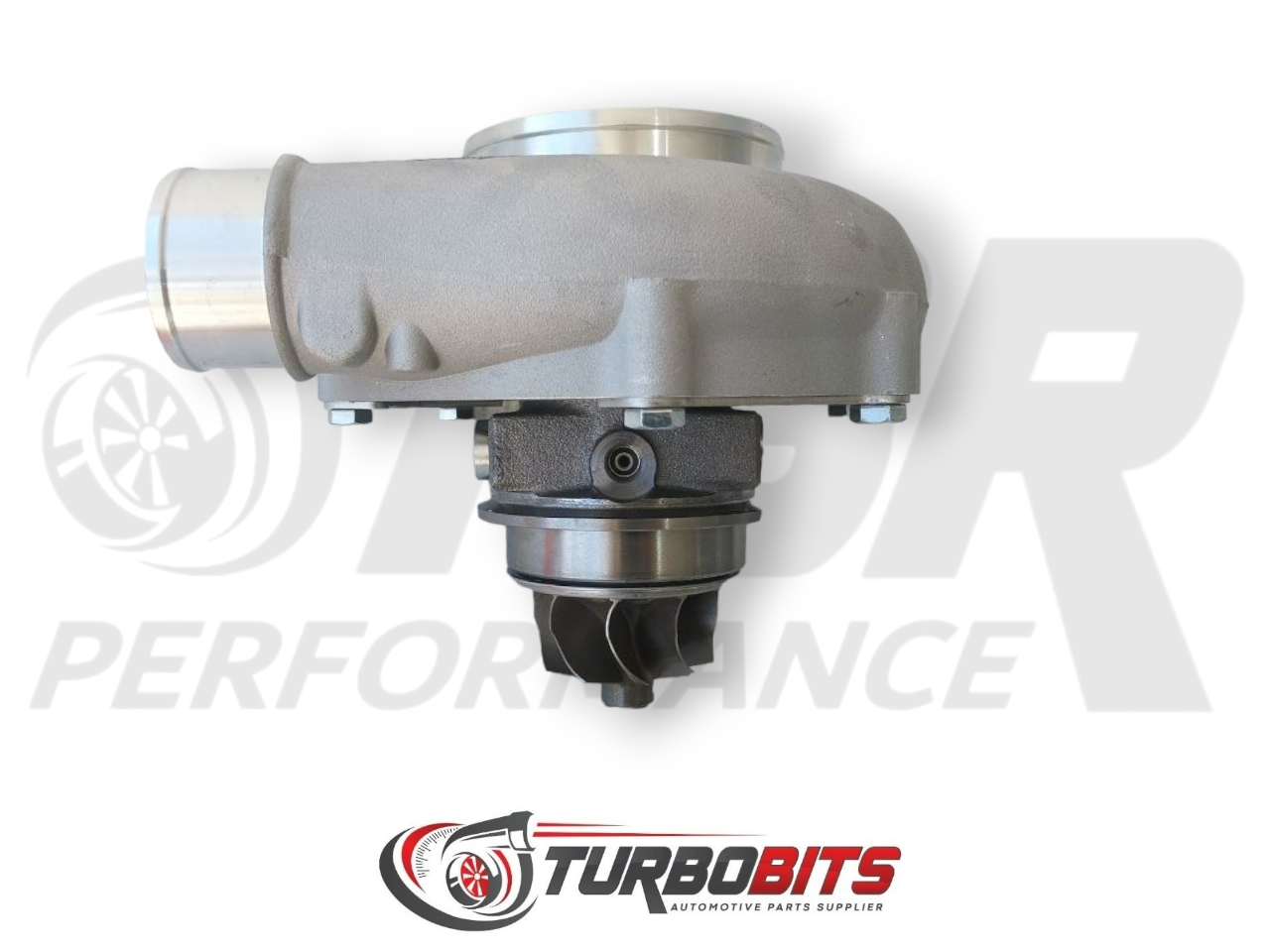

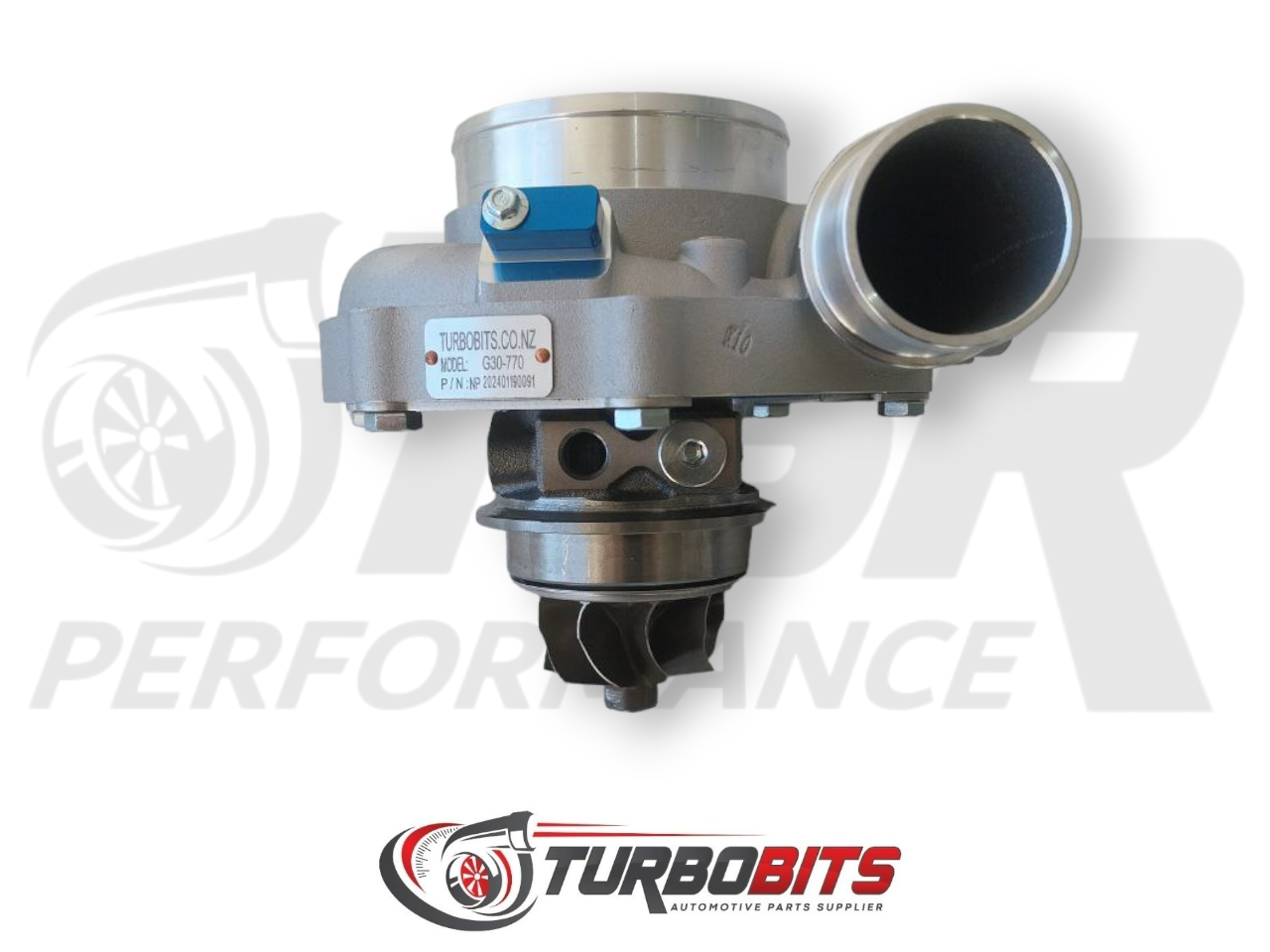

- -No rear housing ( Supercore only )

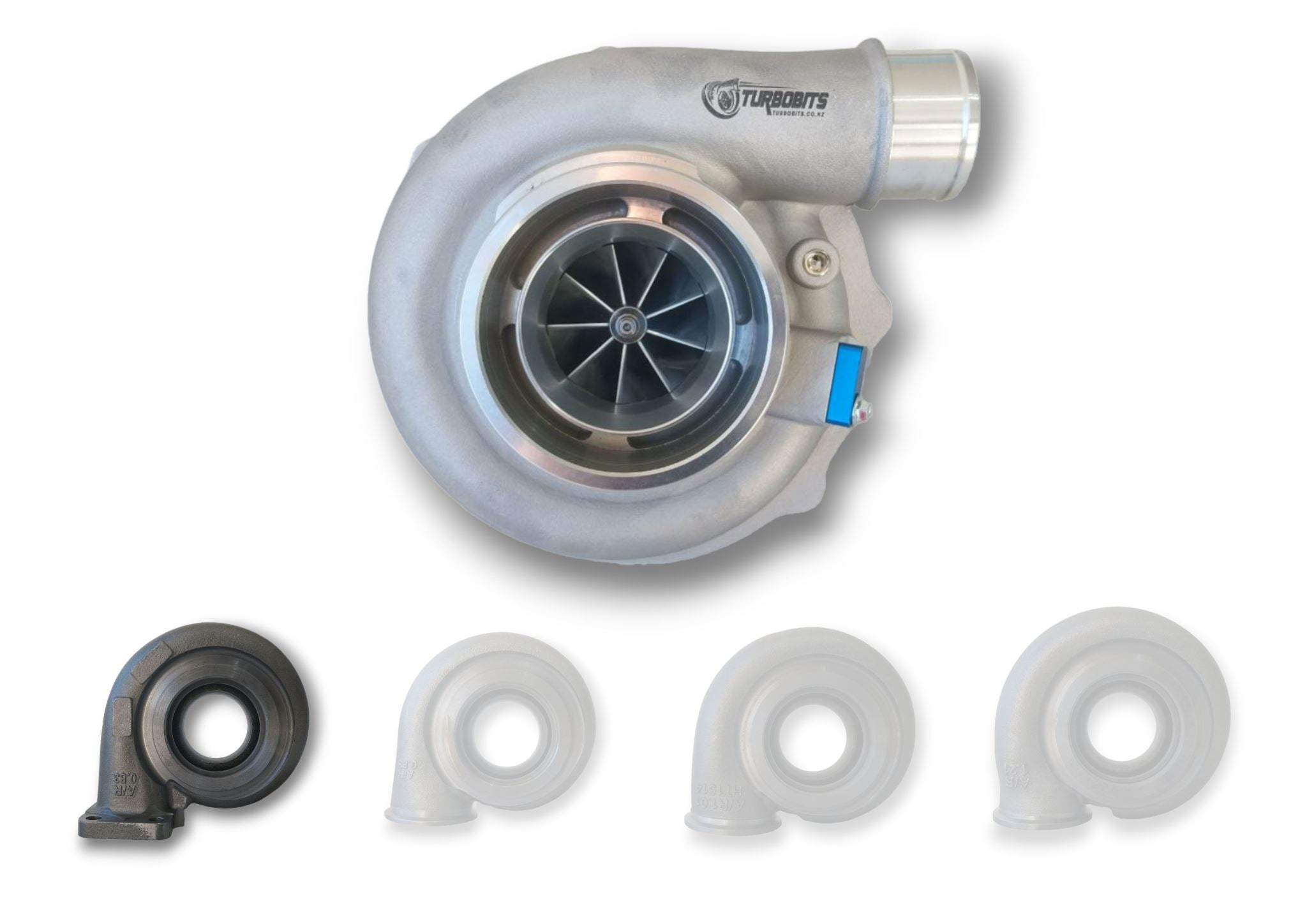

- -A/R 0.83 T3 Flange

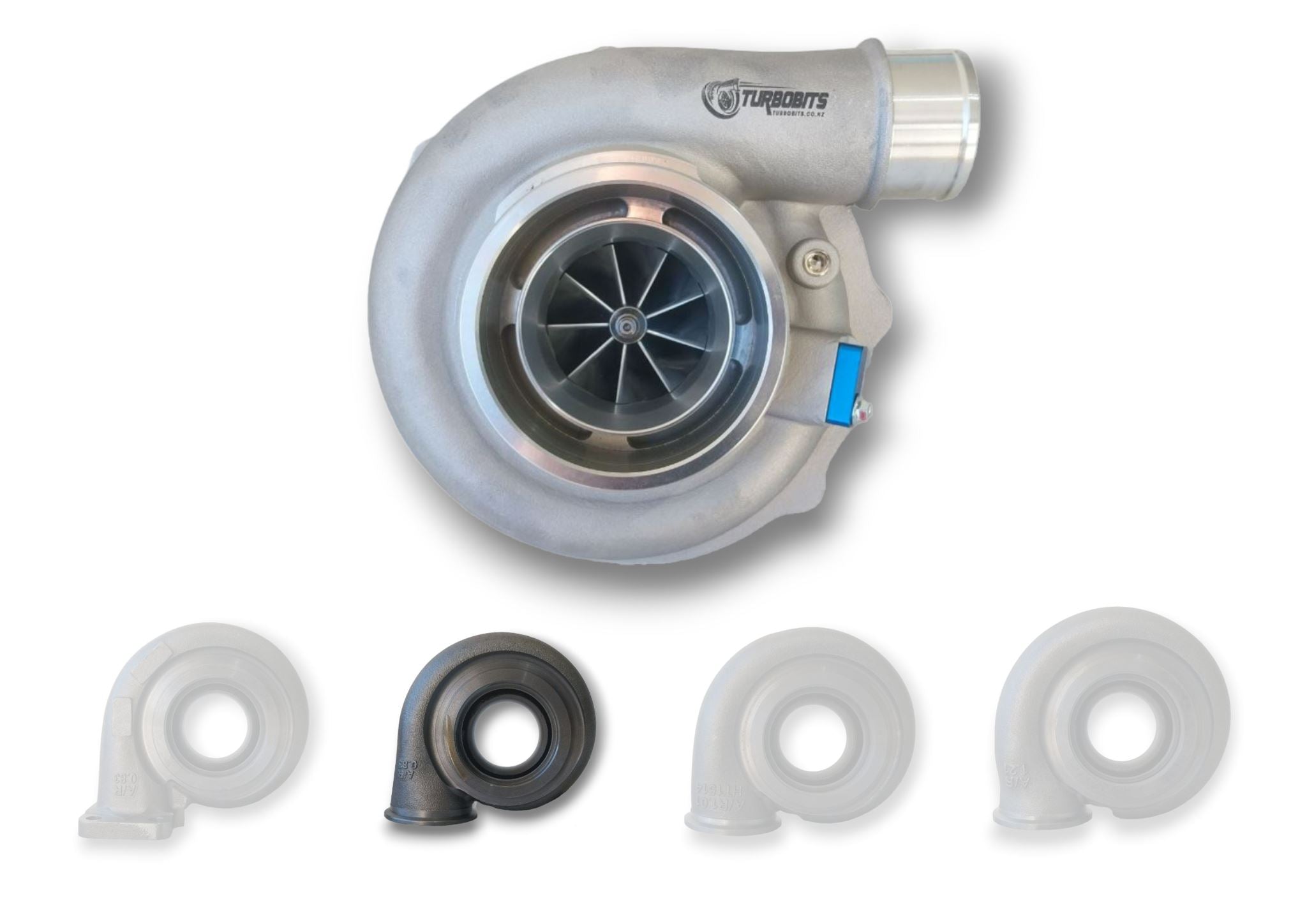

- -A/R 0.83 V-Band Flange

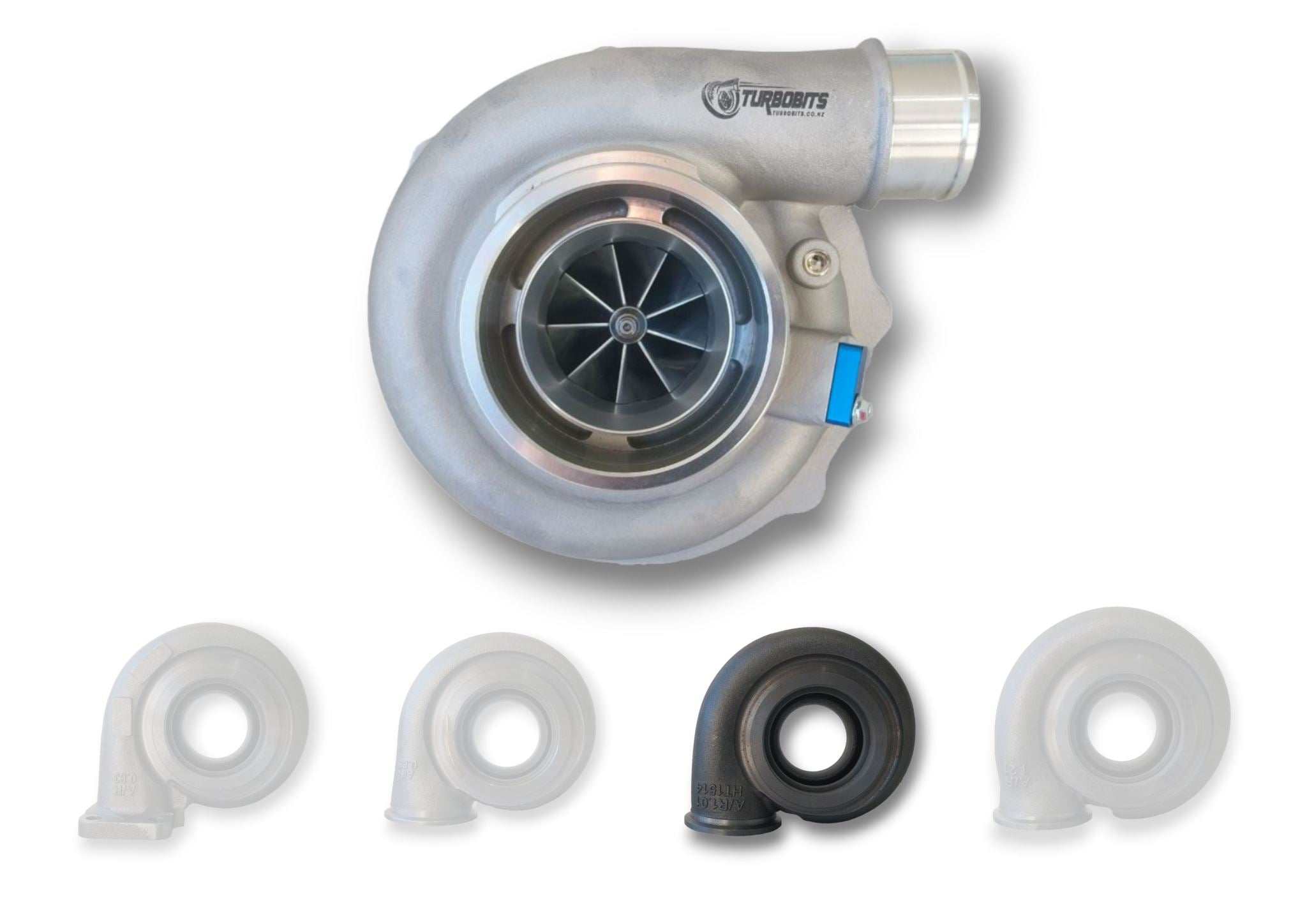

- -A/R 1.01 V-Band Flange

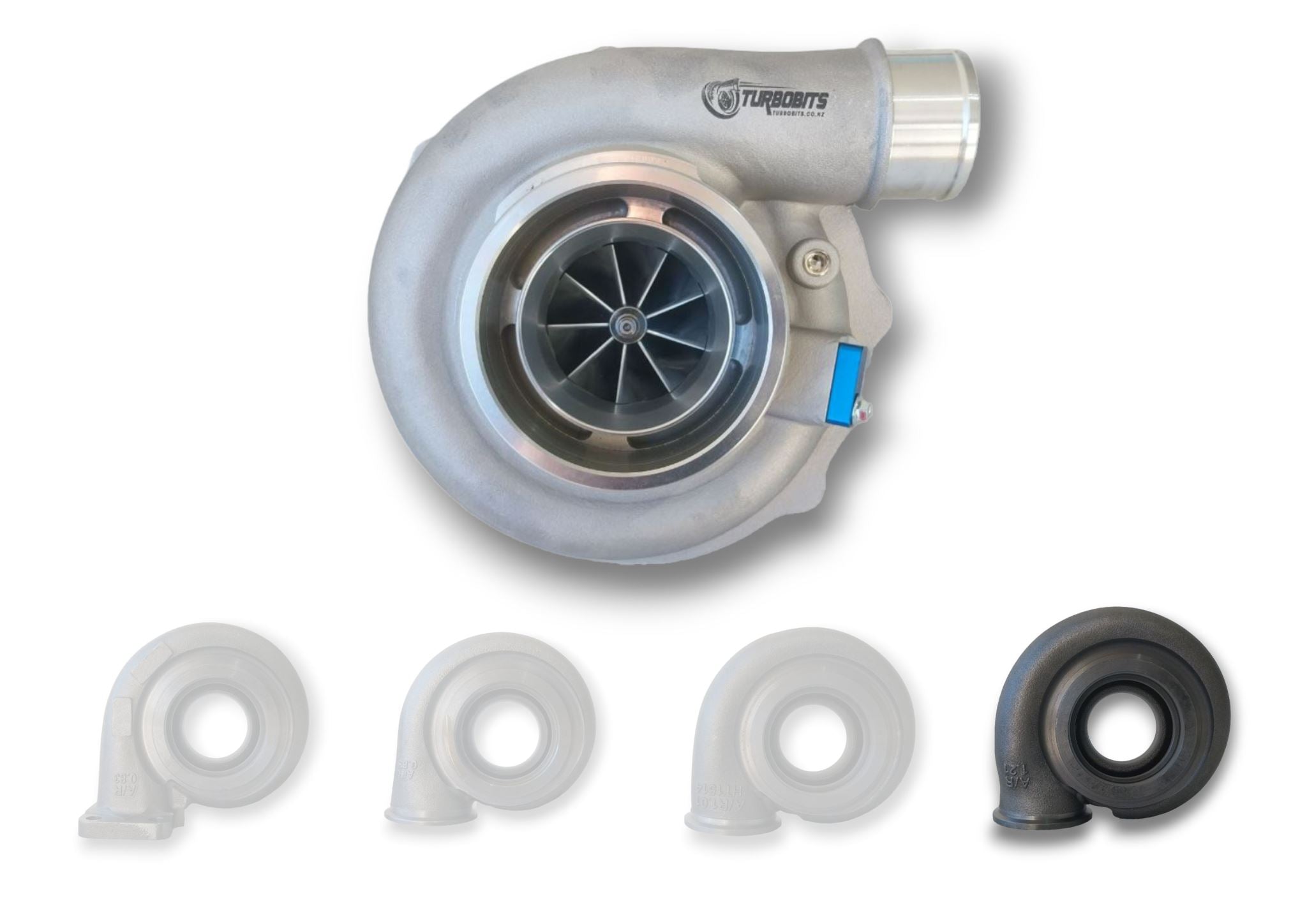

- -A/R 1.21 V-Band Flange
Compressor specifications
- Compressor housing : A/R : .72 with anti surge and speed sensor port
- Compressor wheel material : Billet (9+0 wheel)
- Compressor wheel inducer: 58mm
- Compressor wheel exducer: 71mm
- TURBINE DETAILS:
- Turbine inducer 60mm
- Turbine exducer: 55mm
- Exhaust flange inlet : 76.2mm v-band Or T3 ( Rear housing option dependent )
- Exhaust flange outlet: 90.16mm v-band
- Similar to Pulsar PSR-5855G , Aeroflow Boosted 5855 , Garrett G30-770 , SRP-5855G-770
