Description
Buy quality products from the knowledgeable auto part specialists with 15+ years in the business - Turbo Bits
Brand new complete turbocharger, each of our turbos are balanced and tested after assembly.
12 Month Warranty - See terms
Comes with Basic plumbing kit
Our turbochargers have proven the test of time, featuring on the Moore Motorsport 3 Hour endurance race car!

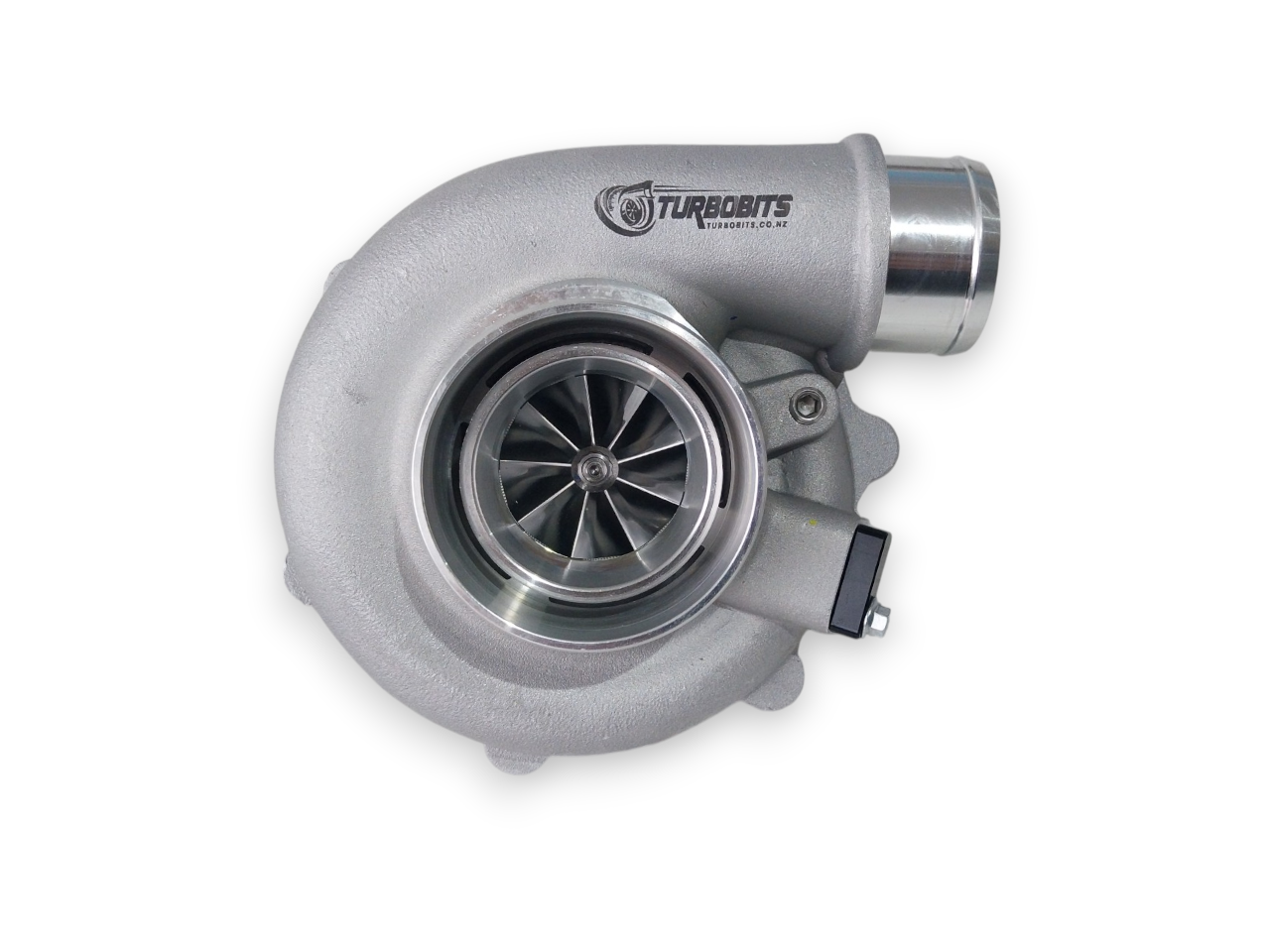

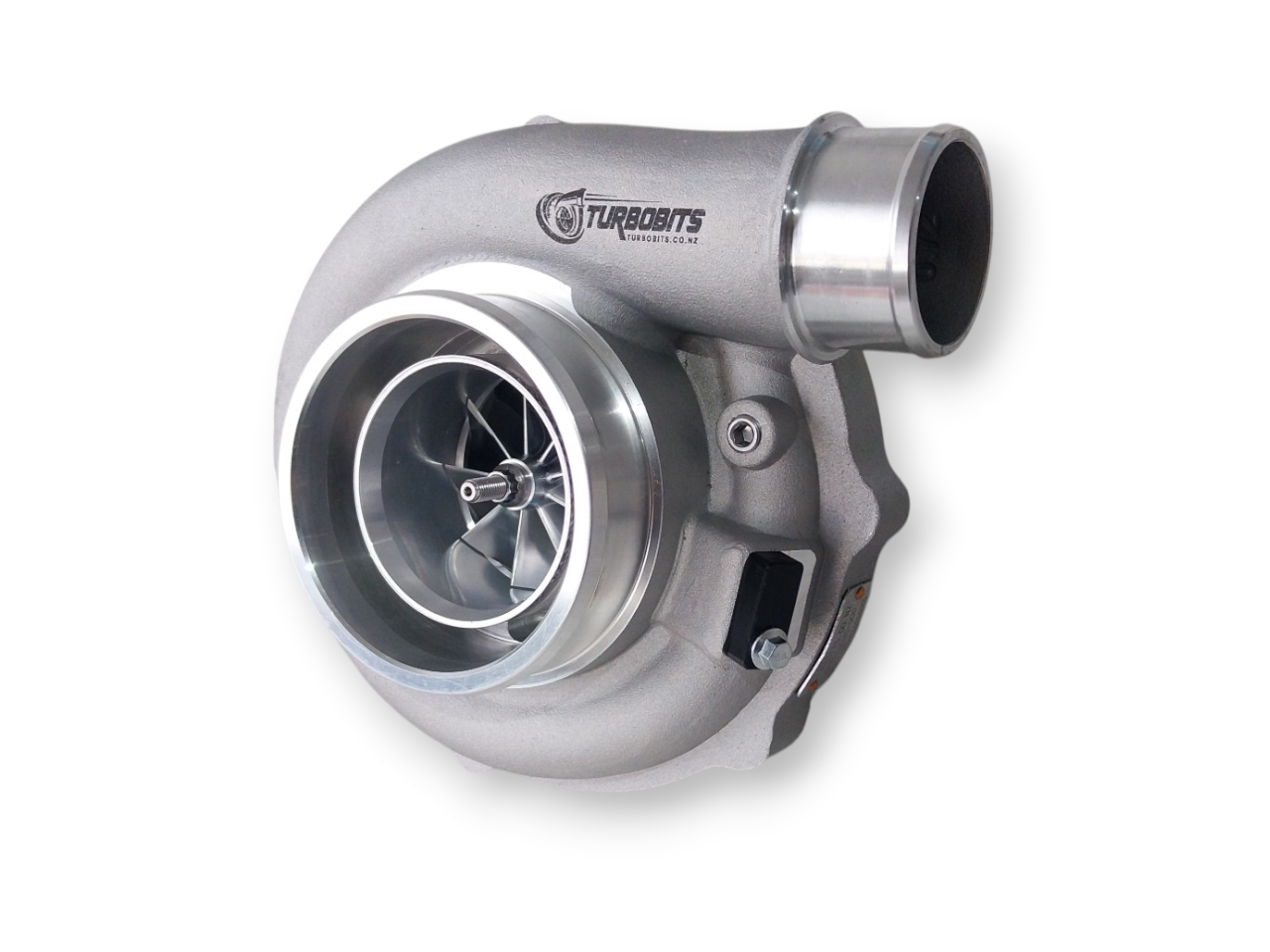

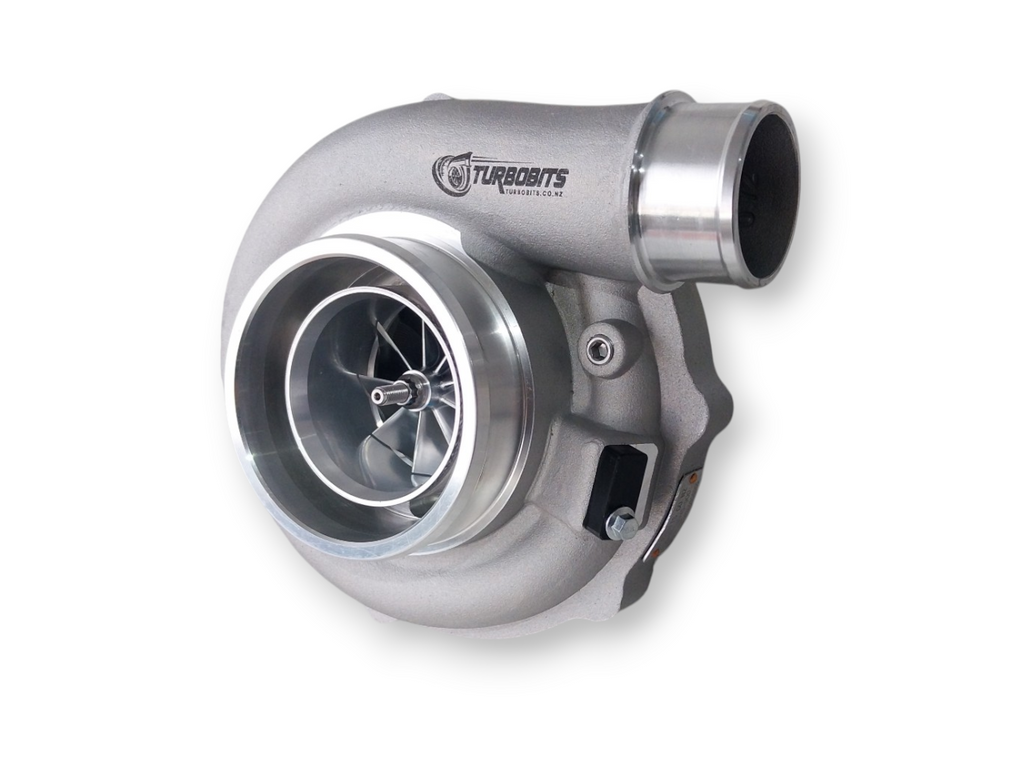

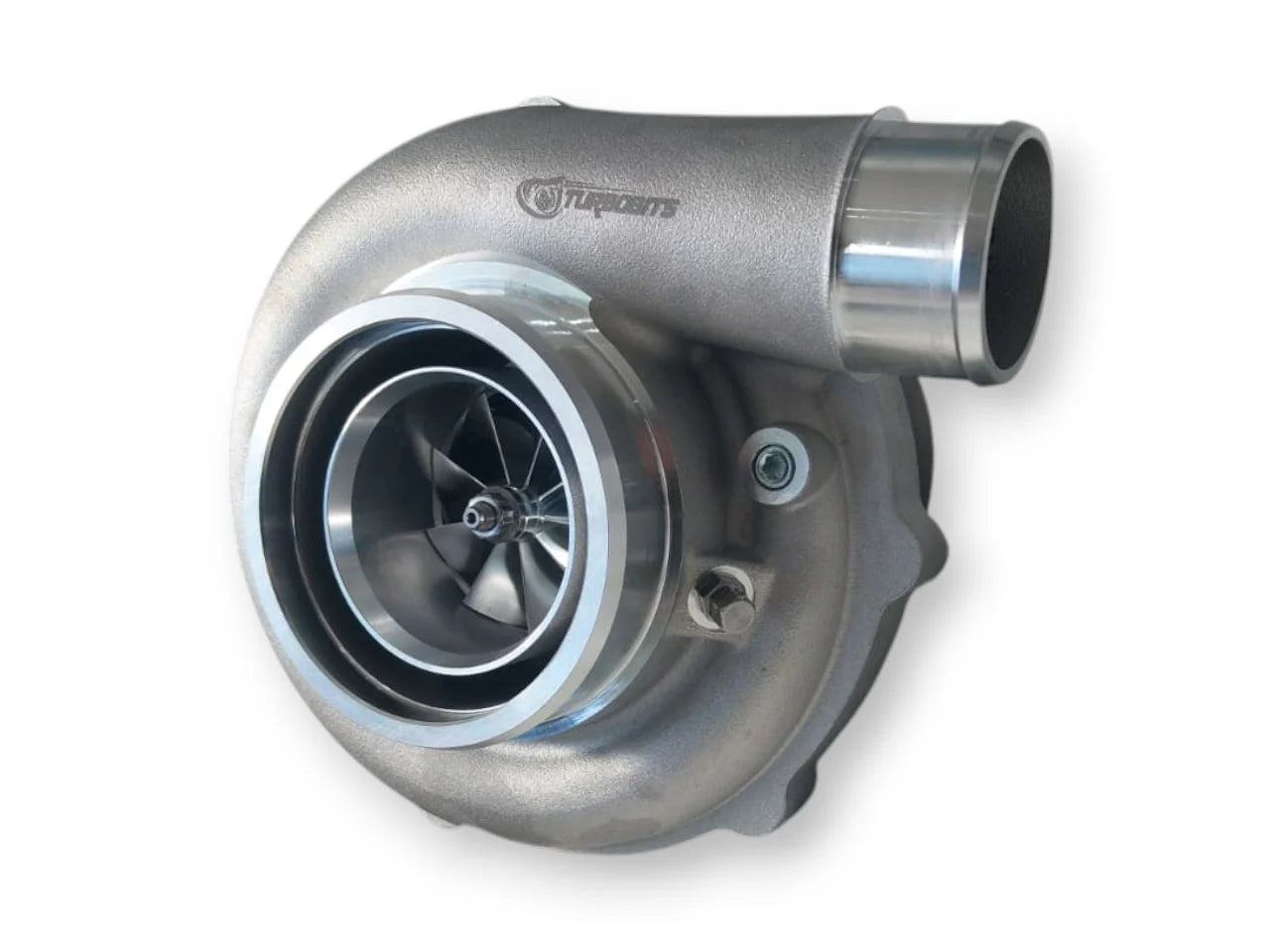

TBR G-Series G35 G35-900 Billet Wheel Dual Ball Bearing High Performance Turbocharger
Brand: Turbo Bits Racing (TBR)
Model: G35-900
Horsepower: 550 - 900
Displacement: 2.0L - 5.5L
Bearing : Dual Ball Bearing
Cooling: Oil and Water

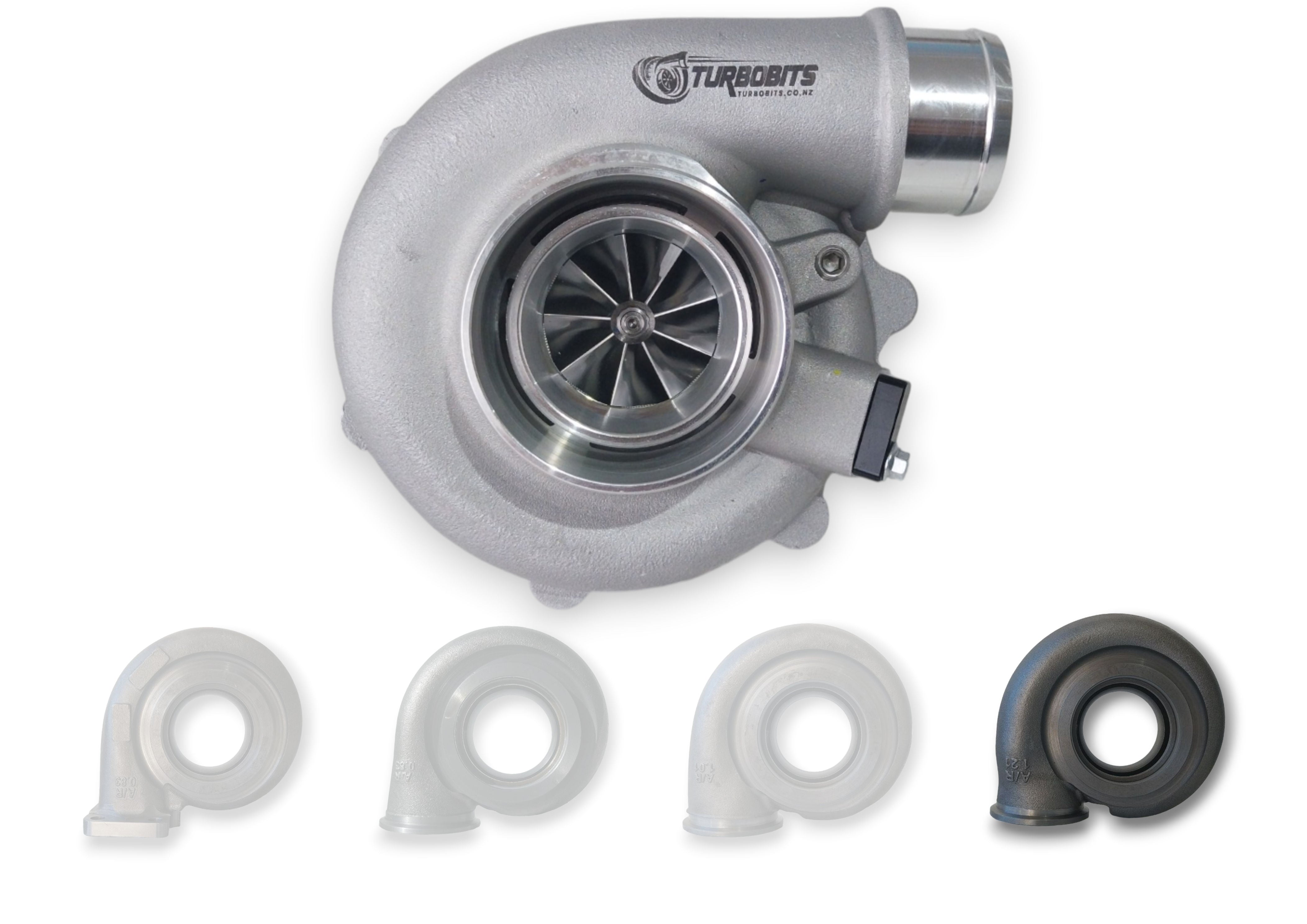

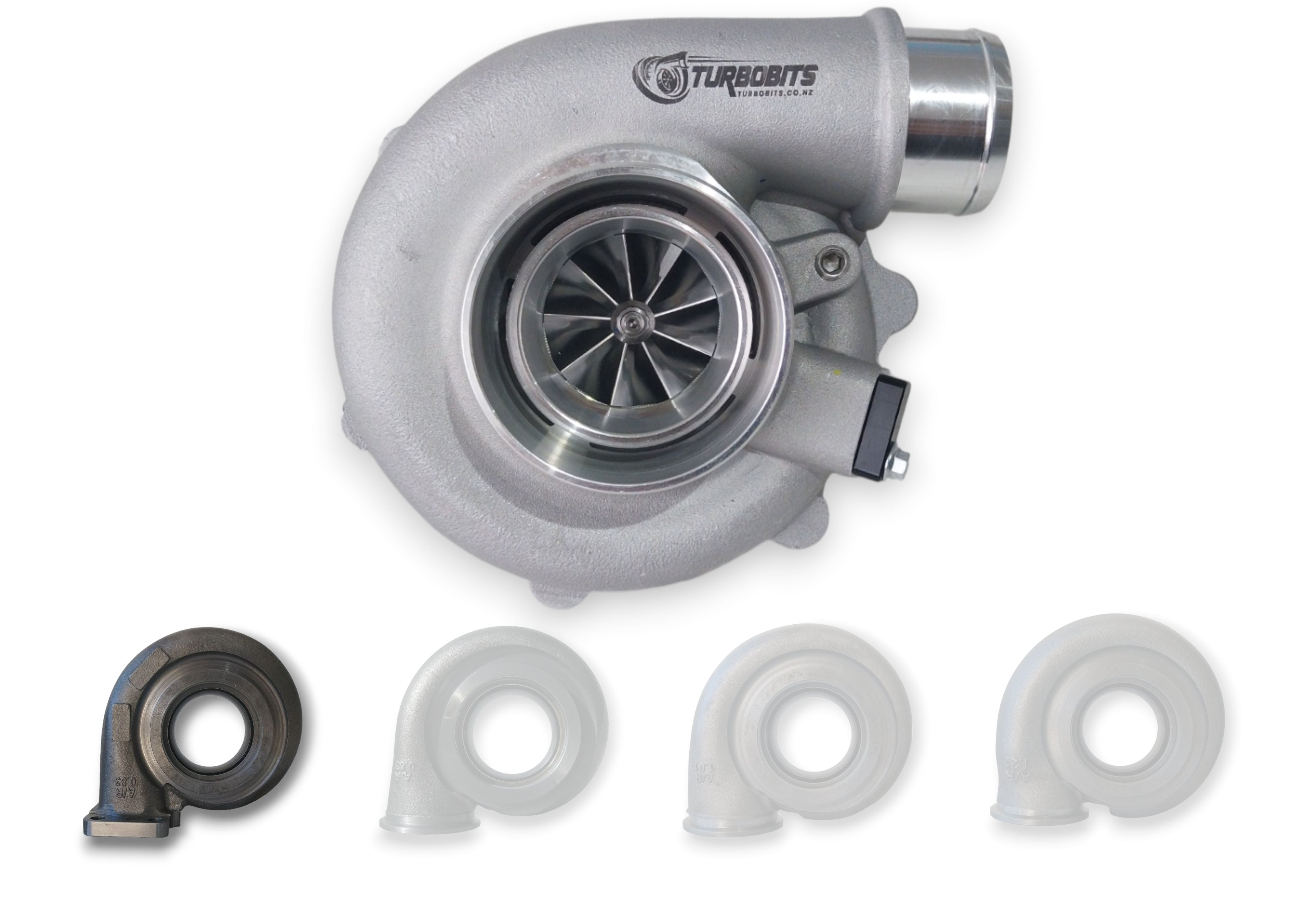

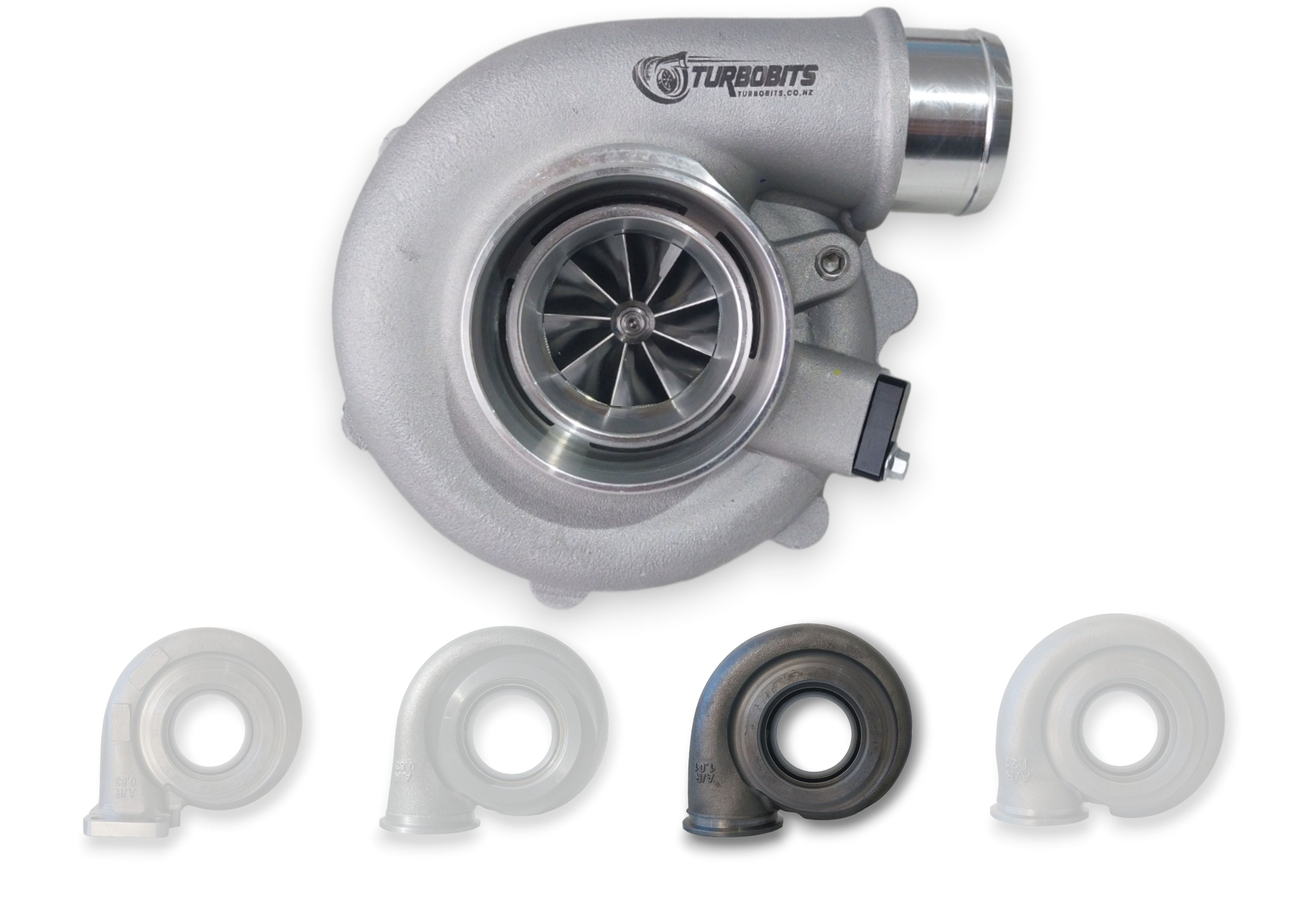

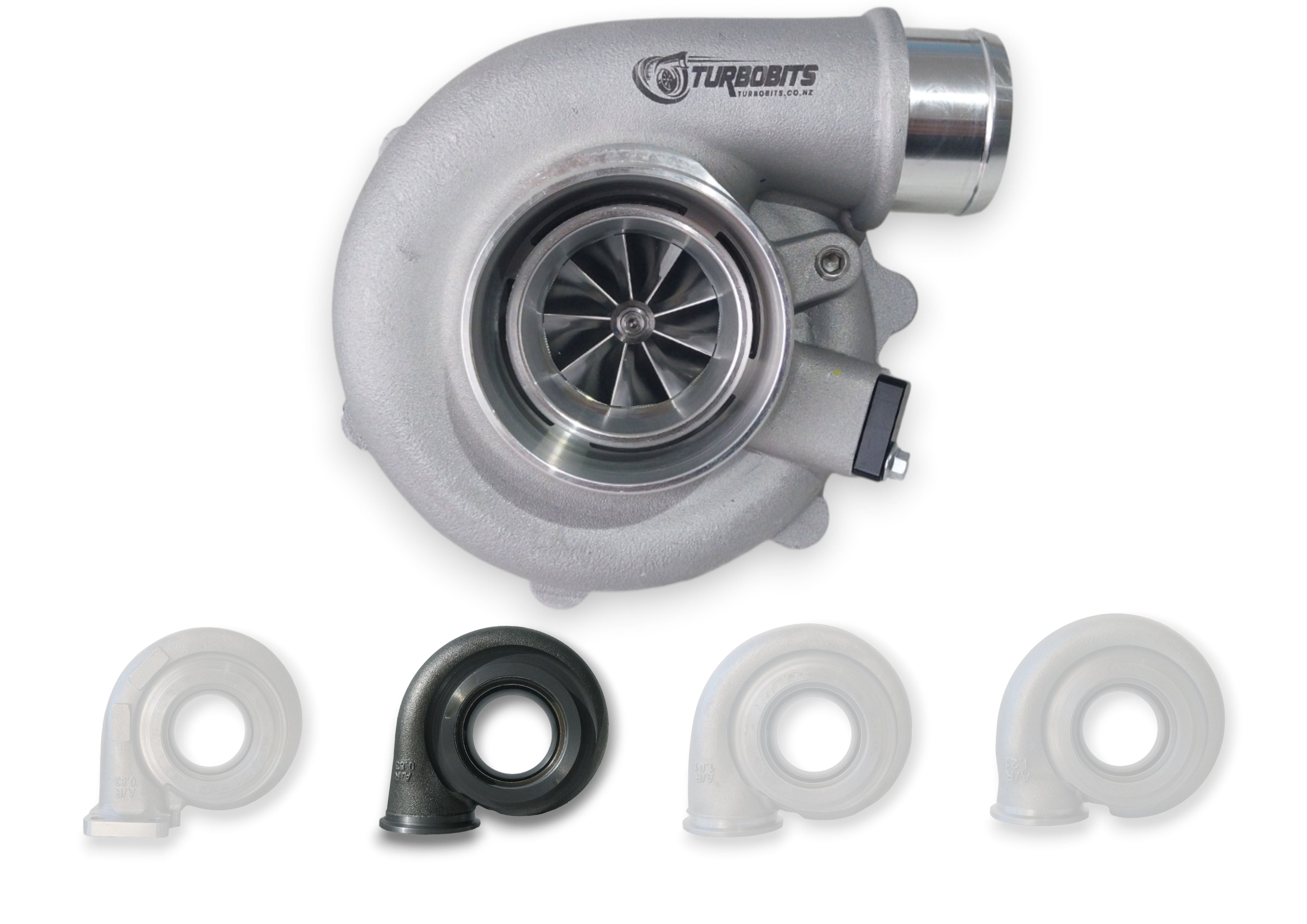

Turbine options :

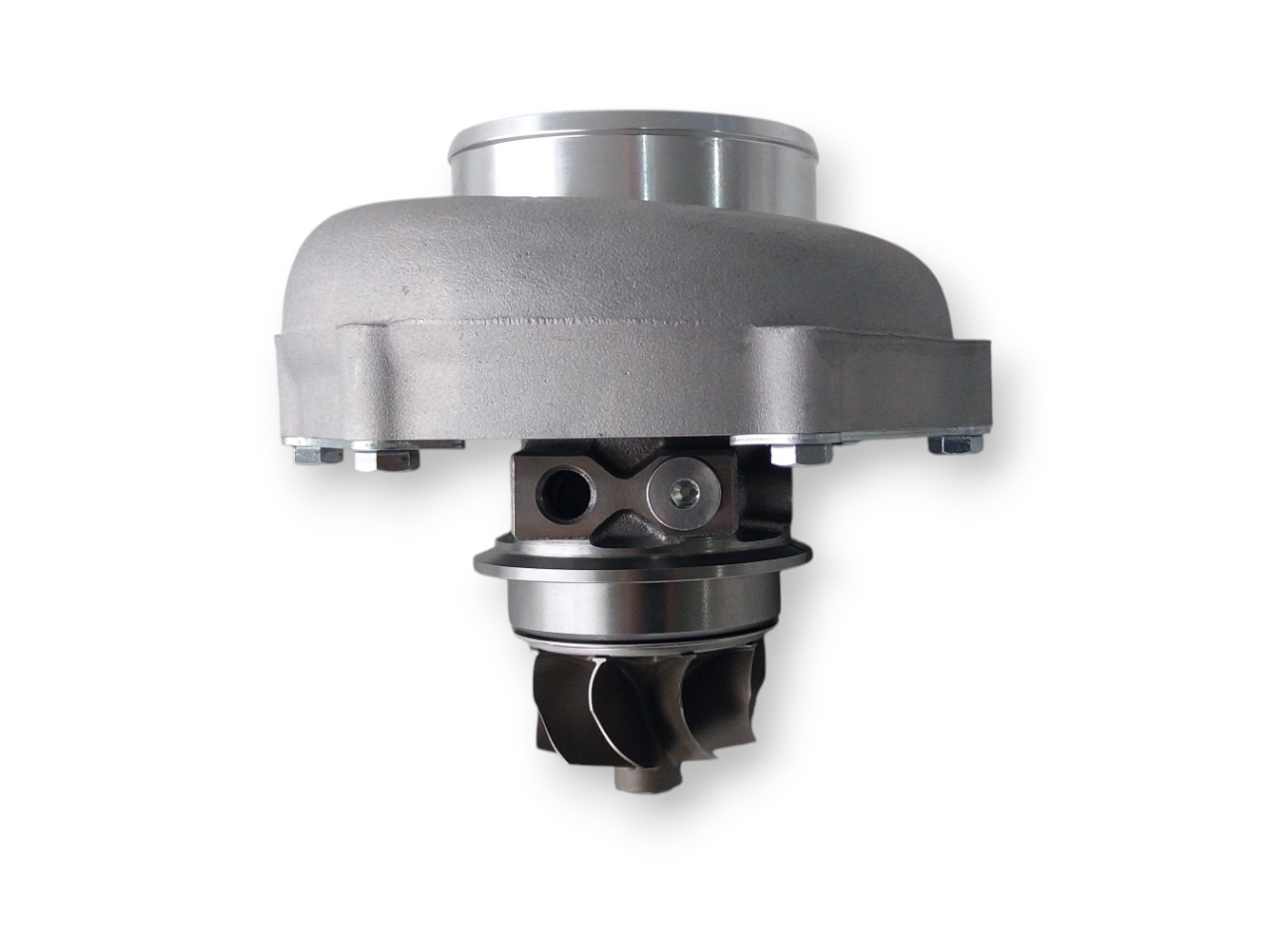

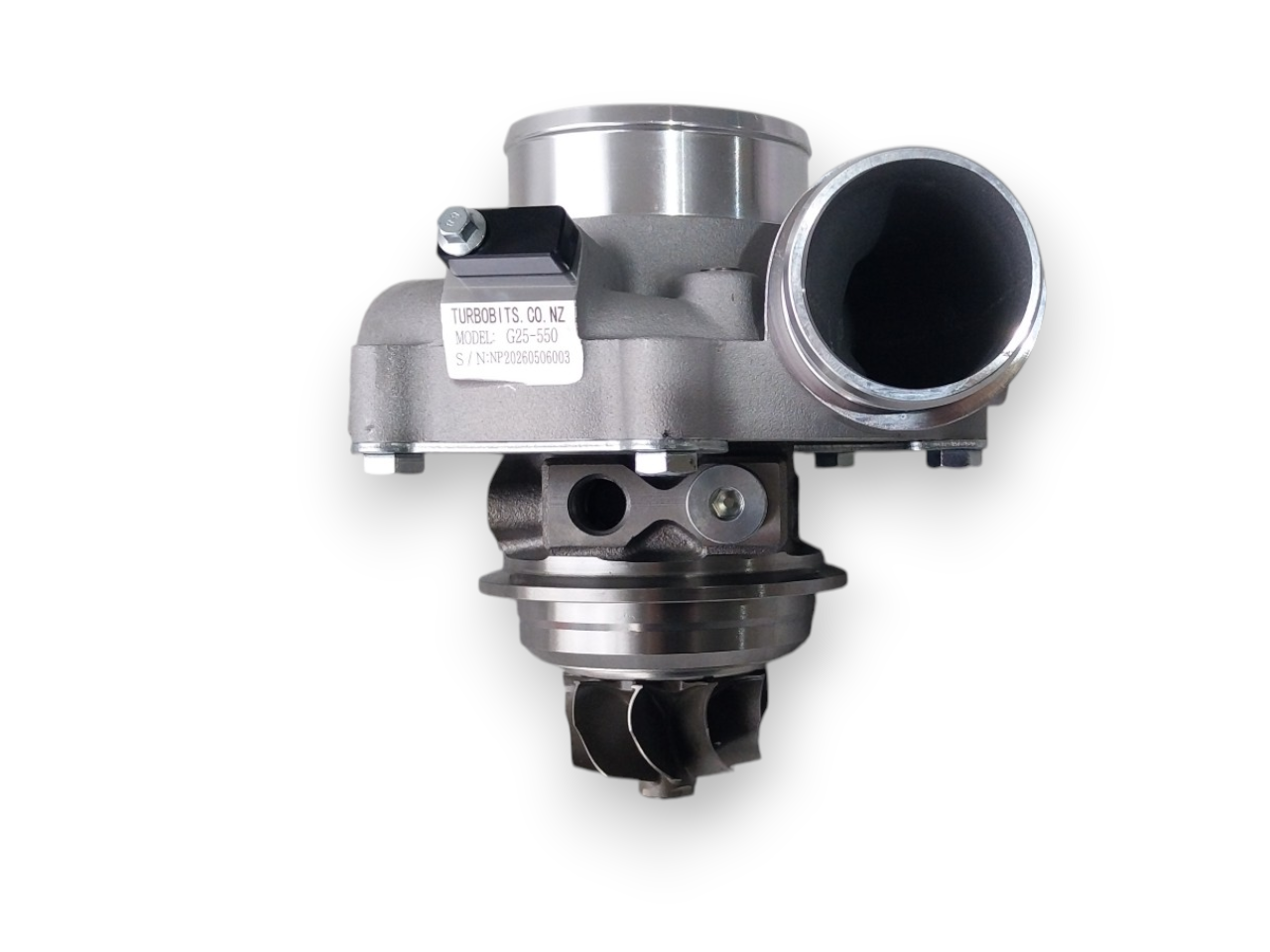

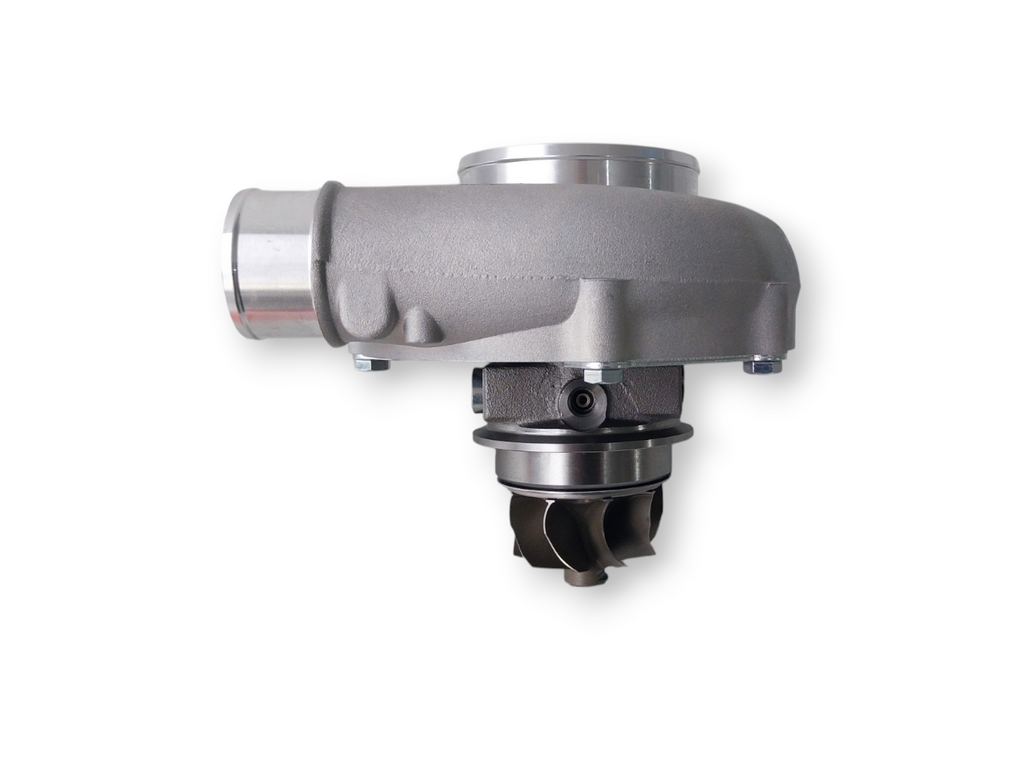

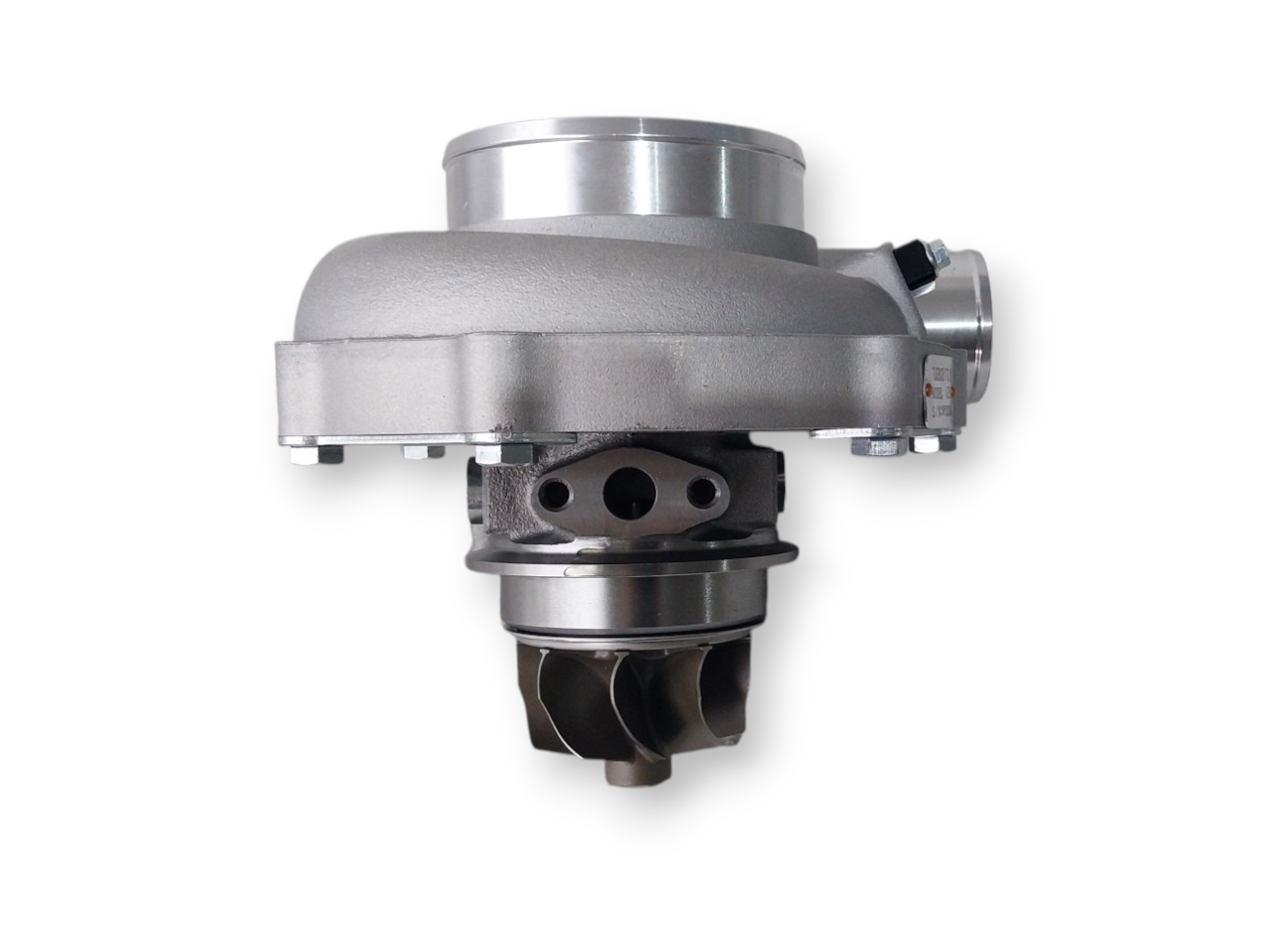

-No rear housing ( Supercore only )
-A/R 0.82 T4 Flange
-A/R 0.83 T3 Flange
-A/R 0.83 V-Band Flange
-A/R 1.01 T3 Flange
-A/R 1.01 V-Band Flange
-A/R 1.21 V-Band Flange
COMPRESSOR:
Compressor housing : A/R : .75 with anti surge and speed sensor port
Compressor wheel material : Billet (9+0 wheel)
Compressor wheel inducer: 62mm
Compressor wheel exducer: 76mm

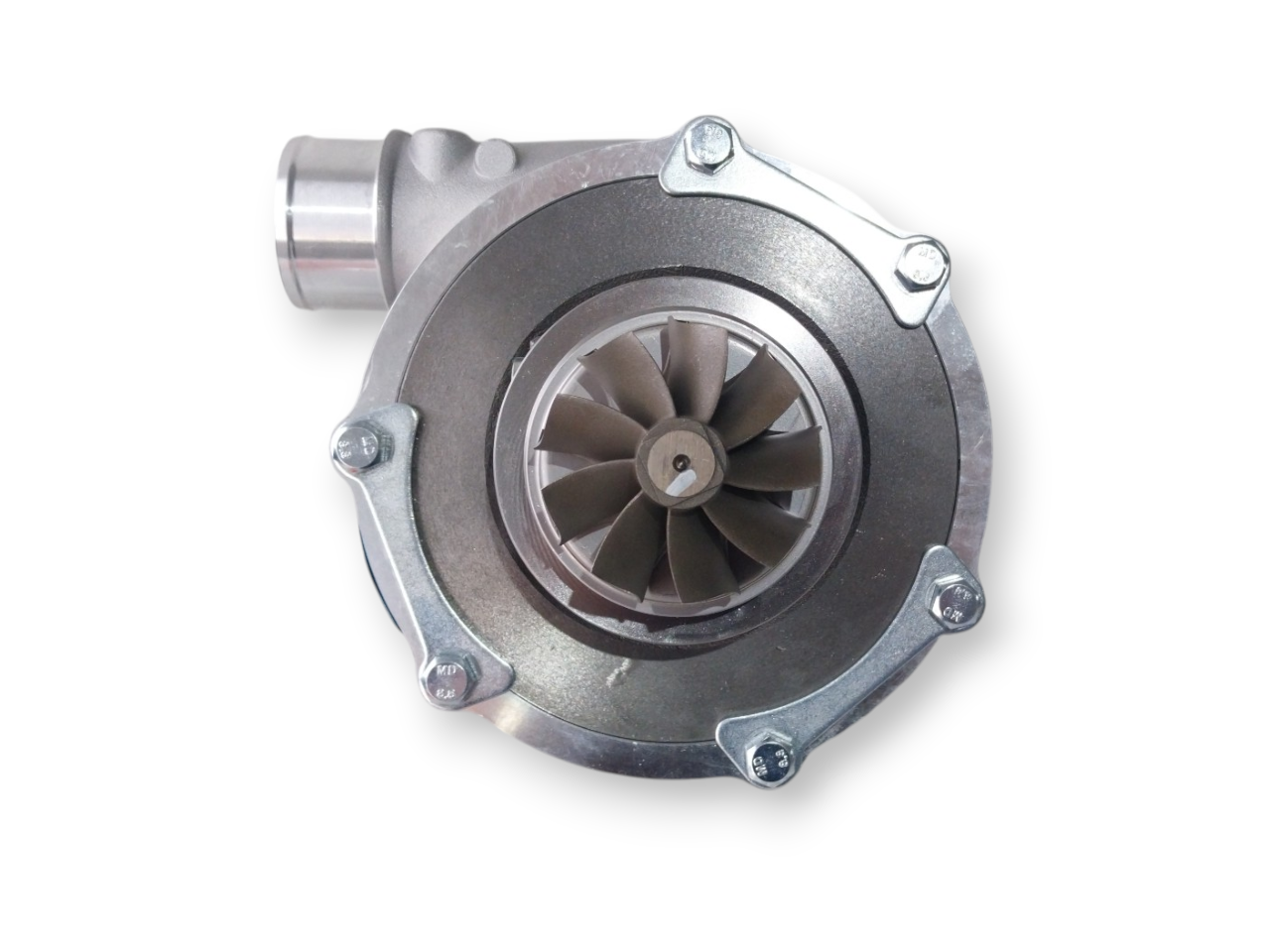

TURBINE DETAILS:
Turbine inducer 68mm
Turbine exducer: 62mm
Exhaust flange inlet : 76.2mm v-band Or T3 ( Rear housing option dependent )
Exhaust flange outlet: 90.16mm v-band
Similar to Pulsar PSR-6262G , Aeroflow Boosted 6262 , Garrett G35-900
