Description

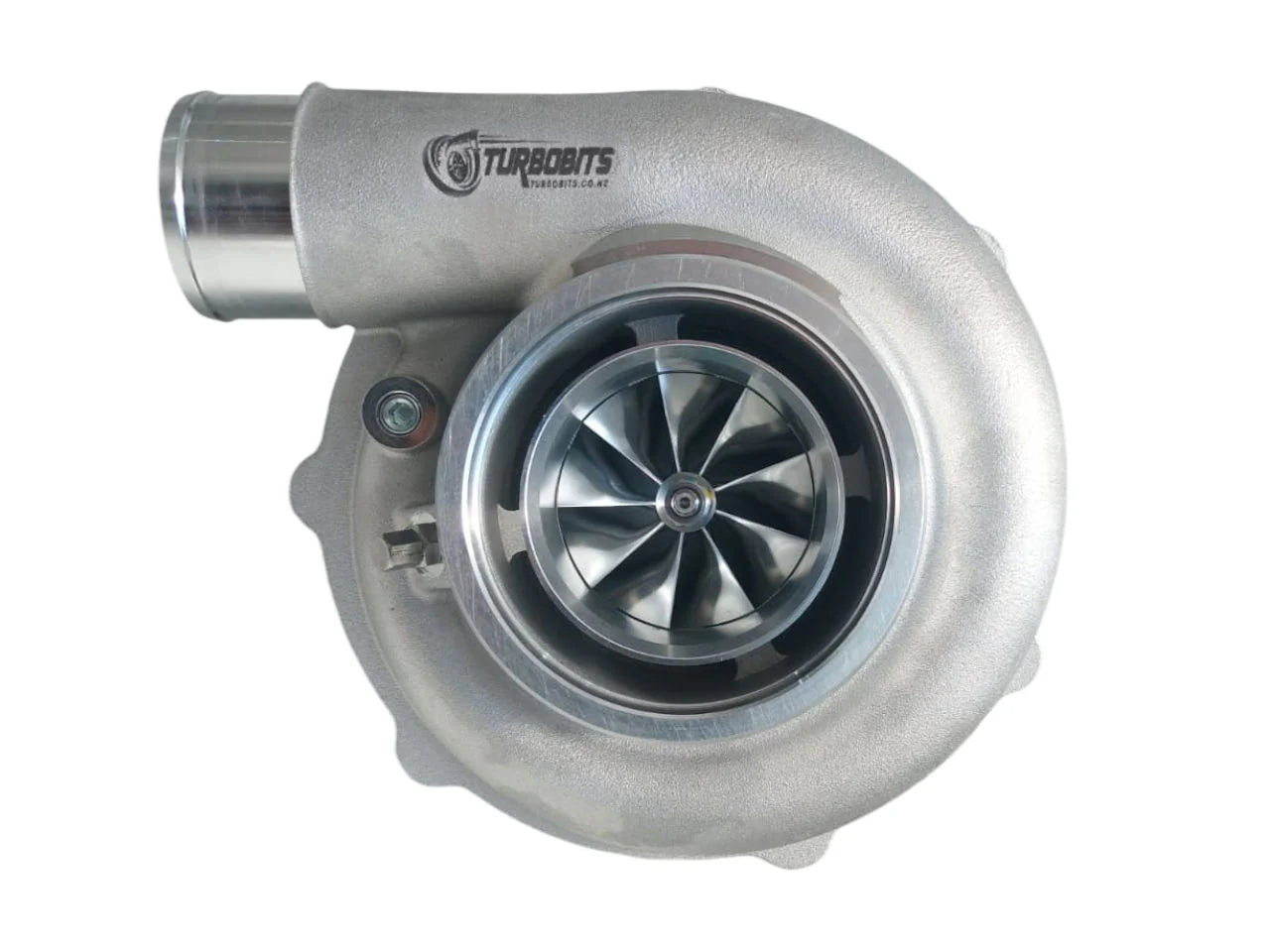

TBR G35-900 reverse-rotation dual ball bearing turbocharger with a billet compressor wheel. Select the V-band or T4 turbine-housing configuration required for your build.
- Select the required option above. The specifications and components depend on the chosen configuration.
Product details
- Brand new complete turbocharger, each of our turbos are balanced and tested after assembly.
- 12 Month Warranty - See terms
- Comes with Basic plumbing kit
- Our turbochargers have proven the test of time, featuring on the Moore Motorsport 3 Hour endurance race car!
- TBR G-Series G35 G35-900 Reverse Rotation Billet Wheel Dual Ball Bearing High Performance Turbocharger
- Horsepower: 550 - 900
- Displacement: 2.0L - 5.5L
- Compressor housing : A/R : .72 with anti surge and speed sensor port
- Compressor wheel material : Billet (Point Milled 9+0 wheel)
- Compressor wheel inducer: 62mm
- Compressor wheel exducer: 76mm
- Compressor wheel Trim :65
- Turbine inducer 68mm
- Turbine exducer: 62mm
- Turbine Trim: 84
- Cooling: Oil and Water
- Bearing : Dual Ball Bearing
- Exhaust flange inlet options : 76.2mm V-band or T4
- Exhaust flange outlet: 90.16mm v-band
- Turbine housing options
- 0.83 V-band
- 1.02 V-band
- 1.21 V-band
- 0.83 T4
- Similar to Pulsar PSR-6262G , Aeroflow Boosted 6262 , Garrett G35-900
- This item
- 0.83 T4
