Descripción

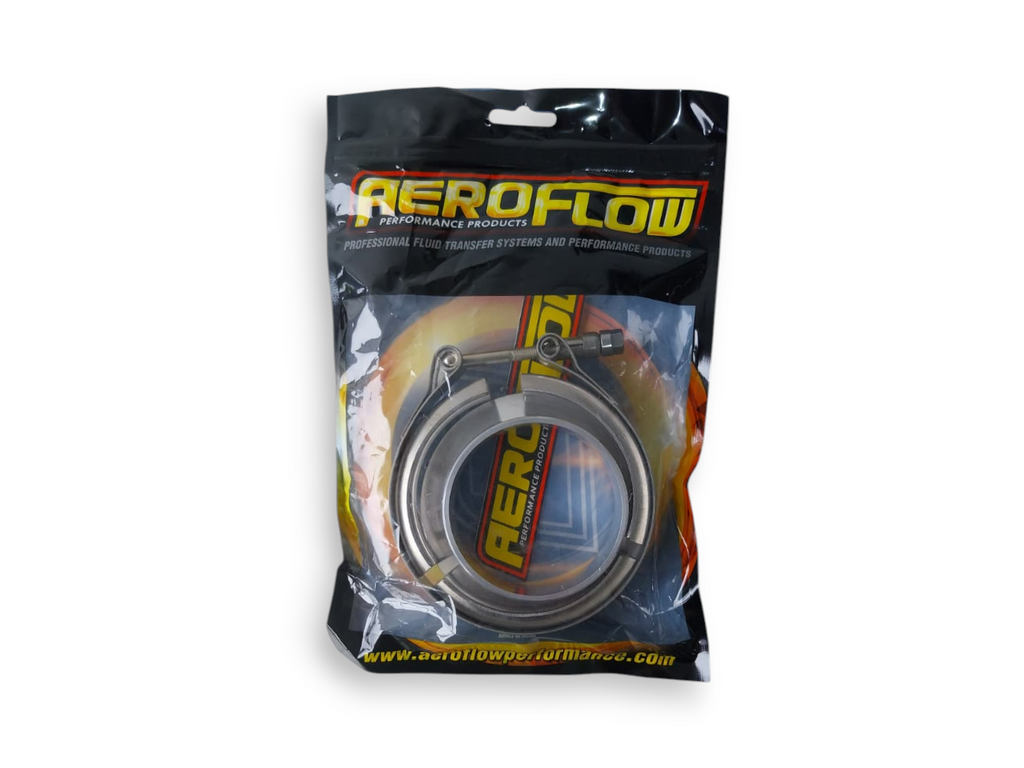

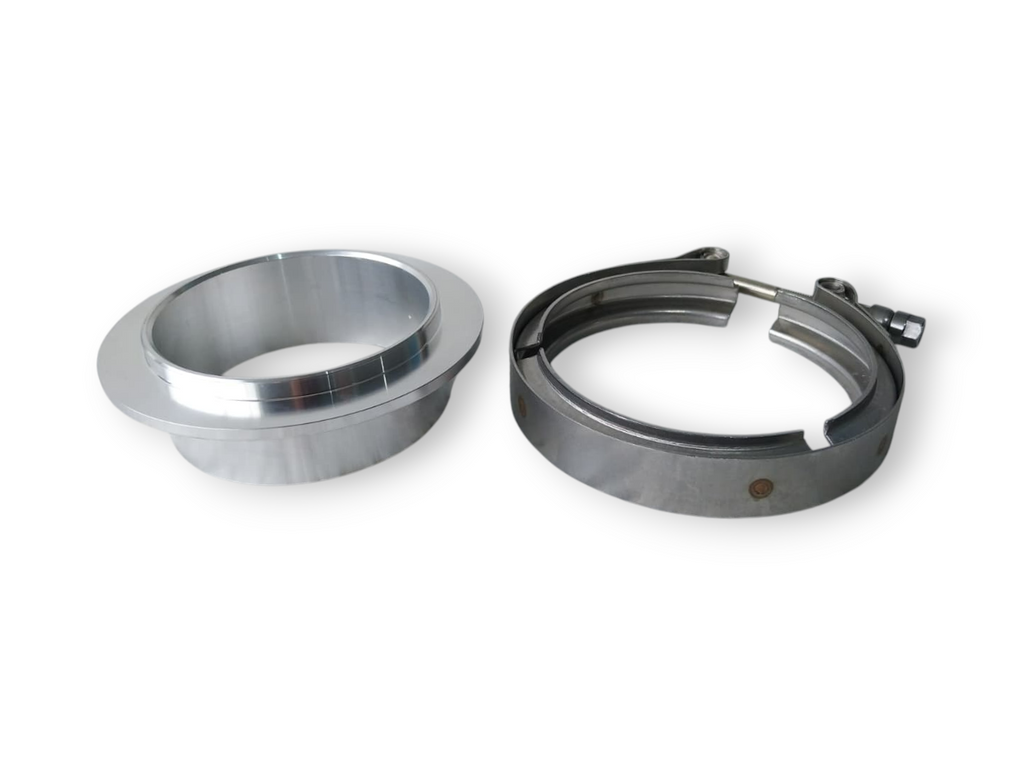

Boosted Compressor Outlet 4.21" O.D AluminumV-Band Kit
Suit Boosted 7075, 7675, 7975 &8077 Turbochargers
Product Code:
AF8080-1009
These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.
Note: Molygrease all threads before installation and removal.
Material is Aluminium.
Suits Boosted Turbocharger Compressor Outlet Flange.
Replacement V-band clamp isAF8080-3002.
AF8080-1009 Aeroflow Performance V-Band Suits Boosted Turbos below:
AF8005-4004 / AF8005-4004BLK
AF8005-4005 / AF8005-4005BLK
AF8005-4007 / AF8005-4007BLK
AF8005-4010 / AF8005-4010BLK
AF8005-4011 / AF8005-4011BLK
AF8005-4012 / AF8005-4012BLK
AF8005-4013 / AF8005-4013BLK
AF8005-4015 / AF8005-4015BLK
AF8005-4110 / AF8005-4110BLK
AF8005-4111 / AF8005-4111BLK
AF8005-4112 / AF8005-4112BLK
AF8005-6000 / AF8005-6000BLK
G42-1450
Measurements of V-Band flange:
- V-Band Weld on Ferrule Inside Diameter - 76.2mm (3").
- V-Band Weld on Ferrule Outside Diameter - 107.15mm (4-13/64").
- V-Band Weld on Ferrule Lip Outside Diameter - 82.2mm (3-15/64").
