Boosted Turbine Outlet4.25" O.D Stainless SteelV-Band Kit AF8080-1020

Boosted Turbine Outlet4.25" O.D Stainless SteelV-Band Kit

Product details

• Suit Boosted 7375 & 7975 Dual V-Band Turbochargers
• Product Code:
• AF8080-1020

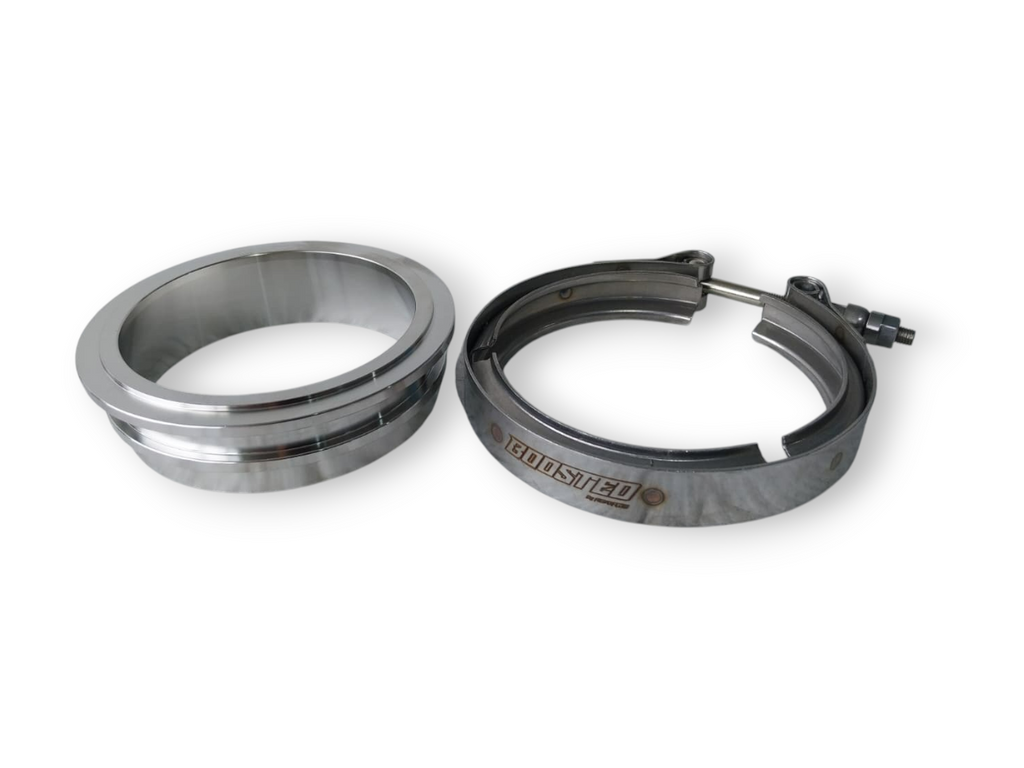

These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.

• Note: Molygrease all threads before installation and removal.
• Material is 304 Stainless Steel.
• Suits Boosted Turbocharger Turbine Outlet Flange.
• Replacement V-band clamp isAF8080-3002.
• AF8080-1020 Aeroflow Performance V-Band Suits Boosted Turbos below:
• AF8005-4006 / AF8005-4006BLK
• AF8005-4008 / AF8005-4008BLK
• AF8005-4009 / AF8005-4009BLK
• AF8005-4010 / AF8005-4010BLK
• AF8005-4011 / AF8005-4011BLK
• AF8005-4012 / AF8005-4012BLK
• AF8005-4106 / AF8005-4106BLK
• AF8005-4108 / AF8005-4108BLK
• AF8005-4109 / AF8005-4109BLK
• AF8005-4110 / AF8005-4110BLK
• AF8005-4111 / AF8005-4111BLK
• AF8005-4112 / AF8005-4112BLK

Specifications

• Measurements of V-Band flange:
• - V-Band Weld on Ferrule Inside Diameter - 84.75mm (3-21/64").
• - V-Band Weld on Ferrule Outside Diameter - 108mm (4-9/32").
• - V-Band Weld on Ferrule Lip Outside Diameter - 95mm (3-3/4").
• - Suits Exhaust Tube Outside Diameter - 90.9mm (2-9/16").
• G42 -1450
