Descripción
TBR Performance stainless steel AN4 fittings for PTFE hose assemblies. Choose straight, 45-degree or 90-degree orientation to suit the installation.
- Select the required option above. The specifications and components depend on the chosen configuration.
Product details
- Turbo Bits – AN4 PTFE (E85 Compatible)
This AN4 PTFE fitting is designed for high-performance fluid systems and is fully compatible with E85, ethanol-based fuels, petrol, oil, and other aggressive fluids when used with PTFE hose. Ideal for motorsport and performance street applications.
- Fitment and applications
- Oil cooler lines
- Fuel systems (including E85 / ethanol fuels)
- PTFE hose assemblies
- High-pressure fluid systems
- Ideal for use in turbocharger oil feed lines.

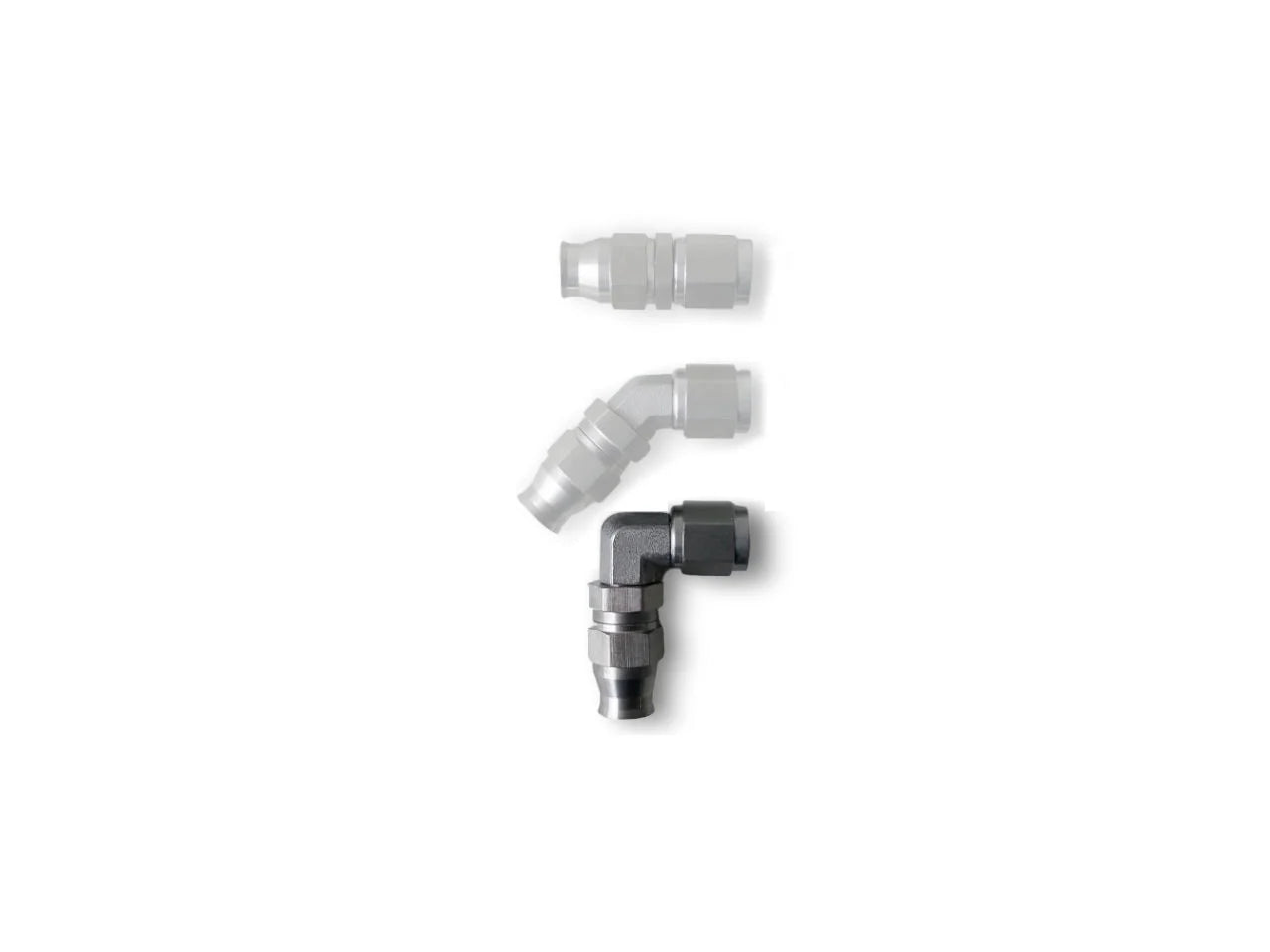

- AN4 PTFE Fitting Options available:

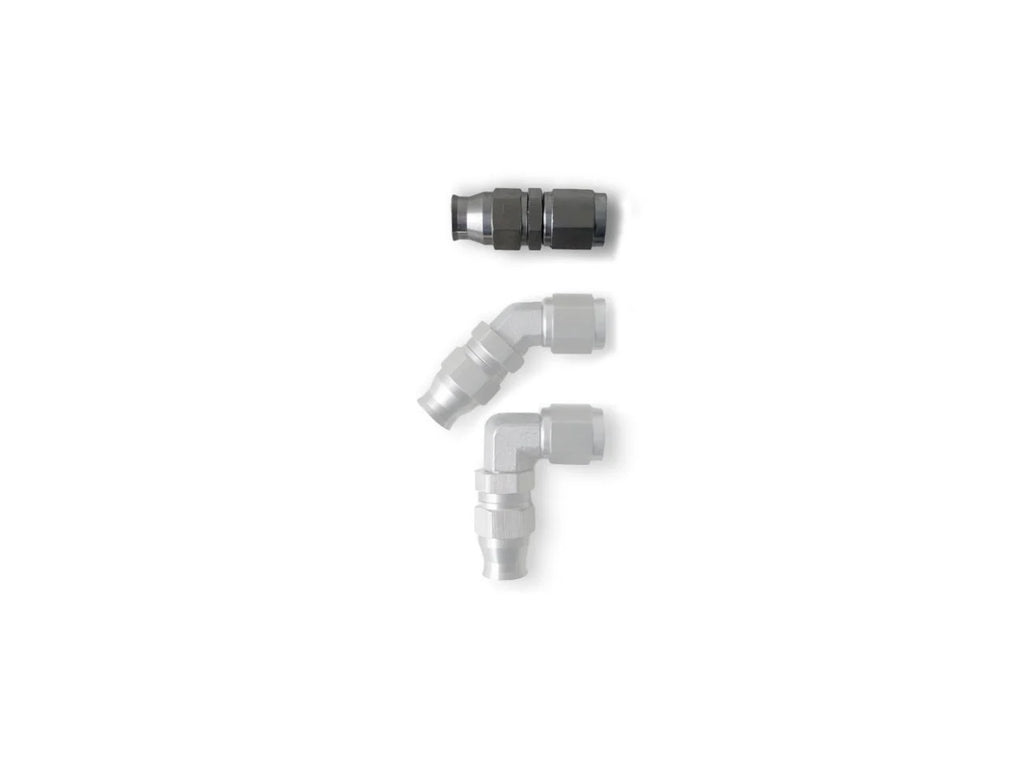

- 0 degree ( TBR6100-04 SS )

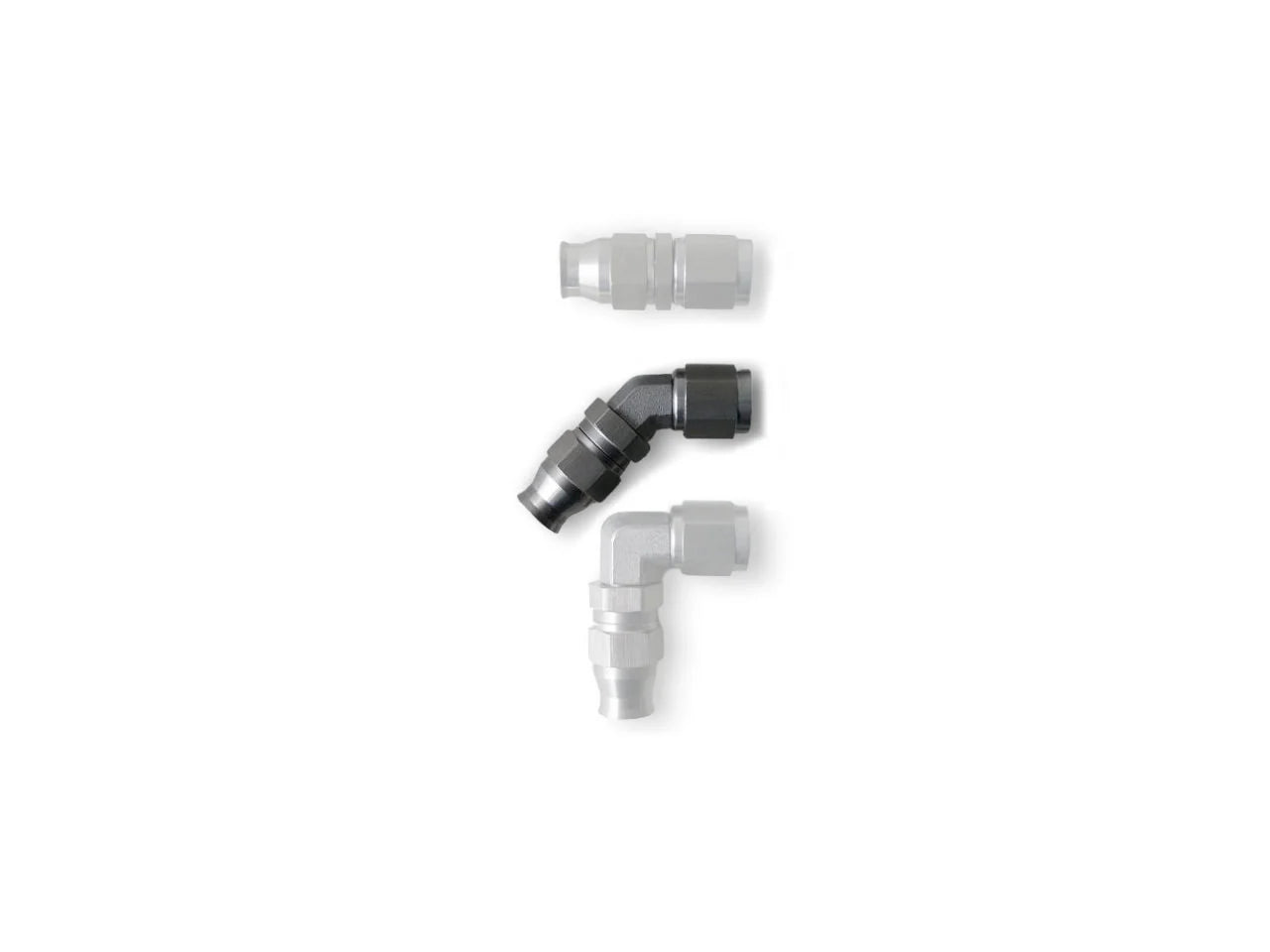

- 45 Degree ( TBR6145-04 SS )
- 90 Degree ( TBR6190-04 SS )
- Installation and selection notes
For turbocharger oil feed lines we recommended using stainless steel fittings for the oil feed line especially at the turbocharger end. This is due to the high temperatures / pressures exposed to the oil feed line. It is not recommended to use alloy fittings for the turbo feed lines as these get brittle over time and can leak or even worse, break. Alloy oil feed line failure can cause turbocharger and/or engine failure or even engine bay fires.
- This item
- 0 Degree
