Descripción

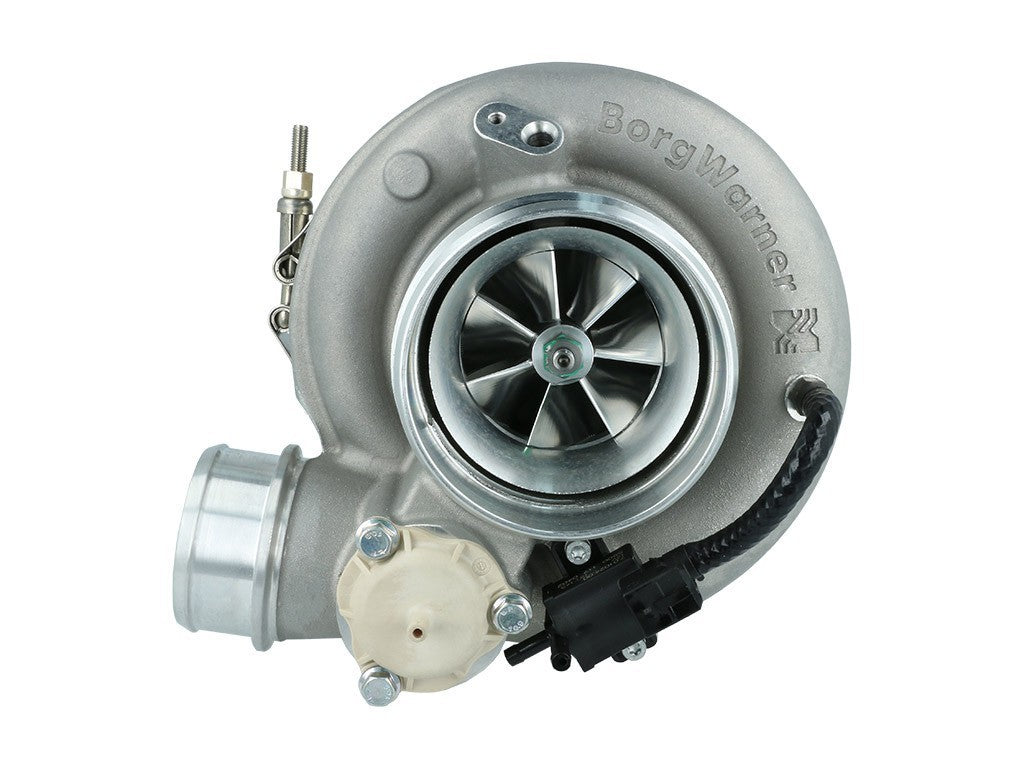

Turbo Family: EFR 9280 Super-Core Iron "Black Edition"
Product details
- Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
- Compressor Inducer: 74mm
- Compressor Exducer: 91mm
- Max Flow Rate: 110 lb/min
- Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
- Turbine Inducer: 80mm
- Turbine Exducer: 73mm
- Compressor A/R: .57
- Bearing Type: Ball Bearing
- Bearing Cooling: Oil & Water
- Flange Details:
- Compressor Inlet Flange: 4.0" Hose
- Compressor Outlet Flange: 2.5" Hose with integrated V/band option
- Turbo Characteristics:
- Turbo Size: Large frame
- Intended Application: Medium to High power
- Expected Power Output: 600 to 1000 HP : 447 to 745 kw
- Additional Comments:
- Dual Row Ceramic Ball Bearings - lowest friction and fastest spool/response, most extreme durability, built-in 2mm oil restrictor
- Watercooled Center Section - watercooling is recommended, 14mm banjo bolts
- Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage
- Boost Control Solenoid Valve Integrated to Compressor Housing
- Integrated Speed Sensor mounting provisions
