Descripción

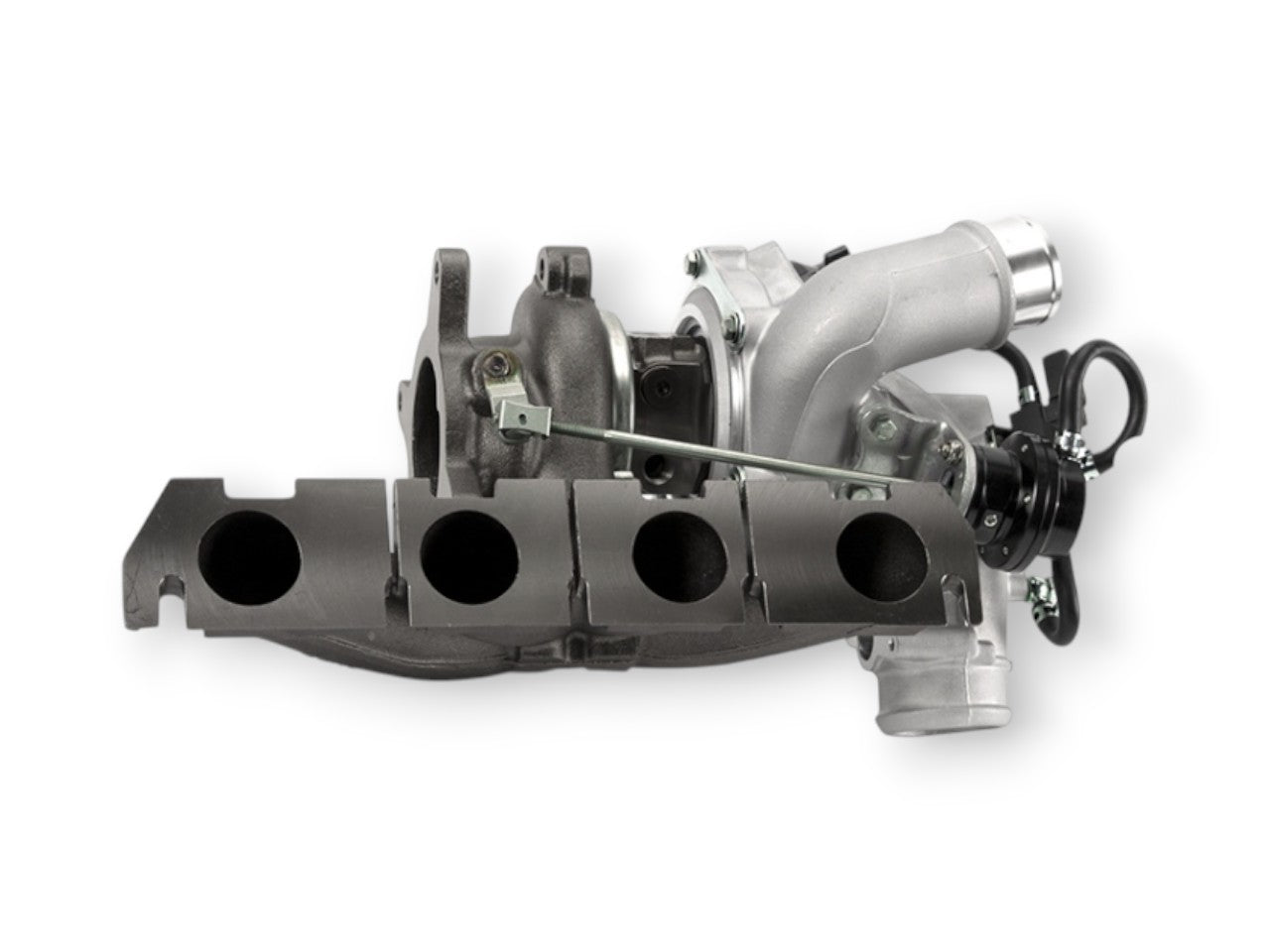

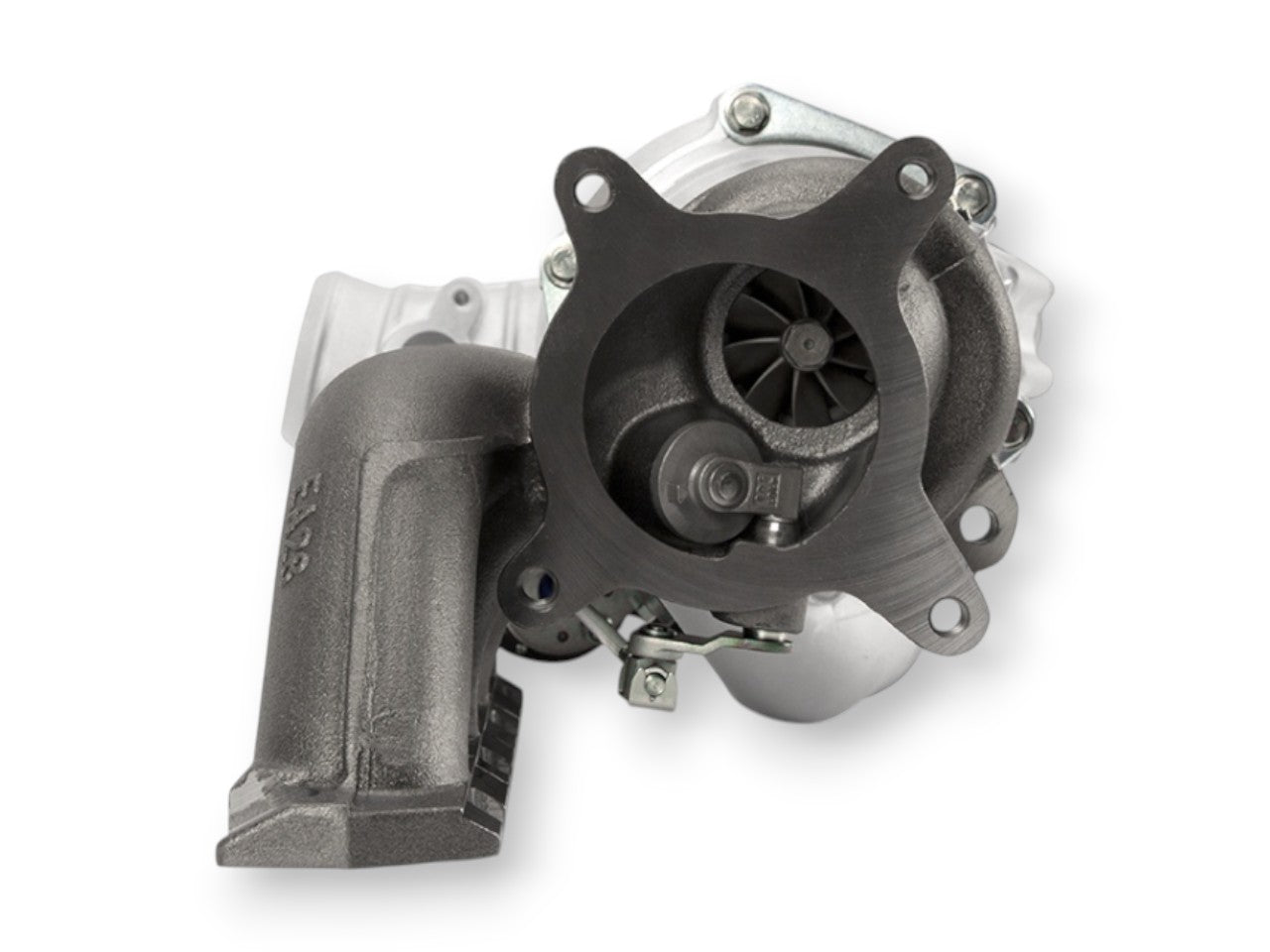

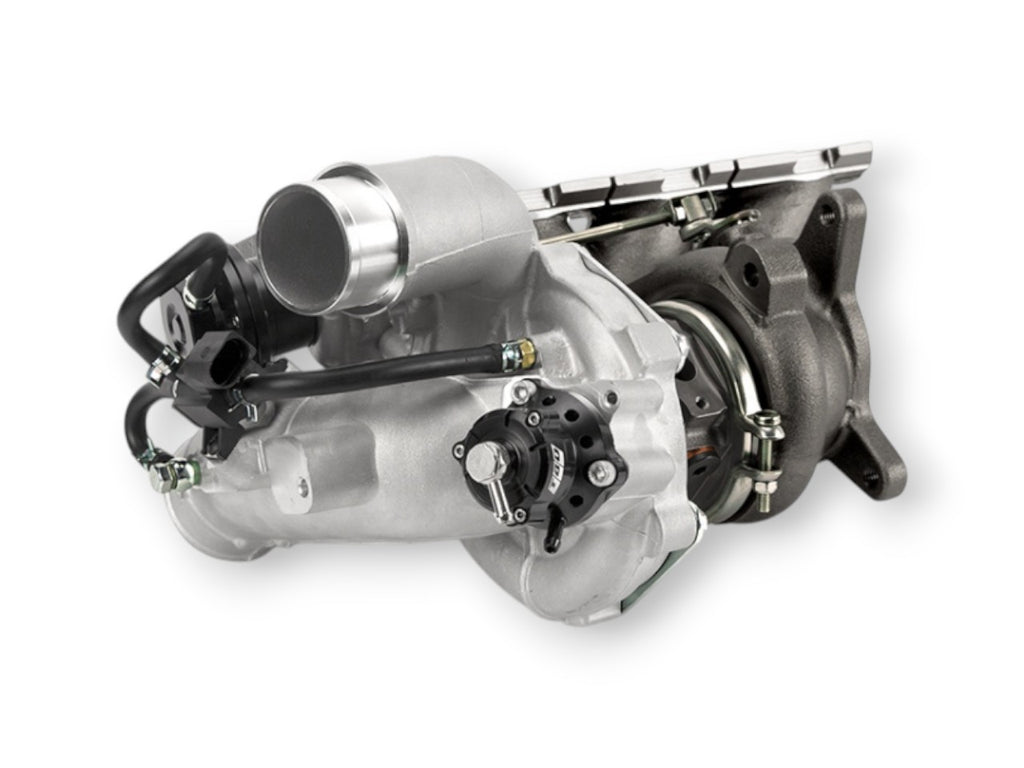

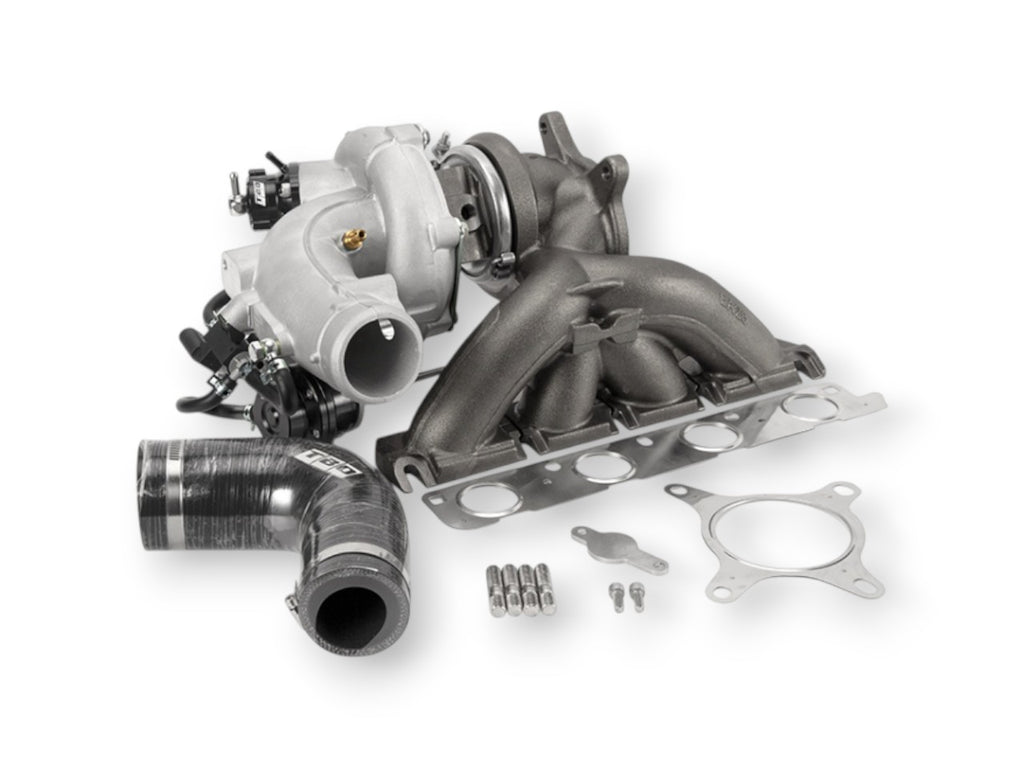

Direct replace EA888 Gen.2 1.8/2.0T K03, EA113 2.0T transverse engine K04 turbochargers
Product details
- Supports 550 horsepower range
- Lightweight design CNC machined billet compressor wheel
- Dual ceramic ball bearing
- Improved housings with larger A/R for high airflow and low exhaust back pressure
- Closed back turbine wheel with enlarged 9-blade design
- Direct fit OE’s oil and water feeds
- Inducer: 53 mm
- Exducer: 71 mm
- Type: Billet
- Inlet: 60 mm
- Bearing: Ball
- Inducer: 53.7 mm
- Exducer: 47 mm
- Horsepower: 550 HP
- Vehicle Fitment
- VAG EA888 Gen1/2 & EA113 2.0T transverse engines
- EA888 Gen. II
- 1.8/2.0T Transverse
- EA113
- 2.0T Transverse
- BOV/DV Spring:
- Black Spring: Option 10–16 PSI
- White Spring: Option 16–22 PSI
- Yellow Spring: Standard 22–27 PSI
- Blue Spring: Installed 25–32 PSI
- Red Spring: Standard 27–35 PSI
- Above figure is only preference. Please refer to vehicle modification needs.

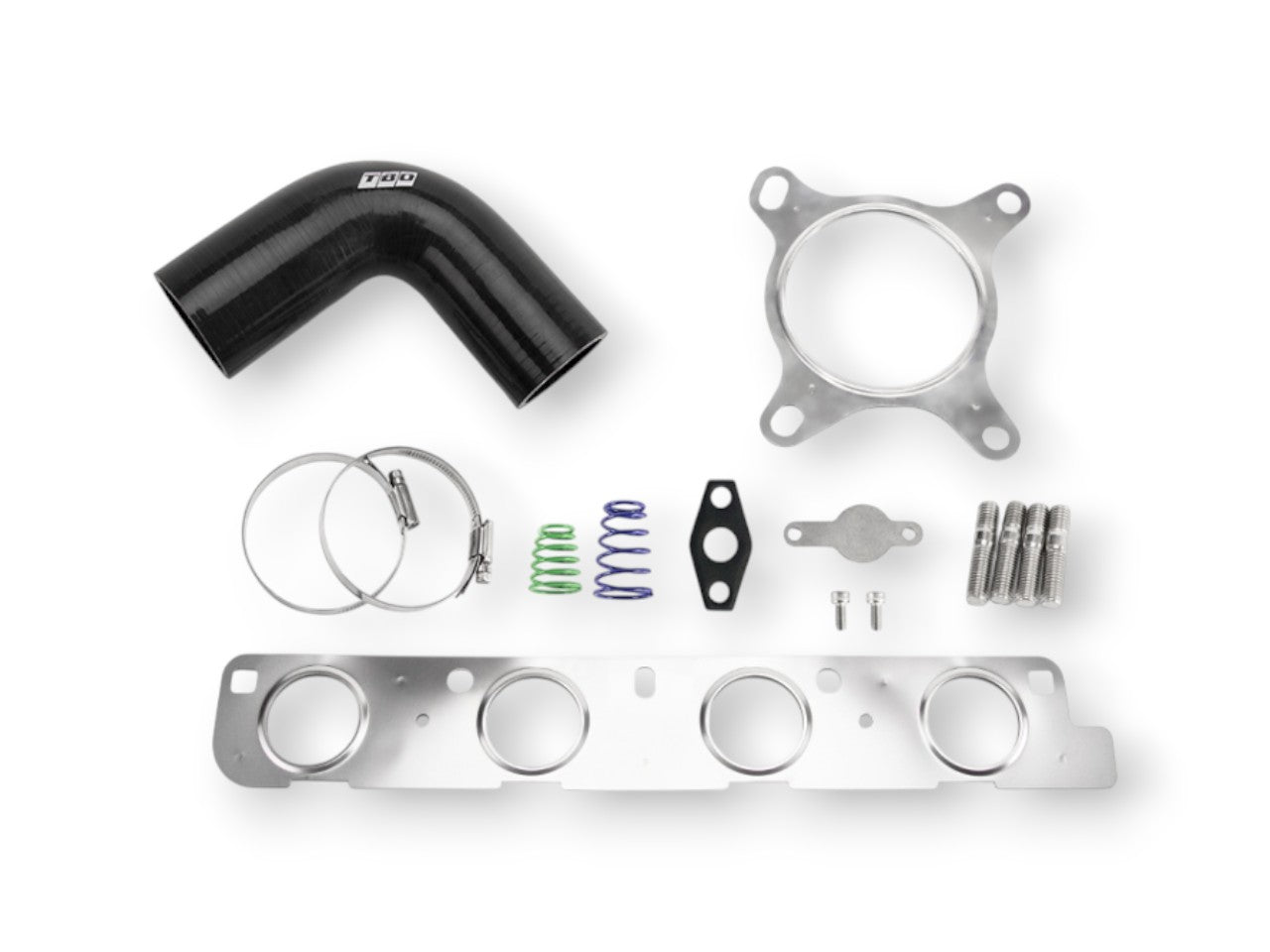

- K04-064 turbo kit does not include a diverter valve, sold separately.
- Actuator Spring Peak Boost:
- White Spring: 3.6–7.25 PSI (0.25–0.5 Bar) — Option
- Green Spring: 5.8–10.15 PSI (0.4–0.7 Bar) — Standard
- Yellow Spring: 8.7–14.5 PSI (0.6–1.0 Bar) — Installed
- Blue Spring: 13–18.85 PSI (0.9–1.3 Bar) — Standard
- Red Spring: 17.4–24.65 PSI (1.2–1.7 Bar) — Option
