Live Stock Level in Warehouse:
LOW STOCK
Only 1 left
Descripción

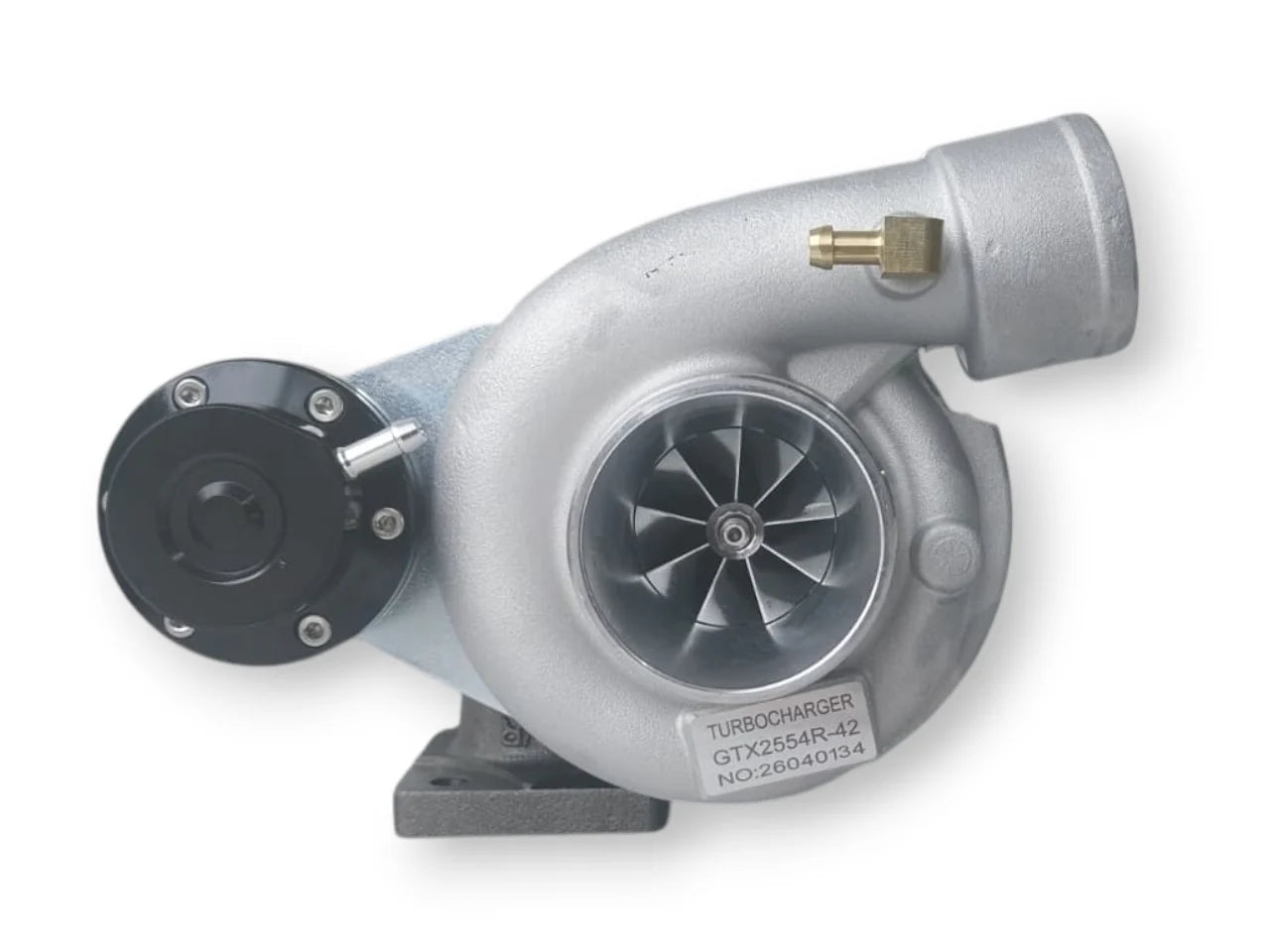

Turbo Bits GTX2554R ball bearing turbocharger with a billet compressor wheel, T25 inlet flange and 0.49 A/R turbine housing. Review the dimensions and installation specifications below to confirm suitability.
Product details
- Brand New - Turbo Bits
Model
- GTX2554R .49
- Bearing System: Ball bearing
- Flange: T25
- Compressor specifications
- A/R .51
- Turbine: A/R .49 - 76mm V-Band
- HP Rating: 170-270hp
- Engine size: 1400cc to 2200cc
Product details
Featuring the updated generation 2 design,billet compressor wheel for a faster spool up. Better suited to smaller displacement 4 cylinder engines as a single turbo up to 2200cc Feel free to contact us to discuss the best set up for your application we have lots of different options and sizes in stock.
Model
- Compressor specifications
- A/R 0.51 compressor cover
- Air inlet: 60mm (We have silicon joiners if required)
- Air outlet: 2" or 51mm (We have silicon joiners if required)
- Compressor wheel dimensions
- Inducer - 42 mm
- Exducer - 54 mm
- Turbine specifications
- Turbine: A/R .49
- Exhaust outlet: 76mm V-Band (Comes with clamp set)
- Entry Flange: T25
- Turbine wheel dimensions
- Inducer - 53 mm
- Exducer - 42mm
- Turbo specifications
- Billet Compressor wheel, for faster spool up and stronger design
- Bearing type: Ball bearing
- Cooling type: Water cooled
- Horsepower: 170-270hp
- Recommended Boost: 20psi
- Max Boost: 30psi
- Wastegate springs
- Green: 5.8-10.15psi
- Yellow : 8.7-14.5psi (pre-installed)
- Blue : 13-18.8psi
