Live Stock Level in Warehouse:
LOW STOCK
Only 2 left
Descripción
Brand New - Turbo Bits
Product details

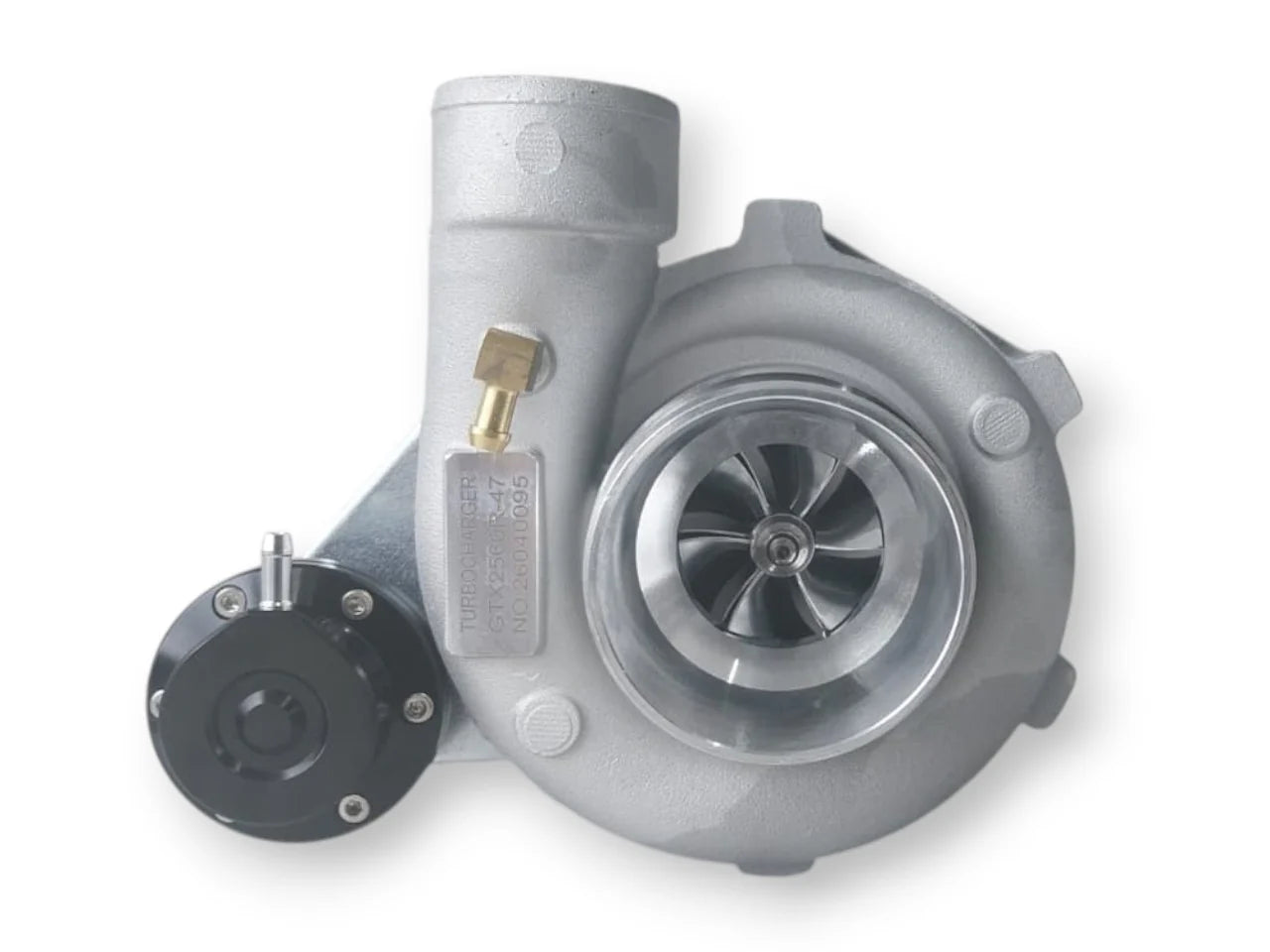

- Model: GTX2560R .49
- Bearing System: Ball bearing
- Flange: T25
- Compressor: A/R .51
- Turbine: A/R .60 - 76mm V-Band
- HP Rating: 200-330hp
- Engine size: 1600cc to 2500cc
- More Details:
Featuring the updated generation 2 design,billet compressor wheel for a faster spool up. Better suited to smaller displacement 4 cylinder engines as a single turbo up to 2200cc Feel free to contact us to discuss the best set up for your application we have lots of different options and sizes in stock.
Model
- COMPRESSOR DETAILS:
- A/R 0.60 compressor cover
- Air inlet: 3"or 76mm (We have silicon joiners if required)
- Air outlet: 2" or 51mm (We have silicon joiners if required)
- Compressor Wheel Dimensions:
- Inducer - 47 mm
- Exducer - 56 mm
- TURBINE DETAILS:
- Turbine: A/R .49
- Exhaust outlet: 76mm V-Band (Comes with clamp set)
- Entry Flange: T25
- Turbine Wheel Dimensions:
- Inducer - 53 mm
- Exducer - 42mm
- TURBO DETAILS:
- Billet Compressor wheel, for faster spool up and stronger design
- Bearing type: Ball bearing
- Cooling type: Water cooled
- Horsepower: 200-30hp
- Recommended Boost: 20psi
- Max Boost: 30psi
- Wastegate springs
- Yellow : 8.7-14.5psi (pre-installed)
- Blue : 13-18.8psi
- Red: 17.4-24.65psi
