Descripción
Brand New - Turbo Bits
Product details

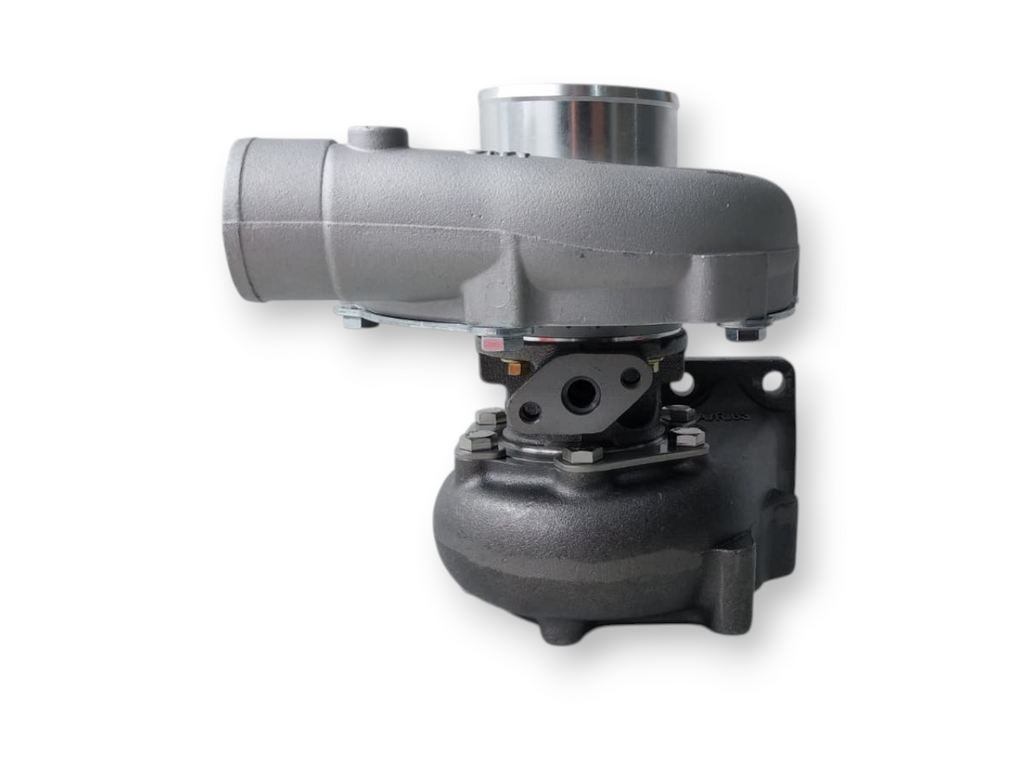

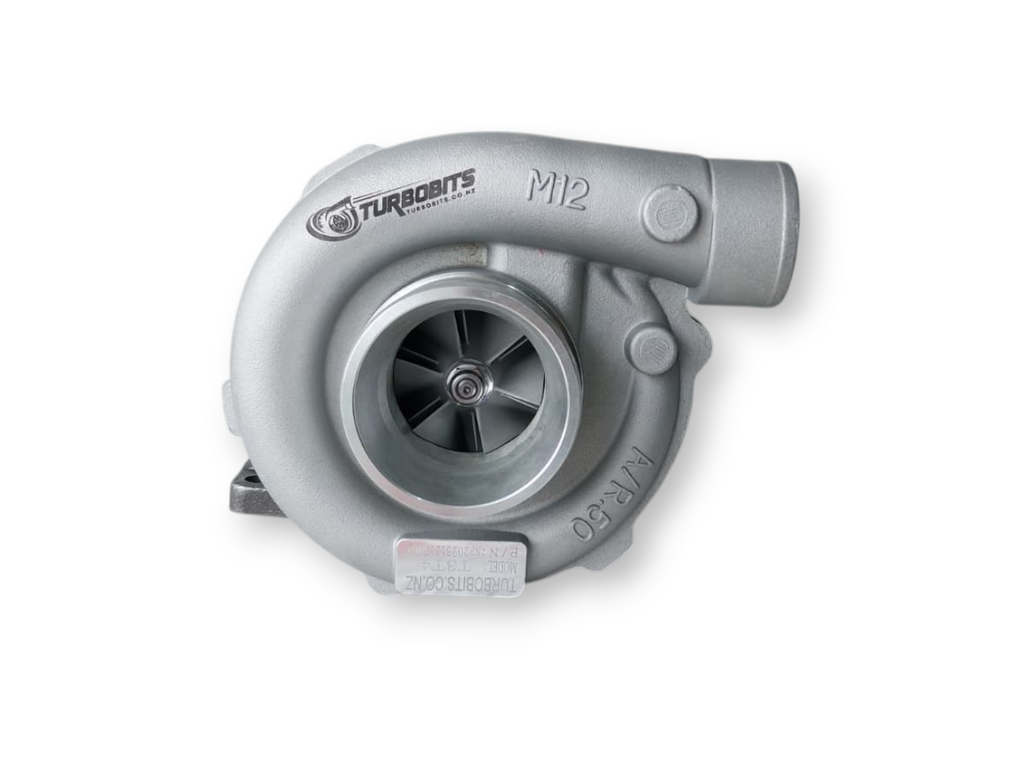

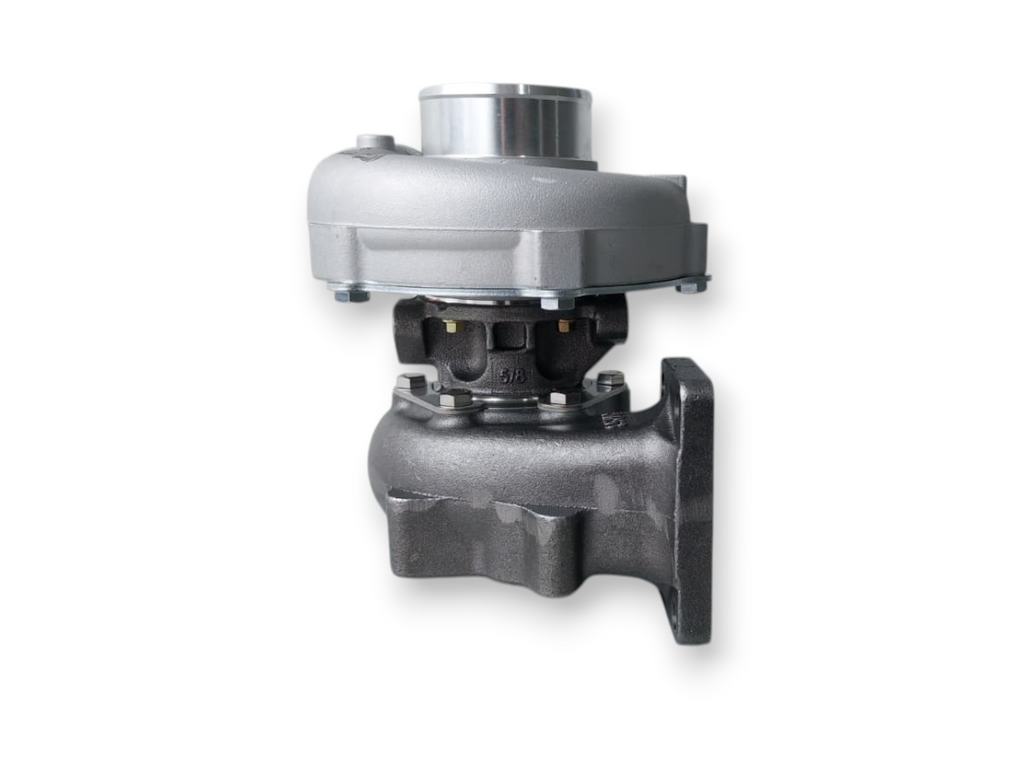

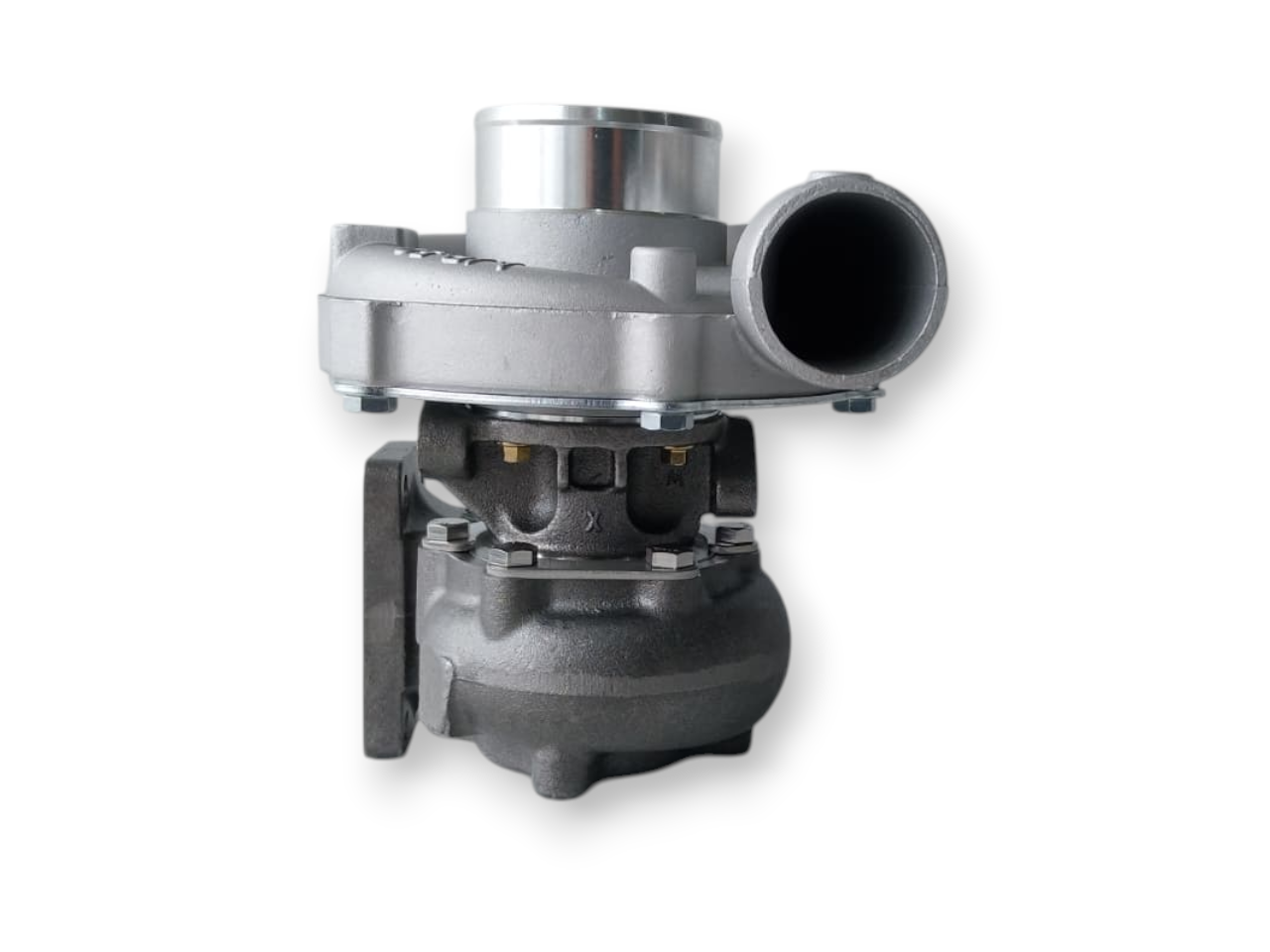

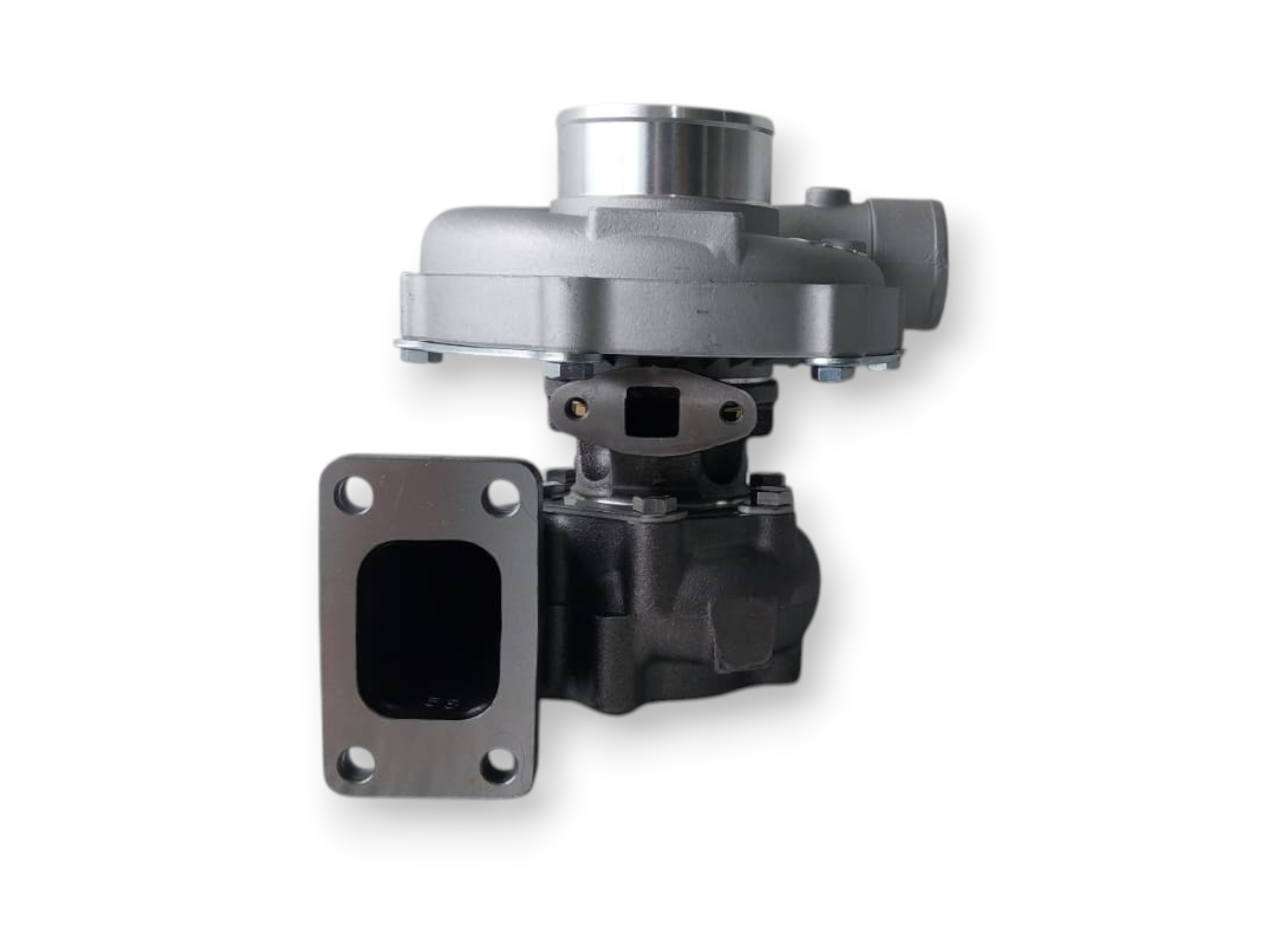

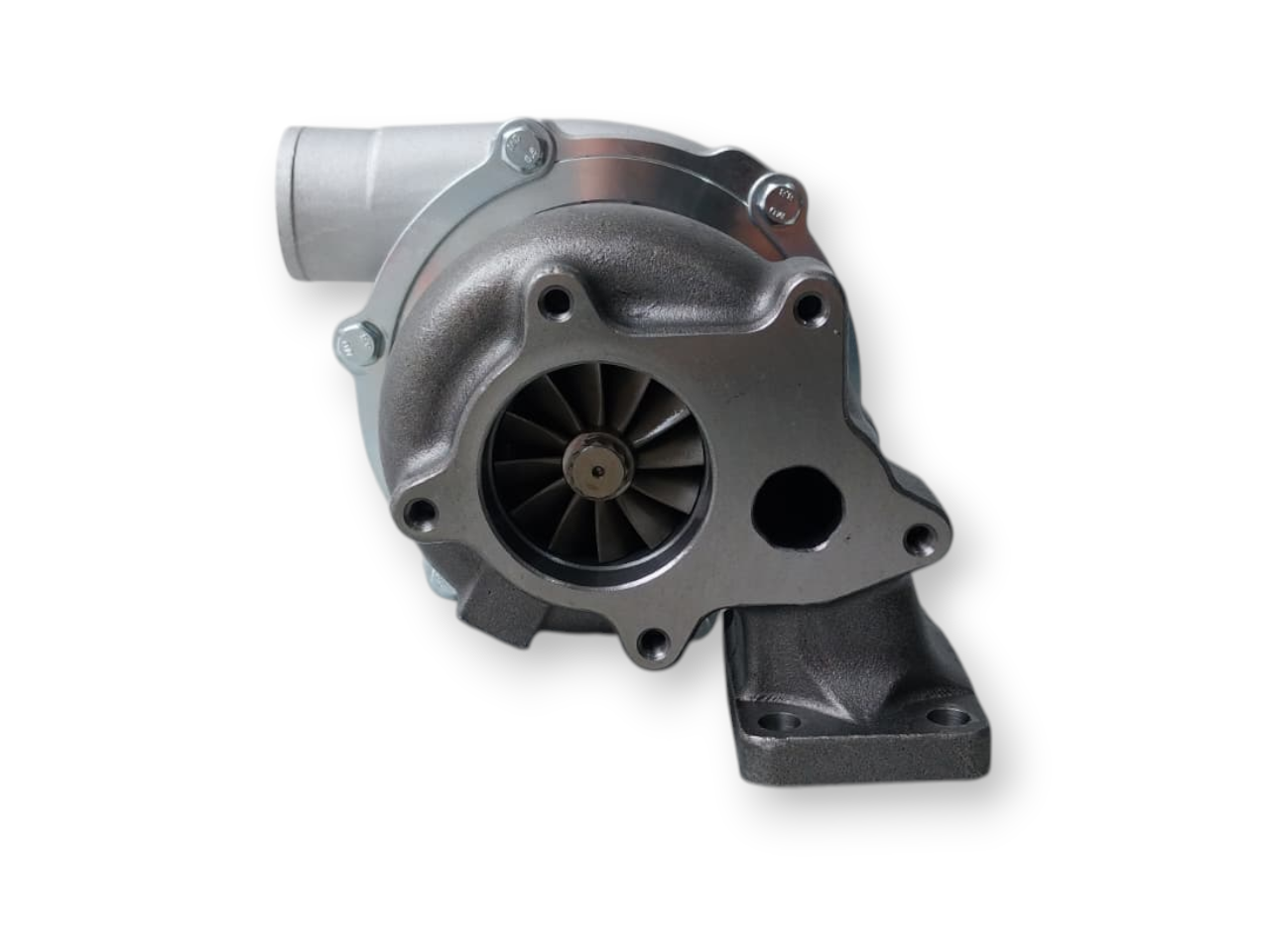

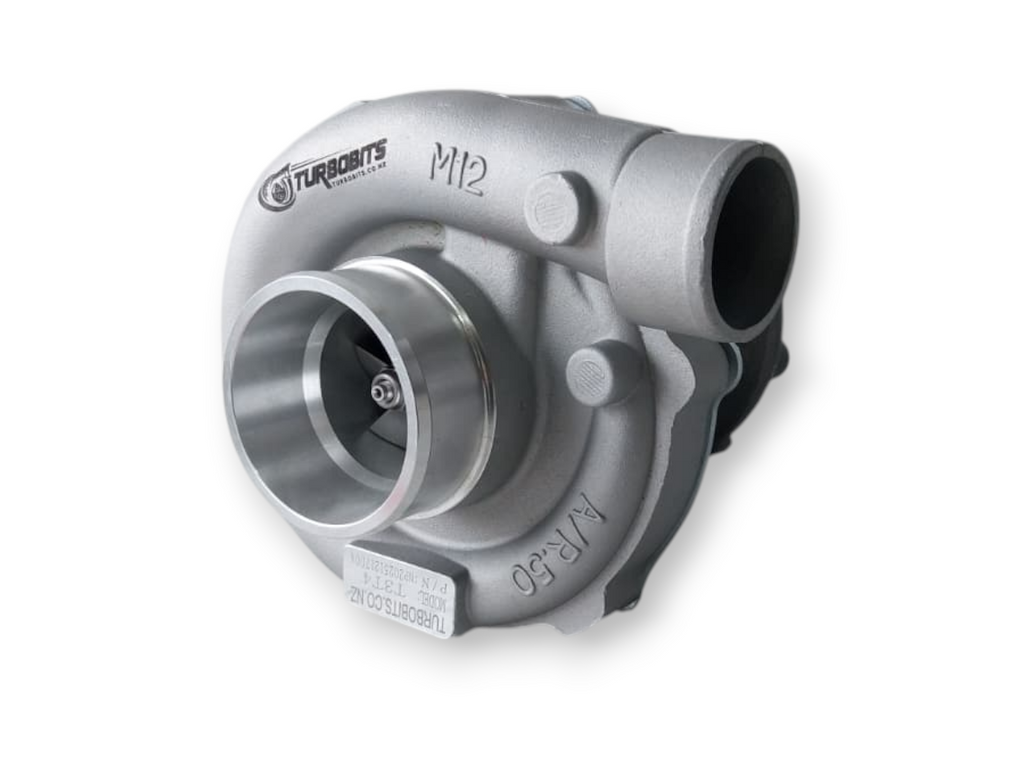

- Model: T3/T4 Turbocharger
- Bearing System: Journal bearing
- Flange: T3
- Rear Flange 5 bolt
- Compressor: A/R .50
- Turbine: A/R .63
- HP Rating: 250-450HP
- Engine size: 1600cc to 3200cc
- 100% Brand New.
- Intake Inlet/ Outlet 3.00"/ 2.00"
- Inlet / Outlet Diameter 3" / 2"
- Compressor A/R 0.50
- Compressor Inducer /Exducer 54.3mm / 82.00mm
- Exhaust (Turbo Manifold) Flange - Standard T3
- Exhaust (Downpipe) Flange Standard 2.5" T04E 5 bolt flange
- Turbine A/R 0.63
- Turbine Inducer / Exducer 65.2mm / 56mm
- The T3/T4 turbocharger is designed to be used on engines displacing 1.6L-3.2L and is typically good for around 450HP.
- They are also commonly used in twin turbo applications. In this case those figures would be doubled 3.2L-5.0L engines up to 900HP.
- Horsepower ratings are generally meant to express the turbochargers maximum airflow capability.
- Recommended boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar) and boost pressures should not exceed 30psi(2 Bar).
- Exceeding 21psi(1.5 Bar) of boost pressure can significantly reduce a turbochargers lifespan.
- Generally speaking 14psi(1 Bar) is good for a 100% increase in horsepower from a naturally aspirated engine.
Selection and installation notes
- Universal application. Additional parts will be needed to complete install
