Buy quality products from the knowledgeable turbo specialists with 15+ years in the business - Turbo Bits
The Race Port is famous for being an amazingly small and light BOV for turbocharged (replace with supercharged for the supercharger version) competition level engines.
Featuring our unique collar design and internal flow structures, it is 50% lighter and 25% smaller than the competition while flowing 330 CFM - making it the highest flowing BOV of its type on the market.
Very common 50mm / 52mm / 2" / 2.0" / 2.00" profiled inlet weld flange.

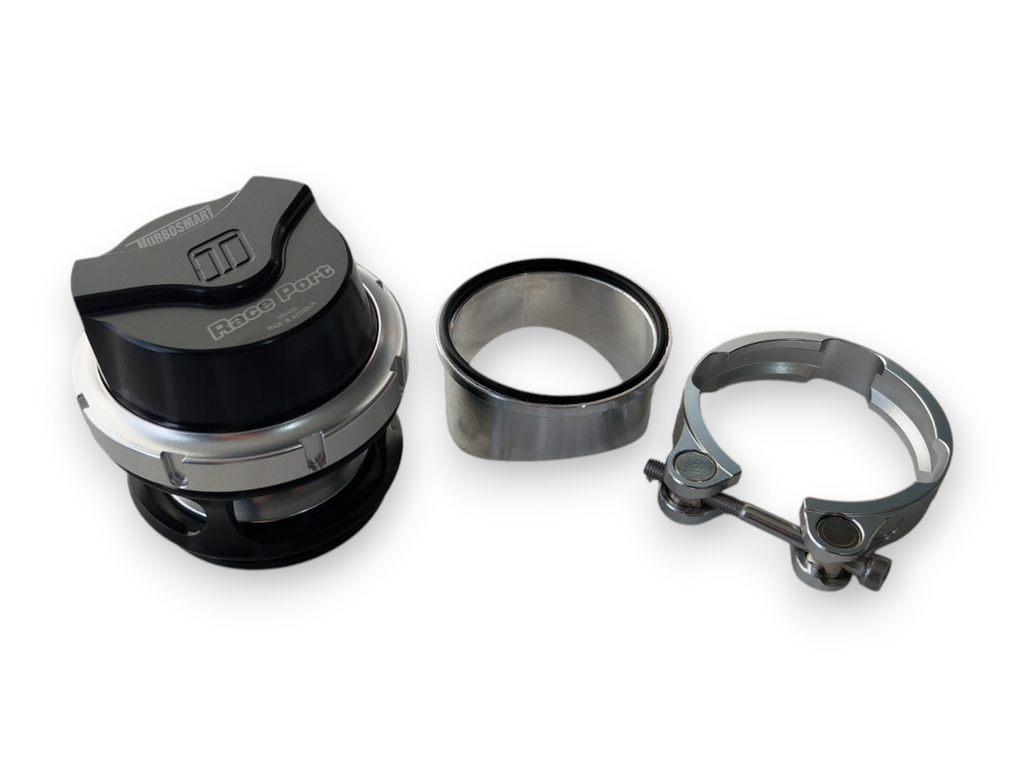

Supplied with
- Vacuum fittings
- profiled alloy weld flange
- V-band assembly,
- Blue Spring Rated -18 to -14 InHg (installed)
Billet 6000 series aluminium construction
Quick release v-band collar for ease of installation and removal
2.0" Inlet flows over 330 CFM
MILSPEC hard anodized valve guide and stem
Hi Temp Silicon Nomex diaphragm
Positive sealing valve seat
Twin 1/8"NPT pressure ports for convenient positioning
Collar secured cap for quick spring changes
4inHg to 26inHg activation range
5 user configurable corrosion resistant springs available
Valve position sensor option
Designed, manufactured and validated in-house at Turbosmart HQ
Suits large capacity turbocharger systems and high horsepower engines. Ideal for circuit and drag vehicles and trucks.
P/N: TS-0204-1132
