Descripción
Smaller, Lighter & Faster – The Turbosmart Turbochargers have been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both Motorsport, and performance enthusiasts alike.
The Turbosmart turbochargers come in oil cooled or water cooled turbochargers with lightweight stainless steel investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.
The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique T14 Inconel turbine wheel to ensure power at high loads and flow is maintained.
Turbosmart turbocharger range have taken a ‘whole of engine’ approach to increasing performance, aiming to achieve power through reduced back pressure and high performance turbines – while being smaller, lighter and faster in response than other solutions on the market.
Features:
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal AR’s and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

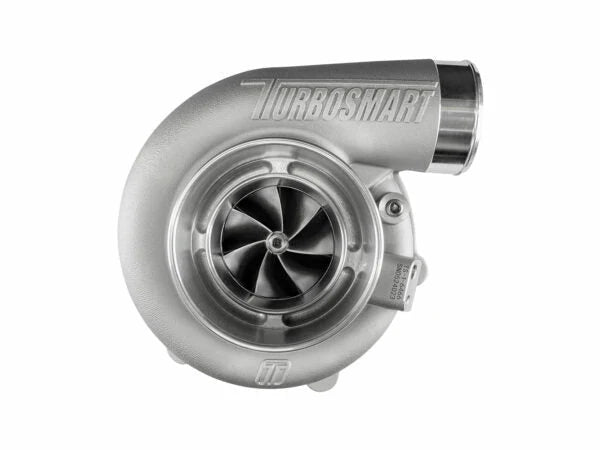

Turbosmart 6870C Specifications:
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 68mm
Turbine Exducer: 70mm
Turbine Outlet: V-Band (3.50″)
Available In:
Oil cooled Turbochargers ( TS-1 )
Rear Housing Options Available:
0.96 A/R V-band Flange
0.96 A/R T4 Flange
SUPPLIED WITH:
1 x Turbosmart Performance Turbocharger
1 x Weld Flanges (Turbine outlet)
1 x V-Band Clamps (Turbine outlet)
1 x Oil drain gasket
Turbosmart 6870C Turbocharger part numbers :
6870C Oil cooled Turbocharger with 0.96 A/R V-band Flange ( TS-1-6870C-VB096E )
6870C Oil cooled Turbocharger with 0.96 A/R T4 Flange ( TS-1-6870C-T4096E )
